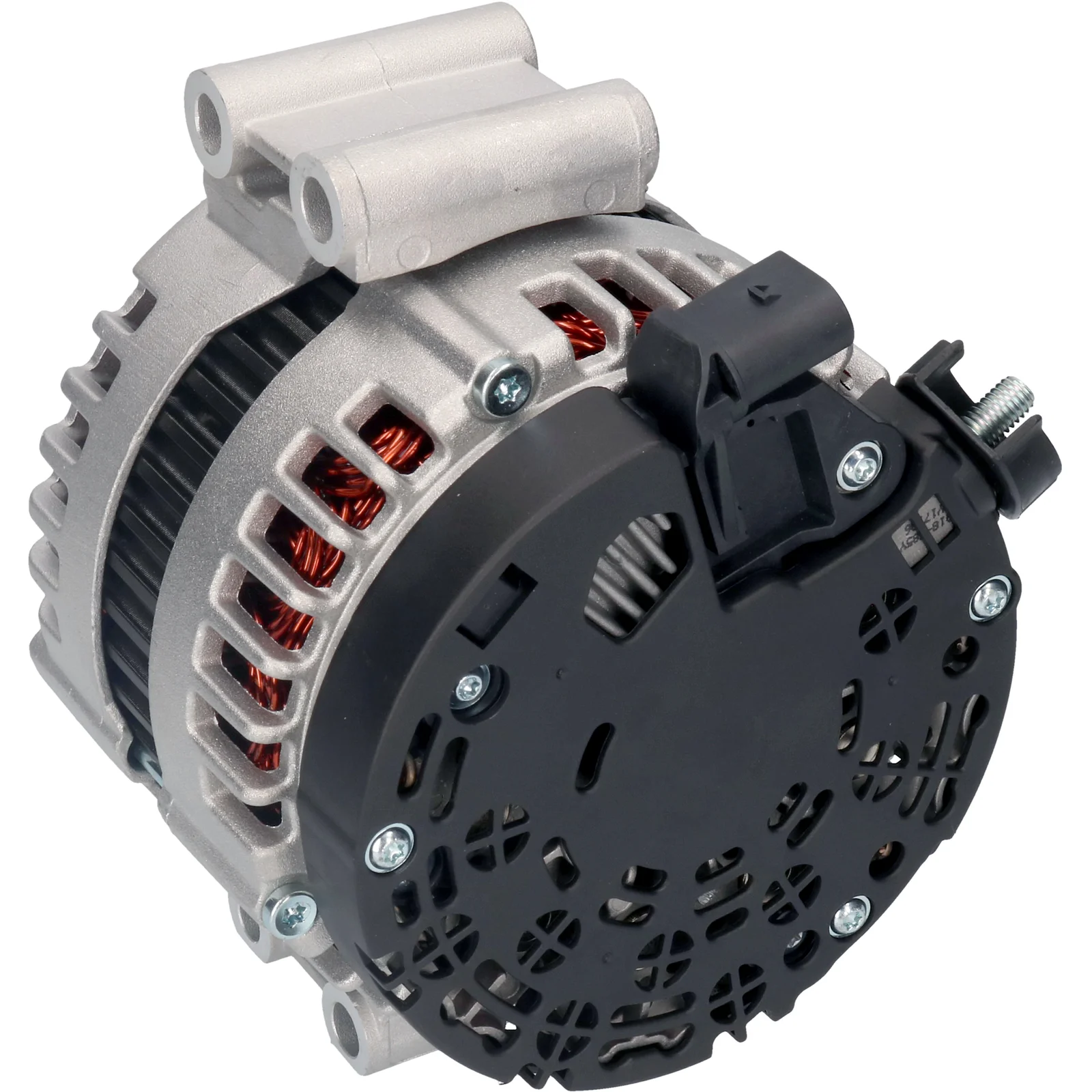

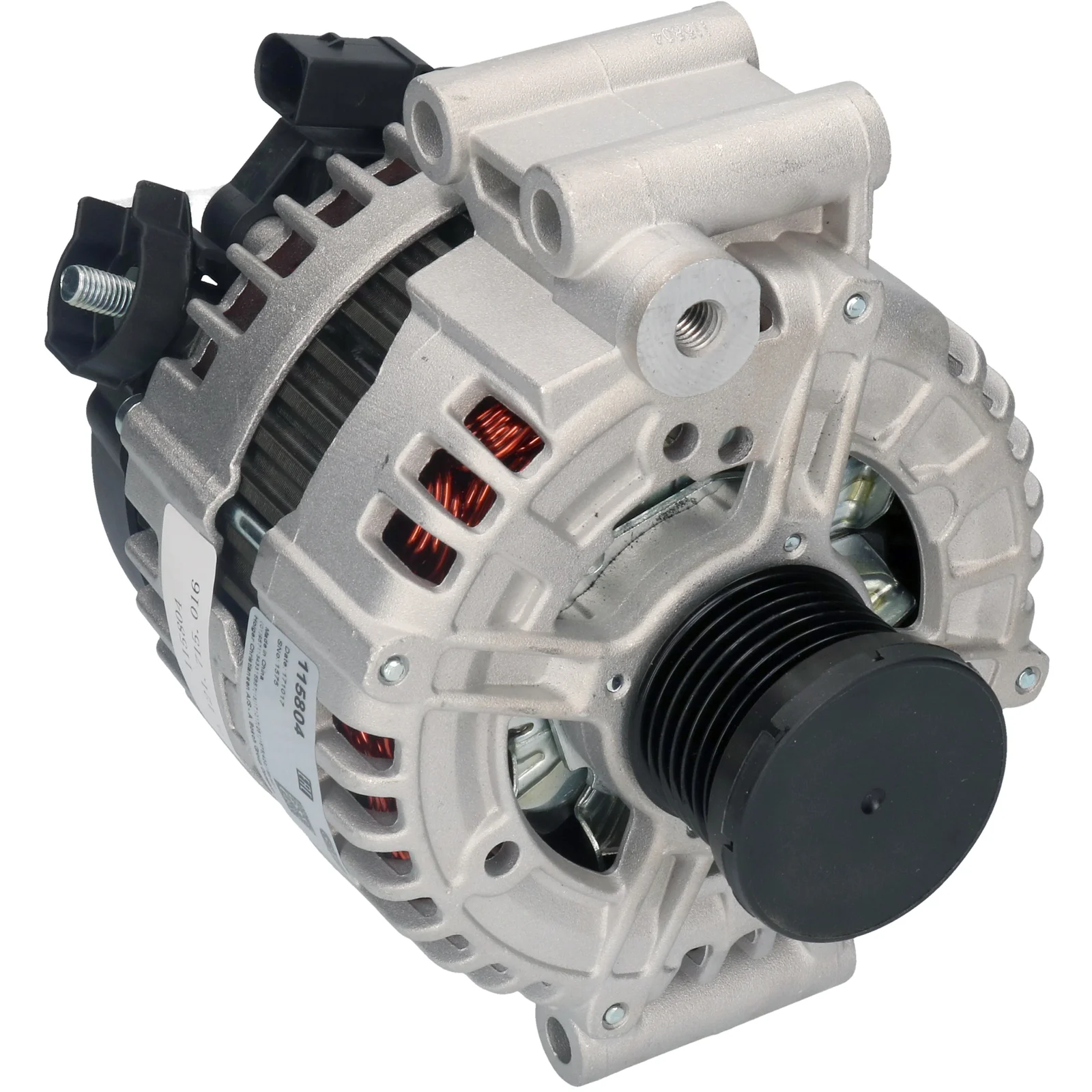

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115804

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 40.80

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 30.00
Width/holder arm: 62.50
Mount. bracket dist.: 40.80
Bracket hole: 9.50x10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.50
Belt. adj. bracket hole 2: 10.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 9
Rotation: CW
Plug no.: PL86
Total length mm: 178.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 40.80
Belt. adj. bracket hole 1 9.50
Belt. adj. bracket hole 2 10.50
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.50x10.50
Position/B+ in min. 9
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 30.00
Radius 86.00
Radius 2 86.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 178.00 mm
Width/holder arm 62.50
Amp 180

  • OEM
    F032115804, 7557789, 7558219, 7558220, 0121715016, 0121715116, 12317557789, 12317558219, 12317558220

  • Konkurrentreferens
    A0459, CAL10445, DRA0165, LRA03107, 28-5719, 215.181.1802, 215.548.180, 11302N, 113050, 440956, 9090690, 12090375, 32048837, 0986048830, 0986048833, 0986048837

  • Normaliserat artikelnummer
    a0459, cal10445, dra0165, f032115804, lra03107, 11302n, 113050, 285719, 440956, 7557789, 7558219, 7558220, 9090690, 12090375, 32048837, 0121715016, 0121715116, 215548180, 0986048830, 0986048833, 0986048837, 2151811802, 12317557789, 12317558219, 12317558220

  • Passar modeller
    BMW Model: 1 Model series: 135 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E88 Body: Convertible From date: 01-03-2008 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Coupe Model series: 335 I Model type: 335 i Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 335 i xDrive Model type: 335 i xDrive Size of motor: 3.0 Brand of engine: N54B30A Type description: E90 Body: Saloon From date: 01-05-2008 To date: 01-10-2011 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E91 Body: Estate From date: 01-09-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 335 Model type: xDrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe From date: 01-01-2009 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe From date: 01-11-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E91 Body: Estate From date: 01-09-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E92 Body: Coupe From date: 01-11-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N54B30A Type description: E90 From date: 01-03-2007 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N54B30A Type description: E91 Body: Estate From date: 01-03-2007 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N55B30A Type description: E90 From date: 01-03-2007 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N55B30A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 535 i Model type: 535 i Size of motor: 3.0 Brand of engine: N54B30A Type description: E60 Body: Saloon From date: 01-09-2007 To date: 01-03-2010 Fuel: Petrol Approved: Yes
    BMW Model: M1 Model series: M1 Size of motor: 3.0 Brand of engine: N54B30A Type description: E82 Body: Coupe From date: 01-03-2011 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 30.00
    Width/holder arm: 62.50
    Mount. bracket dist.: 40.80
    Bracket hole: 9.50x10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.50
    Belt. adj. bracket hole 2: 10.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 9
    Rotation: CW
    Plug no.: PL86
    Total length mm: 178.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 40.80
    Belt. adj. bracket hole 1 9.50
    Belt. adj. bracket hole 2 10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.50x10.50
    Position/B+ in min. 9
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 30.00
    Radius 86.00
    Radius 2 86.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 62.50
    Amp 180
  • Fordonsmatchning

    • OEM
      F032115804, 7557789, 7558219, 7558220, 0121715016, 0121715116, 12317557789, 12317558219, 12317558220

    • Konkurrentreferens
      A0459, CAL10445, DRA0165, LRA03107, 28-5719, 215.181.1802, 215.548.180, 11302N, 113050, 440956, 9090690, 12090375, 32048837, 0986048830, 0986048833, 0986048837

    • Normaliserat artikelnummer
      a0459, cal10445, dra0165, f032115804, lra03107, 11302n, 113050, 285719, 440956, 7557789, 7558219, 7558220, 9090690, 12090375, 32048837, 0121715016, 0121715116, 215548180, 0986048830, 0986048833, 0986048837, 2151811802, 12317557789, 12317558219, 12317558220

    • Passar modeller
      BMW Model: 1 Model series: 135 Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E88 Body: Convertible From date: 01-03-2008 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Coupe Model series: 335 I Model type: 335 i Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 335 i xDrive Model type: 335 i xDrive Size of motor: 3.0 Brand of engine: N54B30A Type description: E90 Body: Saloon From date: 01-05-2008 To date: 01-10-2011 Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E91 Body: Estate From date: 01-09-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 335 Model type: xDrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe From date: 01-01-2009 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe From date: 01-11-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E90 From date: 01-09-2008 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E91 Body: Estate From date: 01-09-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 335 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N55B30A Type description: E92 Body: Coupe From date: 01-11-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N54B30A Type description: E90 From date: 01-03-2007 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N54B30A Type description: E91 Body: Estate From date: 01-03-2007 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N54B30A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N55B30A Type description: E90 From date: 01-03-2007 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 335 Type of engine: Xi Size of motor: 3.0 Brand of engine: N55B30A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 535 i Model type: 535 i Size of motor: 3.0 Brand of engine: N54B30A Type description: E60 Body: Saloon From date: 01-09-2007 To date: 01-03-2010 Fuel: Petrol Approved: Yes
      BMW Model: M1 Model series: M1 Size of motor: 3.0 Brand of engine: N54B30A Type description: E82 Body: Coupe From date: 01-03-2011 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
