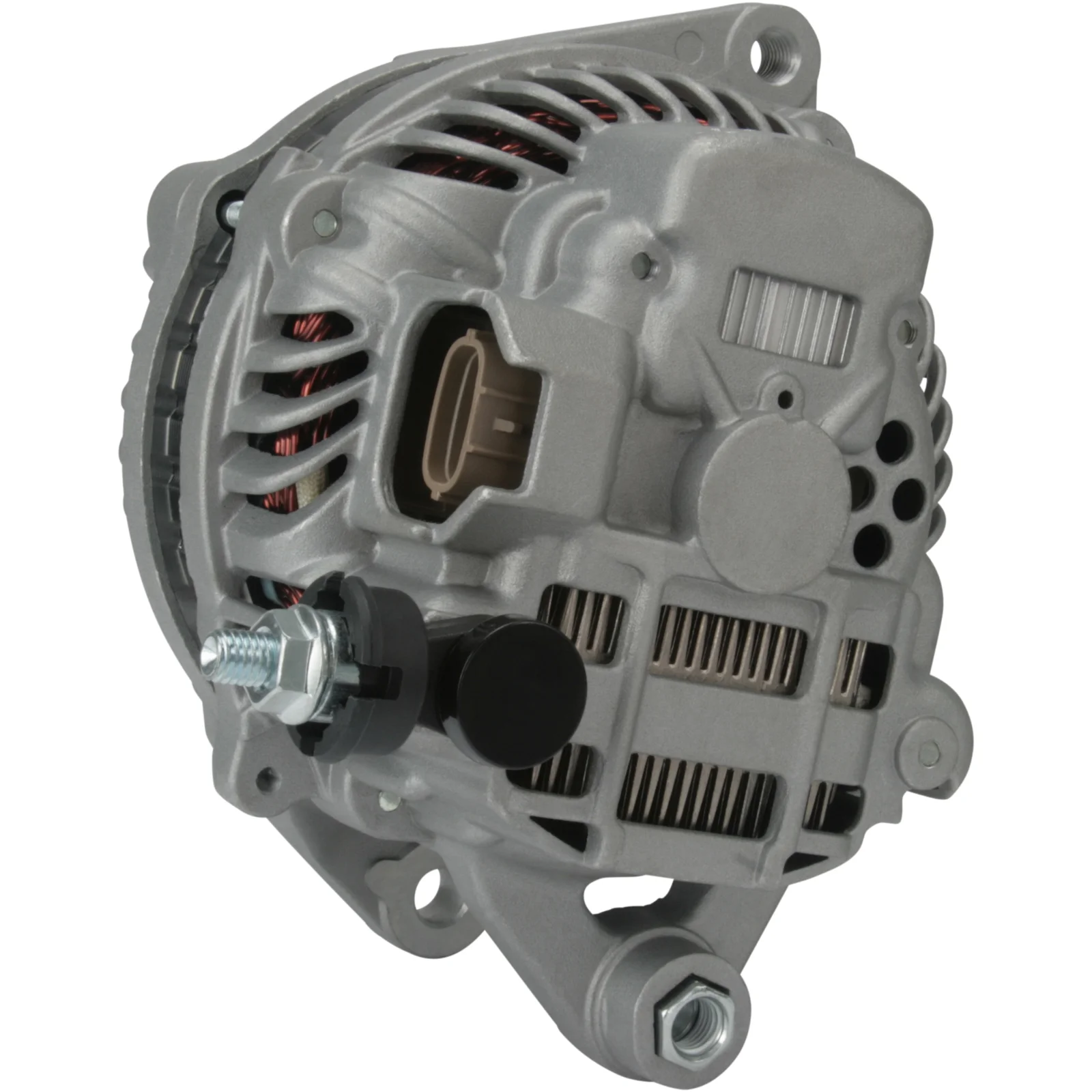

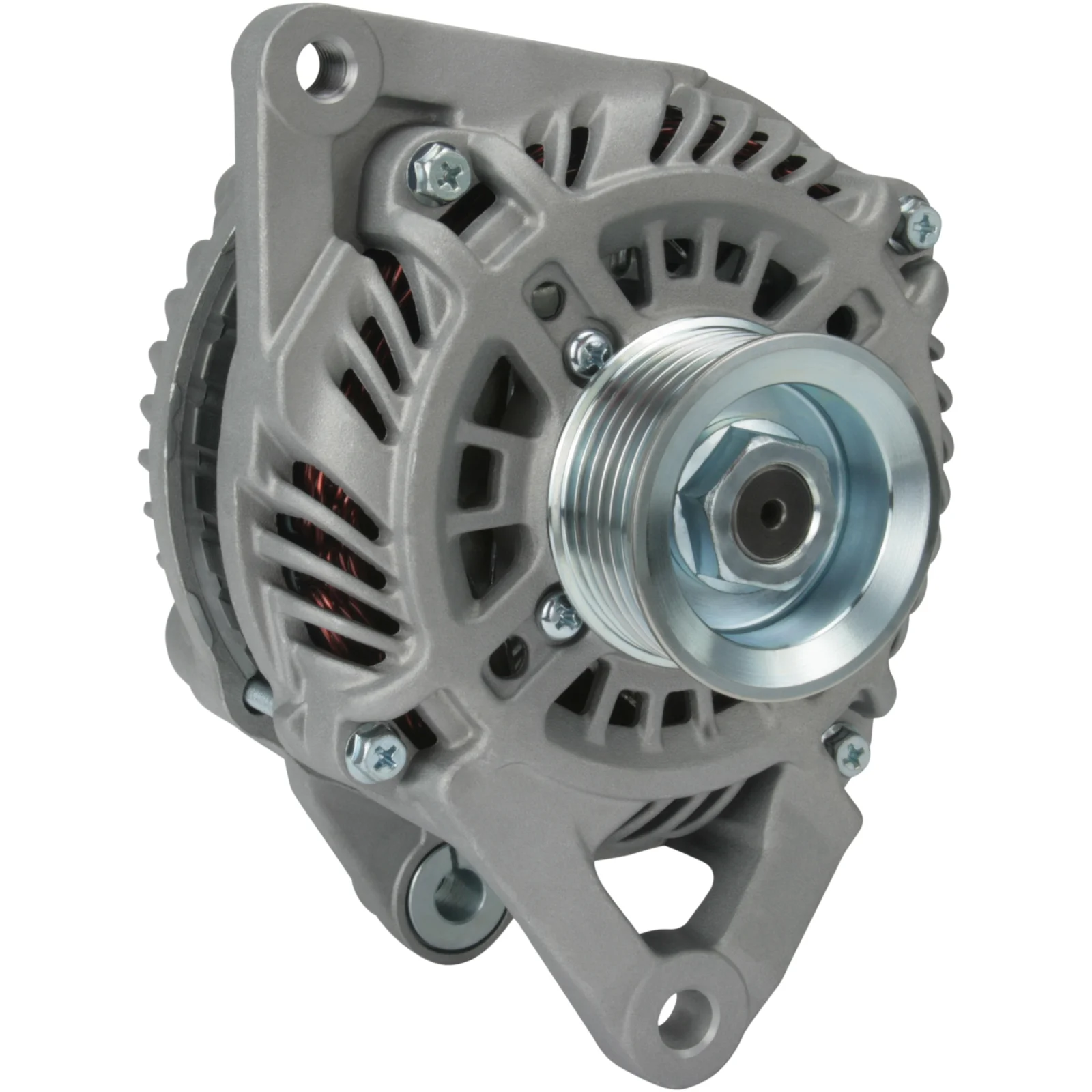

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115795

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 37.30
Width/holder arm: 13.00
Mount. bracket dist.: 66.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: M10-1.25
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 44
D+ Size: Plug
Rotation: CW
Plug no.: PL139
Pulley: SP
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M10-1.25
Belt. adj. brackethole pos. 53
Plug no. PL139
Bracket hole 10.50
Position/B+ in min. 44
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 37.30
Radius 90.00
D+ Size Plug
Radius 2 90.00
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 13.00
Amp 90

  • OEM
    A002TG1391, a2tg1391, A2TG1391ZD, F032115795, ZJ38-18-300, 1986A01412, 2042

  • Konkurrentreferens
    A5069, CAL35263, DRA0639, F042205025, F042303122, F042A03122, LRA03482, 8EL012430-681, 8EL738212-681, 27-6592, 145.557.090, 224.305.902, 11578, 11578N, 209405, 209405A, 440914, 443157, 443159, 12060970, 0986082430

  • Normaliserat artikelnummer
    a002tg1391, a2tg1391, a2tg1391zd, a5069, cal35263, dra0639, f032115795, f042205025, f042303122, f042a03122, lra03482, zj3818300, 8el012430681, 8el738212681, 1986a01412, 2042, 11578, 11578n, 209405, 209405a, 276592, 440914, 443157, 443159, 12060970, 145557090, 224305902, 0986082430

  • Passar modeller
    Mazda Model: 2 Model series: 2 Model type: (DE3FS) Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE_, DH_ Body: Hatchback Fuel: Petrol Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: BiFuel Size of motor: 1.3 Brand of engine: ZJ46 Type description: DE Body: Hatchback From date: 01-05-2011 To date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: BiFuel Type of engine: VTi Size of motor: 1.3 Brand of engine: ZJ46 Type description: DE Body: Hatchback From date: 01-05-2011 To date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE Body: Hatchback From date: 01-01-2010 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.5 Brand of engine: ZY05 Type description: DE Body: Hatchback From date: 01-06-2011 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.5 Brand of engine: ZY66 Type description: DE Body: Hatchback From date: 01-06-2011 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE Body: Hatchback From date: 01-10-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-DE Type description: DE Body: Hatchback From date: 01-07-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-VE Type description: DE Body: Hatchback From date: 01-07-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-VE Type description: DE_, DH_ Body: Hatchback From date: 01-10-2007 To date: 01-06-2015 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Saloon Size of motor: 1.6 Brand of engine: Z6Y3 Type description: BM_, BN_ Body: Saloon From date: 01-09-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Size of motor: 1.6 Brand of engine: Z6Y3 Type description: BM, BN Body: Hatchback From date: 01-09-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
    Mazda Model: 3 Model series: 3 Type of engine: MZR Size of motor: 1.6 Brand of engine: Z6 Type description: BL Body: Hatchback From date: 01-01-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Type of engine: MZR Size of motor: 1.6 Brand of engine: Z6 Type description: BL Body: Hatchback From date: 01-12-2008 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Mazda Model: 3 Model series: 3 Type of engine: MZR Size of motor: 1.6 Brand of engine: Z6 Type description: BL From date: 01-12-2008 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 37.30
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: M10-1.25
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 44
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL139
    Pulley: SP
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M10-1.25
    Belt. adj. brackethole pos. 53
    Plug no. PL139
    Bracket hole 10.50
    Position/B+ in min. 44
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 37.30
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A002TG1391, a2tg1391, A2TG1391ZD, F032115795, ZJ38-18-300, 1986A01412, 2042

    • Konkurrentreferens
      A5069, CAL35263, DRA0639, F042205025, F042303122, F042A03122, LRA03482, 8EL012430-681, 8EL738212-681, 27-6592, 145.557.090, 224.305.902, 11578, 11578N, 209405, 209405A, 440914, 443157, 443159, 12060970, 0986082430

    • Normaliserat artikelnummer
      a002tg1391, a2tg1391, a2tg1391zd, a5069, cal35263, dra0639, f032115795, f042205025, f042303122, f042a03122, lra03482, zj3818300, 8el012430681, 8el738212681, 1986a01412, 2042, 11578, 11578n, 209405, 209405a, 276592, 440914, 443157, 443159, 12060970, 145557090, 224305902, 0986082430

    • Passar modeller
      Mazda Model: 2 Model series: 2 Model type: (DE3FS) Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE_, DH_ Body: Hatchback Fuel: Petrol Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: BiFuel Size of motor: 1.3 Brand of engine: ZJ46 Type description: DE Body: Hatchback From date: 01-05-2011 To date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: BiFuel Type of engine: VTi Size of motor: 1.3 Brand of engine: ZJ46 Type description: DE Body: Hatchback From date: 01-05-2011 To date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE Body: Hatchback From date: 01-01-2010 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.5 Brand of engine: ZY05 Type description: DE Body: Hatchback From date: 01-06-2011 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.5 Brand of engine: ZY66 Type description: DE Body: Hatchback From date: 01-06-2011 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE Body: Hatchback From date: 01-10-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-DE Type description: DE Body: Hatchback From date: 01-07-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-VE Type description: DE Body: Hatchback From date: 01-07-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-VE Type description: DE_, DH_ Body: Hatchback From date: 01-10-2007 To date: 01-06-2015 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Saloon Size of motor: 1.6 Brand of engine: Z6Y3 Type description: BM_, BN_ Body: Saloon From date: 01-09-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Size of motor: 1.6 Brand of engine: Z6Y3 Type description: BM, BN Body: Hatchback From date: 01-09-2013 To date: 01-05-2019 Fuel: Petrol Approved: Yes
      Mazda Model: 3 Model series: 3 Type of engine: MZR Size of motor: 1.6 Brand of engine: Z6 Type description: BL Body: Hatchback From date: 01-01-2010 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Type of engine: MZR Size of motor: 1.6 Brand of engine: Z6 Type description: BL Body: Hatchback From date: 01-12-2008 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
      Mazda Model: 3 Model series: 3 Type of engine: MZR Size of motor: 1.6 Brand of engine: Z6 Type description: BL From date: 01-12-2008 To date: 01-09-2014 Fuel: Gasoline Approved: Yes
