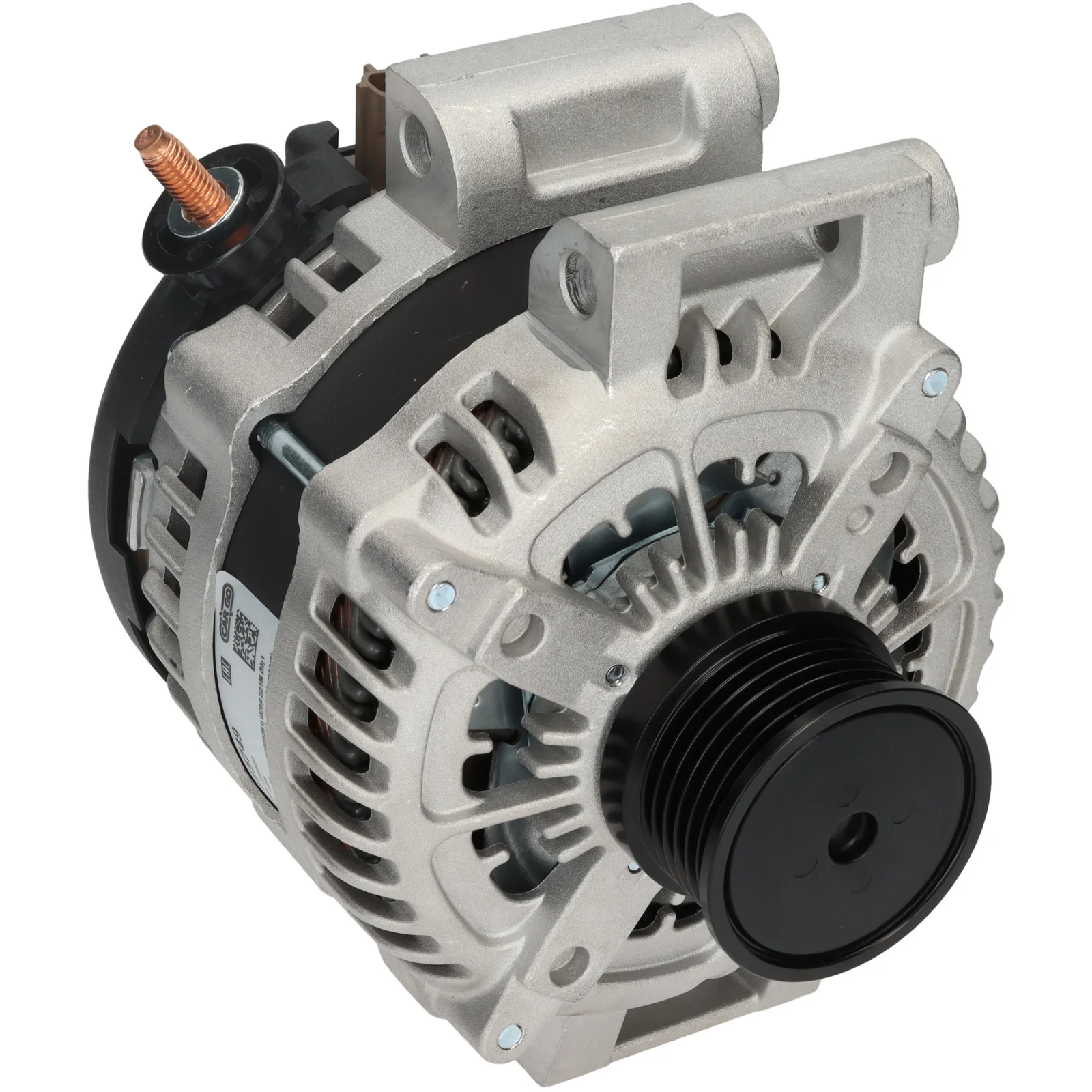

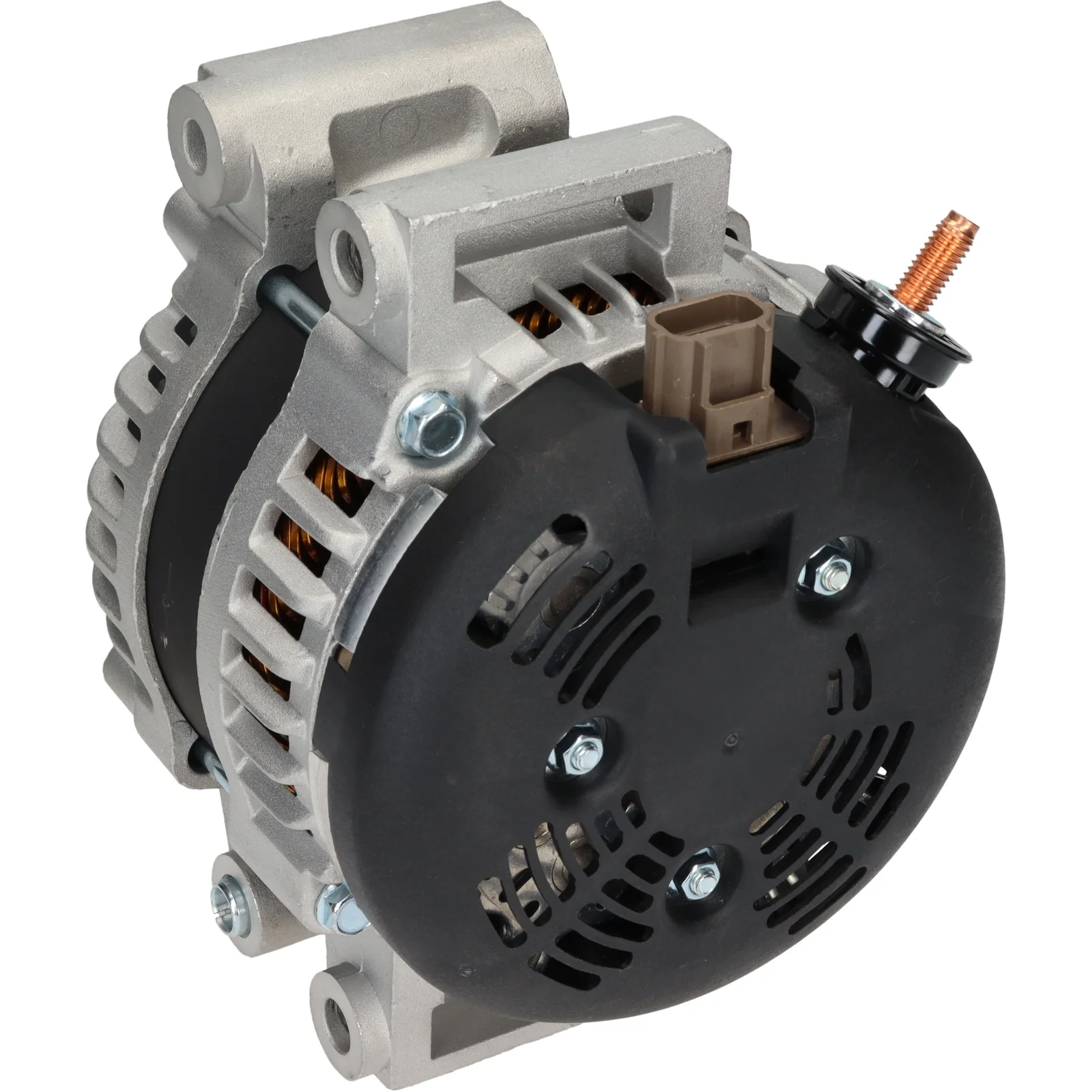

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115749

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 41.50

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 52.00
Width/holder arm: 70.00
Mount. bracket dist.: 41.50
Bracket hole: 8.90
Belt. adj. bracket hole 1: 8.20x9.50
Belt. adj. bracket hole 2: 10.50
Pulley dia.: 52.50
Grooves/pulley: 6
Radius: 79.50
Radius 2: 83.50
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL154
Total length mm: 170.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 41.50
Belt. adj. bracket hole 1 8.20x9.50
Belt. adj. bracket hole 2 10.50
Plug no. PL154
Bracket hole 8.90
Position/B+ in min. 6
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 52.00
Radius 79.50
Radius 2 83.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 170.00 mm
Width/holder arm 70.00
Amp 220

  • OEM
    F032115749, K04801835AB, k04801835ab, K04801835AD, P04801835AB, P04801835AC, 104210-6590, 104210-6591, 104210-6592, 04801835AB, 04801835AC, 04801835AD, 4801835AB, 4801835AD

  • Konkurrentreferens
    A6274, A6274S, CAL40415, dra1366, 8EL015630-721, 28-6964, 570.110.2202, 835.922.220, 20402N, 20402N-OS, 20402R, 554253RI, 12090731

  • Normaliserat artikelnummer
    a6274, a6274s, cal40415, dra1366, f032115749, k04801835ab, k04801835ad, p04801835ab, p04801835ac, 8el015630721, 20402n, 20402nos, 20402r, 286964, 554253ri, 04801835ab, 04801835ac, 04801835ad, 4801835ab, 4801835ad, 12090731, 835922220, 1042106590, 1042106591, 1042106592, 5701102202

  • Passar modeller
    Chrysler Model: 300 C Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF From date: 01-09-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD V6 Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 Body: SUV From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD V6 Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: TD V6 Size of motor: 3.0 Type description: WK, WK2 From date: 01-04-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 Body: SUV From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK From date: 01-02-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Van Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK2 Body: SUV Van From date: 01-01-2017 Fuel: Diesel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Van Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK2 Body: SUV Van From date: 01-07-2013 Fuel: Diesel Approved: Yes
    Lancia Model: Thema Model series: Thema Type of engine: V6 CRD Size of motor: 3.0 Brand of engine: EXF From date: 01-09-2011 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 52.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 41.50
    Bracket hole: 8.90
    Belt. adj. bracket hole 1: 8.20x9.50
    Belt. adj. bracket hole 2: 10.50
    Pulley dia.: 52.50
    Grooves/pulley: 6
    Radius: 79.50
    Radius 2: 83.50
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL154
    Total length mm: 170.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 41.50
    Belt. adj. bracket hole 1 8.20x9.50
    Belt. adj. bracket hole 2 10.50
    Plug no. PL154
    Bracket hole 8.90
    Position/B+ in min. 6
    Pulley SP/FW
    Pulley dia. 52.50
    Pulley dist. 52.00
    Radius 79.50
    Radius 2 83.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 70.00
    Amp 220
  • Fordonsmatchning

    • OEM
      F032115749, K04801835AB, k04801835ab, K04801835AD, P04801835AB, P04801835AC, 104210-6590, 104210-6591, 104210-6592, 04801835AB, 04801835AC, 04801835AD, 4801835AB, 4801835AD

    • Konkurrentreferens
      A6274, A6274S, CAL40415, dra1366, 8EL015630-721, 28-6964, 570.110.2202, 835.922.220, 20402N, 20402N-OS, 20402R, 554253RI, 12090731

    • Normaliserat artikelnummer
      a6274, a6274s, cal40415, dra1366, f032115749, k04801835ab, k04801835ad, p04801835ab, p04801835ac, 8el015630721, 20402n, 20402nos, 20402r, 286964, 554253ri, 04801835ab, 04801835ac, 04801835ad, 4801835ab, 4801835ad, 12090731, 835922220, 1042106590, 1042106591, 1042106592, 5701102202

    • Passar modeller
      Chrysler Model: 300 C Model series: 300 C Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF From date: 01-09-2011 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD V6 Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 Body: SUV From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: CRD V6 Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 From date: 01-07-2013 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: 4x4 Type of engine: TD V6 Size of motor: 3.0 Type description: WK, WK2 From date: 01-04-2014 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK, WK2 Body: SUV From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK From date: 01-02-2011 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Van Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK2 Body: SUV Van From date: 01-01-2017 Fuel: Diesel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Van Type of engine: CRD Size of motor: 3.0 Brand of engine: EXF Type description: WK2 Body: SUV Van From date: 01-07-2013 Fuel: Diesel Approved: Yes
      Lancia Model: Thema Model series: Thema Type of engine: V6 CRD Size of motor: 3.0 Brand of engine: EXF From date: 01-09-2011 To date: 01-10-2014 Fuel: Diesel Approved: Yes
