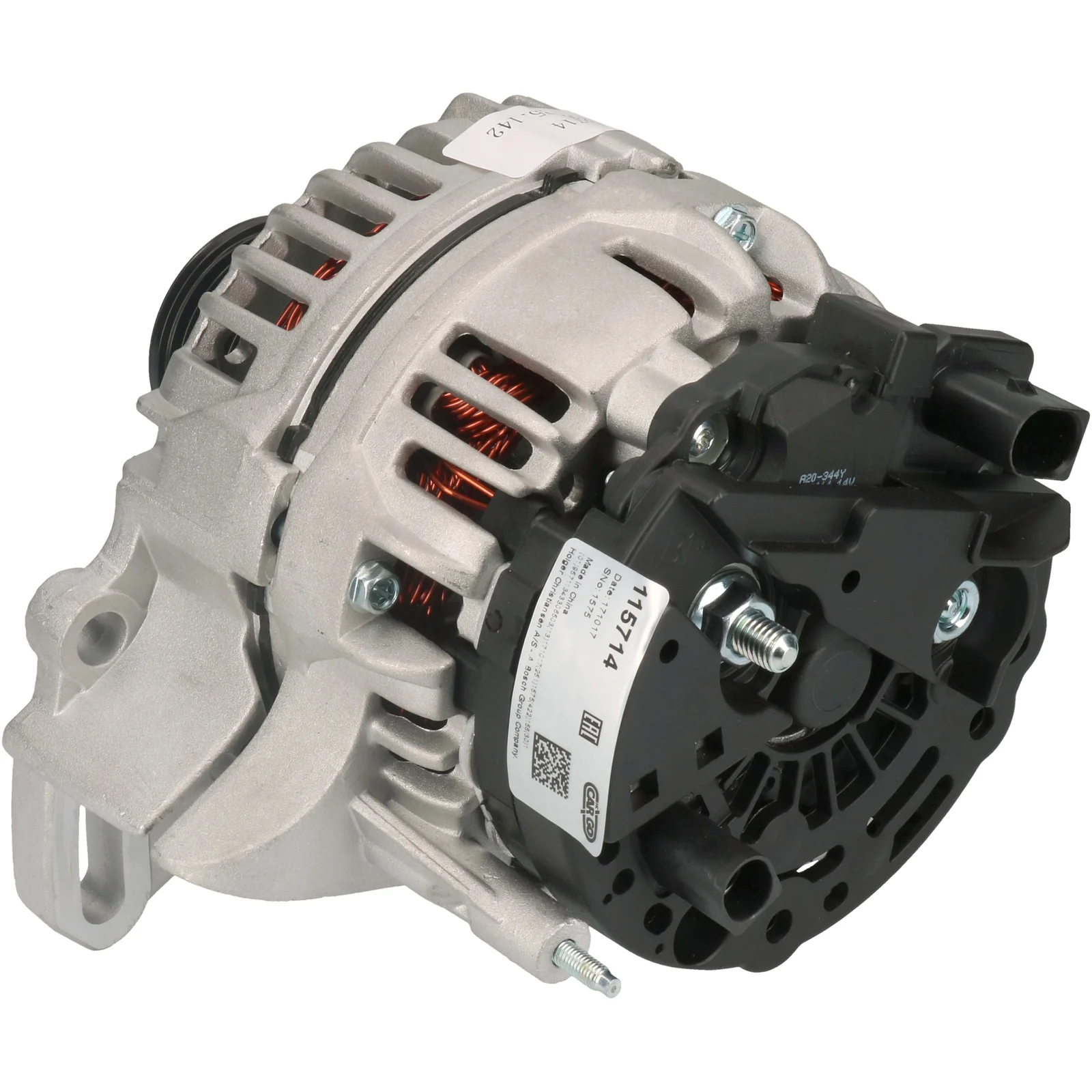

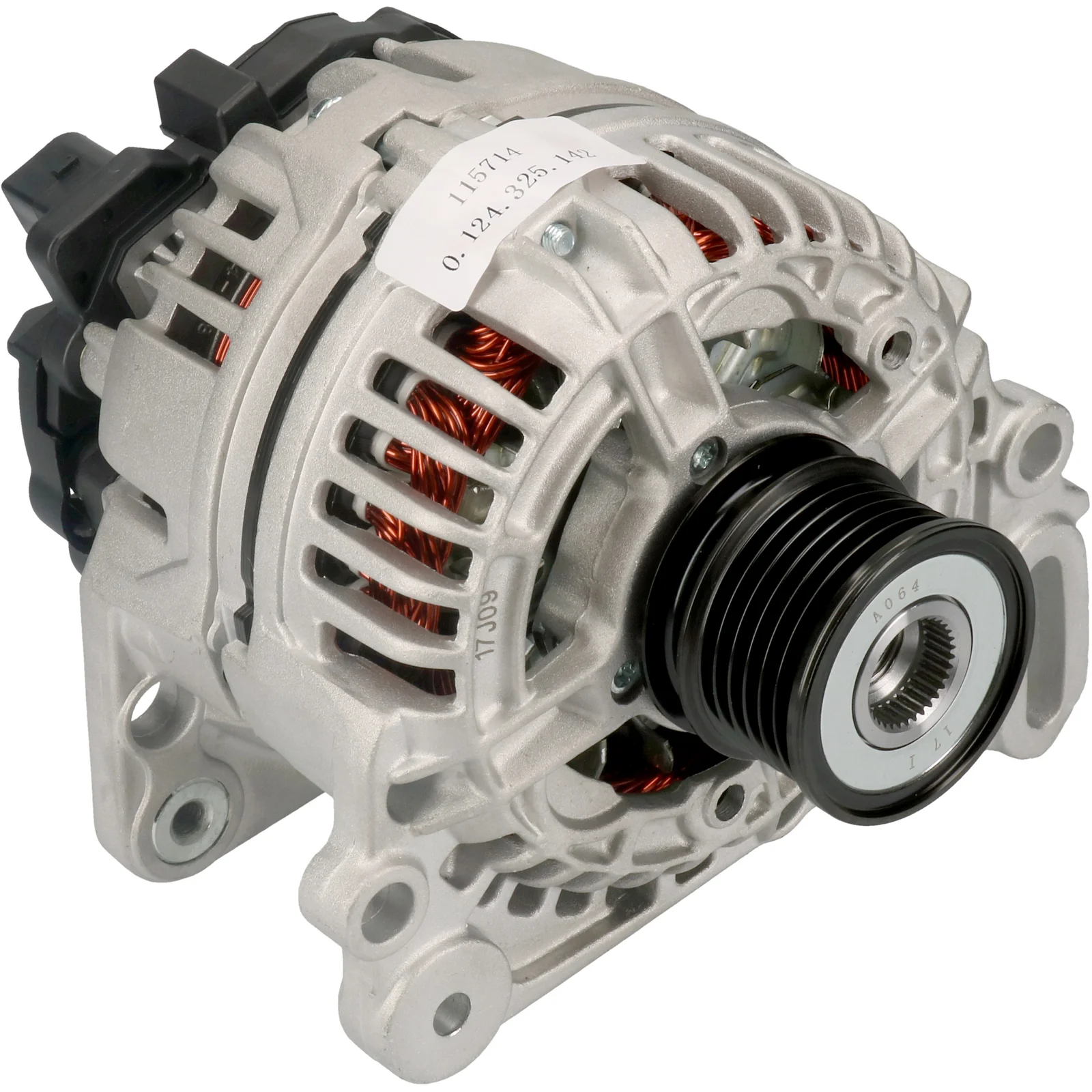

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115714

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 62.00

Beskrivning

Voltage: 14
Amp: 110
Pulley dist.: 40.00
Width/holder arm: 14.00
Mount. bracket dist.: 62.00
Bracket hole: 8.00
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: 10.00x39.00
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
B+: M8
Position/B+ in min.: 59
D+ Size: Plug
Rotation: CW
Plug no.: PL61
W plug type: Plug
Total length mm: 197.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 62.00
Belt. adj. bracket hole 1 10.00x39.00
Belt. adj. brackethole pos. 15
Plug no. PL61
Bracket hole 8.00
Position/B+ in min. 59
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 40.00
Radius 90.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
W plug type Plug
Total length 197.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F032115714, 2065ir, 045903023H, 045903023HX, 0124325142

  • Konkurrentreferens
    A0501, CAL10561, DRA0942, LRA03403, 28-6515, 211.380.1102, 305.553.110, 440885, 443258, 554197RI, 12090576, 32443258

  • Normaliserat artikelnummer
    a0501, cal10561, dra0942, f032115714, lra03403, 2065ir, 286515, 440885, 443258, 554197ri, 12090576, 32443258, 045903023h, 045903023hx, 0124325142, 305553110, 2113801102

  • Passar modeller
    Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6L2 From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6L2 From date: 01-05-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6L2 From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6J1 Body: Coupe From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6J5 Body: Hatchback From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6L1 Body: Hatchback From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6L1 Body: Hatchback From date: 01-05-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6L1 Body: Hatchback From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 5J7 Body: Hatchback From date: 01-01-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 5J7 Body: Hatchback From date: 01-02-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 5J7 Body: Hatchback From date: 01-01-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 5J7 Body: Hatchback From date: 01-04-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: MPV From date: 01-07-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.9 Brand of engine: BSW Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Saloon Size of motor: 1.6 Brand of engine: BCD Type description: 9N4 Body: Saloon From date: 01-09-2004 To date: 01-12-2006 Fuel: Petrol Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BWB Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
