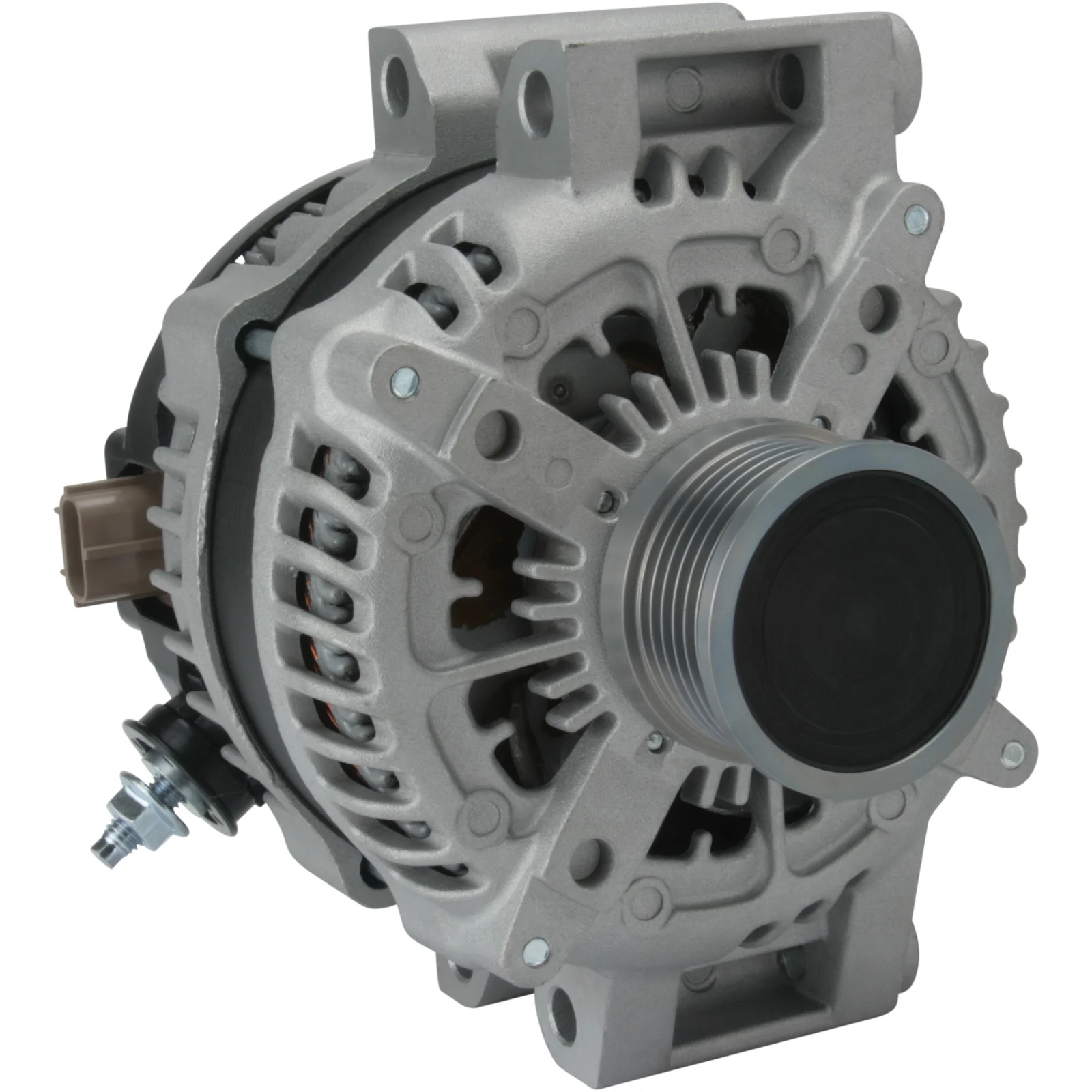

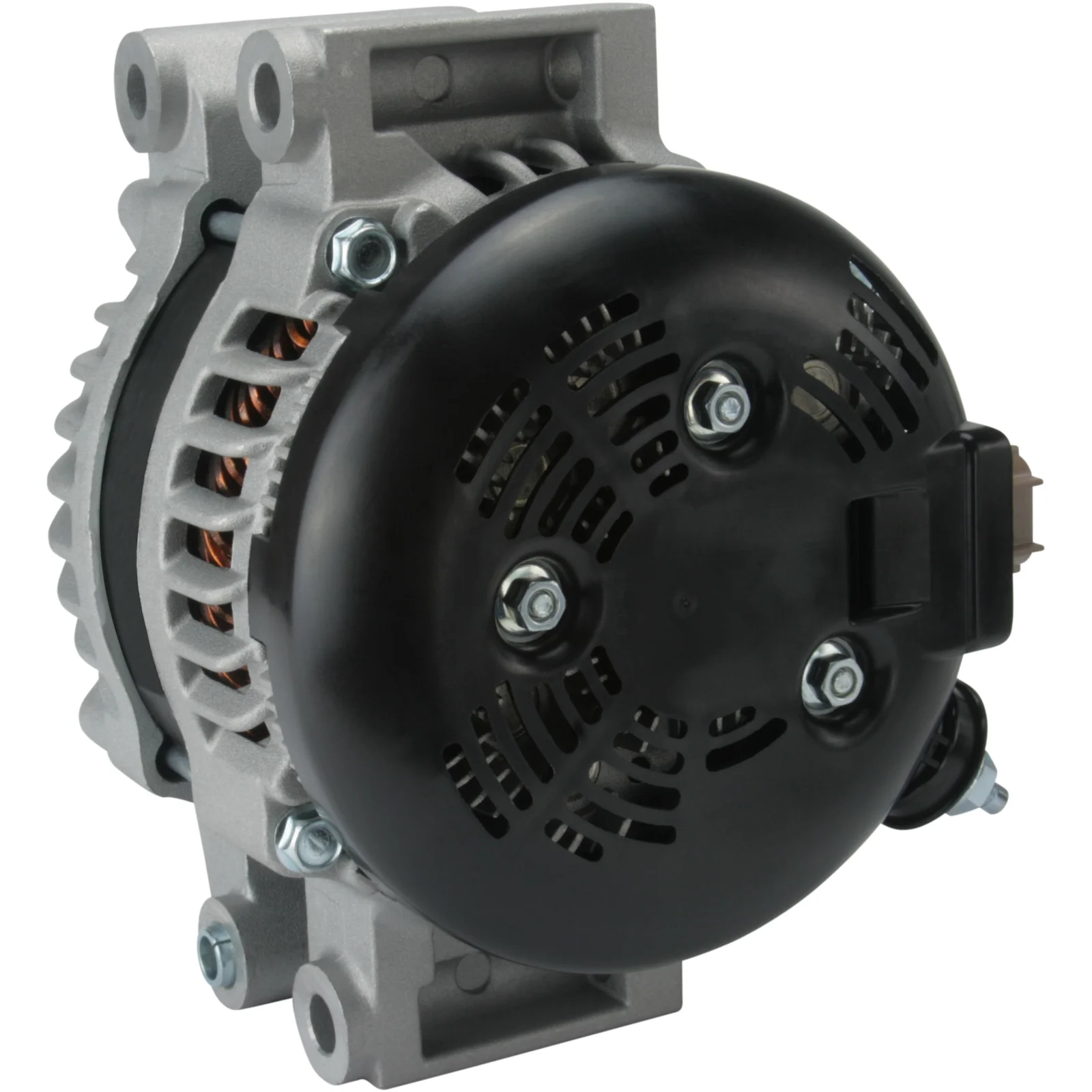

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115701

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 42.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 52.00
Width/holder arm: 70.00
Mount. bracket dist.: 42.00
Bracket hole: 10.50
Bracket hole 2: 9.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.50
Belt. adj. bracket hole 2: 10.50
Pulley dia.: 52.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL154
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 42.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 10.50
Belt. adj. brackethole pos. 60
Plug no. PL154
Bracket hole 10.50
Bracket hole 2 9.20
Position/B+ in min. 20
Prod. info BN
Pulley SP/FW
Pulley dia. 52.00
Pulley dist. 52.00
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Width/holder arm 70.00
Amp 220

  • OEM
    F032115701, K04801338AB, 104210-6080, 104210-6081, 104210-6082, 04801338AB, 04801338AD, 4801338AB

  • Konkurrentreferens
    A6251, CAL40361, DRA0957, LRA03532, 28-6642, 570.103.2102, 835.584.210, 20392N-OS, 20392R, 113822, 12061003

  • Normaliserat artikelnummer
    a6251, cal40361, dra0957, f032115701, k04801338ab, lra03532, 20392nos, 20392r, 113822, 286642, 04801338ab, 04801338ad, 4801338ab, 12061003, 835584210, 1042106080, 1042106081, 1042106082, 5701032102

  • Passar modeller
    Dodge Model: Nitro Model series: Nitro Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Dodge Model: Nitro Model series: Nitro Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Dodge Model: Nitro Model series: Nitro Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Dodge Model: Nitro Model series: Nitro Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Dodge Model: Nitro Model series: Nitro Van Model type: 4WD Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR,ENS Type description: KA Body: Box Body / Estate From date: 01-10-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Dodge Model: Nitro Model series: Nitro Van Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: KA Body: Box Body / Estate From date: 01-06-2007 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: 4WD Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: KK From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: KK From date: 01-05-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler JK Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: JK Body: Open Off-Road Vehicle From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: JK From date: 01-04-2007 Fuel: Diesel Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: JK From date: 01-11-2010 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 52.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 42.00
    Bracket hole: 10.50
    Bracket hole 2: 9.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 10.50
    Belt. adj. bracket hole 2: 10.50
    Pulley dia.: 52.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL154
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 42.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. bracket hole 2 10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL154
    Bracket hole 10.50
    Bracket hole 2 9.20
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 52.00
    Pulley dist. 52.00
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Width/holder arm 70.00
    Amp 220
  • Fordonsmatchning

    • OEM
      F032115701, K04801338AB, 104210-6080, 104210-6081, 104210-6082, 04801338AB, 04801338AD, 4801338AB

    • Konkurrentreferens
      A6251, CAL40361, DRA0957, LRA03532, 28-6642, 570.103.2102, 835.584.210, 20392N-OS, 20392R, 113822, 12061003

    • Normaliserat artikelnummer
      a6251, cal40361, dra0957, f032115701, k04801338ab, lra03532, 20392nos, 20392r, 113822, 286642, 04801338ab, 04801338ad, 4801338ab, 12061003, 835584210, 1042106080, 1042106081, 1042106082, 5701032102

    • Passar modeller
      Dodge Model: Nitro Model series: Nitro Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Dodge Model: Nitro Model series: Nitro Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Dodge Model: Nitro Model series: Nitro Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Dodge Model: Nitro Model series: Nitro Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Dodge Model: Nitro Model series: Nitro Van Model type: 4WD Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR,ENS Type description: KA Body: Box Body / Estate From date: 01-10-2006 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Dodge Model: Nitro Model series: Nitro Van Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: KA Body: Box Body / Estate From date: 01-06-2007 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: 4WD Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: KK From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: KK From date: 01-05-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler JK Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: JK Body: Open Off-Road Vehicle From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: JK From date: 01-04-2007 Fuel: Diesel Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: JK From date: 01-11-2010 Fuel: Diesel Approved: Yes
