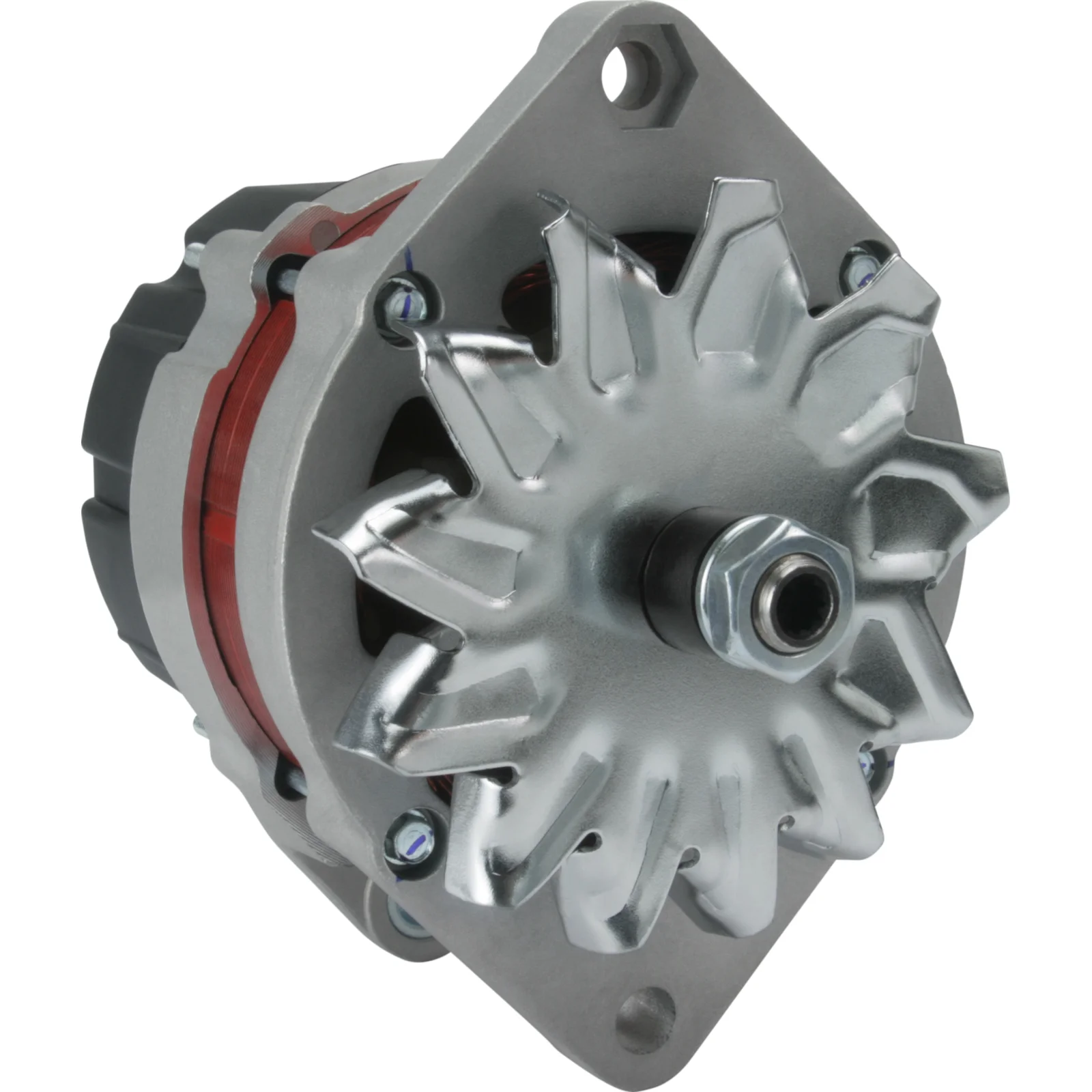

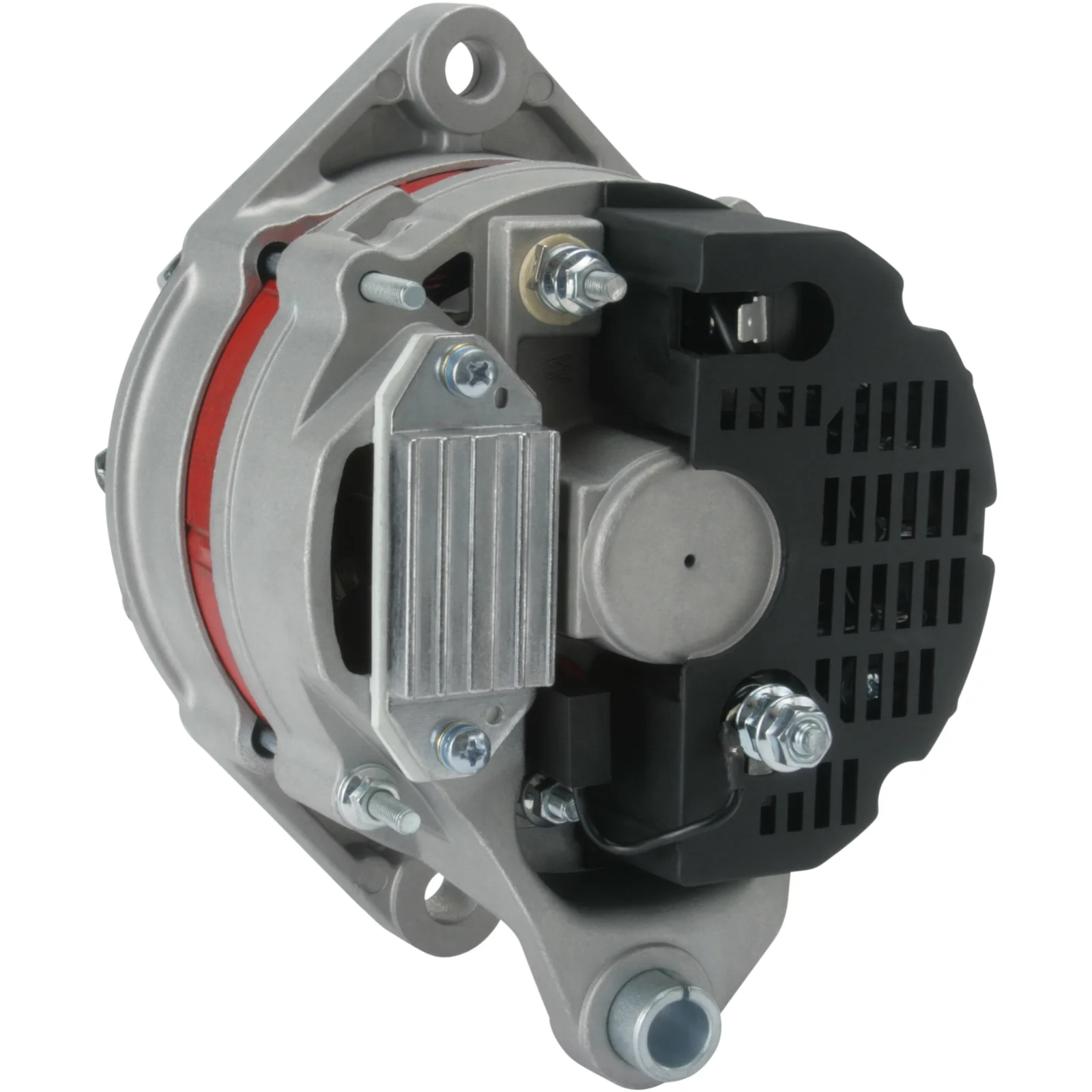

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115689

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 80
Terminal: W
Width/holder arm: 17.00
Mount. bracket dist.: 66.00
Bracket hole: 12.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.80
Radius: 85.00
Radius 2: 81.00
B+: M6
Position/B+ in min.: 25
D+ Size: 6.30
Rotation: CW
W plug type: M5
Total length mm: 174.00
Pulley: w/o
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 60
Bracket hole 12.30
Position/B+ in min. 25
Prod. info BN
Pulley w/o
Radius 85.00
D+ Size 6.30
Radius 2 81.00
Regulator type IR
Rotation CW
Terminal W
Voltage 14
W plug type M5
Total length 174.00 mm
Width/holder arm 17.00
Amp 80

  • OEM
    AAK3166, aak3563, aak4543, CT6005712872, F032115689, 11.201.463, 11.201.662, 11.203.298, 395250A1, 47906830, 63304807, 72277319, 73327987, 84296693, 84296707, 84402416, 84402418, 84402419, 84522025, 99457034, 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 294397320, 6005712872

  • Konkurrentreferens
    A4114, A9308S, CAL21146, dra0970, IA1152, MG357, MG515, MG540, 28-2692, 218.105.652, 565.014.080, 2353

  • Normaliserat artikelnummer
    a4114, a9308s, aak3166, aak3563, aak4543, cal21146, ct6005712872, dra0970, f032115689, ia1152, mg357, mg515, mg540, 2353, 282692, 395250a1, 11201463, 11201662, 11203298, 47906830, 63304807, 72277319, 73327987, 84296693, 84296707, 84402416, 84402418, 84402419, 84522025, 99457034, 218105652, 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 294397320, 565014080, 6005712872

  • Passar modeller
    Deutz-Fahr Model: Agrocompact Model series: F100DT Brand of engine: 1000.4WT Approved: Yes
    Deutz-Fahr Model: Agrocompact Model series: F70DT Brand of engine: 1000.3WT Approved: Yes
    Deutz-Fahr Model: Agrocompact Model series: F75DT Brand of engine: 1000.4W Approved: Yes
    Deutz-Fahr Model: Agrocompact Model series: F90DT Brand of engine: 1000.4WT Approved: Yes
    Deutz-Fahr Model: Antares II Model series: 110DT Brand of engine: 1000.6A Approved: Yes
    Deutz-Fahr Model: Antares Model series: 110 Brand of engine: 1000.6A Approved: Yes
    Deutz-Fahr Model: Antares Model series: 130 Brand of engine: 1000.6A Approved: Yes
    Huerlimann Model: XF-H Model series: 100DT Brand of engine: 1000.4WT Approved: Yes
    Huerlimann Model: XF-H Model series: 55DT Brand of engine: 1000.3W Approved: Yes
    Huerlimann Model: XF-H Model series: 70DT Brand of engine: 1000.3WT Approved: Yes
    Huerlimann Model: XF-H Model series: 75DT Brand of engine: 1000.4W Approved: Yes
    Huerlimann Model: XF-H Model series: 90DT Brand of engine: 1000.4WT Approved: Yes
    Same Model: Frutteto II Model series: 100DT Brand of engine: 1000.4WT Approved: Yes
    Same Model: Frutteto II Model series: 70DT Brand of engine: 1000.3W Approved: Yes
    Same Model: Frutteto II Model series: 75DT Brand of engine: 1000.4W Approved: Yes
    Same Model: Frutteto II Model series: 90DT Brand of engine: 1000.4WT Approved: Yes
