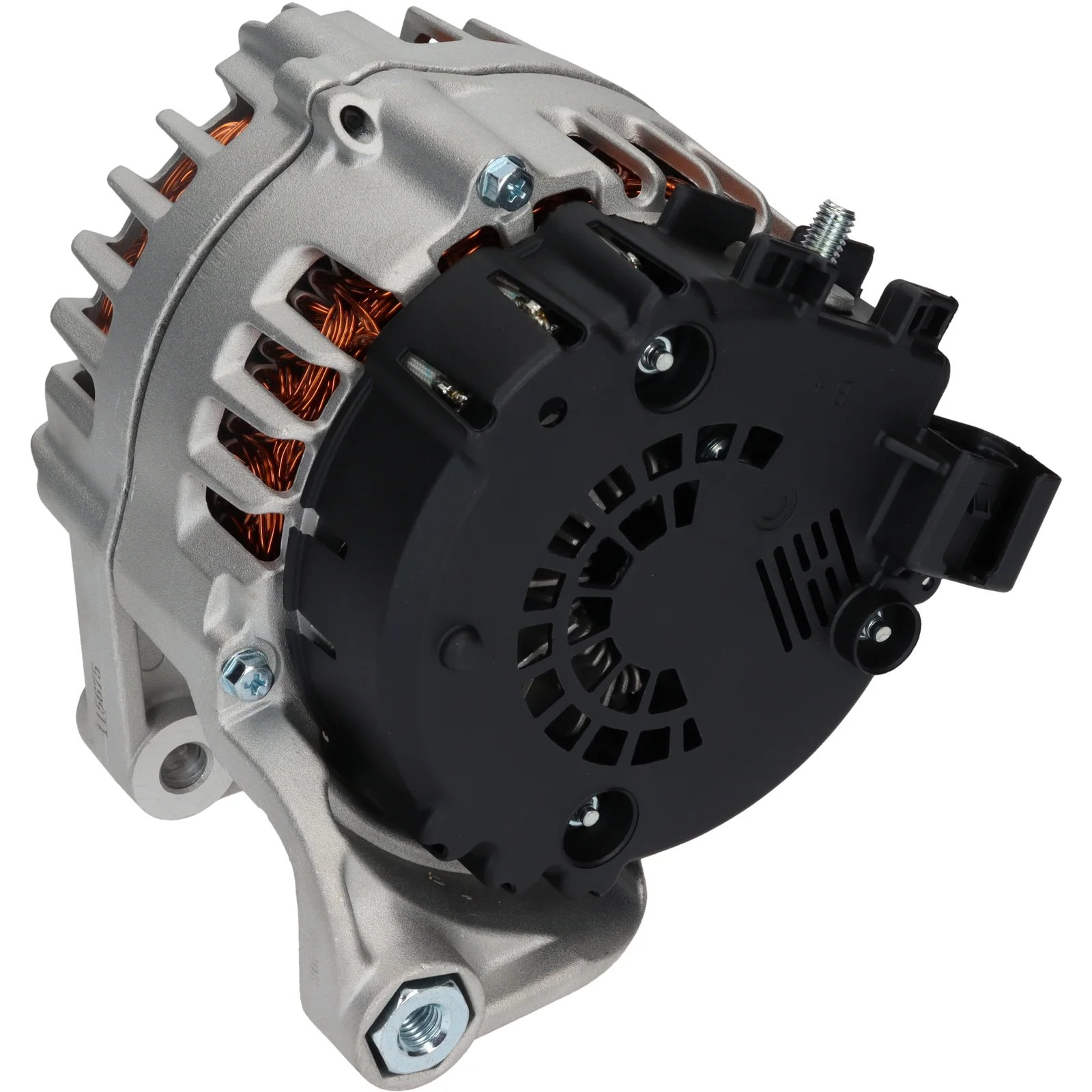

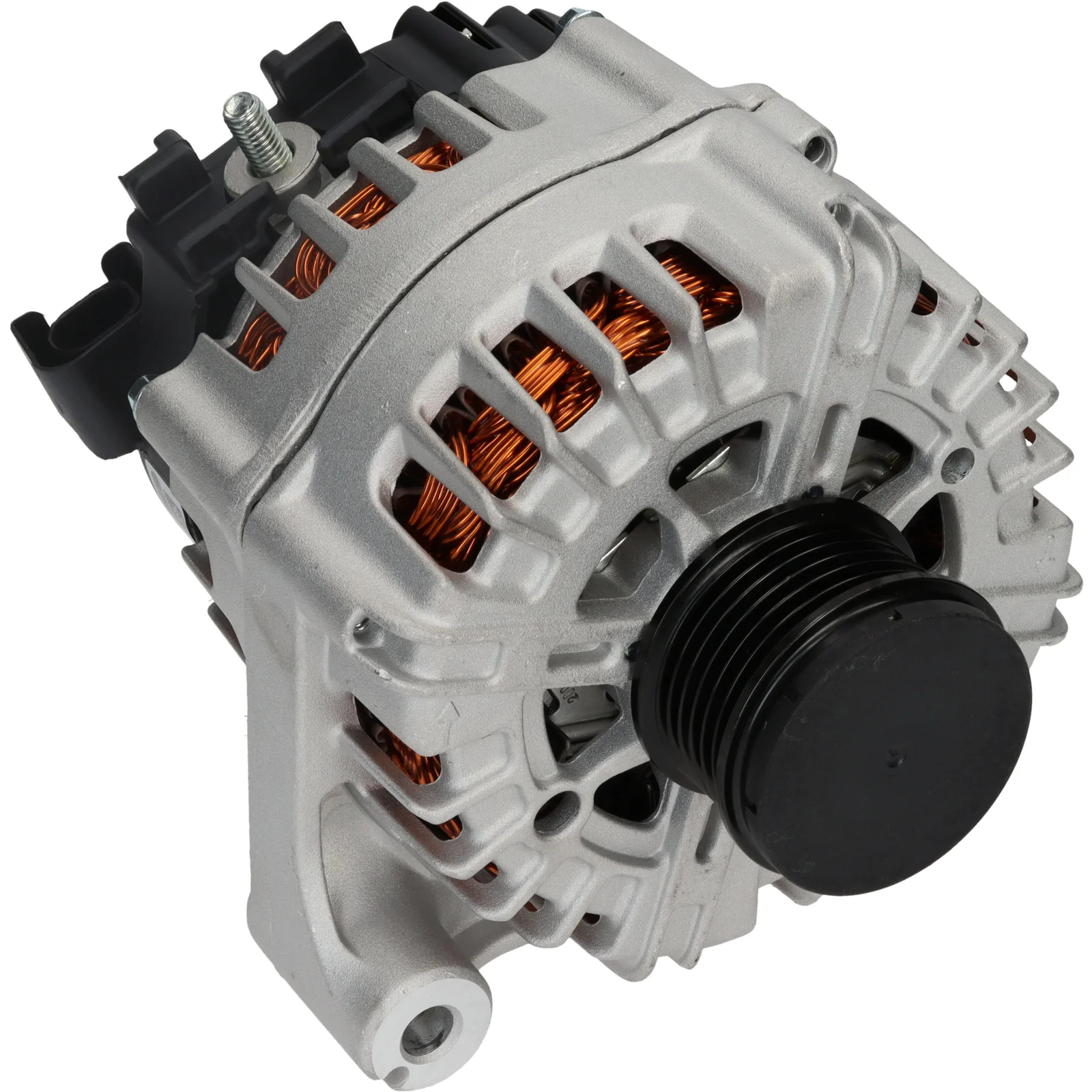

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115675

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 75.00

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 58.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL125
Total length mm: 189.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 58.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 189.00 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032115675, FG18S045, 1986A00574, 2143ir, 2607244, 2607244D, 2607244E, 2617511, 8519890, 12317823343, 12317823344

  • Konkurrentreferens
    A3416PR, A3416S, CAL15530, DRA1054, 8EL011712-861, 28-6830, 215.191.1802, 215.584.180, 22637N-OE, 209149, 209149A, 440430, 12090537, 32082850, 0986082850

  • Normaliserat artikelnummer
    a3416pr, a3416s, cal15530, dra1054, f032115675, fg18s045, 8el011712861, 1986a00574, 2143ir, 22637noe, 209149, 209149a, 286830, 440430, 2607244, 2607244d, 2607244e, 2617511, 8519890, 12090537, 32082850, 215584180, 0986082850, 2151911802, 12317823343, 12317823344

  • Passar modeller
    BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.6 Brand of engine: N47D16A Type description: F20, F21 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.6 Brand of engine: N47D16A Type description: F21 Body: Hatchback From date: 01-07-2012 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Model type: Gran Turismo Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-03-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-11-2012 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: Gran Turismo Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-03-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Model type: Touring Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-07-2012 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Model type: xDrive Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F34 Body: Hatchback From date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F31 Body: Estate From date: 01-07-2012 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20D Type description: F30, F35, F80 From date: 01-03-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 325 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20D Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 4 Model series: 420 Type of engine: Diesel Size of motor: 2.0 Brand of engine: N47D20C Type description: F33, F83 Body: Convertible From date: 01-10-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
