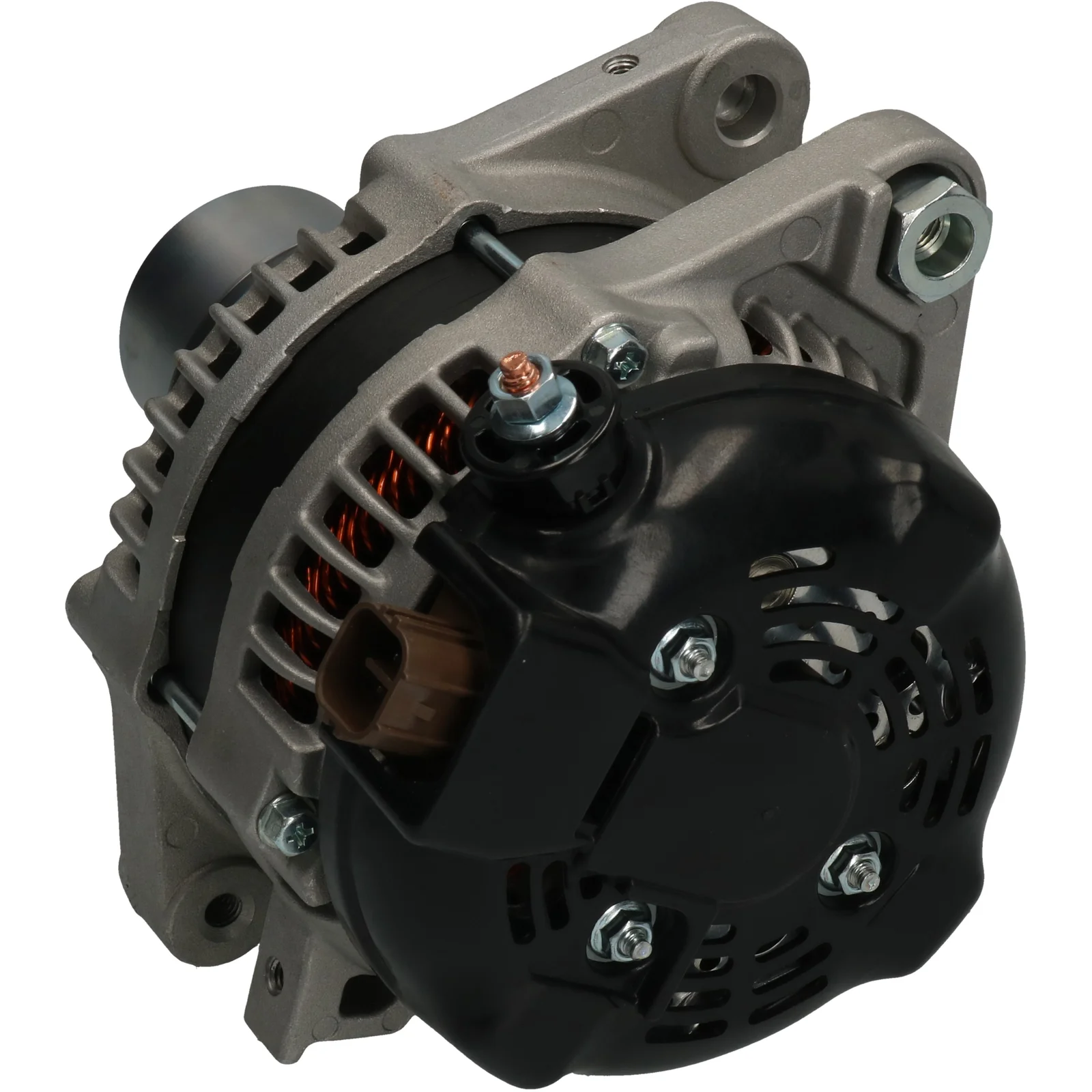

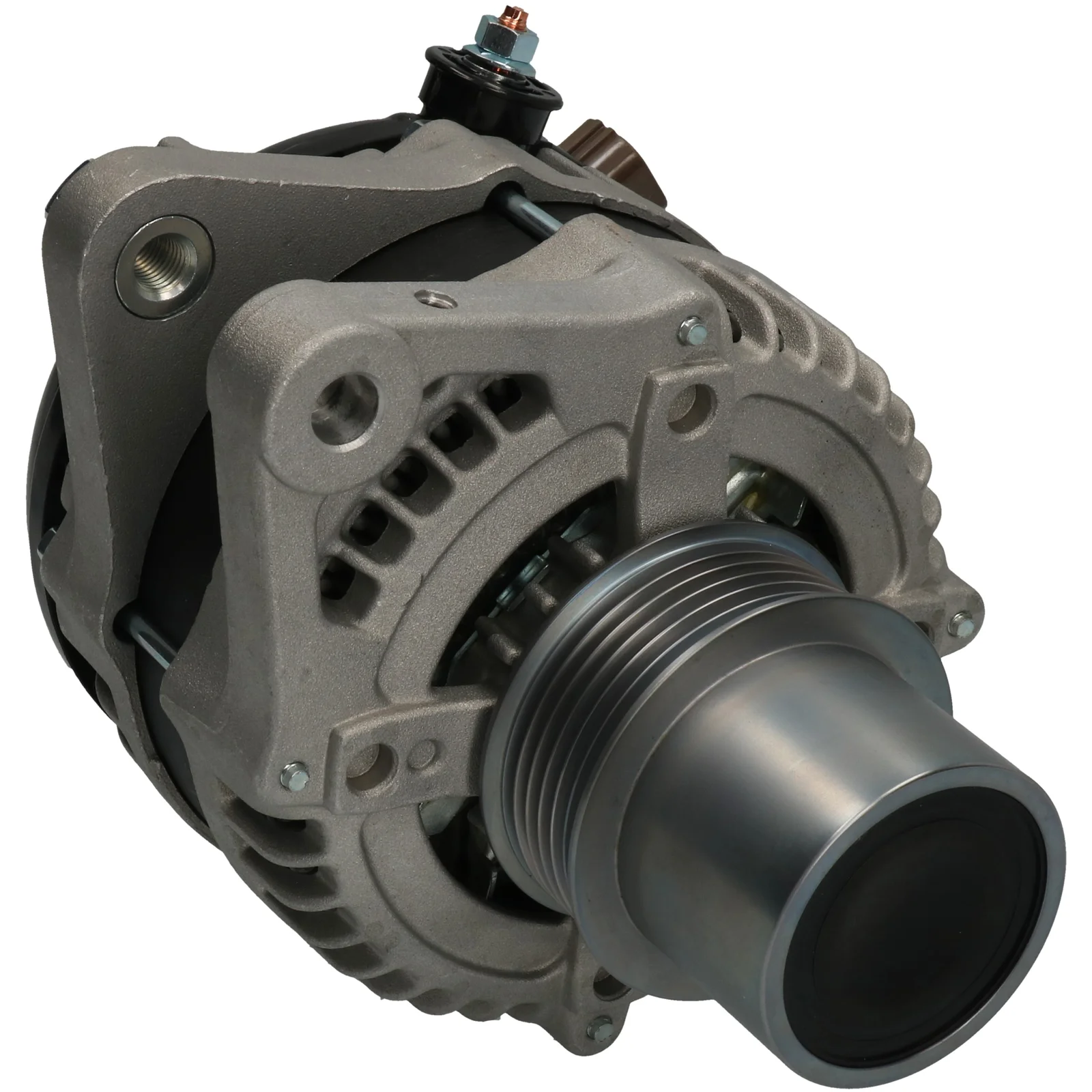

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115666

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 37.40

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 28.50
Width/holder arm: 19.00
Mount. bracket dist.: 37.40
Bracket hole: 11.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.30
Grooves/pulley: 6
Radius: 89.00
Radius 2: 81.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL146
Total length mm: 196.00
Lamp type: Inactive
Communication: RLO
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Communication RLO
Mount. bracket dist. 37.40
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 67.30
Pulley dist. 28.50
Radius 89.00
Radius 2 81.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Inactive
Voltage 14
Total length 196.00 mm
Width/holder arm 19.00
Amp 100

  • OEM
    F032115666, 27060-0q070, 104210-2290, 104210-2291, 104210-2430

  • Konkurrentreferens
    A6094, CAL40301, DAN1017, DRA0889, LRA03370, MAN7538, 28-5982, 195.944.100, 235.333.1002, 210773, 210773A, 444220, 9090834, 12060920, 063377538010

  • Normaliserat artikelnummer
    a6094, cal40301, dan1017, dra0889, f032115666, lra03370, man7538, 210773, 210773a, 270600q070, 285982, 444220, 9090834, 12060920, 195944100, 1042102290, 1042102291, 1042102430, 2353331002, 063377538010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 28.50
    Width/holder arm: 19.00
    Mount. bracket dist.: 37.40
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.30
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL146
    Total length mm: 196.00
    Lamp type: Inactive
    Communication: RLO
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Communication RLO
    Mount. bracket dist. 37.40
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 67.30
    Pulley dist. 28.50
    Radius 89.00
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Voltage 14
    Total length 196.00 mm
    Width/holder arm 19.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032115666, 27060-0q070, 104210-2290, 104210-2291, 104210-2430

    • Konkurrentreferens
      A6094, CAL40301, DAN1017, DRA0889, LRA03370, MAN7538, 28-5982, 195.944.100, 235.333.1002, 210773, 210773A, 444220, 9090834, 12060920, 063377538010

    • Normaliserat artikelnummer
      a6094, cal40301, dan1017, dra0889, f032115666, lra03370, man7538, 210773, 210773a, 270600q070, 285982, 444220, 9090834, 12060920, 195944100, 1042102290, 1042102291, 1042102430, 2353331002, 063377538010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
