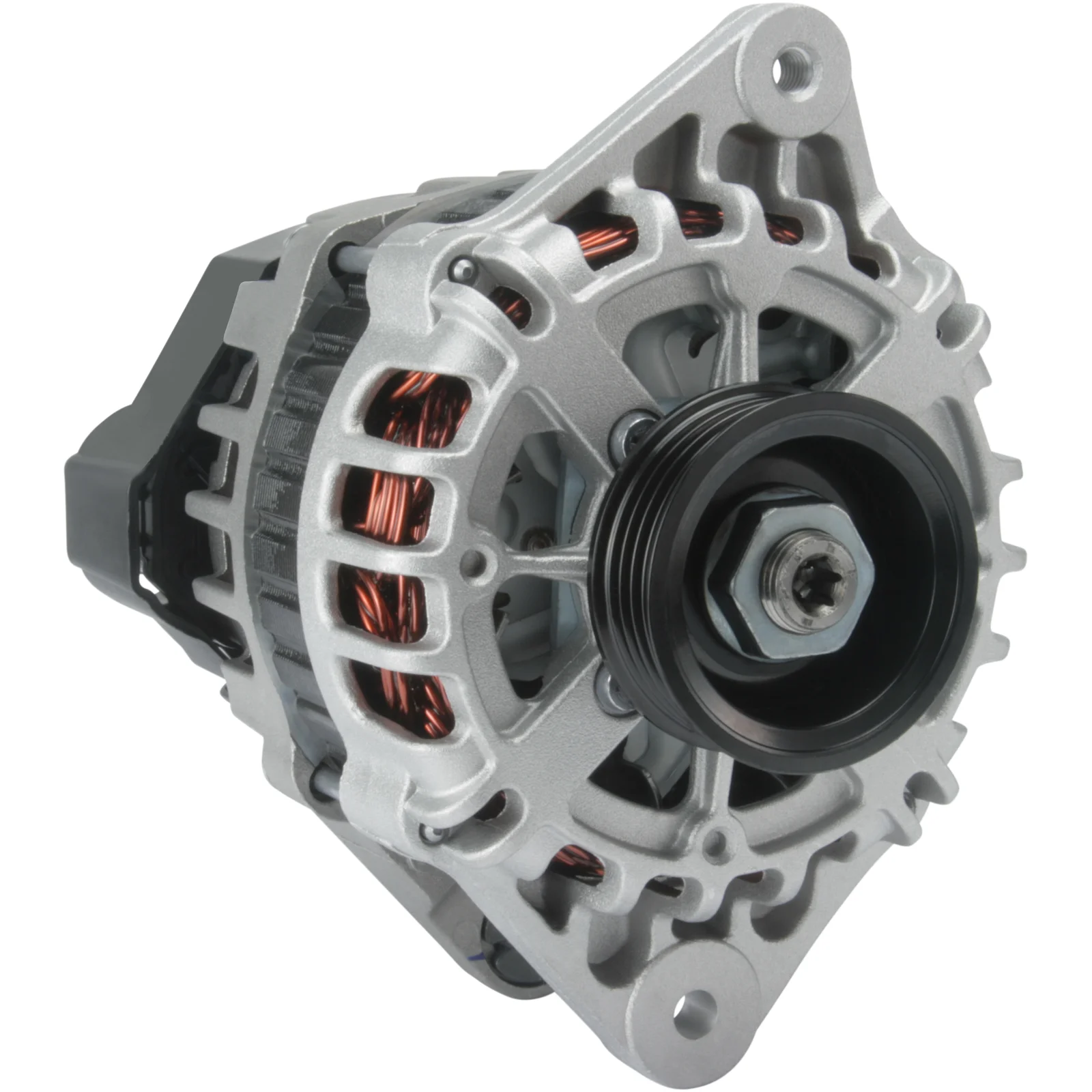

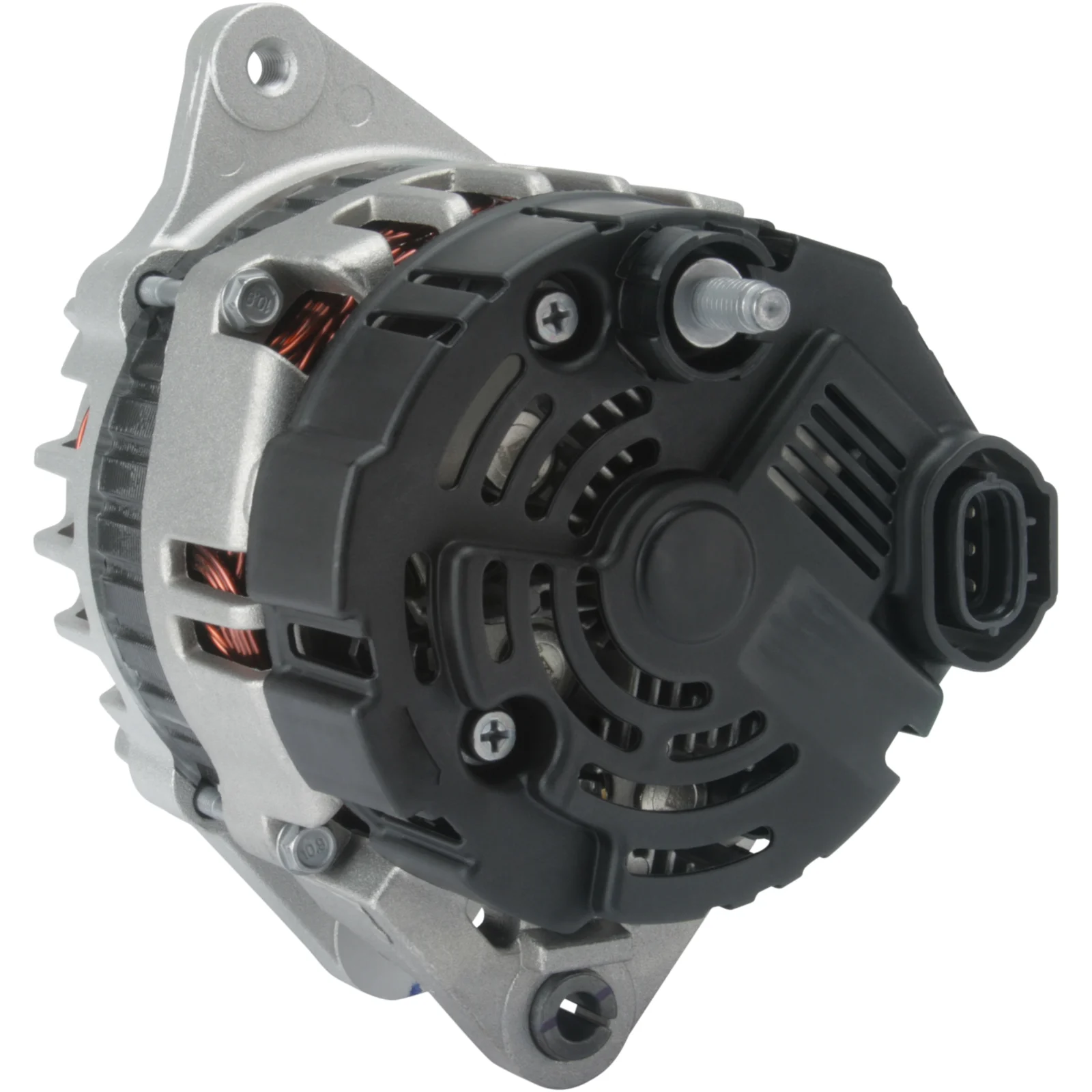

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115654

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 48.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 38.00
Width/holder arm: 13.00
Mount. bracket dist.: 48.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 4
Radius: 78.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL176
Total length mm: 169.00
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 48.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL176
Bracket hole 8.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 38.00
Radius 78.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 4
Voltage 14
Total length 169.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    F000BL0105, F000BL0122, F032115654, 2124ir, 37300-02600, 37300-02605, 37300-02850, 2607052, 2613777

  • Konkurrentreferens
    A0809S, A3315(VALEO), A3315S, CAL32149, DRA0793, DRA0793N, LRA03367, 8EL011713-061, 28-5979, 155.576.080, 155.585.070, 224.303.702, 209030, 209030A, 444335, 600321, 600741, 12061045, 0986083510

  • Normaliserat artikelnummer
    a0809s, a3315s, a3315valeo, cal32149, dra0793, dra0793n, f000bl0105, f000bl0122, f032115654, lra03367, 8el011713061, 2124ir, 209030, 209030a, 285979, 444335, 600321, 600741, 2607052, 2613777, 12061045, 155576080, 155585070, 224303702, 0986083510, 3730002600, 3730002605, 3730002850

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-01-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-12-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-01-2009 To date: 01-12-2013 Fuel: LPG Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-11-2008 To date: 01-12-2013 Fuel: Petrol Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.1 Brand of engine: G4HG Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 38.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 48.00
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 4
    Radius: 78.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL176
    Total length mm: 169.00
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 48.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL176
    Bracket hole 8.20
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 38.00
    Radius 78.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 4
    Voltage 14
    Total length 169.00 mm
    Width/holder arm 13.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F000BL0105, F000BL0122, F032115654, 2124ir, 37300-02600, 37300-02605, 37300-02850, 2607052, 2613777

    • Konkurrentreferens
      A0809S, A3315(VALEO), A3315S, CAL32149, DRA0793, DRA0793N, LRA03367, 8EL011713-061, 28-5979, 155.576.080, 155.585.070, 224.303.702, 209030, 209030A, 444335, 600321, 600741, 12061045, 0986083510

    • Normaliserat artikelnummer
      a0809s, a3315s, a3315valeo, cal32149, dra0793, dra0793n, f000bl0105, f000bl0122, f032115654, lra03367, 8el011713061, 2124ir, 209030, 209030a, 285979, 444335, 600321, 600741, 2607052, 2613777, 12061045, 155576080, 155585070, 224303702, 0986083510, 3730002600, 3730002605, 3730002850

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-01-2008 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Body: Hatchback From date: 01-12-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-01-2009 To date: 01-12-2013 Fuel: LPG Approved: Yes
      Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-11-2008 To date: 01-12-2013 Fuel: Petrol Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.1 Brand of engine: G4HG Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
