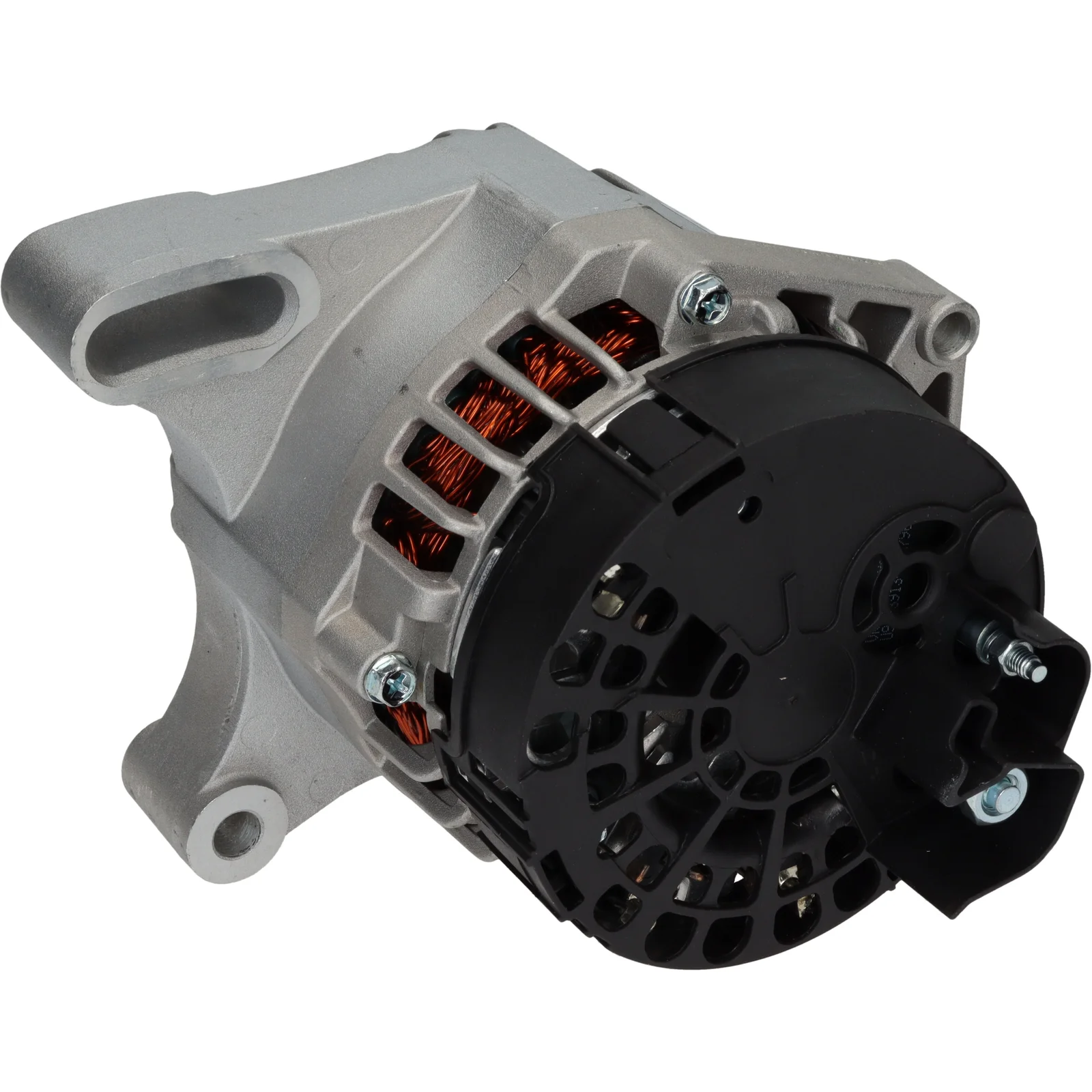

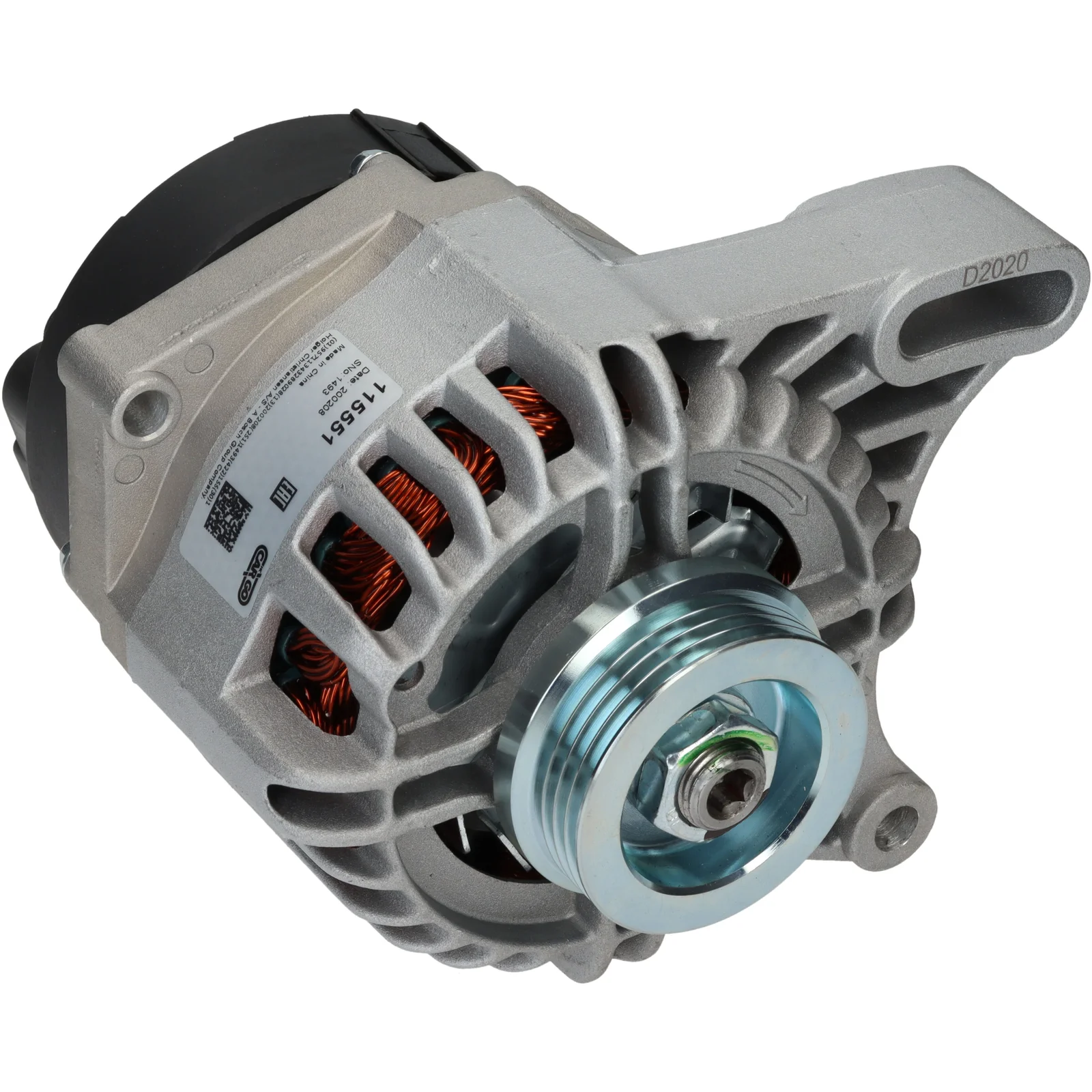

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115551

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 60.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 54.60
Width/holder arm: 33.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 18
Belt. adj. bracket hole 1: 11.50
Pulley dia.: 60.00
Grooves/pulley: 4
Radius: 92.50
Radius 2: 110.00
B+: M8
Position/B+ in min.: 12
D+ Size: M5
Rotation: CW
Total length mm: 187.50
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 18
Bracket hole 10.00
Position/B+ in min. 12
Pulley SP
Pulley dia. 60.00
Pulley dist. 54.60
Radius 92.50
D+ Size M5
Radius 2 110.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 4
Voltage 14
Total length 187.50 mm
Width/holder arm 33.00
Amp 90

  • OEM
    F032115551, 1986A02066, 2059ir, 101210-1480, 46736968, 51859049, 63321760

  • Konkurrentreferens
    A4104, A4104(DENSO), CAL30183, DAN631, DRA0141, LRA02828, 8EL012240-811, 23828N, 210666, 210666A, 440803, 443198, 12090621, 0986087080

  • Normaliserat artikelnummer
    a4104, a4104denso, cal30183, dan631, dra0141, f032115551, lra02828, 8el012240811, 1986a02066, 2059ir, 23828n, 210666, 210666a, 440803, 443198, 12090621, 46736968, 51859049, 63321760, 0986087080, 1012101480

  • Passar modeller
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 176B2.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 54.60
    Width/holder arm: 33.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 18
    Belt. adj. bracket hole 1: 11.50
    Pulley dia.: 60.00
    Grooves/pulley: 4
    Radius: 92.50
    Radius 2: 110.00
    B+: M8
    Position/B+ in min.: 12
    D+ Size: M5
    Rotation: CW
    Total length mm: 187.50
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 18
    Bracket hole 10.00
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 54.60
    Radius 92.50
    D+ Size M5
    Radius 2 110.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 4
    Voltage 14
    Total length 187.50 mm
    Width/holder arm 33.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032115551, 1986A02066, 2059ir, 101210-1480, 46736968, 51859049, 63321760

    • Konkurrentreferens
      A4104, A4104(DENSO), CAL30183, DAN631, DRA0141, LRA02828, 8EL012240-811, 23828N, 210666, 210666A, 440803, 443198, 12090621, 0986087080

    • Normaliserat artikelnummer
      a4104, a4104denso, cal30183, dan631, dra0141, f032115551, lra02828, 8el012240811, 1986a02066, 2059ir, 23828n, 210666, 210666a, 440803, 443198, 12090621, 46736968, 51859049, 63321760, 0986087080, 1012101480

    • Passar modeller
      Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 176B2.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
