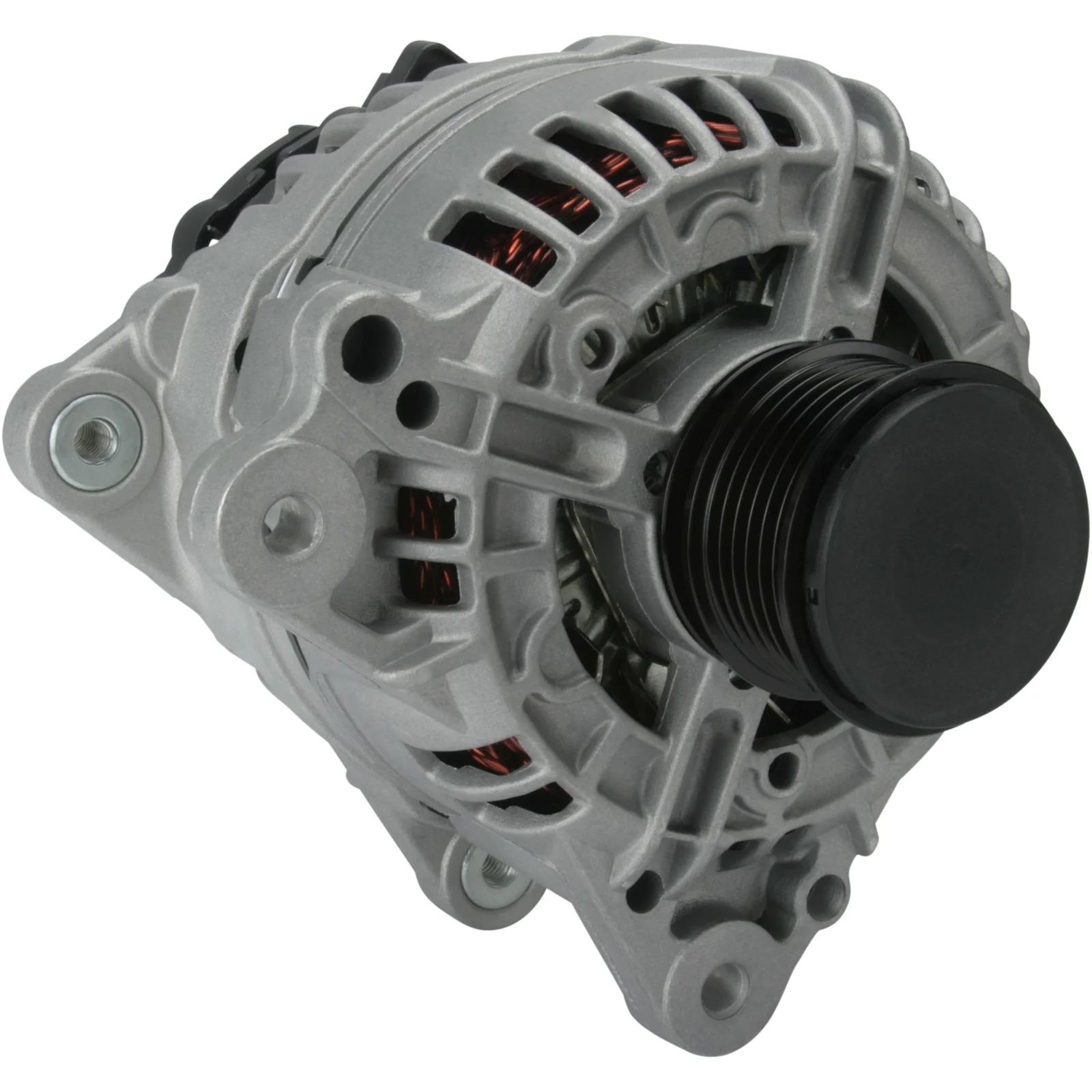

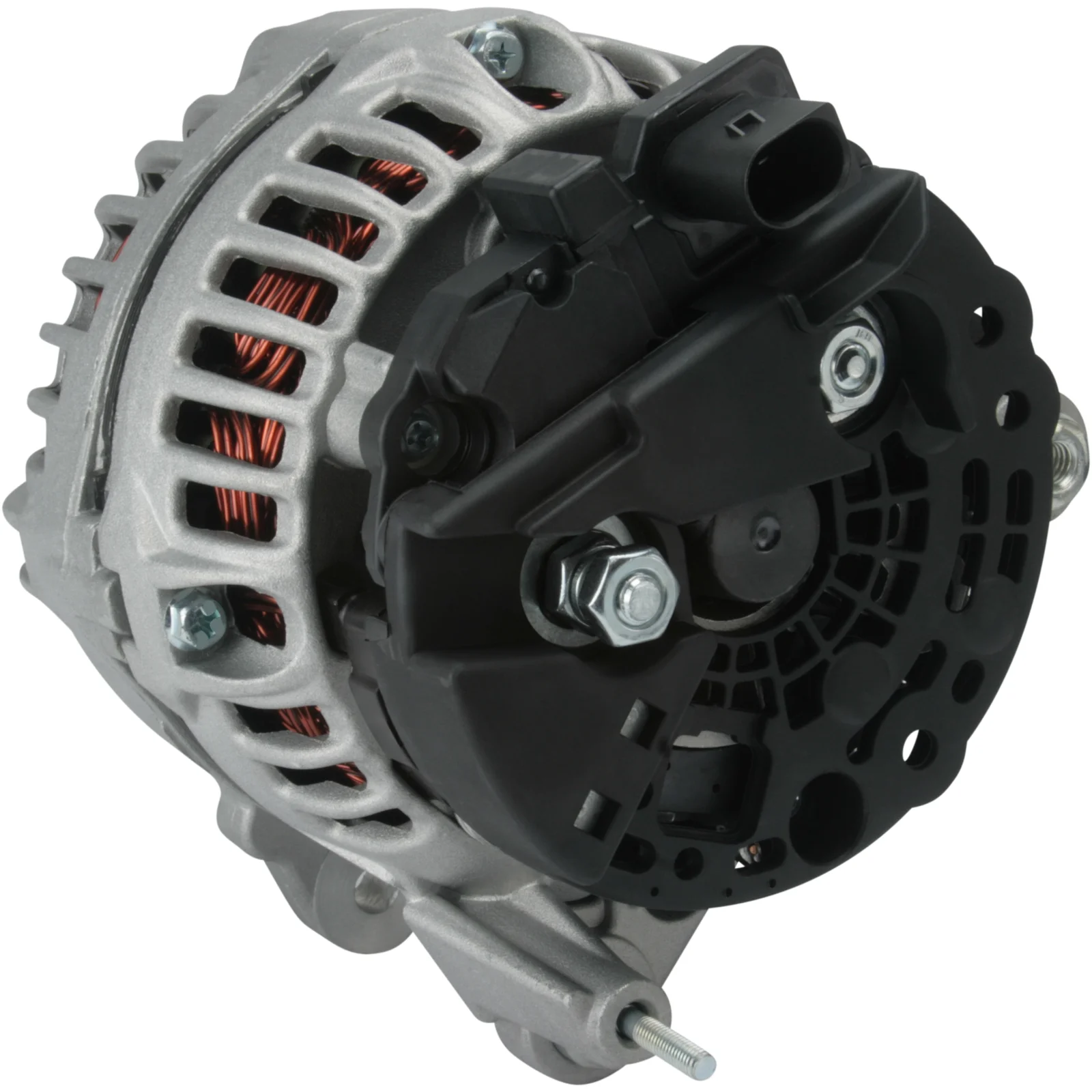

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115529

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Mount. bracket dist.: 62.00, Pulley dia.: 57.00

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 39.00
Width/holder arm: 14.00
Mount. bracket dist.: 62.00
Bracket hole: 8.80
Bracket hole 2: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.80
Belt. adj. bracket hole 2: 8.50
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 44
D+ Size: Plug
Plug no.: PL61
Total length mm: 200.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 62.00
Belt. adj. bracket hole 1 8.80
Belt. adj. bracket hole 2 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.80
Bracket hole 2 8.50
Position/B+ in min. 44
Prod. info BN
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 39.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F032115529, TG14C036, 03P903023D, 2610086A

  • Konkurrentreferens
    A0322, DRA0985, 8EL012240-191, 209424, 209424A, 439734, 440324, 9090615

  • Normaliserat artikelnummer
    a0322, dra0985, f032115529, tg14c036, 03p903023d, 8el012240191, 209424, 209424a, 439734, 440324, 2610086a, 9090615

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDI Size of motor: 1.2 Brand of engine: CFWA Type description: 6J1 Body: Box Body / Hatchback From date: 01-05-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.2 Brand of engine: CFWA Type description: 5J Body: MPV From date: 01-03-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Type of engine: TDi Size of motor: 1.2 Brand of engine: CFWA Type description: 6R Body: Box Body / Hatchback From date: 01-10-2009 To date: 01-05-2014 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 140
    Pulley dist.: 39.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 62.00
    Bracket hole: 8.80
    Bracket hole 2: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.80
    Belt. adj. bracket hole 2: 8.50
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 44
    D+ Size: Plug
    Plug no.: PL61
    Total length mm: 200.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 62.00
    Belt. adj. bracket hole 1 8.80
    Belt. adj. bracket hole 2 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL61
    Bracket hole 8.80
    Bracket hole 2 8.50
    Position/B+ in min. 44
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 39.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Grooves/pulley 6
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 14.00
    Amp 140
  • Fordonsmatchning

    • OEM
      F032115529, TG14C036, 03P903023D, 2610086A

    • Konkurrentreferens
      A0322, DRA0985, 8EL012240-191, 209424, 209424A, 439734, 440324, 9090615

    • Normaliserat artikelnummer
      a0322, dra0985, f032115529, tg14c036, 03p903023d, 8el012240191, 209424, 209424a, 439734, 440324, 2610086a, 9090615

    • Passar modeller
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDI Size of motor: 1.2 Brand of engine: CFWA Type description: 6J1 Body: Box Body / Hatchback From date: 01-05-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.2 Brand of engine: CFWA Type description: 5J Body: MPV From date: 01-03-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Type of engine: TDi Size of motor: 1.2 Brand of engine: CFWA Type description: 6R Body: Box Body / Hatchback From date: 01-10-2009 To date: 01-05-2014 Fuel: Diesel Approved: Yes
