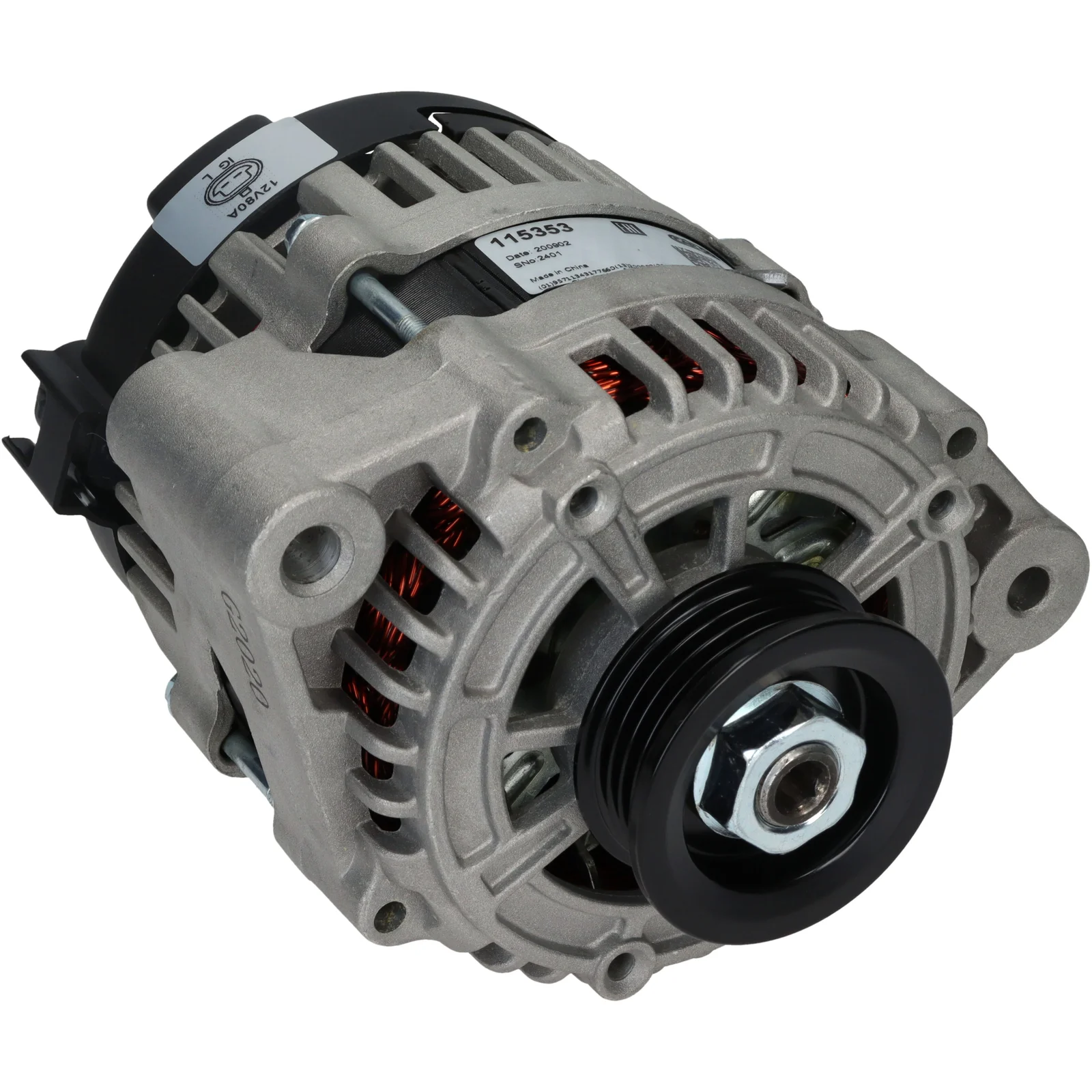

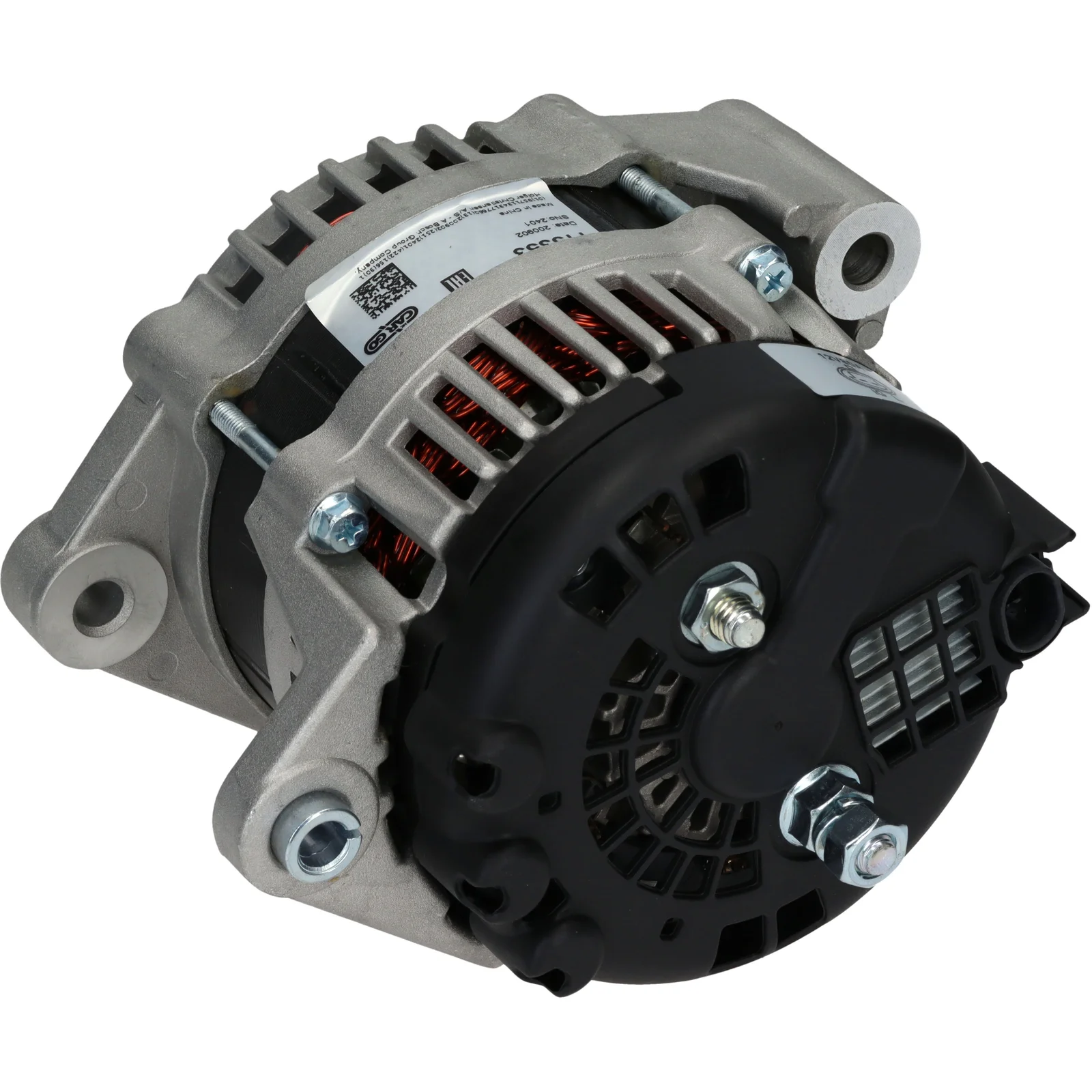

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115353

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 38.50
Width/holder arm: 16.50
Mount. bracket dist.: 66.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 52.00
Grooves/pulley: 4
Radius: 75.00
Radius 2: 75.00
B+: M8
Position/B+ in min.: 11
D+ Size: Plug
Rotation: CW
Plug no.: PL77
Total length mm: 172.00
Terminal type: L-IG
Lamp type: Inactive
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 4
Plug no. PL77
Bracket hole 8.50
Position/B+ in min. 11
Pulley SP
Pulley dia. 52.00
Pulley dist. 38.50
Radius 75.00
D+ Size Plug
Radius 2 75.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 4
Lamp type Inactive
Terminal type L-IG
Voltage 14
Total length 172.00 mm
Width/holder arm 16.50
Amp 80

  • OEM
    F032115353, 96843503, 96936136, 96945926

  • Konkurrentreferens
    A9276S, CAL42113, CAL42115, DRA1235, LRA03489, 8EL011713-101, 28-6599, 235.519.080, 547.118.802, 835.599.080, 24096N, 12090497, 0986083710

  • Normaliserat artikelnummer
    a9276s, cal42113, cal42115, dra1235, f032115353, lra03489, 8el011713101, 24096n, 286599, 12090497, 96843503, 96936136, 96945926, 235519080, 547118802, 835599080, 0986083710

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: T250, T255 Body: Hatchback From date: 01-06-2008 To date: 01-11-2012 Fuel: Electric/Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: T255 From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: 16V Size of motor: 1.2 Brand of engine: LMU Type description: T255 Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Spark Hatchback Van Model series: Spark Hatchback Van Size of motor: 1.2 Brand of engine: LMU Type description: M300 Body: Hatchback Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Spark Model series: Spark Model type: LPG Size of motor: 1.0 Brand of engine: B10D1 Type description: M300 Body: Hatchback From date: 01-07-2010 Fuel: Bi-Fuel Approved: Yes
    Chevrolet Model: Spark Model series: Spark Model type: LPG Type of engine: BiFuel Size of motor: 1.0 Brand of engine: B10D1 Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Bi-Fuel Approved: Yes
    Chevrolet Model: Spark Model series: Spark Model type: LPG Type of engine: BiFuel Size of motor: 1.2 Brand of engine: B12D1 Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Bi-Fuel Approved: Yes
    Chevrolet Model: Spark Model series: Spark Model type: LPG Type of engine: BiFuel Size of motor: 1.2 Brand of engine: LMU Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Bi-Fuel Approved: Yes
    Chevrolet Model: Spark Model series: Spark Size of motor: 1.0 Brand of engine: B10D1 Type description: M300 Body: Hatchback Fuel: Petrol Approved: Yes
    Chevrolet Model: Spark Model series: Spark Size of motor: 1.2 Brand of engine: B12D1 Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Spark Model series: Spark Size of motor: 1.2 Brand of engine: LMU Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 38.50
    Width/holder arm: 16.50
    Mount. bracket dist.: 66.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 52.00
    Grooves/pulley: 4
    Radius: 75.00
    Radius 2: 75.00
    B+: M8
    Position/B+ in min.: 11
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL77
    Total length mm: 172.00
    Terminal type: L-IG
    Lamp type: Inactive
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 4
    Plug no. PL77
    Bracket hole 8.50
    Position/B+ in min. 11
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 38.50
    Radius 75.00
    D+ Size Plug
    Radius 2 75.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 4
    Lamp type Inactive
    Terminal type L-IG
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 16.50
    Amp 80
  • Fordonsmatchning

    • OEM
      F032115353, 96843503, 96936136, 96945926

    • Konkurrentreferens
      A9276S, CAL42113, CAL42115, DRA1235, LRA03489, 8EL011713-101, 28-6599, 235.519.080, 547.118.802, 835.599.080, 24096N, 12090497, 0986083710

    • Normaliserat artikelnummer
      a9276s, cal42113, cal42115, dra1235, f032115353, lra03489, 8el011713101, 24096n, 286599, 12090497, 96843503, 96936136, 96945926, 235519080, 547118802, 835599080, 0986083710

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: T250, T255 Body: Hatchback From date: 01-06-2008 To date: 01-11-2012 Fuel: Electric/Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.2 Brand of engine: LMU Type description: T255 From date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Type of engine: 16V Size of motor: 1.2 Brand of engine: LMU Type description: T255 Body: Hatchback From date: 01-04-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Spark Hatchback Van Model series: Spark Hatchback Van Size of motor: 1.2 Brand of engine: LMU Type description: M300 Body: Hatchback Van Fuel: Petrol Approved: Yes
      Chevrolet Model: Spark Model series: Spark Model type: LPG Size of motor: 1.0 Brand of engine: B10D1 Type description: M300 Body: Hatchback From date: 01-07-2010 Fuel: Bi-Fuel Approved: Yes
      Chevrolet Model: Spark Model series: Spark Model type: LPG Type of engine: BiFuel Size of motor: 1.0 Brand of engine: B10D1 Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Bi-Fuel Approved: Yes
      Chevrolet Model: Spark Model series: Spark Model type: LPG Type of engine: BiFuel Size of motor: 1.2 Brand of engine: B12D1 Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Bi-Fuel Approved: Yes
      Chevrolet Model: Spark Model series: Spark Model type: LPG Type of engine: BiFuel Size of motor: 1.2 Brand of engine: LMU Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Bi-Fuel Approved: Yes
      Chevrolet Model: Spark Model series: Spark Size of motor: 1.0 Brand of engine: B10D1 Type description: M300 Body: Hatchback Fuel: Petrol Approved: Yes
      Chevrolet Model: Spark Model series: Spark Size of motor: 1.2 Brand of engine: B12D1 Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Spark Model series: Spark Size of motor: 1.2 Brand of engine: LMU Type description: M300 Body: Hatchback From date: 01-03-2010 Fuel: Gasoline Approved: Yes
