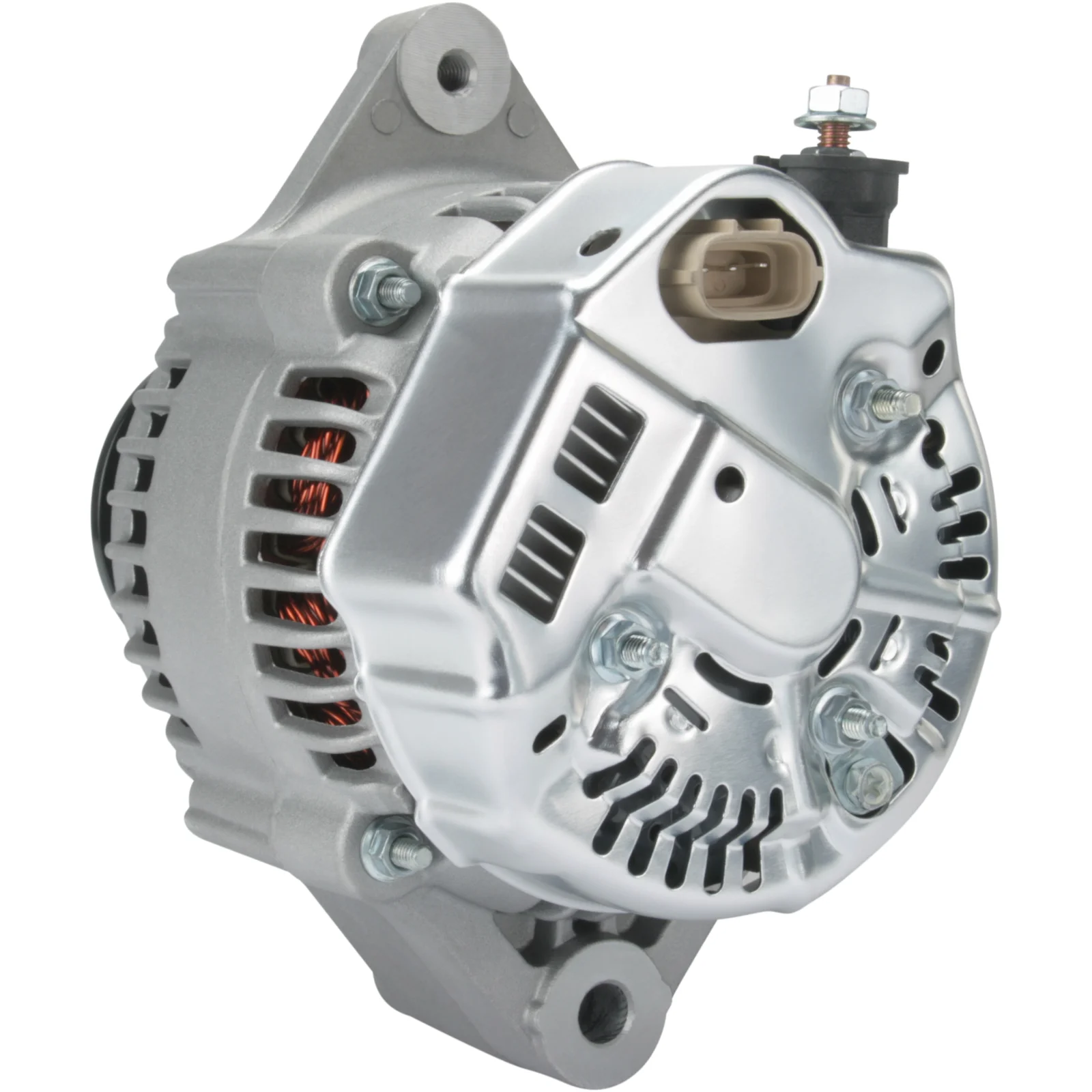

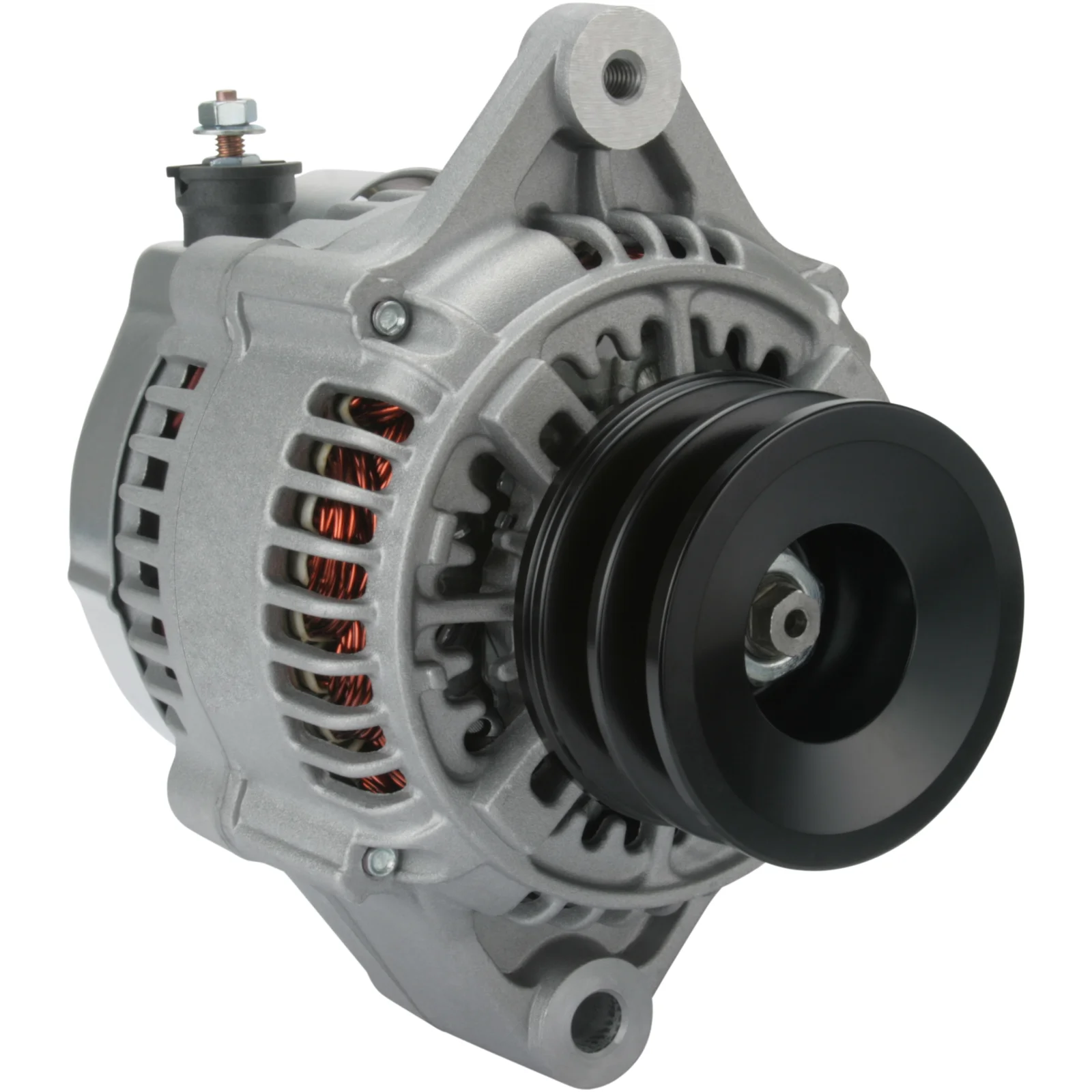

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114902

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 70.50

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 95.50
Width/holder arm: 58.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 70.50
Grooves/pulley: 2
Radius: 83.50
Radius 2: 78.50
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL128
W plug type: Plug
Total length mm: 174.00
Pulley: DP
Prod. info: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.00
Position/B+ in min. 3
Prod. info BN
Pulley DP
Pulley dia. 70.50
Pulley dist. 95.50
Radius 83.50
D+ Size Plug
Radius 2 78.50
Rotation CW
Grooves/pulley 2
Voltage 14
W plug type Plug
Total length 174.00 mm
Width/holder arm 58.00
Amp 90

  • OEM
    F032114902, 32868-03201, 102211-1830, 102211-9010

  • Konkurrentreferens
    A6679(DENSO), 645.506.090, 11633, 11633N

  • Normaliserat artikelnummer
    a6679denso, f032114902, 11633, 11633n, 645506090, 1022111830, 1022119010, 3286803201

  • Passar modeller
    Caterpillar Model: 302.5C Model series: 302.5C Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Caterpillar Model: Skid Steer Loader Model series: 248B Brand of engine: 3044T Approved: Yes
    Hyundai Model: R27Z-9 Model series: R27Z-9 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Ingersoll-Rand Model: G11ME Model series: G11ME Model type: Generator Sets Brand of engine: S3L2 Approved: Yes
    Mahindra Model: 2516 4WD HST/SHUTTLE Model series: 2516 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: 3016 4WD HST/SHUTTLE Model series: 3016 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: MAX 25 4WD HST Model series: MAX 25 4WD HST Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: MAX 28XL 4WD HST/SHUTTLE Model series: MAX 28XL 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: GS231 Model series: GS231 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: GS251 Model series: GS251 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MM25T Model series: MM25T Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MM30T Model series: MM30T Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MT2600 Model series: MT2600 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MT28 & MT28H Model series: MT28 & MT28H Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: V325 Model series: V325 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VS329 Model series: VS329 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VS334 Model series: VS334 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VY434 Model series: VY434 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Terex Model: TC25 Model series: TC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: EB 300 SRS Model series: EB 300 SRS Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: EC25 Model series: EC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: VOLVO EC30 Model series: VOLVO EC30 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 95.50
    Width/holder arm: 58.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 70.50
    Grooves/pulley: 2
    Radius: 83.50
    Radius 2: 78.50
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    W plug type: Plug
    Total length mm: 174.00
    Pulley: DP
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.00
    Position/B+ in min. 3
    Prod. info BN
    Pulley DP
    Pulley dia. 70.50
    Pulley dist. 95.50
    Radius 83.50
    D+ Size Plug
    Radius 2 78.50
    Rotation CW
    Grooves/pulley 2
    Voltage 14
    W plug type Plug
    Total length 174.00 mm
    Width/holder arm 58.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032114902, 32868-03201, 102211-1830, 102211-9010

    • Konkurrentreferens
      A6679(DENSO), 645.506.090, 11633, 11633N

    • Normaliserat artikelnummer
      a6679denso, f032114902, 11633, 11633n, 645506090, 1022111830, 1022119010, 3286803201

    • Passar modeller
      Caterpillar Model: 302.5C Model series: 302.5C Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Caterpillar Model: Skid Steer Loader Model series: 248B Brand of engine: 3044T Approved: Yes
      Hyundai Model: R27Z-9 Model series: R27Z-9 Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Ingersoll-Rand Model: G11ME Model series: G11ME Model type: Generator Sets Brand of engine: S3L2 Approved: Yes
      Mahindra Model: 2516 4WD HST/SHUTTLE Model series: 2516 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mahindra Model: 3016 4WD HST/SHUTTLE Model series: 3016 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mahindra Model: MAX 25 4WD HST Model series: MAX 25 4WD HST Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mahindra Model: MAX 28XL 4WD HST/SHUTTLE Model series: MAX 28XL 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: GS231 Model series: GS231 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: GS251 Model series: GS251 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MM25T Model series: MM25T Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MM30T Model series: MM30T Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MT2600 Model series: MT2600 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MT28 & MT28H Model series: MT28 & MT28H Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: V325 Model series: V325 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: VS329 Model series: VS329 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: VS334 Model series: VS334 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: VY434 Model series: VY434 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Terex Model: TC25 Model series: TC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Volvo Model: EB 300 SRS Model series: EB 300 SRS Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Volvo Model: EC25 Model series: EC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Volvo Model: VOLVO EC30 Model series: VOLVO EC30 Model type: Excavators Brand of engine: S3L2 Approved: Yes
