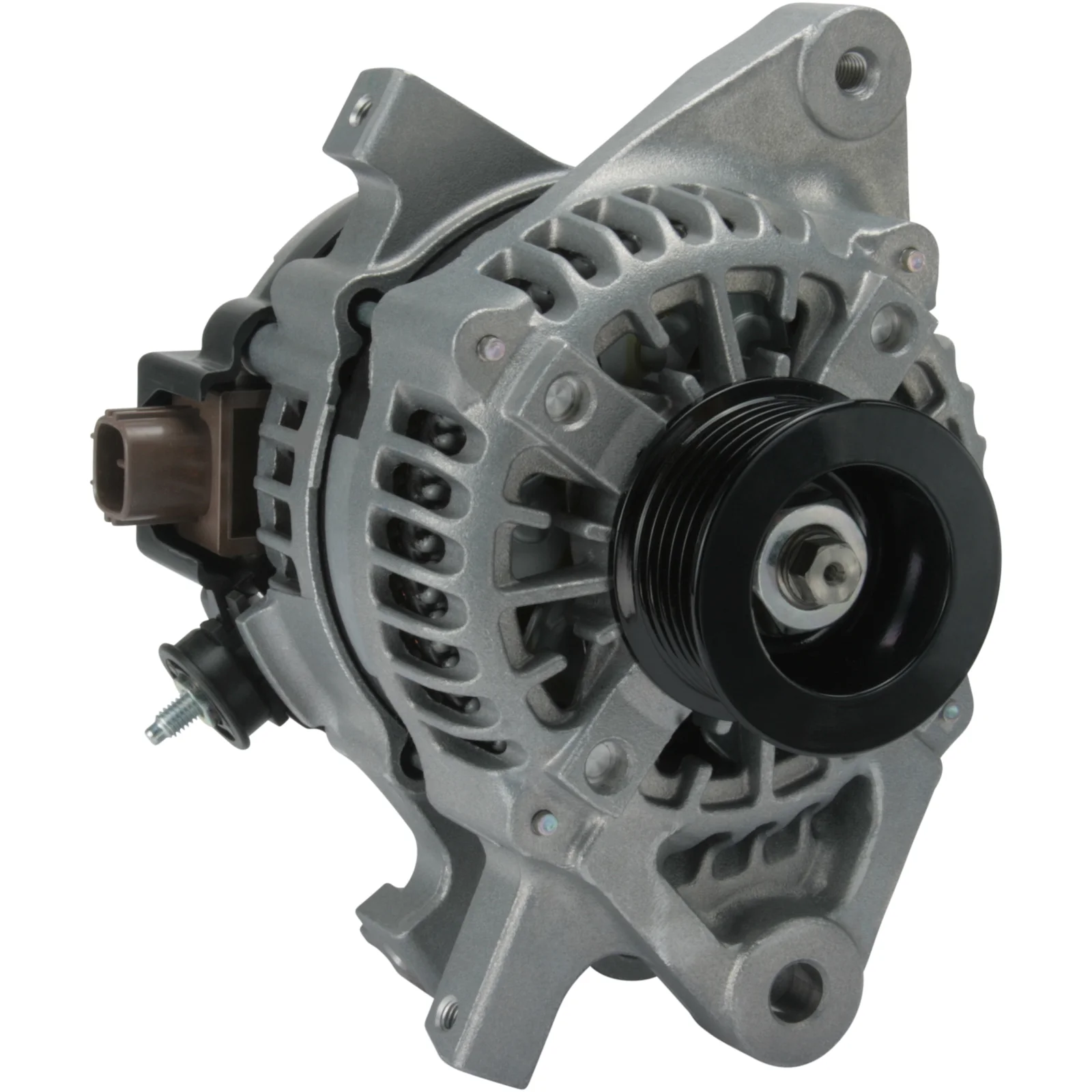

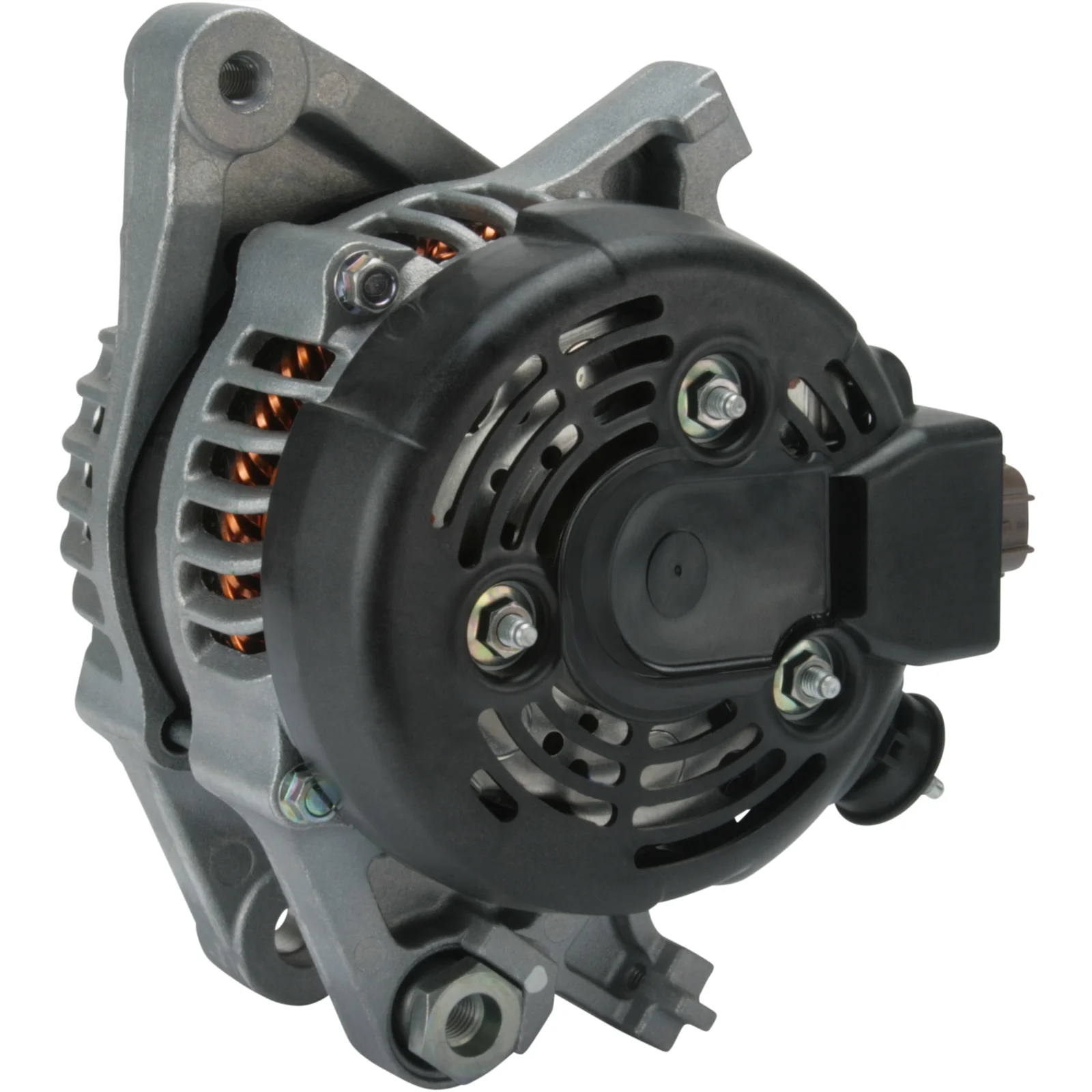

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114897

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 36.30

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 29.50
Width/holder arm: 19.00
Mount. bracket dist.: 36.30
Bracket hole: 11.00
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 52.50
Grooves/pulley: 6
Radius: 85.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 36.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 52.50
Pulley dist. 29.50
Radius 85.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Width/holder arm 19.00
Amp 80

  • OEM
    A4088, A4088(MM), A6068, A6068(DENSO), A6379(DENSO), CAL40298, CAL40311, DAN1024, DAN1025, DENDAN1025, DRA0692, DRA0693, F032114897, LRA03345, MAN7544, TG1042109290, 28-5957, 195.909.090, 195.939.080, 235.329.802, 1986A00644, 2125ir, 24104R, 27060-0H151, 27060-0y010, 27060-0y030, 27060-0Y030, 27060-47050, 104210-8350, 104210-8351, 104210-9250, 104210-9290, 210765, 210765A, 210840, 210840A, 270600H090, 270600Y010, 270600Y050, 270600Y05000, 270600Y070, 553472RI, 553478RI, 9090831, 12060922, 12061043, 0986082360, 2706047010, 063377544010, 063377545010

  • Konkurrentreferens
    A4088, A4088(MM), A6068, A6068(DENSO), A6379(DENSO), CAL40298, CAL40311, DAN1024, DAN1025, DENDAN1025, DRA0692, DRA0693, LRA03345, MAN7544, 28-5957, 195.909.090, 195.939.080, 235.329.802, 24104R, 210765, 210765A, 210840, 210840A, 553472RI, 553478RI, 9090831, 12060922, 12061043, 0986082360, 063377544010, 063377545010

  • Bilmärken
    DAIHATSU, TOYOTA

  • Normaliserat artikelnummer
    a4088, a4088mm, a6068, a6068denso, a6379denso, cal40298, cal40311, dan1024, dan1025, dendan1025, dra0692, dra0693, f032114897, lra03345, man7544, tg1042109290, 1986a00644, 2125ir, 24104r, 210765, 210765a, 210840, 210840a, 270600h090, 270600h151, 270600y010, 270600y030, 270600y050, 270600y05000, 270600y070, 285957, 553472ri, 553478ri, 9090831, 12060922, 12061043, 195909090, 195939080, 235329802, 0986082360, 1042108350, 1042108351, 1042109250, 1042109290, 2706047010, 2706047050, 063377544010, 063377545010

  • Passar modeller
    DAIHATSU CHARADE VIII 1.33 16V Engine volume: 1.3 Engine type: 1NR-FE Year: 05.11-
    TOYOTA URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110) Engine volume: 1.3 Engine type: 1NR-FE Year: 04.09-03.16
    TOYOTA URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110R) Engine volume: 1.3 Engine type: 1NR-FE Year: 01.09-03.16
    TOYOTA YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) Engine volume: 1.3 Engine type: 1NR-FE Year: 07.10-05.11
    TOYOTA YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) Engine volume: 1.3 Engine type: 1NR-FE Year: 11.08-12.11
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 29.50
    Width/holder arm: 19.00
    Mount. bracket dist.: 36.30
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 52.50
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL146
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 36.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 52.50
    Pulley dist. 29.50
    Radius 85.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 19.00
    Amp 80
  • Fordonsmatchning

    • OEM
      A4088, A4088(MM), A6068, A6068(DENSO), A6379(DENSO), CAL40298, CAL40311, DAN1024, DAN1025, DENDAN1025, DRA0692, DRA0693, F032114897, LRA03345, MAN7544, TG1042109290, 28-5957, 195.909.090, 195.939.080, 235.329.802, 1986A00644, 2125ir, 24104R, 27060-0H151, 27060-0y010, 27060-0y030, 27060-0Y030, 27060-47050, 104210-8350, 104210-8351, 104210-9250, 104210-9290, 210765, 210765A, 210840, 210840A, 270600H090, 270600Y010, 270600Y050, 270600Y05000, 270600Y070, 553472RI, 553478RI, 9090831, 12060922, 12061043, 0986082360, 2706047010, 063377544010, 063377545010

    • Konkurrentreferens
      A4088, A4088(MM), A6068, A6068(DENSO), A6379(DENSO), CAL40298, CAL40311, DAN1024, DAN1025, DENDAN1025, DRA0692, DRA0693, LRA03345, MAN7544, 28-5957, 195.909.090, 195.939.080, 235.329.802, 24104R, 210765, 210765A, 210840, 210840A, 553472RI, 553478RI, 9090831, 12060922, 12061043, 0986082360, 063377544010, 063377545010

    • Bilmärken
      DAIHATSU, TOYOTA

    • Normaliserat artikelnummer
      a4088, a4088mm, a6068, a6068denso, a6379denso, cal40298, cal40311, dan1024, dan1025, dendan1025, dra0692, dra0693, f032114897, lra03345, man7544, tg1042109290, 1986a00644, 2125ir, 24104r, 210765, 210765a, 210840, 210840a, 270600h090, 270600h151, 270600y010, 270600y030, 270600y050, 270600y05000, 270600y070, 285957, 553472ri, 553478ri, 9090831, 12060922, 12061043, 195909090, 195939080, 235329802, 0986082360, 1042108350, 1042108351, 1042109250, 1042109290, 2706047010, 2706047050, 063377544010, 063377545010

    • Passar modeller
      DAIHATSU CHARADE VIII 1.33 16V Engine volume: 1.3 Engine type: 1NR-FE Year: 05.11-
      TOYOTA URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110) Engine volume: 1.3 Engine type: 1NR-FE Year: 04.09-03.16
      TOYOTA URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110R) Engine volume: 1.3 Engine type: 1NR-FE Year: 01.09-03.16
      TOYOTA YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) Engine volume: 1.3 Engine type: 1NR-FE Year: 07.10-05.11
      TOYOTA YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) Engine volume: 1.3 Engine type: 1NR-FE Year: 11.08-12.11
