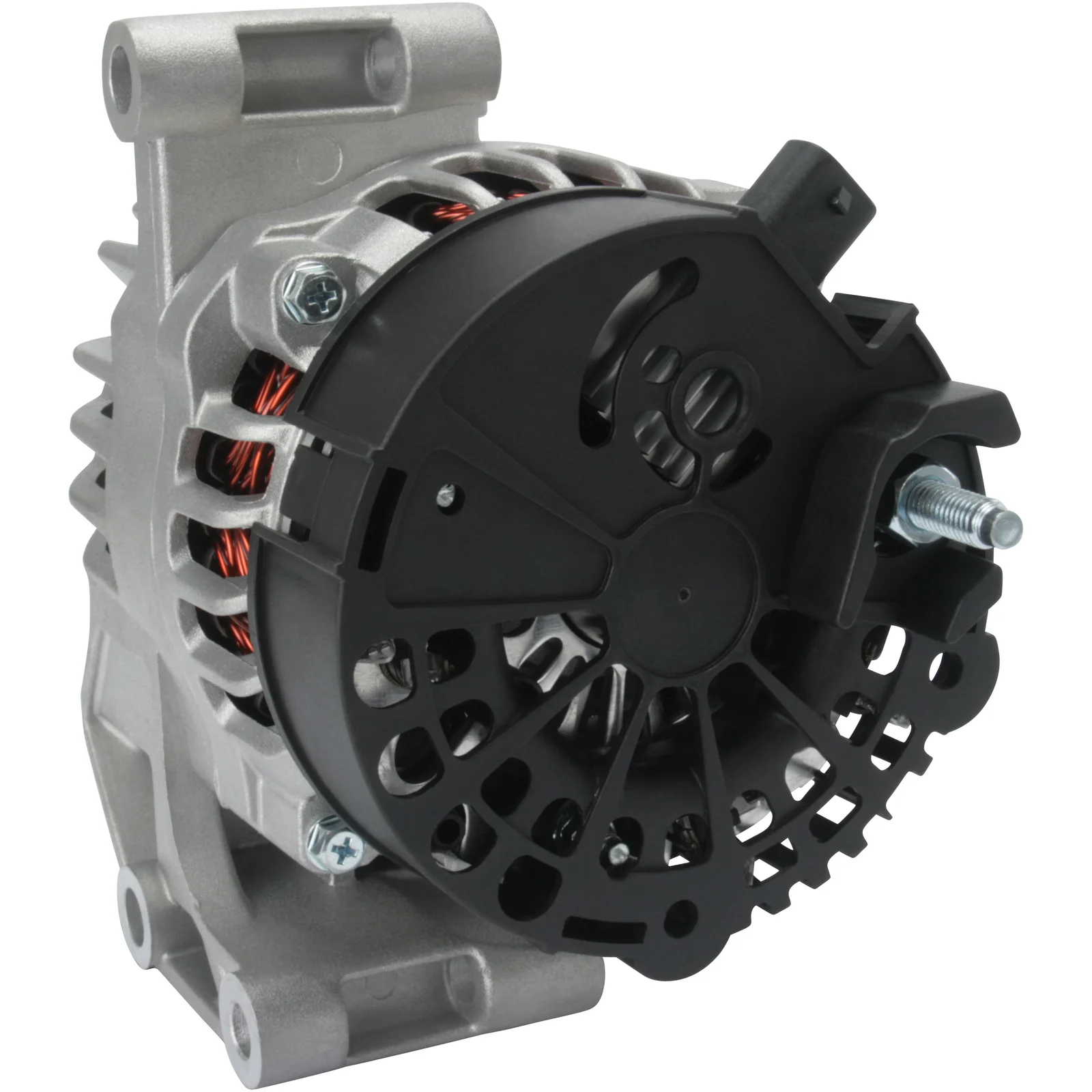

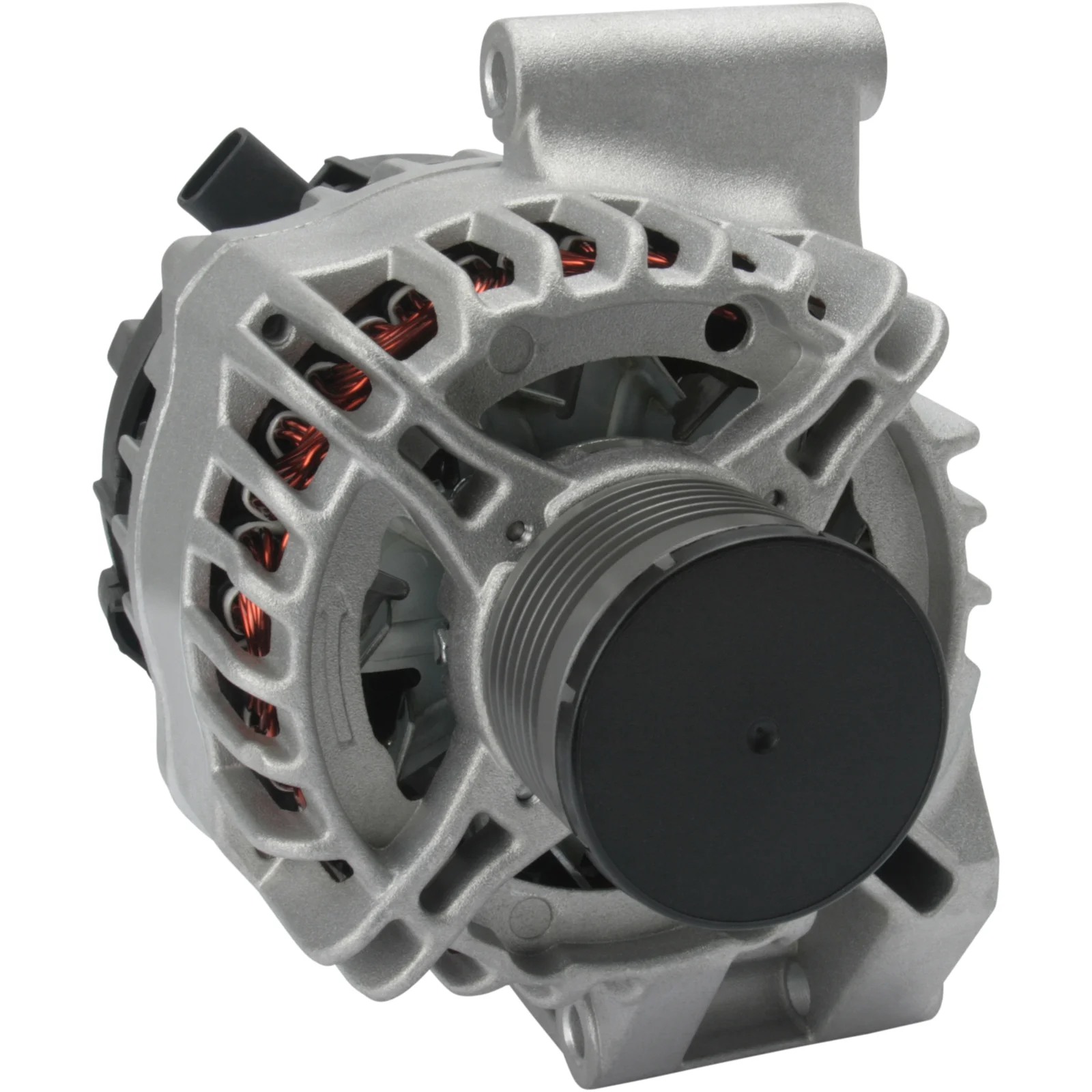

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114895

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 55.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 40.00
Width/holder arm: 64.00
Mount. bracket dist.: 55.00
Bracket hole: 9.50
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL75
Total length mm: 170.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 9.50
Plug no. PL75
Bracket hole 9.50
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 40.00
Radius 80.00
Radius 2 80.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 64.00
Amp 70

  • OEM
    F032114895, 1955ir, 101210-0950, 101210-0951, 1204426, 6204257, 13222934, 13256933, 63377423

  • Konkurrentreferens
    A6069, A6069(DENSO), A6069PR, CAL30206, DAN583, DENDAN583, DRA0089, DRA0089X, LRA03064, man7423, 8EL011712-541, 8EL738212-891, 28-5676, 218.306.702, 228.179.702, 24063N, 24063R, 200250, 210734, 210734A, 301955RI, 440922, 443084, 443263, 12090335, 32118950, 063377423, 0986081070, 063377423010

  • Normaliserat artikelnummer
    a6069, a6069denso, a6069pr, cal30206, dan583, dendan583, dra0089, dra0089x, f032114895, lra03064, man7423, 8el011712541, 8el738212891, 1955ir, 24063n, 24063r, 200250, 210734, 210734a, 285676, 301955ri, 440922, 443084, 443263, 1204426, 6204257, 12090335, 13222934, 13256933, 32118950, 063377423, 63377423, 218306702, 228179702, 0986081070, 1012100950, 1012100951, 063377423010

  • Passar modeller
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: Hatchback From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: Van From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTE Type description: F08, F68 Body: Hatchback From date: 01-06-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTR Body: Van From date: 01-11-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTR Type description: F08, F68 Body: Hatchback From date: 01-06-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Body: Van From date: 01-11-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Type description: F08, F68 Body: Hatchback From date: 01-06-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-07-2006 To date: 01-06-2011 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-07-2006 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Hatchback From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa D Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Van From date: 01-07-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: S10 Body: Van From date: 01-01-2013 To date: 01-11-2014 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTC Body: MPV From date: 01-06-2010 To date: 01-10-2013 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Type of engine: CDTi Size of motor: 1.3 Brand of engine: A13DTE Body: MPV From date: 01-06-2010 To date: 01-11-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTE Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTR Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTE Type description: F08, F68 Body: Hatchback From date: 01-07-2010 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTH Body: Hatchback From date: 01-08-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTJ Body: Hatchback From date: 01-08-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTH Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Mk III Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: Z13DTJ Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan MK IV Type of engine: CDTi Size of motor: 1.3 Brand of engine: Z13DTE Type description: D Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Model type: Ecoflex Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTE Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: CDTi 16V Size of motor: 1.3 Brand of engine: A13DTC Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
