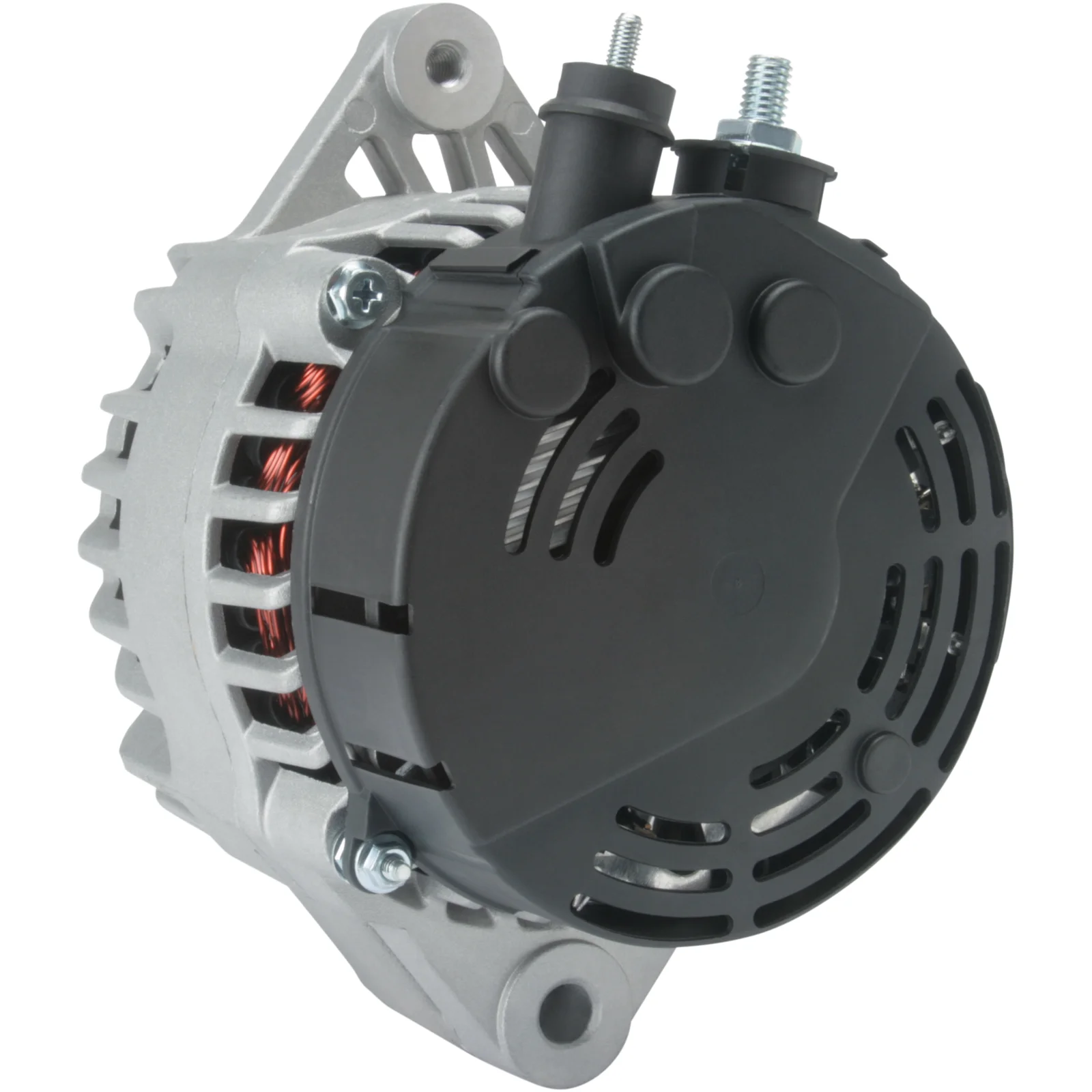

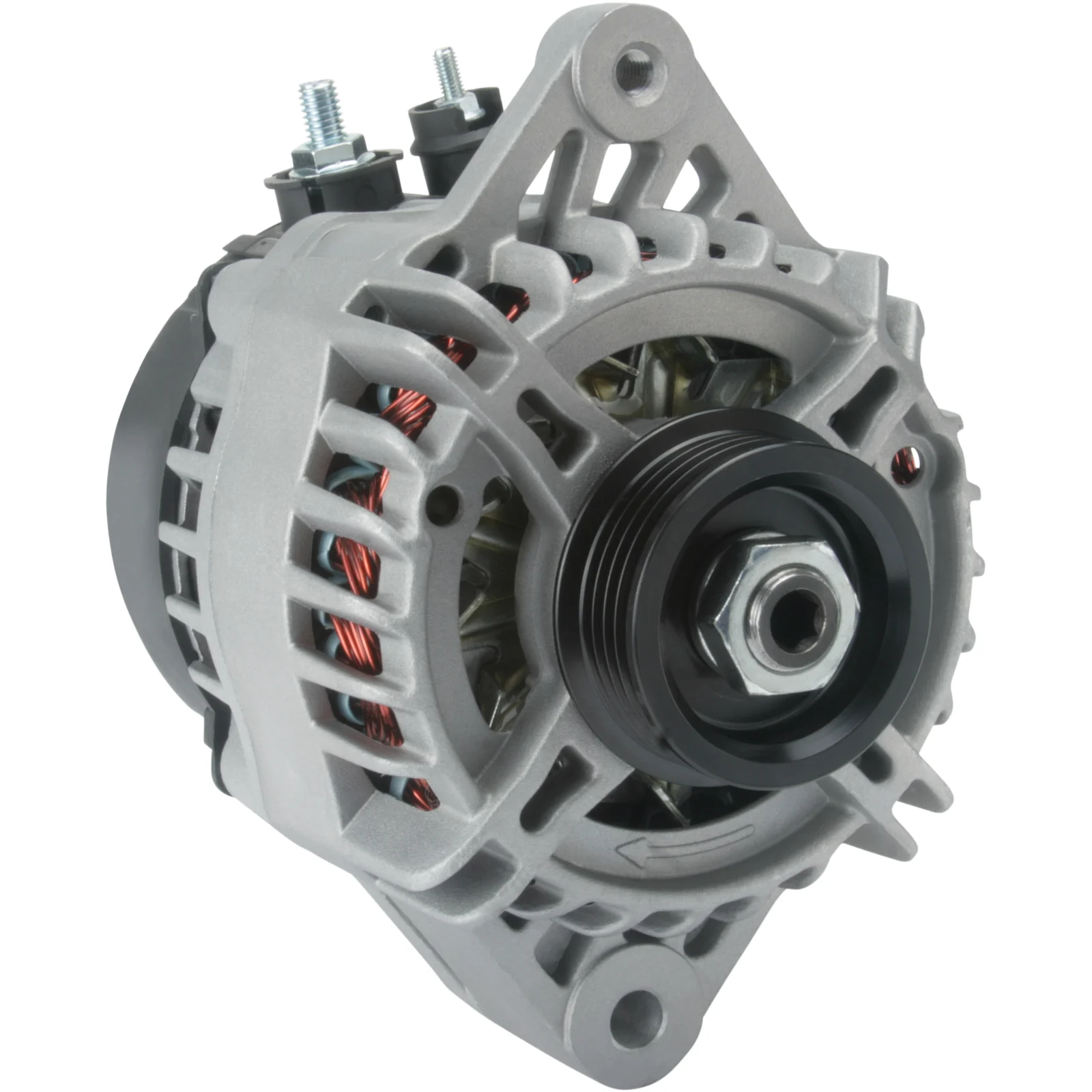

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114894

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Pulley dia.: 55.00

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 4
Radius: 80.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 2
D+ Size: M5
Rotation: CW
Total length mm: 172.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.50
Position/B+ in min. 2
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.50
Radius 80.00
D+ Size M5
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 172.00 mm
Width/holder arm 58.00
Amp 60

  • OEM
    F032114894, 31400-80E10, 31400-83e10, 63321774, 63321832, 63351774

  • Konkurrentreferens
    A4097, LRA02330, 28-4827, 21240R, 12060976

  • Normaliserat artikelnummer
    a4097, f032114894, lra02330, 21240r, 284827, 3140080e10, 3140083e10, 12060976, 63321774, 63321832, 63351774

  • Passar modeller
    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13BB Type description: EA,MA Body: Hatchback From date: 01-06-2001 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Type of engine: i Size of motor: 1.0 Brand of engine: G10A Type description: SF310,AA44 Body: Hatchback From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R Size of motor: 1.0 Brand of engine: G10A Body: MPV From date: 01-07-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 60
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 4
    Radius: 80.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: M5
    Rotation: CW
    Total length mm: 172.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Bracket hole 10.50
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 90.50
    Radius 80.00
    D+ Size M5
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 58.00
    Amp 60
  • Fordonsmatchning

    • OEM
      F032114894, 31400-80E10, 31400-83e10, 63321774, 63321832, 63351774

    • Konkurrentreferens
      A4097, LRA02330, 28-4827, 21240R, 12060976

    • Normaliserat artikelnummer
      a4097, f032114894, lra02330, 21240r, 284827, 3140080e10, 3140083e10, 12060976, 63321774, 63321832, 63351774

    • Passar modeller
      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13BB Type description: EA,MA Body: Hatchback From date: 01-06-2001 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Type of engine: i Size of motor: 1.0 Brand of engine: G10A Type description: SF310,AA44 Body: Hatchback From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R Size of motor: 1.0 Brand of engine: G10A Body: MPV From date: 01-07-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
