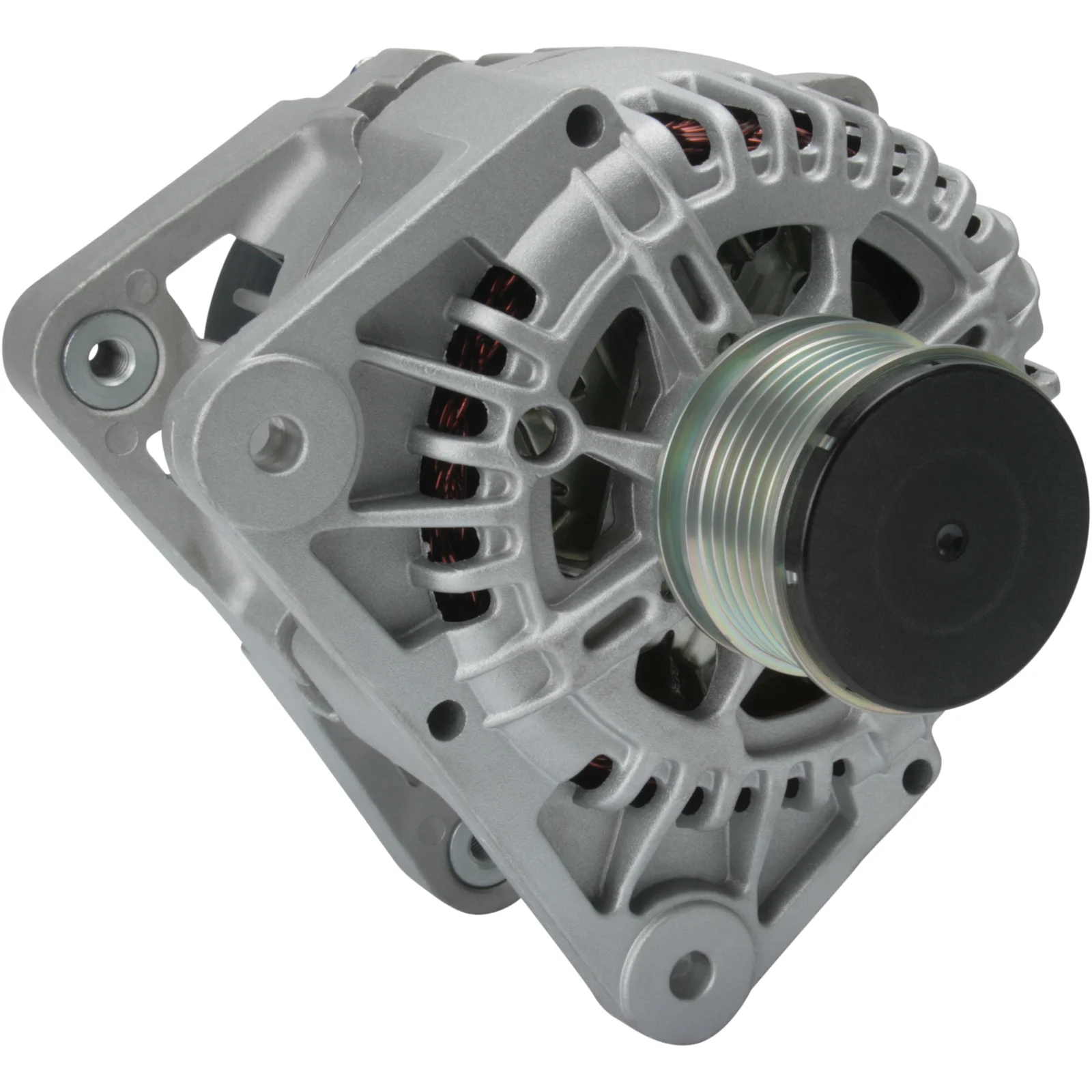

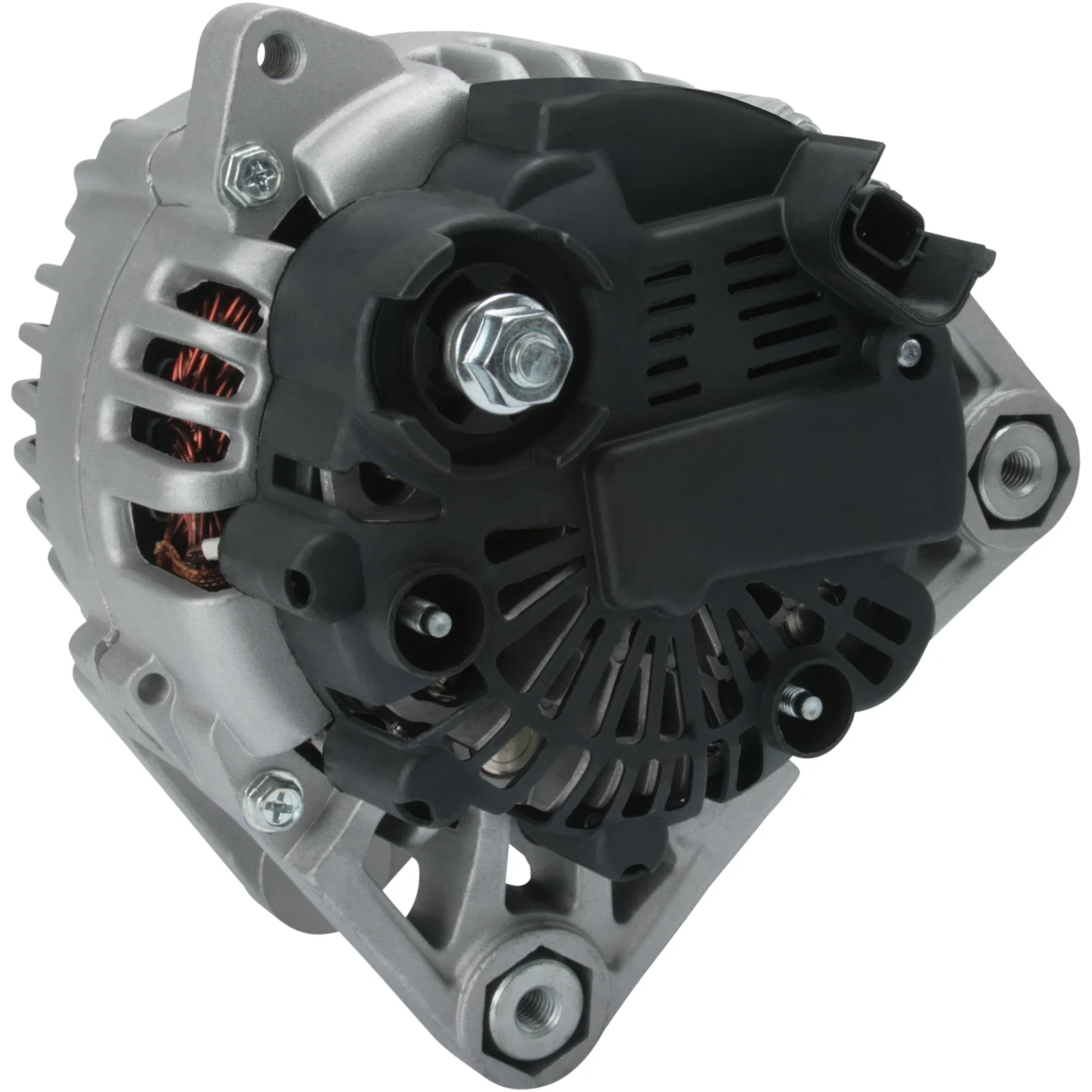

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114882

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 61.50

Beskrivning

Voltage: 14
Amp: 110
Pulley dist.: 38.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL131
Total length mm: 191.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 61.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F032114882, TG11C041, tg11c066, tg11c069, 1975ir, 2543206, 2543206C, 2543206D, 2543564, 2605275, 7711368719, 8200410681, 8200667614, 8200772726

  • Konkurrentreferens
    A3103, A3103(VALEO), CAL15336, DRA0292, DRA0292X, 8EL015637-501, 28-5767, 4697, 20453, 20453N, 112643, 200133, 210477, 210477A, 301975RI, 440068, 746959, 839077, 12090279, 0986080710

  • Normaliserat artikelnummer
    a3103, a3103valeo, cal15336, dra0292, dra0292x, f032114882, tg11c041, tg11c066, tg11c069, 8el015637501, 1975ir, 4697, 20453, 20453n, 112643, 200133, 210477, 210477a, 285767, 301975ri, 440068, 746959, 839077, 2543206, 2543206c, 2543206d, 2543564, 2605275, 12090279, 0986080710, 7711368719, 8200410681, 8200667614, 8200772726

  • Passar modeller
    Renault Model: Kangoo Model series: Grand Kangoo Type of engine: LPG Size of motor: 1.6 Brand of engine: K4M834 Type description: KW0/1_ Body: MPV From date: 01-12-2008 Fuel: Electric/Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Be Bop Size of motor: 1.6 Brand of engine: K4M830 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express LPG Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M834 Type description: FW0/1_ Body: Van From date: 01-02-2008 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M830 Body: Van From date: 01-02-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Hi-Flex Type of engine: 16V Hi-Flex Size of motor: 1.6 Brand of engine: K4M834 Type description: KWO/1_ Body: MPV From date: 01-02-2008 Fuel: Flex Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Hi-Flex Type of engine: 16V Hi-Flex Size of motor: 1.6 Brand of engine: K4M850 Type description: KWO/1_ Body: MPV From date: 01-02-2008 Fuel: Flex Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Rapid Model type: Flex Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M834 Type description: FW0/1_ Body: Box From date: 01-02-2008 Fuel: Petrol/Ethanol Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M830 Type description: FW/KW Body: MPV From date: 01-02-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M831 Type description: FW/KW Body: MPV From date: 01-02-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Grandtour Model type: Flex Size of motor: 1.6 Brand of engine: K4M768 Type description: KM0/1_ Body: Estate From date: 01-11-2006 To date: 01-08-2012 Fuel: Petrol/Ethanol Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Model type: Hi-Flex Size of motor: 1.6 Type description: LM0/1_ From date: 01-03-2006 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Flex-Fuel Size of motor: 1.6 Brand of engine: K4M762 Type description: KM0/1_ Body: Estate From date: 01-02-2008 To date: 01-07-2009 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Flex-Fuel Size of motor: 1.6 Brand of engine: K4M856 Type description: KM0/1_ Body: Estate From date: 01-02-2008 To date: 01-07-2009 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M C813 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M D812 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M D812 Type description: LM0/1 From date: 01-01-2006 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M760 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M812 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M812 Type description: LM0/1 From date: 01-01-2006 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M813 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M813 Type description: LM0/1 From date: 01-01-2006 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K722 From date: 01-08-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K724 From date: 01-05-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K728 From date: 01-02-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K728 Type description: LM0/1 From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K729 From date: 01-02-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K732 From date: 01-05-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K732 Type description: EM0/1_ Body: Convertible From date: 01-01-2007 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K732 Type description: EM0/1_ Body: Convertible From date: 01-03-2006 To date: 01-01-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K734 Type description: LM0/1 From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: FlexFuel Size of motor: 1.6 Brand of engine: K4M788 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-01-2007 To date: 01-02-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M812 Type description: JM0/1_ Body: MPV From date: 01-10-2005 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M9766 Type description: JM0/1_ Body: MPV From date: 01-10-2005 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4MC813 Type description: JM0/1_ Body: MPV From date: 01-10-2005 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    1 / 7
  • Beskrivning
    Voltage: 14
    Amp: 110
    Pulley dist.: 38.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL131
    Total length mm: 191.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 61.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 14.00
    Amp 110
  • Fordonsmatchning

    • OEM
      F032114882, TG11C041, tg11c066, tg11c069, 1975ir, 2543206, 2543206C, 2543206D, 2543564, 2605275, 7711368719, 8200410681, 8200667614, 8200772726

    • Konkurrentreferens
      A3103, A3103(VALEO), CAL15336, DRA0292, DRA0292X, 8EL015637-501, 28-5767, 4697, 20453, 20453N, 112643, 200133, 210477, 210477A, 301975RI, 440068, 746959, 839077, 12090279, 0986080710

    • Normaliserat artikelnummer
      a3103, a3103valeo, cal15336, dra0292, dra0292x, f032114882, tg11c041, tg11c066, tg11c069, 8el015637501, 1975ir, 4697, 20453, 20453n, 112643, 200133, 210477, 210477a, 285767, 301975ri, 440068, 746959, 839077, 2543206, 2543206c, 2543206d, 2543564, 2605275, 12090279, 0986080710, 7711368719, 8200410681, 8200667614, 8200772726

    • Passar modeller
      Renault Model: Kangoo Model series: Grand Kangoo Type of engine: LPG Size of motor: 1.6 Brand of engine: K4M834 Type description: KW0/1_ Body: MPV From date: 01-12-2008 Fuel: Electric/Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Be Bop Size of motor: 1.6 Brand of engine: K4M830 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express LPG Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M834 Type description: FW0/1_ Body: Van From date: 01-02-2008 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M830 Body: Van From date: 01-02-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Hi-Flex Type of engine: 16V Hi-Flex Size of motor: 1.6 Brand of engine: K4M834 Type description: KWO/1_ Body: MPV From date: 01-02-2008 Fuel: Flex Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Hi-Flex Type of engine: 16V Hi-Flex Size of motor: 1.6 Brand of engine: K4M850 Type description: KWO/1_ Body: MPV From date: 01-02-2008 Fuel: Flex Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Rapid Model type: Flex Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M834 Type description: FW0/1_ Body: Box From date: 01-02-2008 Fuel: Petrol/Ethanol Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M830 Type description: FW/KW Body: MPV From date: 01-02-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M831 Type description: FW/KW Body: MPV From date: 01-02-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Grandtour Model type: Flex Size of motor: 1.6 Brand of engine: K4M768 Type description: KM0/1_ Body: Estate From date: 01-11-2006 To date: 01-08-2012 Fuel: Petrol/Ethanol Approved: Yes Manufacture type: Grandtour
      Renault Model: Megane Model series: Megane Model type: Hi-Flex Size of motor: 1.6 Type description: LM0/1_ From date: 01-03-2006 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Flex-Fuel Size of motor: 1.6 Brand of engine: K4M762 Type description: KM0/1_ Body: Estate From date: 01-02-2008 To date: 01-07-2009 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Flex-Fuel Size of motor: 1.6 Brand of engine: K4M856 Type description: KM0/1_ Body: Estate From date: 01-02-2008 To date: 01-07-2009 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M C813 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M D812 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M D812 Type description: LM0/1 From date: 01-01-2006 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M760 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M812 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M812 Type description: LM0/1 From date: 01-01-2006 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M813 Type description: EM0/1_ Body: Convertible From date: 01-01-2006 To date: 01-06-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M813 Type description: LM0/1 From date: 01-01-2006 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K722 From date: 01-08-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K724 From date: 01-05-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K728 From date: 01-02-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K728 Type description: LM0/1 From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K729 From date: 01-02-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K732 From date: 01-05-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K732 Type description: EM0/1_ Body: Convertible From date: 01-01-2007 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K732 Type description: EM0/1_ Body: Convertible From date: 01-03-2006 To date: 01-01-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K734 Type description: LM0/1 From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: FlexFuel Size of motor: 1.6 Brand of engine: K4M788 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-01-2007 To date: 01-02-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M812 Type description: JM0/1_ Body: MPV From date: 01-10-2005 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M9766 Type description: JM0/1_ Body: MPV From date: 01-10-2005 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4MC813 Type description: JM0/1_ Body: MPV From date: 01-10-2005 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      1 / 7
