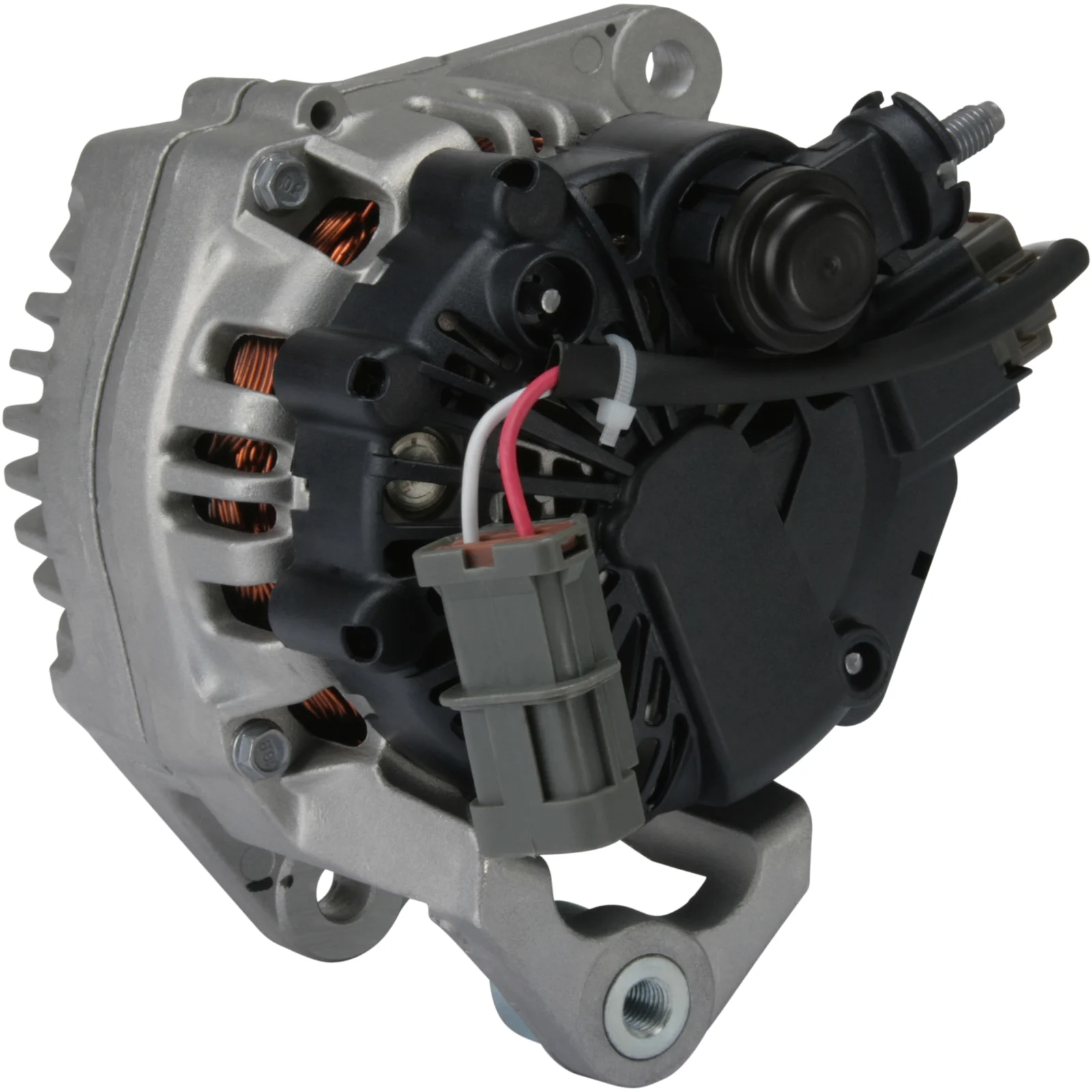

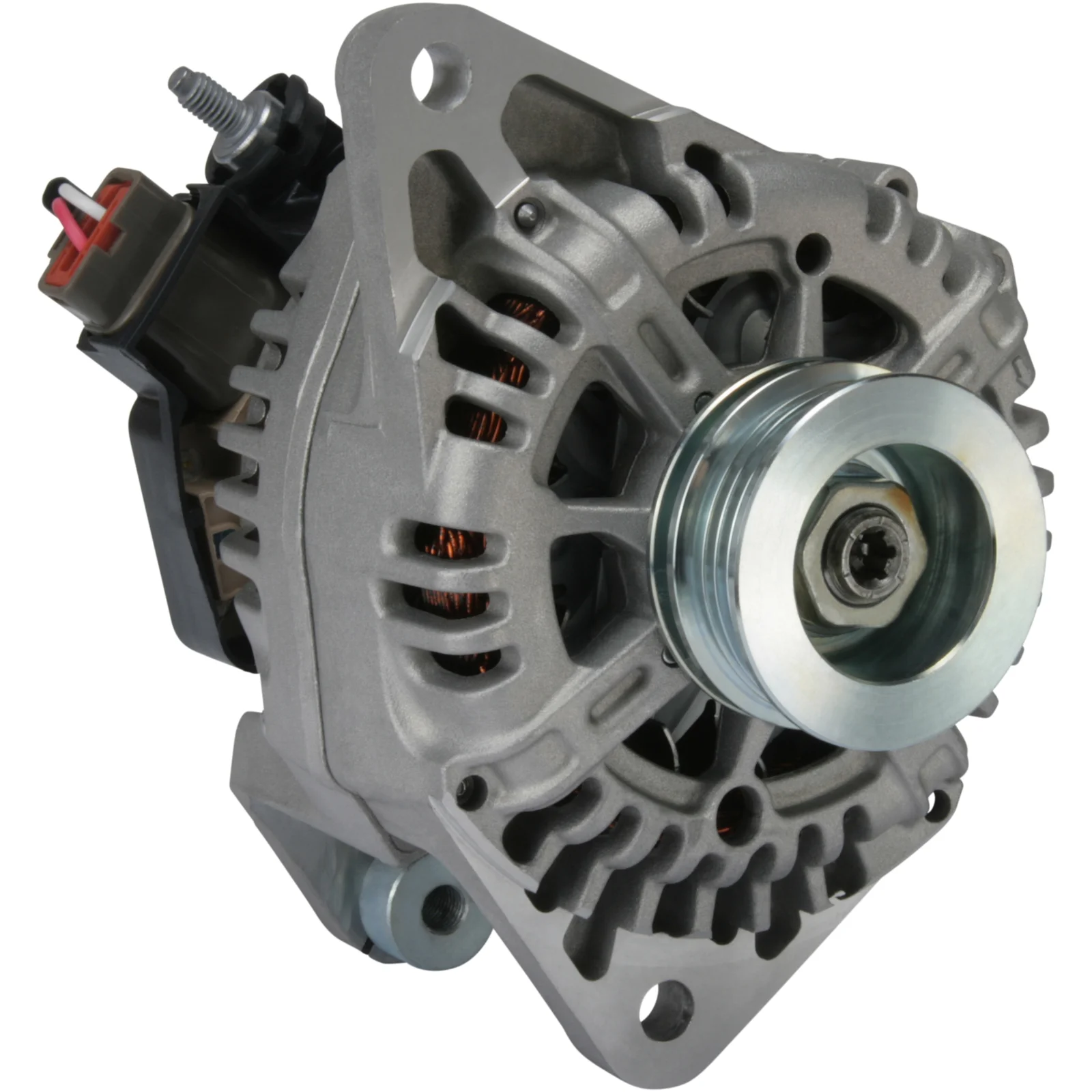

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114877

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 68.00

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 45.50
Width/holder arm: 13.00
Mount. bracket dist.: 68.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 55.00
Grooves/pulley: 4
Radius: 85.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 180.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 68.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 50
Plug no. PL100
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 45.50
Radius 85.00
D+ Size Plug
Radius 2 93.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 180.00 mm
Width/holder arm 13.00
Amp 80

  • OEM
    F032114877, ja1725ir, tg8c011, 23100-ax600, 2542694, 2542694A, 2542694B

  • Konkurrentreferens
    A3191, A3191PR, CAL15293, DRA4289, J5111105, LRA02353, 8EL012429-641, 28-4855, 227.189.802, 23353, 23353N, 112162, 210857, 210857A, 401725RI, 437455, 439490, 9213492, 12060812, 0986083590, 0986084210, 944390903530

  • Normaliserat artikelnummer
    a3191, a3191pr, cal15293, dra4289, f032114877, j5111105, ja1725ir, lra02353, tg8c011, 8el012429641, 23100ax600, 23353, 23353n, 112162, 210857, 210857a, 284855, 401725ri, 437455, 439490, 2542694, 2542694a, 2542694b, 9213492, 12060812, 227189802, 0986083590, 0986084210, 944390903530

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 45.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 68.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 55.00
    Grooves/pulley: 4
    Radius: 85.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 180.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 68.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 50
    Plug no. PL100
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 45.50
    Radius 85.00
    D+ Size Plug
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 13.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032114877, ja1725ir, tg8c011, 23100-ax600, 2542694, 2542694A, 2542694B

    • Konkurrentreferens
      A3191, A3191PR, CAL15293, DRA4289, J5111105, LRA02353, 8EL012429-641, 28-4855, 227.189.802, 23353, 23353N, 112162, 210857, 210857A, 401725RI, 437455, 439490, 9213492, 12060812, 0986083590, 0986084210, 944390903530

    • Normaliserat artikelnummer
      a3191, a3191pr, cal15293, dra4289, f032114877, j5111105, ja1725ir, lra02353, tg8c011, 8el012429641, 23100ax600, 23353, 23353n, 112162, 210857, 210857a, 284855, 401725ri, 437455, 439490, 2542694, 2542694a, 2542694b, 9213492, 12060812, 227189802, 0986083590, 0986084210, 944390903530

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
