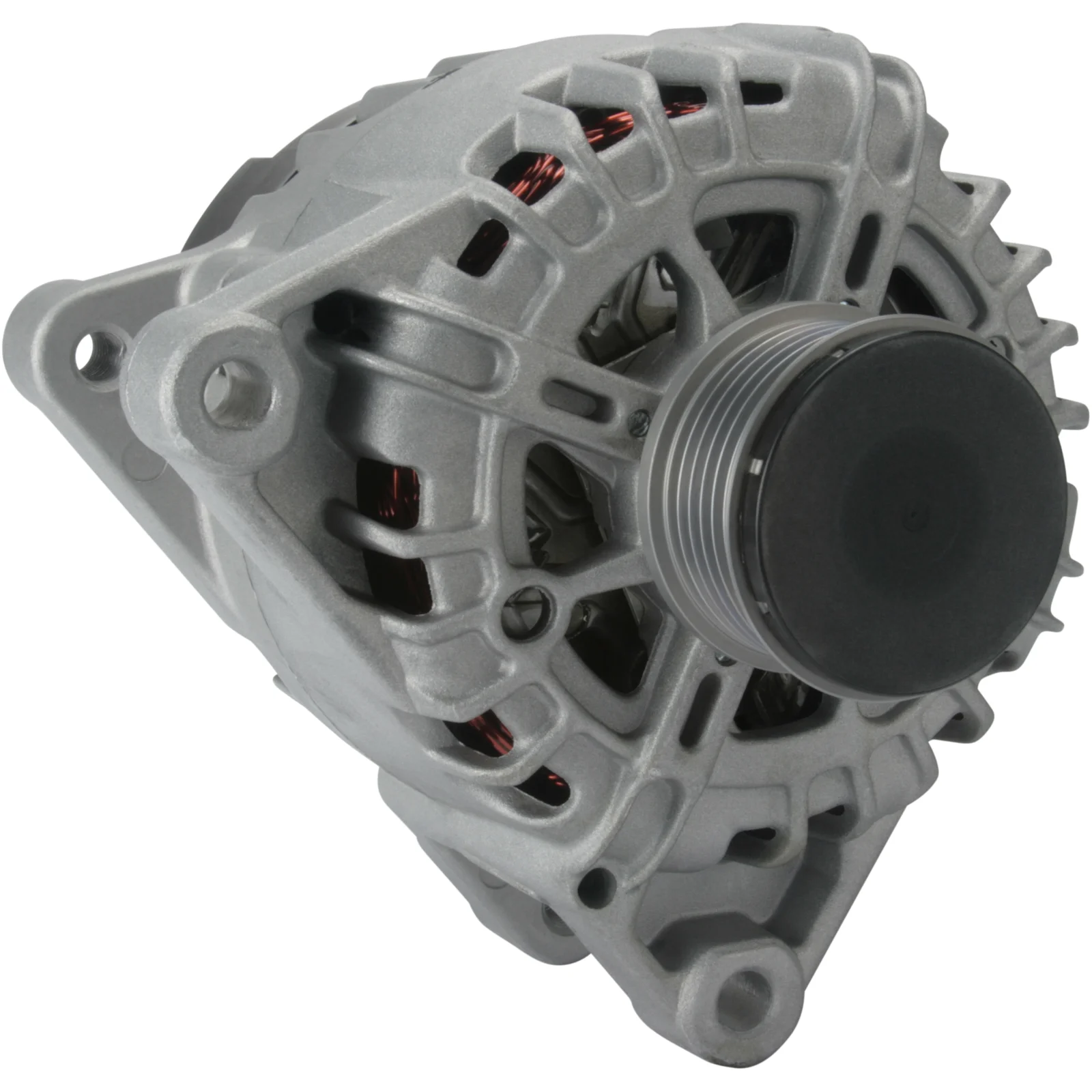

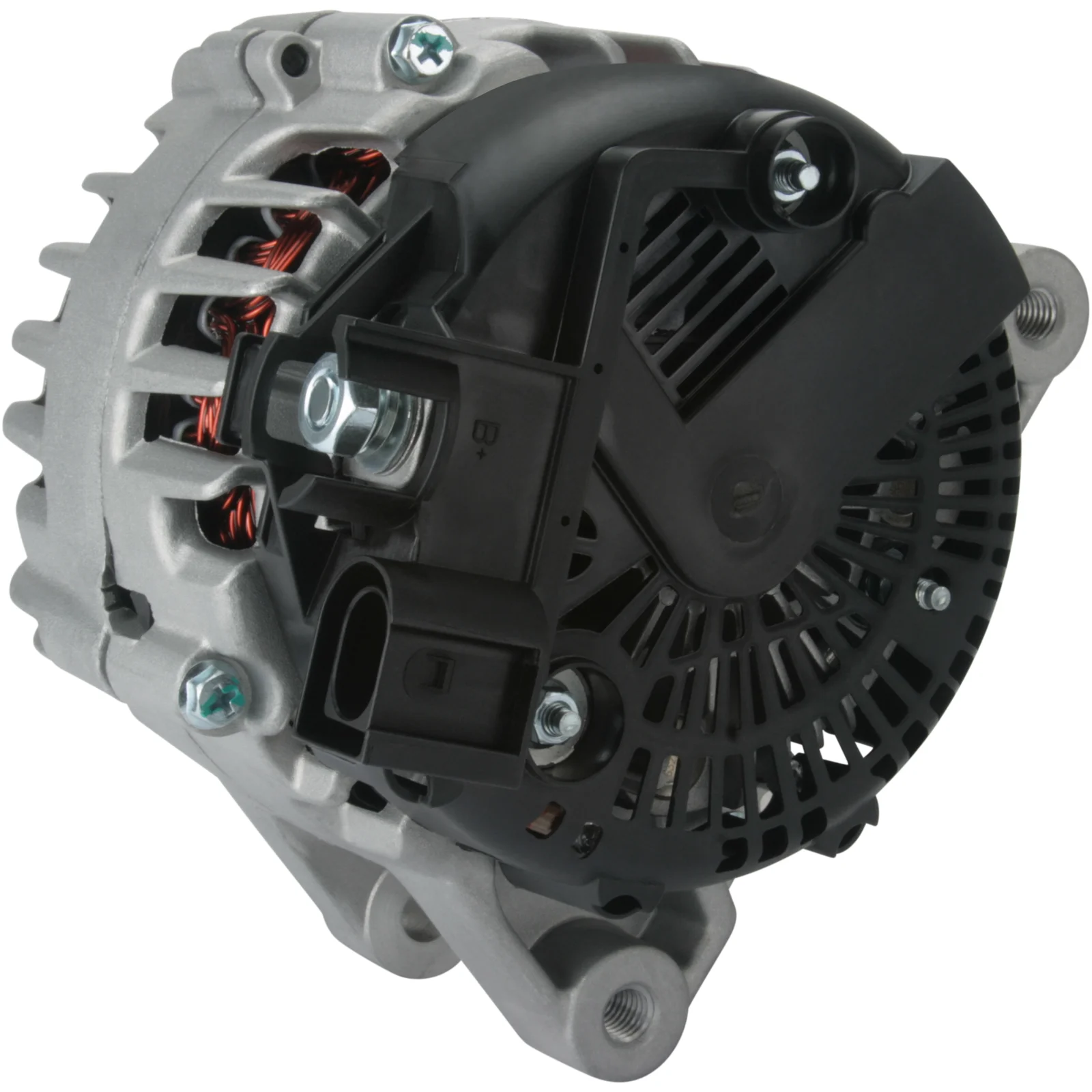

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114866

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 45.70

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 42.00
Width/holder arm: 21.00
Mount. bracket dist.: 45.70
Bracket hole: 10.00
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL137
Total length mm: 186.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 45.70
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL137
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 186.00 mm
Width/holder arm 21.00
Amp 120

  • OEM
    F032114866, tg12c038, y405-18-300, 8V2110300AB, 1986A01847, 2091ir, 1506299, 2543427, 2543427A

  • Konkurrentreferens
    A3359S, CAL15343, DRA0226, 28-5664, 595.561.120, 24052N, 112771, 210436, 210436A, 439632, 553278RI, 12090247, 0986083290

  • Normaliserat artikelnummer
    a3359s, cal15343, dra0226, f032114866, tg12c038, y40518300, 8v2110300ab, 1986a01847, 2091ir, 24052n, 112771, 210436, 210436a, 285664, 439632, 553278ri, 1506299, 2543427, 2543427a, 12090247, 595561120, 0986083290

  • Passar modeller
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: KVJA Body: Hatchback From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: KVJA Body: Van From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJC Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJC Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJD Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJE Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJE Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJB Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: UBJA Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZ Type of engine: CD Size of motor: 1.6 Brand of engine: Y406 Body: Hatchback From date: 01-10-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZ Type of engine: CD Size of motor: 1.6 Brand of engine: Y646 Body: Hatchback From date: 01-10-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 120
    Pulley dist.: 42.00
    Width/holder arm: 21.00
    Mount. bracket dist.: 45.70
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL137
    Total length mm: 186.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 45.70
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 47
    Plug no. PL137
    Bracket hole 10.00
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 42.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 186.00 mm
    Width/holder arm 21.00
    Amp 120
  • Fordonsmatchning

    • OEM
      F032114866, tg12c038, y405-18-300, 8V2110300AB, 1986A01847, 2091ir, 1506299, 2543427, 2543427A

    • Konkurrentreferens
      A3359S, CAL15343, DRA0226, 28-5664, 595.561.120, 24052N, 112771, 210436, 210436A, 439632, 553278RI, 12090247, 0986083290

    • Normaliserat artikelnummer
      a3359s, cal15343, dra0226, f032114866, tg12c038, y40518300, 8v2110300ab, 1986a01847, 2091ir, 24052n, 112771, 210436, 210436a, 285664, 439632, 553278ri, 1506299, 2543427, 2543427a, 12090247, 595561120, 0986083290

    • Passar modeller
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Hatchback From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: KVJA Body: Hatchback From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: KVJA Body: Van From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJC Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJC Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJD Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJE Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: HHJE Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJB Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: UBJA Body: Hatchback From date: 01-06-2008 Fuel: Diesel Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: MZ Type of engine: CD Size of motor: 1.6 Brand of engine: Y406 Body: Hatchback From date: 01-10-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Mazda Model: 2 Model series: 2 Model type: MZ Type of engine: CD Size of motor: 1.6 Brand of engine: Y646 Body: Hatchback From date: 01-10-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes
