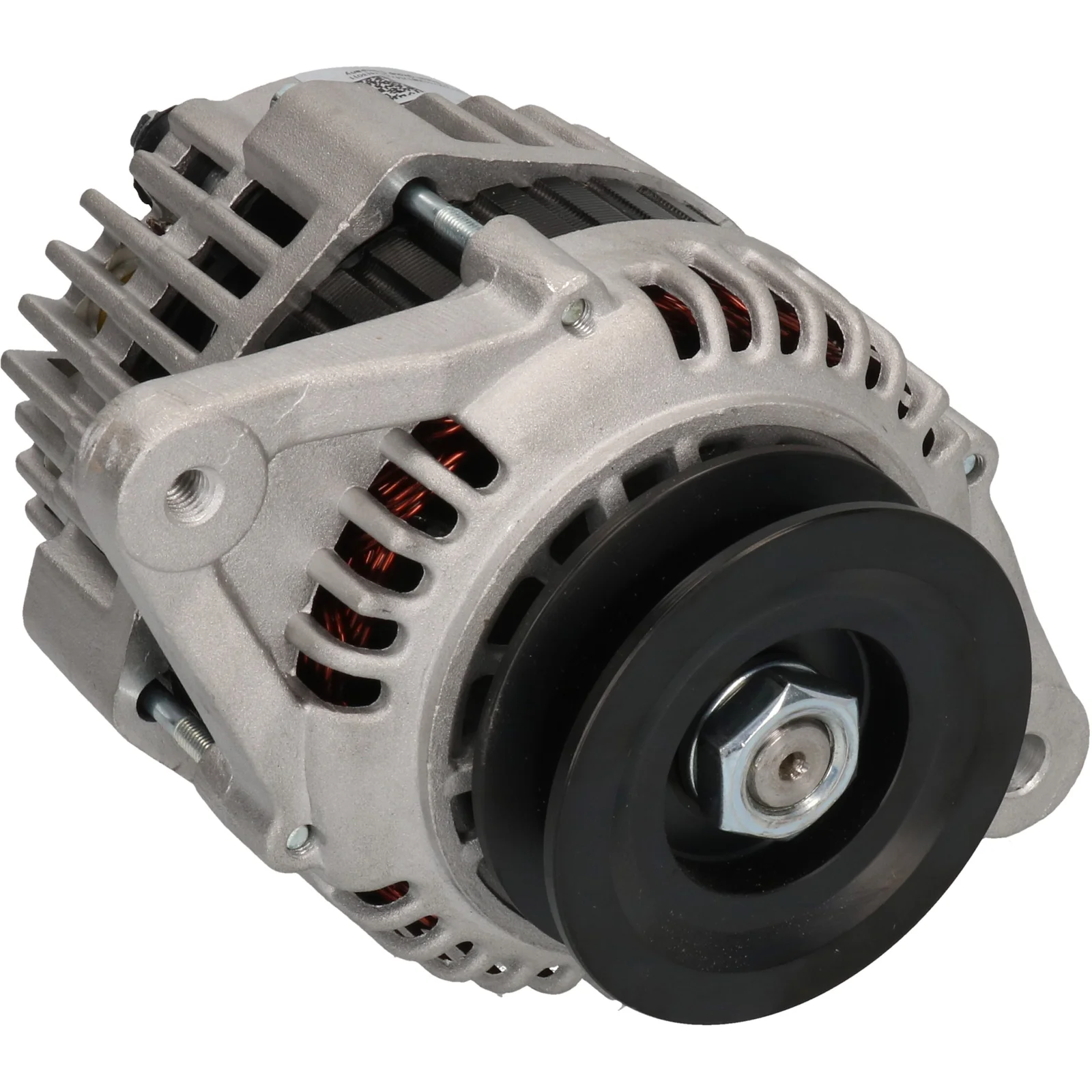

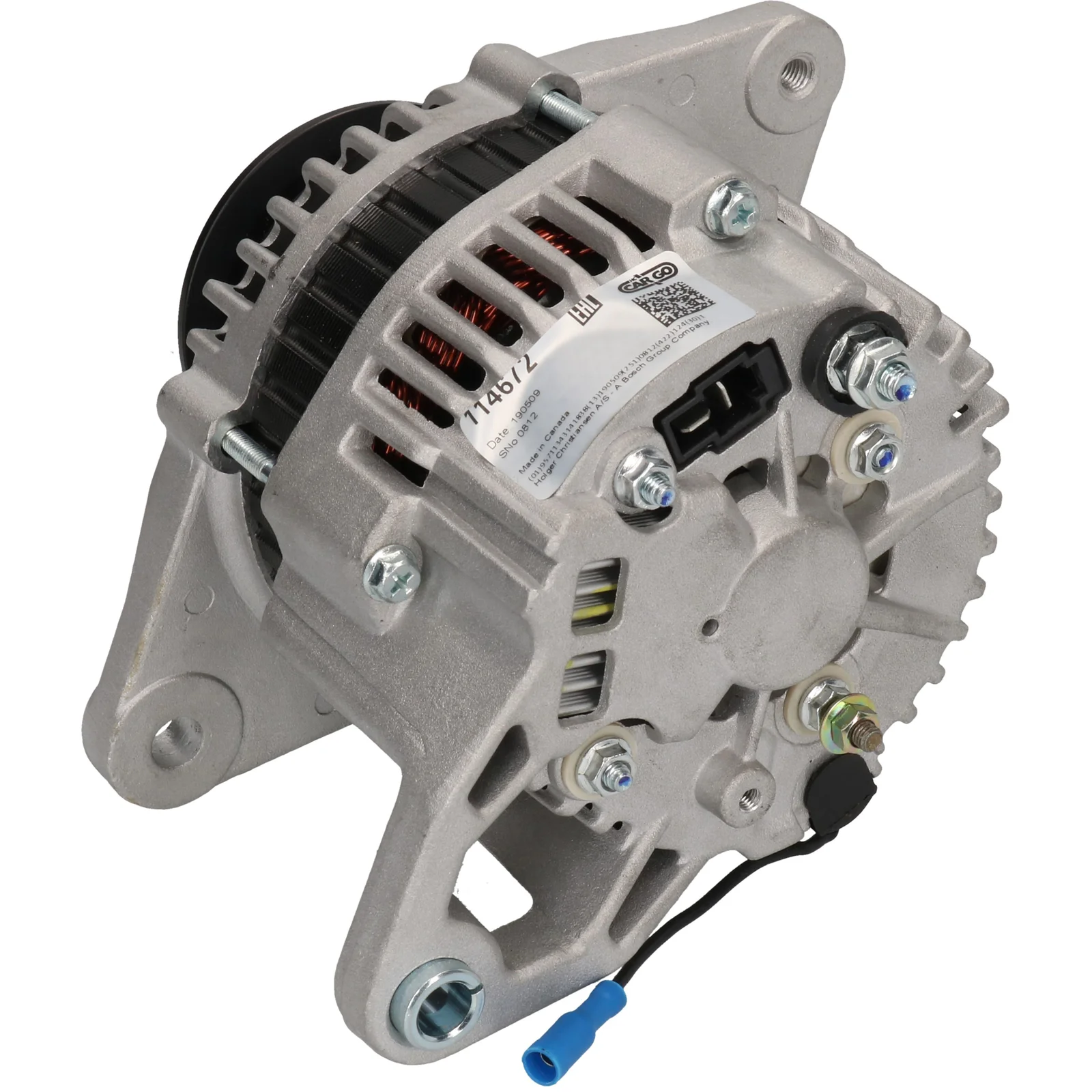

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114672

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 82.00

Beskrivning

Voltage: 14
Amp: 60
Insulated return: Yes
Pulley dist.: 45.00
Width/holder arm: 13.00
Mount. bracket dist.: 82.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 82.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL10
Total length mm: 160.00
Pulley: P
Fan: IF
Regulator type: IR
Remarks: w/ W terminal.

Filer

Specifikation

B+ M6
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 55
Pulley P
Pulley dia. 82.00
Pulley dist. 45.00
Radius 90.00
Radius 2 84.00
Regulator type IR
Remarks w/ W terminal.
Rotation CW
Fan IF
Grooves/pulley 1
Insulated return Yes
Voltage 14
Total length 160.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    F032114672, lr160-741, 128271-77200

  • Konkurrentreferens
    AHI0151, CAL20238, 28-6893, 582.121.602, 985.004.060, 12042N

  • Normaliserat artikelnummer
    ahi0151, cal20238, f032114672, lr160741, 12042n, 286893, 582121602, 985004060, 12827177200

  • Passar modeller
    Yanmar Model: 4JH Model series: 4JH3 Approved: Yes
    Yanmar Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 60
    Insulated return: Yes
    Pulley dist.: 45.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 82.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 82.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL10
    Total length mm: 160.00
    Pulley: P
    Fan: IF
    Regulator type: IR
    Remarks: w/ W terminal.

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 82.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 55
    Pulley P
    Pulley dia. 82.00
    Pulley dist. 45.00
    Radius 90.00
    Radius 2 84.00
    Regulator type IR
    Remarks w/ W terminal.
    Rotation CW
    Fan IF
    Grooves/pulley 1
    Insulated return Yes
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 13.00
    Amp 60
  • Fordonsmatchning

    • OEM
      F032114672, lr160-741, 128271-77200

    • Konkurrentreferens
      AHI0151, CAL20238, 28-6893, 582.121.602, 985.004.060, 12042N

    • Normaliserat artikelnummer
      ahi0151, cal20238, f032114672, lr160741, 12042n, 286893, 582121602, 985004060, 12827177200

    • Passar modeller
      Yanmar Model: 4JH Model series: 4JH3 Approved: Yes
      Yanmar Model: Various Models Model series: Various Models Approved: Yes
