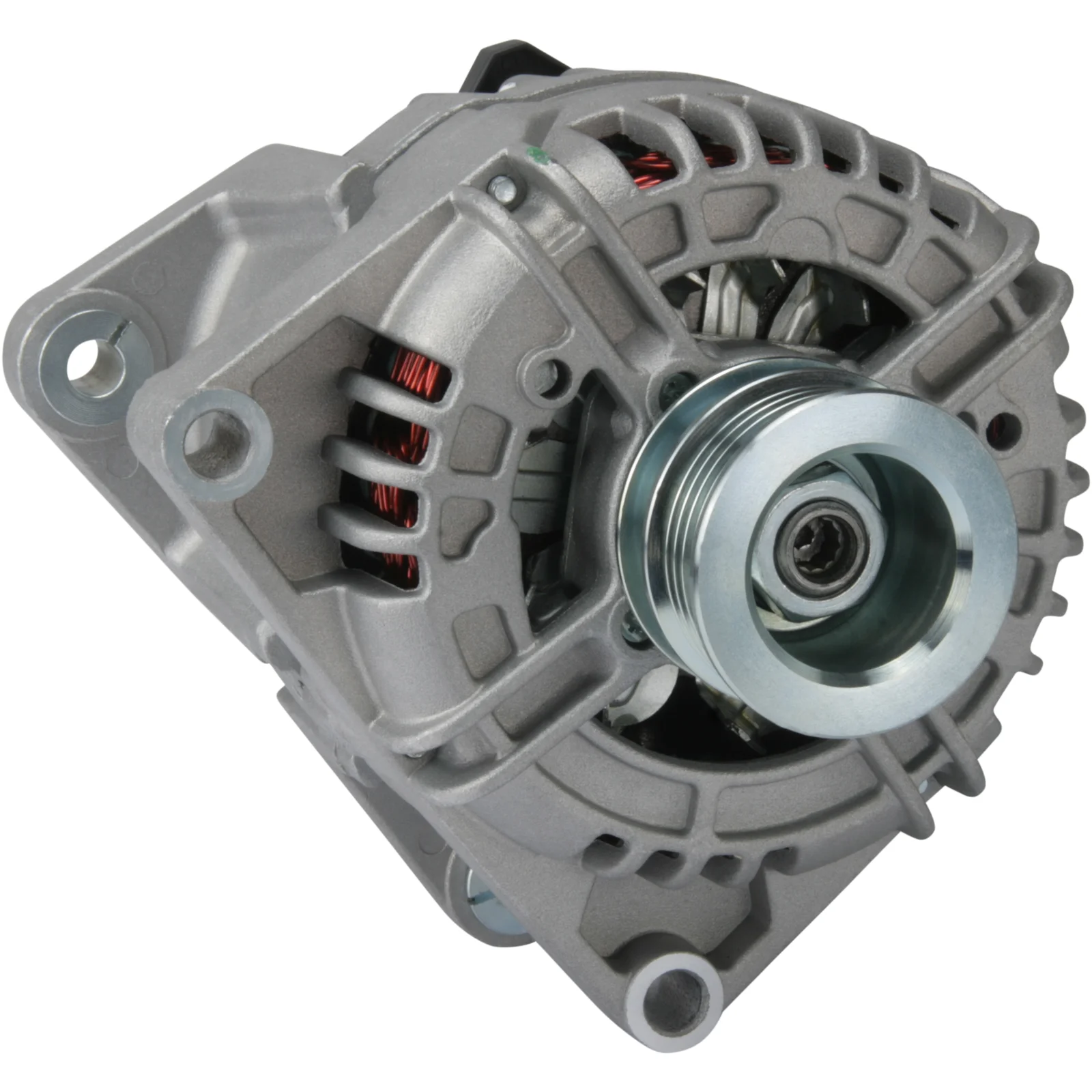

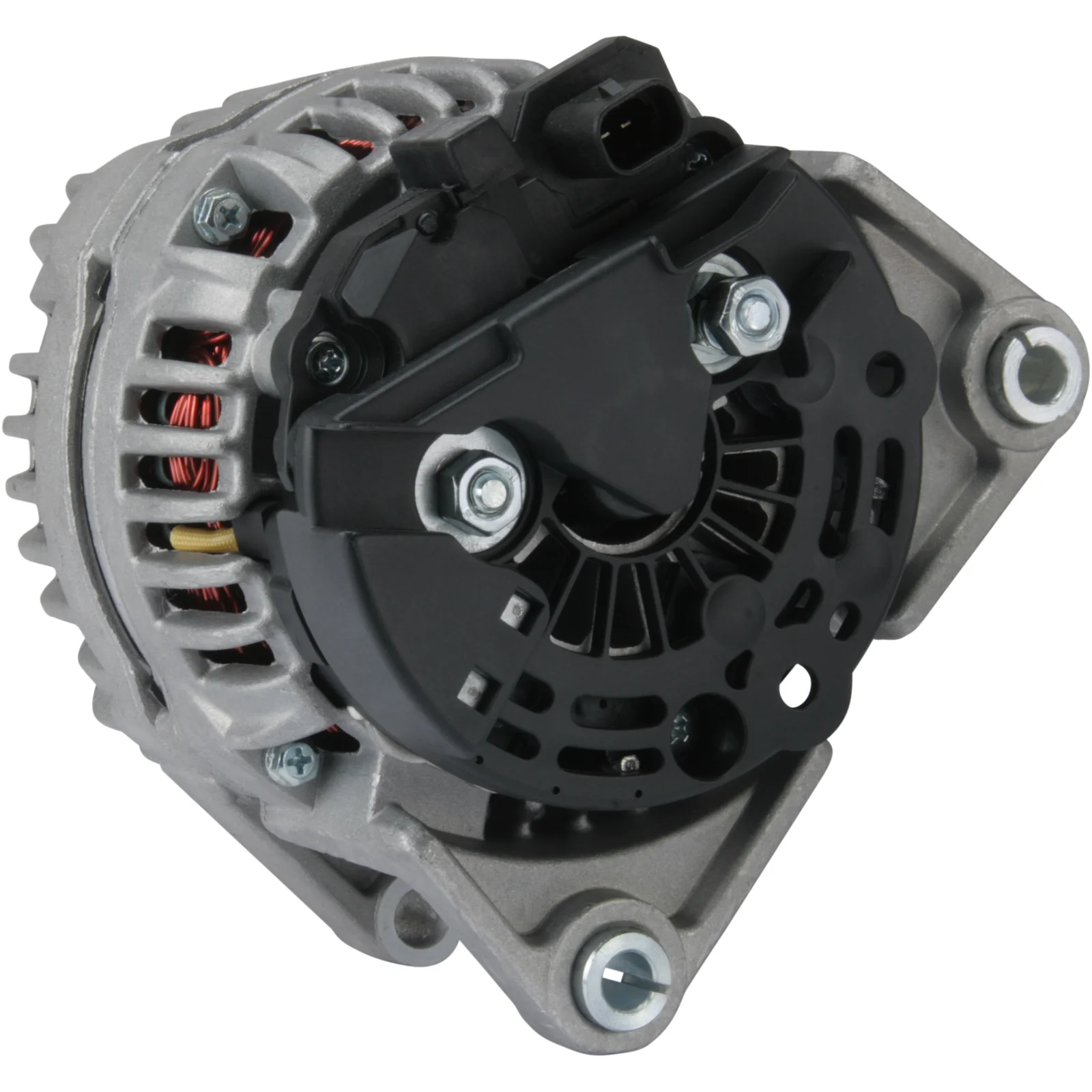

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114668

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 59.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 64.00
Width/holder arm: 23.00
Mount. bracket dist.: 59.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 53.50
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL75
Total length mm: 181.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL75
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 53.50
Pulley dist. 64.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 181.00 mm
Width/holder arm 23.00
Amp 100

  • OEM
    F032114668, 1986A00806, 1986A01140, 13229984, 0124325163

  • Konkurrentreferens
    A0346, A0346PR, CAL10457, DRA1151, 8EL011712-971, 28-6617, 228.186.1002, 209081, 209081A, 12090449, 32049990, 0986082870

  • Normaliserat artikelnummer
    a0346, a0346pr, cal10457, dra1151, f032114668, 8el011712971, 1986a00806, 1986a01140, 209081, 209081a, 286617, 12090449, 13229984, 32049990, 0124325163, 0986082870, 2281861002

  • Passar modeller
    Opel Model: Astra H Model series: Astra H Family Hatchback Size of motor: 1.6 Brand of engine: Z16XER Type description: A04 Body: Hatchback From date: 01-01-2009 Fuel: Petrol Approved: Yes
    Opel Model: Astra H Model series: Astra H Family Saloon Size of motor: 1.6 Brand of engine: Z16XER Type description: A04 Body: Saloon From date: 01-01-2009 To date: 01-05-2014 Fuel: Petrol Approved: Yes
    Opel Model: Astra Model series: Astra Classic Estate Size of motor: 1.6 Brand of engine: Z16XER Body: Estate From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Opel Model: Astra Model series: Astra H Model type: EcoTec Size of motor: 1.6 Brand of engine: Z16XER Type description: L70 Body: Box From date: 01-10-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: GTC Size of motor: 1.6 Brand of engine: Z16XER Body: Hatchback From date: 01-12-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: GTC Size of motor: 1.8 Brand of engine: Z18XER Body: Hatchback From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Model type: LPG Size of motor: 1.6 Brand of engine: Z16XER Body: Estate From date: 01-08-2009 To date: 01-10-2010 Fuel: Bi-Fuel Approved: Yes Manufacture type: Caravan
    Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: A16XER Body: Estate From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: Z16XER Body: Convertible From date: 01-12-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: Z16XER Body: Estate From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: Z16XER Body: Hatchback From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: A18XER Body: Convertible From date: 01-09-2005 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: A18XER Body: Hatchback From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: Z18XER Body: Convertible From date: 01-09-2005 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: Z18XER Body: Hatchback From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: GTS Size of motor: 1.6 Brand of engine: Z16XEP Body: Hatchback From date: 01-01-2006 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: GTS Size of motor: 1.8 Brand of engine: Z18XER Body: Hatchback From date: 01-08-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Size of motor: 1.6 Brand of engine: Z16XEP From date: 01-08-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira B Size of motor: 1.6 Brand of engine: A16XER Body: MPV From date: 01-01-2008 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira B Size of motor: 1.6 Brand of engine: Z16XER Body: MPV From date: 01-01-2008 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: 16V Size of motor: 1.6 Brand of engine: Z16XER Body: Hatchback From date: 01-12-2006 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Size of motor: 1.8 Brand of engine: Z18XER From date: 01-01-2006 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira Mk II Size of motor: 1.6 Brand of engine: Z16XER Body: MPV From date: 01-12-2007 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 64.00
    Width/holder arm: 23.00
    Mount. bracket dist.: 59.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 53.50
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL75
    Total length mm: 181.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 59.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 45
    Plug no. PL75
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 53.50
    Pulley dist. 64.00
    Radius 92.00
    D+ Size Plug
    Radius 2 92.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 181.00 mm
    Width/holder arm 23.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032114668, 1986A00806, 1986A01140, 13229984, 0124325163

    • Konkurrentreferens
      A0346, A0346PR, CAL10457, DRA1151, 8EL011712-971, 28-6617, 228.186.1002, 209081, 209081A, 12090449, 32049990, 0986082870

    • Normaliserat artikelnummer
      a0346, a0346pr, cal10457, dra1151, f032114668, 8el011712971, 1986a00806, 1986a01140, 209081, 209081a, 286617, 12090449, 13229984, 32049990, 0124325163, 0986082870, 2281861002

    • Passar modeller
      Opel Model: Astra H Model series: Astra H Family Hatchback Size of motor: 1.6 Brand of engine: Z16XER Type description: A04 Body: Hatchback From date: 01-01-2009 Fuel: Petrol Approved: Yes
      Opel Model: Astra H Model series: Astra H Family Saloon Size of motor: 1.6 Brand of engine: Z16XER Type description: A04 Body: Saloon From date: 01-01-2009 To date: 01-05-2014 Fuel: Petrol Approved: Yes
      Opel Model: Astra Model series: Astra Classic Estate Size of motor: 1.6 Brand of engine: Z16XER Body: Estate From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Opel Model: Astra Model series: Astra H Model type: EcoTec Size of motor: 1.6 Brand of engine: Z16XER Type description: L70 Body: Box From date: 01-10-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Model type: GTC Size of motor: 1.6 Brand of engine: Z16XER Body: Hatchback From date: 01-12-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Model type: GTC Size of motor: 1.8 Brand of engine: Z18XER Body: Hatchback From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Model type: LPG Size of motor: 1.6 Brand of engine: Z16XER Body: Estate From date: 01-08-2009 To date: 01-10-2010 Fuel: Bi-Fuel Approved: Yes Manufacture type: Caravan
      Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: A16XER Body: Estate From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
      Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: Z16XER Body: Convertible From date: 01-12-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: Z16XER Body: Estate From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
      Opel Model: Astra Model series: Astra H Size of motor: 1.6 Brand of engine: Z16XER Body: Hatchback From date: 01-12-2006 To date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: A18XER Body: Convertible From date: 01-09-2005 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: A18XER Body: Hatchback From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: Z18XER Body: Convertible From date: 01-09-2005 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra H Size of motor: 1.8 Brand of engine: Z18XER Body: Hatchback From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Vectra Model series: Vectra C Model type: GTS Size of motor: 1.6 Brand of engine: Z16XEP Body: Hatchback From date: 01-01-2006 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      Opel Model: Vectra Model series: Vectra C Model type: GTS Size of motor: 1.8 Brand of engine: Z18XER Body: Hatchback From date: 01-08-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      Opel Model: Vectra Model series: Vectra C Size of motor: 1.6 Brand of engine: Z16XEP From date: 01-08-2005 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      Opel Model: Zafira Model series: Zafira B Size of motor: 1.6 Brand of engine: A16XER Body: MPV From date: 01-01-2008 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Zafira Model series: Zafira B Size of motor: 1.6 Brand of engine: Z16XER Body: MPV From date: 01-01-2008 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: 16V Size of motor: 1.6 Brand of engine: Z16XER Body: Hatchback From date: 01-12-2006 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Vectra Model series: Vectra Size of motor: 1.8 Brand of engine: Z18XER From date: 01-01-2006 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira Mk II Size of motor: 1.6 Brand of engine: Z16XER Body: MPV From date: 01-12-2007 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
