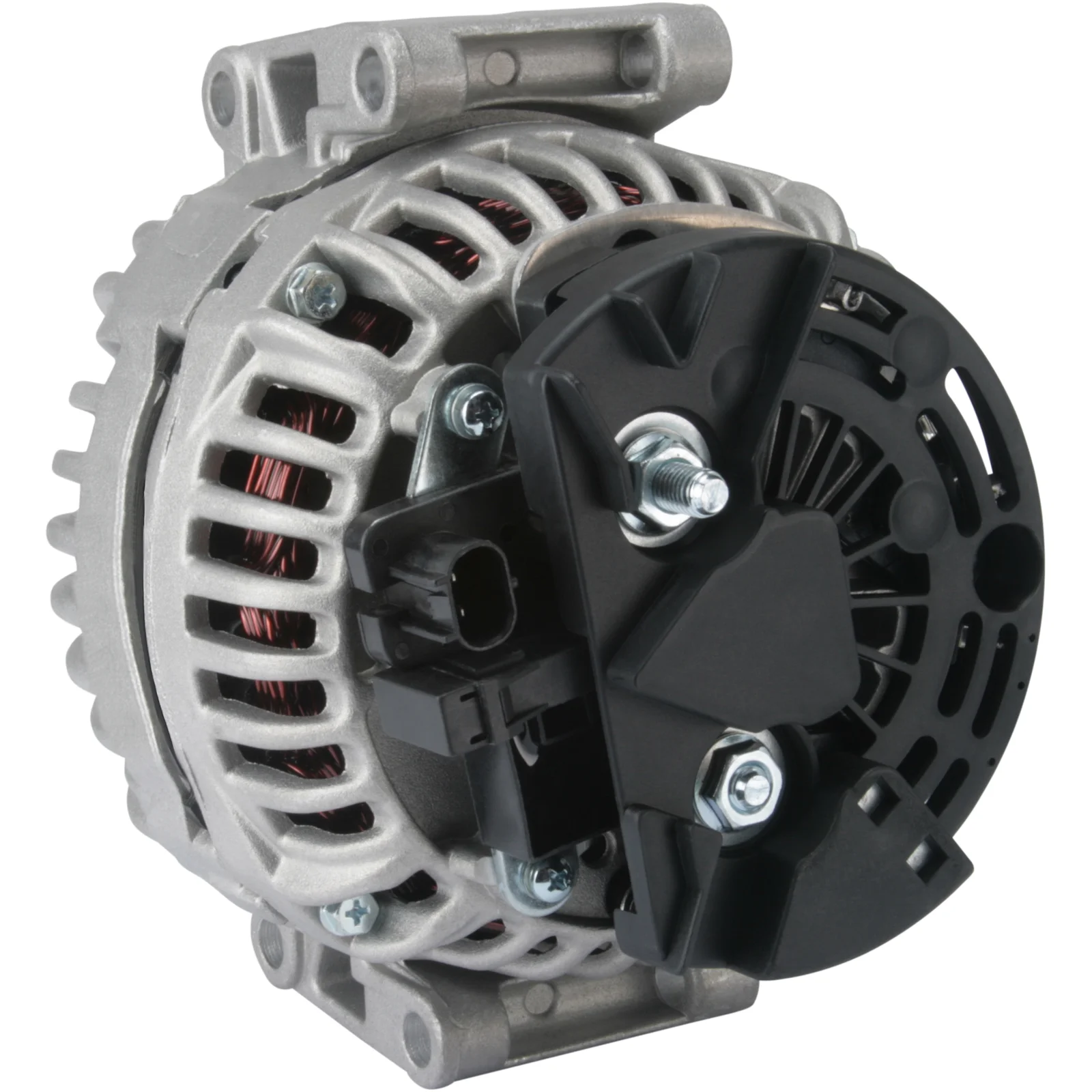

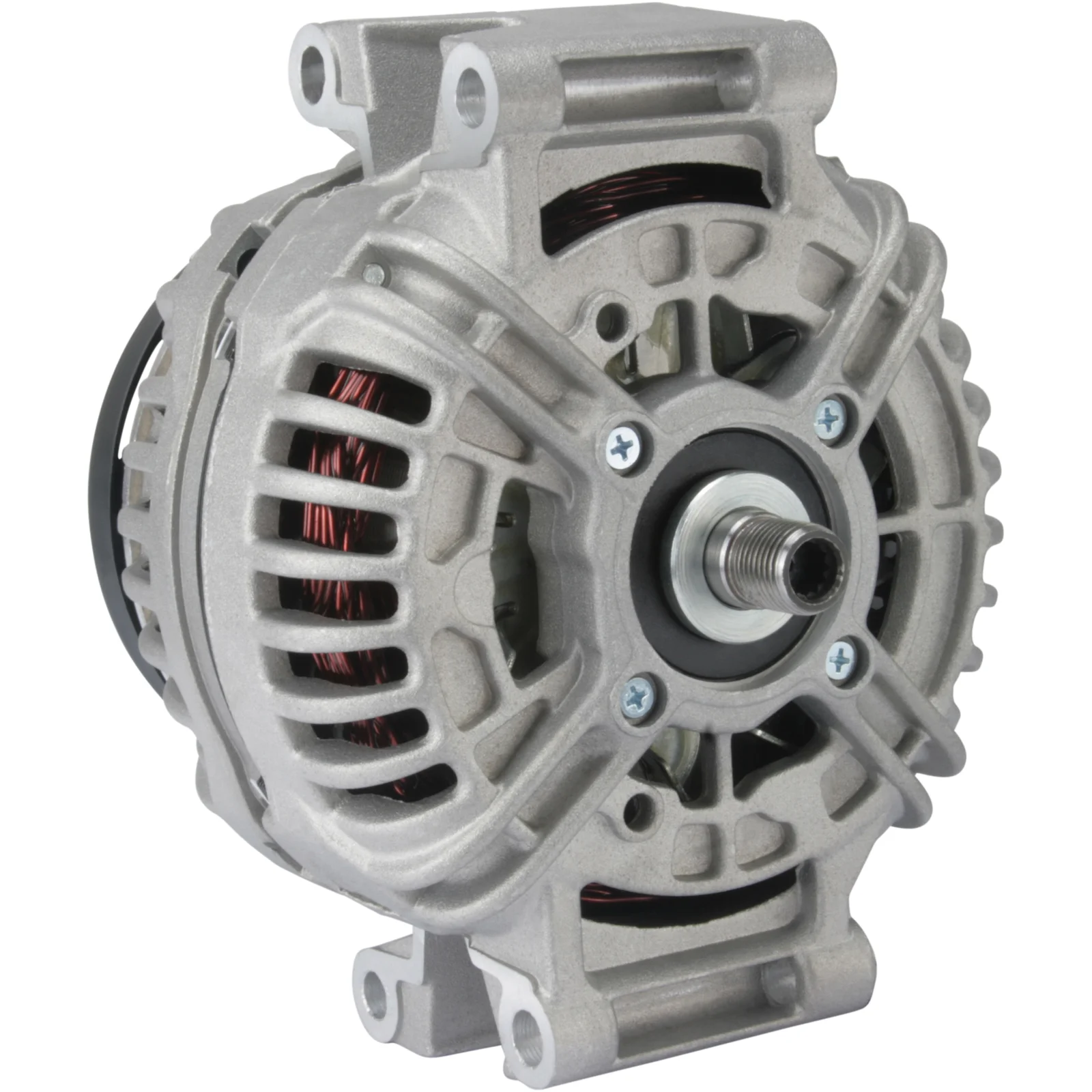

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114663

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 31.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Bracket hole 2: 8.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.20x8.00
Belt. adj. bracket hole 2: 9.00
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 30
Rotation: CW
Plug no.: PL135
Total length mm: 197.00
Pulley: w/o
Info: Freewheel Pulley: HC-CARGO 332302.

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.20x8.00
Belt. adj. bracket hole 2 9.00
Belt. adj. brackethole pos. 60
Plug no. PL135
Bracket hole 9.00
Bracket hole 2 8.00
Position/B+ in min. 30
Pulley w/o
Pulley dia. 50.00
Pulley dist. 31.50
Rotation CW
Grooves/pulley 6
Info Freewheel Pulley: HC-CARGO 332302.
Voltage 14
Total length 197.00 mm
Width/holder arm 70.00
Amp 150

  • OEM
    A0121546302, a0131540702, A01315407020080, A013154070280, F032114663, RL073920AC, RL080464AD, 05080464AB, 05080464AC, 05080464AD, 5080464AB, 5080464AC, 5080464AD, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 013154070280, 01315407020080

  • Konkurrentreferens
    A0342, CAL10133, DRB7460, LRA02547, 27-4891, 28-4535, 225.156.1502, 835.519.150, 835.520.150, 23547N, 444314, 553184RI, 9047460, 12047460, 32047460, 0986047460, 0986047463

  • Normaliserat artikelnummer
    a0121546302, a0131540702, a01315407020080, a013154070280, a0342, cal10133, drb7460, f032114663, lra02547, rl073920ac, rl080464ad, 23547n, 274891, 284535, 444314, 553184ri, 05080464ab, 05080464ac, 05080464ad, 5080464ab, 5080464ac, 5080464ad, 9047460, 12047460, 32047460, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 835519150, 835520150, 0986047460, 0986047463, 2251561502, 013154070280, 01315407020080

  • Passar modeller
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: CRD Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: Diesel Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Bracket hole 2: 8.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 10.20x8.00
    Belt. adj. bracket hole 2: 9.00
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 30
    Rotation: CW
    Plug no.: PL135
    Total length mm: 197.00
    Pulley: w/o
    Info: Freewheel Pulley: HC-CARGO 332302.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 10.20x8.00
    Belt. adj. bracket hole 2 9.00
    Belt. adj. brackethole pos. 60
    Plug no. PL135
    Bracket hole 9.00
    Bracket hole 2 8.00
    Position/B+ in min. 30
    Pulley w/o
    Pulley dia. 50.00
    Pulley dist. 31.50
    Rotation CW
    Grooves/pulley 6
    Info Freewheel Pulley: HC-CARGO 332302.
    Voltage 14
    Total length 197.00 mm
    Width/holder arm 70.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A0121546302, a0131540702, A01315407020080, A013154070280, F032114663, RL073920AC, RL080464AD, 05080464AB, 05080464AC, 05080464AD, 5080464AB, 5080464AC, 5080464AD, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 013154070280, 01315407020080

    • Konkurrentreferens
      A0342, CAL10133, DRB7460, LRA02547, 27-4891, 28-4535, 225.156.1502, 835.519.150, 835.520.150, 23547N, 444314, 553184RI, 9047460, 12047460, 32047460, 0986047460, 0986047463

    • Normaliserat artikelnummer
      a0121546302, a0131540702, a01315407020080, a013154070280, a0342, cal10133, drb7460, f032114663, lra02547, rl073920ac, rl080464ad, 23547n, 274891, 284535, 444314, 553184ri, 05080464ab, 05080464ac, 05080464ad, 5080464ab, 5080464ac, 5080464ad, 9047460, 12047460, 32047460, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 835519150, 835520150, 0986047460, 0986047463, 2251561502, 013154070280, 01315407020080

    • Passar modeller
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: CRD Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: Diesel Size of motor: 2.2 Brand of engine: EDJ Type description: PT_ From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
