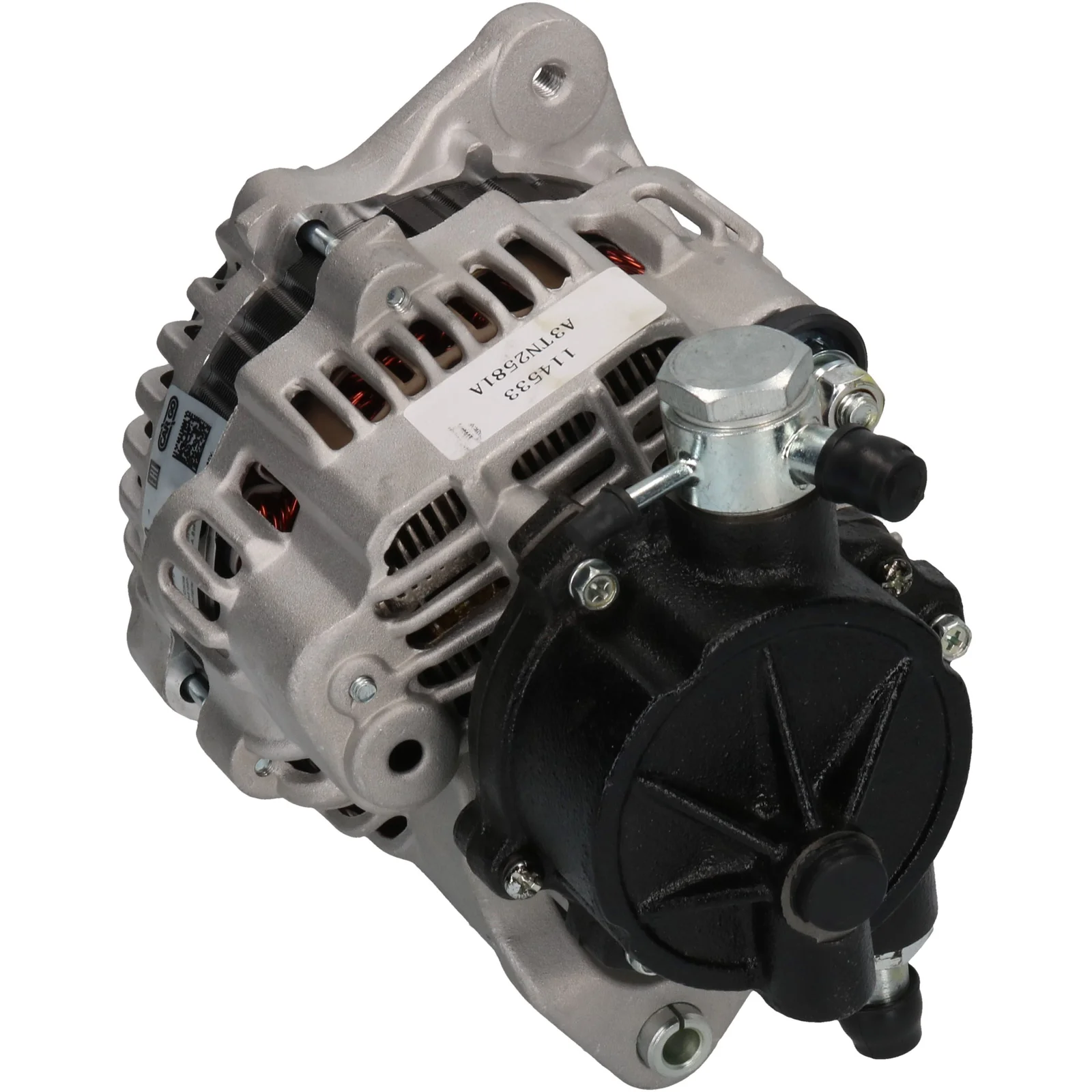

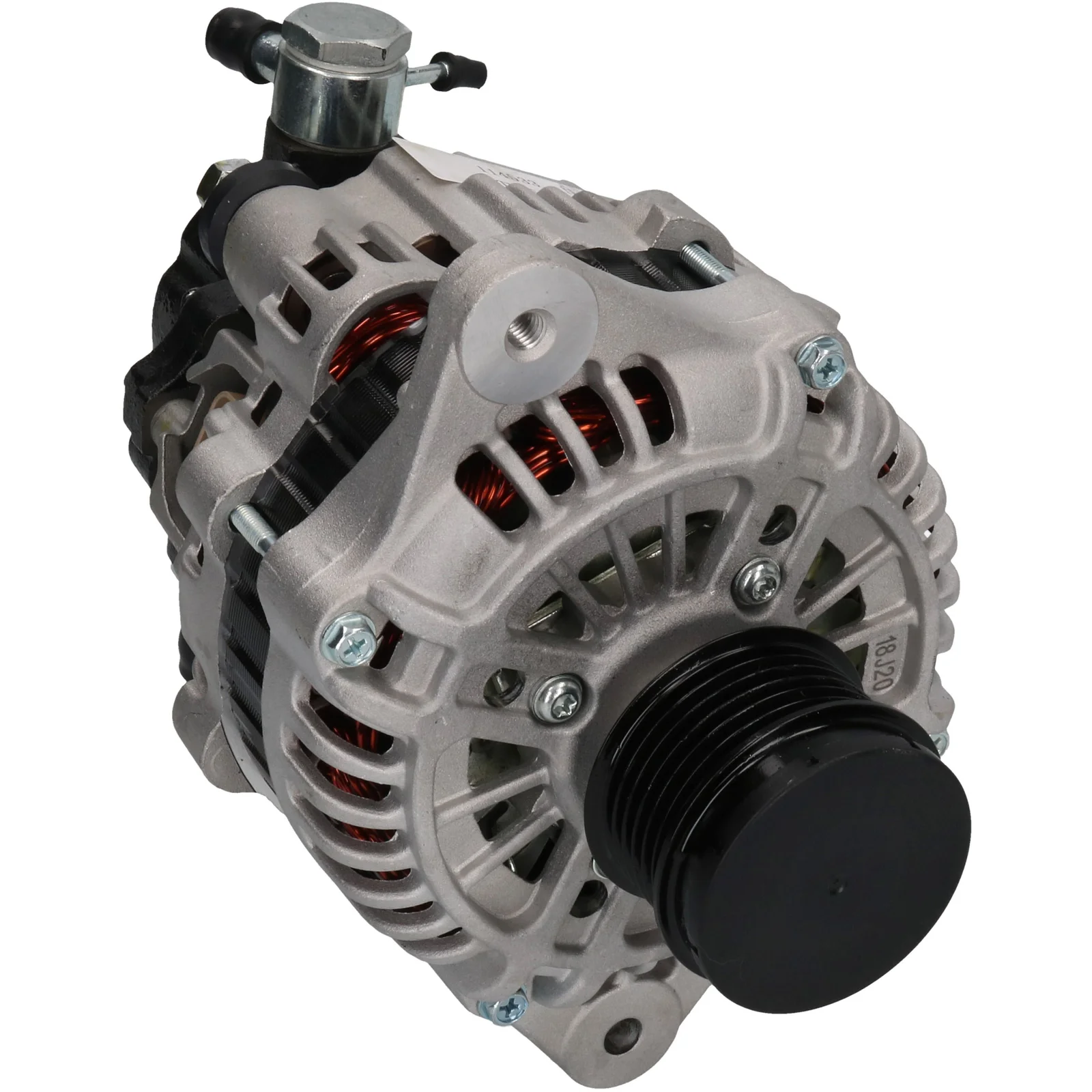

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114533

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 82.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 45.00
Width/holder arm: 13.00
Mount. bracket dist.: 82.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 53.70
Grooves/pulley: 6
Radius: 86.00
Radius 2: 86.00
B+: M8
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 231.00
Pulley: SP/FW
Regulator type: IR
Vac. pump: Yes
Info: Pulley: HC-CARGO 235877.

Filer

Specifikation

B+ M8
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Plug no. PL07
Bracket hole 8.50
Pulley SP/FW
Pulley dia. 53.70
Pulley dist. 45.00
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Info Pulley: HC-CARGO 235877.
Vac. pump Yes
Voltage 14
Total length 231.00 mm
Width/holder arm 13.00
Amp 100

  • OEM
    A003TN2581A, a3tn2581a, A3TN2581AT, F032114533, 31400-84a10, 31400-84A11, 31400-84A12

  • Konkurrentreferens
    A5082, CAL35201, DRA0232, 28-5785, 20387N, 210959, 210959A, 12060925

  • Normaliserat artikelnummer
    a003tn2581a, a3tn2581a, a3tn2581at, a5082, cal35201, dra0232, f032114533, 20387n, 210959, 210959a, 285785, 3140084a10, 3140084a11, 3140084a12, 12060925

  • Passar modeller
    Suzuki Model: Jimny Model series: Jimny Model type: 4WD Type of engine: DDiS Size of motor: 1.5 Brand of engine: K9K700 Type description: FJ Body: MPV From date: 01-12-2003 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 45.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 82.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 53.70
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 231.00
    Pulley: SP/FW
    Regulator type: IR
    Vac. pump: Yes
    Info: Pulley: HC-CARGO 235877.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 82.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 57
    Plug no. PL07
    Bracket hole 8.50
    Pulley SP/FW
    Pulley dia. 53.70
    Pulley dist. 45.00
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Info Pulley: HC-CARGO 235877.
    Vac. pump Yes
    Voltage 14
    Total length 231.00 mm
    Width/holder arm 13.00
    Amp 100
  • Fordonsmatchning

    • OEM
      A003TN2581A, a3tn2581a, A3TN2581AT, F032114533, 31400-84a10, 31400-84A11, 31400-84A12

    • Konkurrentreferens
      A5082, CAL35201, DRA0232, 28-5785, 20387N, 210959, 210959A, 12060925

    • Normaliserat artikelnummer
      a003tn2581a, a3tn2581a, a3tn2581at, a5082, cal35201, dra0232, f032114533, 20387n, 210959, 210959a, 285785, 3140084a10, 3140084a11, 3140084a12, 12060925

    • Passar modeller
      Suzuki Model: Jimny Model series: Jimny Model type: 4WD Type of engine: DDiS Size of motor: 1.5 Brand of engine: K9K700 Type description: FJ Body: MPV From date: 01-12-2003 Fuel: Diesel Approved: Yes
