HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114465

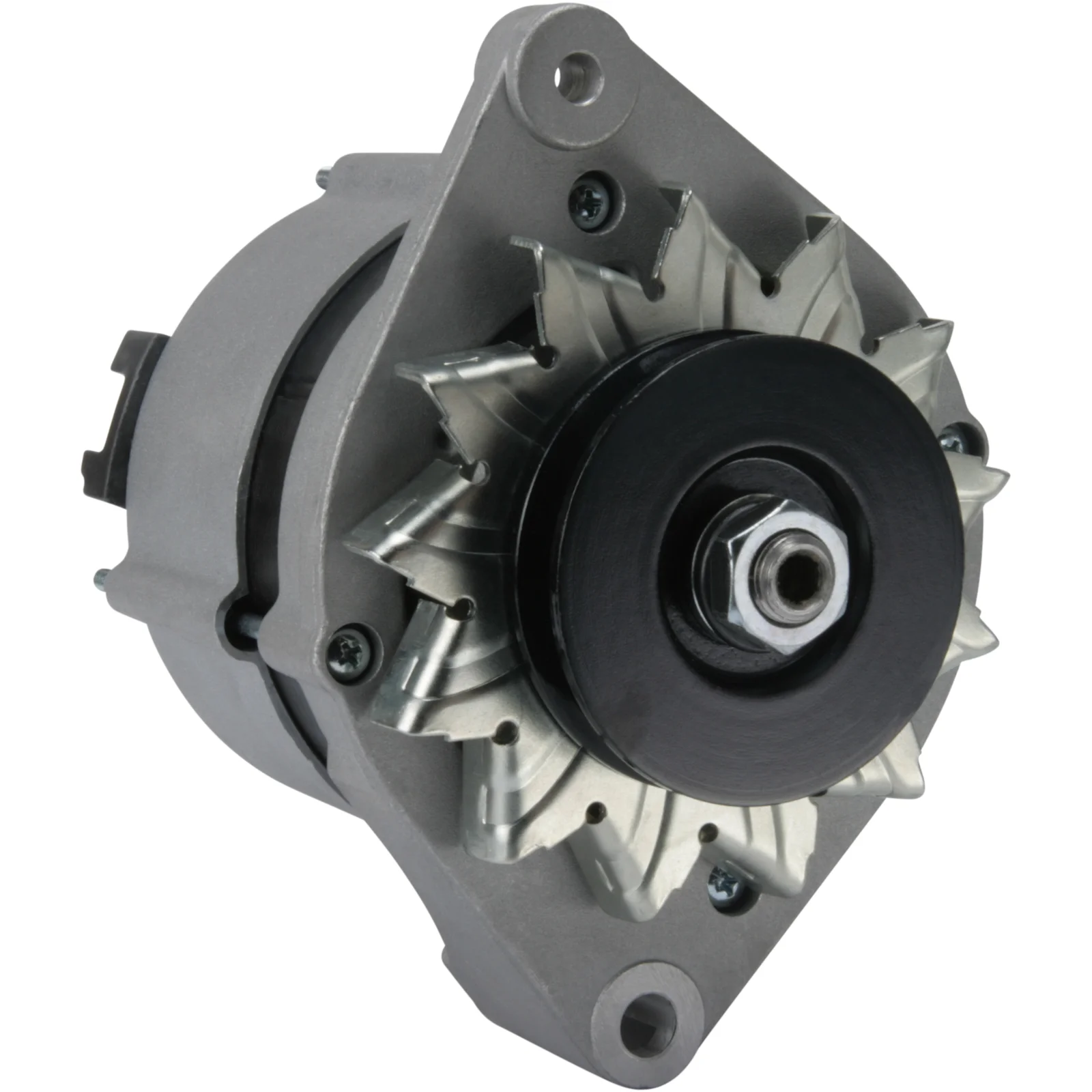

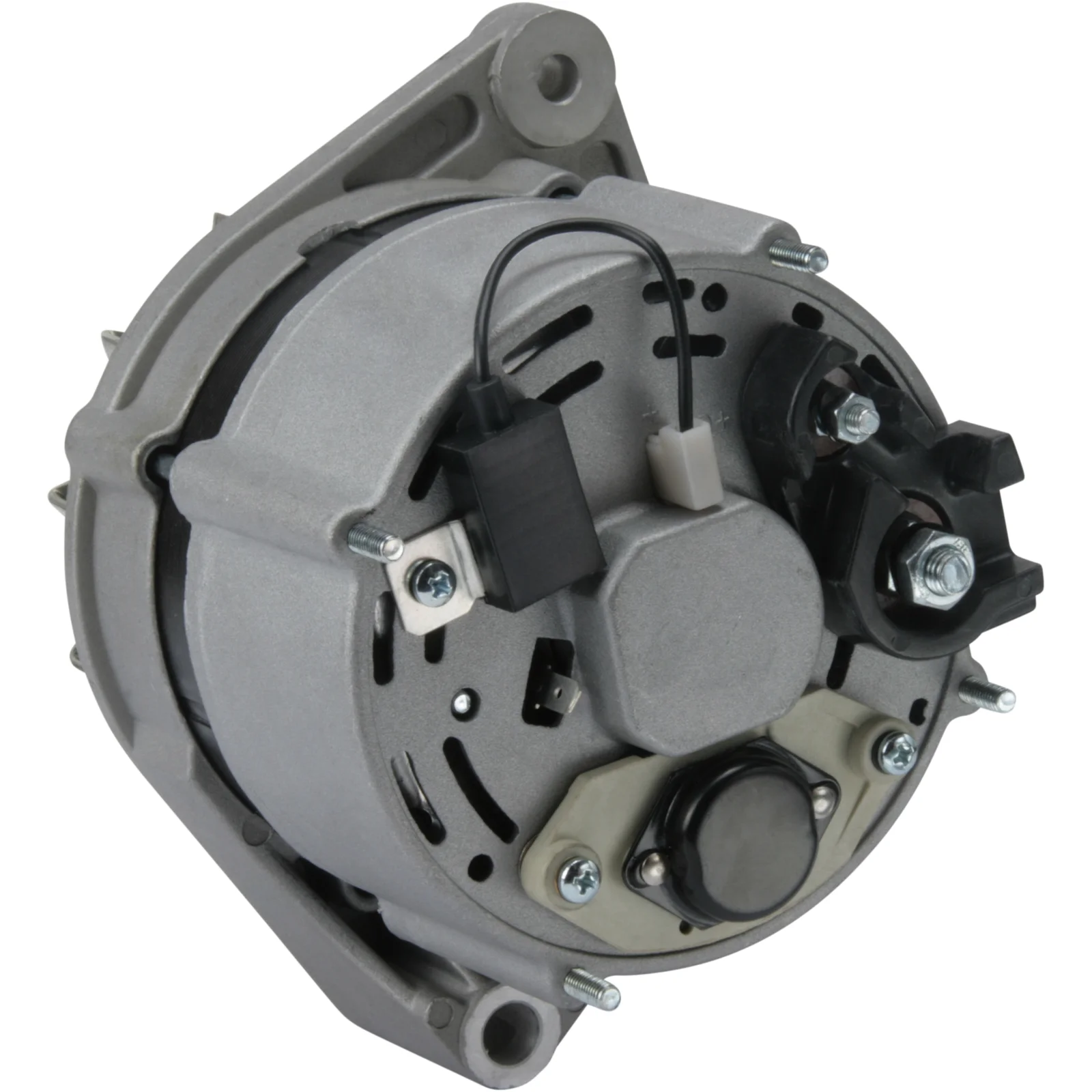

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 82.00

Beskrivning

Gen. 12V-90A passar Volvo BM 12V - 90A, single pulley 12.5mm, D-82mm Remskiva = UD 82mm, Rem. 12.5mm. Alternativ 90-604-7055 Remskivan skiljer.och 90-605-7723 som är 100A, insulated return. Original Iskra/Mahle alternativ 12V-70A = 90-604-0856. För Yourex produkt order 90-604-7056

Voltage: 14
Amp: 70
Pulley dist.: 76.00
Width/holder arm: 51.00
Bracket hole: 11.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 82.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 15
D+ Size: M5
Rotation: CW
W plug type: 6.30
Terminal type: L-W
Pulley: P
Fan: EF
Regulator type: IR
Remarks: Dustproof

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 57
Bracket hole 11.50
Position/B+ in min. 15
Pulley P
Pulley dia. 82.00
Pulley dist. 76.00
Radius 86.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Remarks Dustproof
Rotation CW
Fan EF
Grooves/pulley 1
Terminal type L-W
Voltage 14
W plug type 6.30
Width/holder arm 51.00
Amp 70

  • OEM
    A13N 66, AAK 3305, AAK 3339, AAK3305, AAK3339, F032114465, 11.201.856, 11.201.945, 0856, 11201 856, 11201 945

  • Konkurrentreferens
    A9197, IA0856, LEA1136, MG230, 815.027.070, 553886RI

  • Bilmärken
    Volvo BM / Construction Equipment

  • Normaliserat artikelnummer
    a13n66, a9197, aak3305, aak3339, f032114465, ia0856, lea1136, mg230, 0856, 553886ri, 11201856, 11201945, 815027070

  • Passar modeller
    Volvo BM / Construction Equipment Series: Traktor Model: BM 2200, 2204 Engine volume: 3.8 Engine type: D 39 T (A4-236)
    Volvo BM / Construction Equipment Series: Traktor Model: BM 2250, 2254 Engine volume: 3.8 Engine type: D 39 T (A4-236)
    Volvo BM / Construction Equipment Series: Traktor Model: BM 320 D Buster (Alternativ) Engine volume: 2.5 Engine type: 913 (3A-152)
    Volvo BM / Construction Equipment Series: Traktor Model: BM 350 Boxer (Alternativ) Engine volume: 3.8 Engine type: BM 1113
    Volvo BM / Construction Equipment Series: Traktor Model: BM 430
    Volvo BM / Construction Equipment Series: Traktor Model: T 400 Buster, T 430
    Volvo BM / Construction Equipment Series: Traktor Model: T 500 Engine volume: 3.8 Engine type: D 39 T (4-236)
    Volvo BM / Construction Equipment Series: Traktor Model: T 600 (Alternativ) Engine volume: 3.8 Engine type: 1113 A
    Volvo BM Model: Various Tractors Model series: Various Tractors Approved: Yes
    1 / 2
  • Beskrivning
    Gen. 12V-90A passar Volvo BM 12V - 90A, single pulley 12.5mm, D-82mm Remskiva = UD 82mm, Rem. 12.5mm. Alternativ 90-604-7055 Remskivan skiljer.och 90-605-7723 som är 100A, insulated return. Original Iskra/Mahle alternativ 12V-70A = 90-604-0856. För Yourex produkt order 90-604-7056

    Voltage: 14
    Amp: 70
    Pulley dist.: 76.00
    Width/holder arm: 51.00
    Bracket hole: 11.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 82.00
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Terminal type: L-W
    Pulley: P
    Fan: EF
    Regulator type: IR
    Remarks: Dustproof

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 57
    Bracket hole 11.50
    Position/B+ in min. 15
    Pulley P
    Pulley dia. 82.00
    Pulley dist. 76.00
    Radius 86.00
    D+ Size M5
    Radius 2 85.00
    Regulator type IR
    Remarks Dustproof
    Rotation CW
    Fan EF
    Grooves/pulley 1
    Terminal type L-W
    Voltage 14
    W plug type 6.30
    Width/holder arm 51.00
    Amp 70
  • Fordonsmatchning

    • OEM
      A13N 66, AAK 3305, AAK 3339, AAK3305, AAK3339, F032114465, 11.201.856, 11.201.945, 0856, 11201 856, 11201 945

    • Konkurrentreferens
      A9197, IA0856, LEA1136, MG230, 815.027.070, 553886RI

    • Bilmärken
      Volvo BM / Construction Equipment

    • Normaliserat artikelnummer
      a13n66, a9197, aak3305, aak3339, f032114465, ia0856, lea1136, mg230, 0856, 553886ri, 11201856, 11201945, 815027070

    • Passar modeller
      Volvo BM / Construction Equipment Series: Traktor Model: BM 2200, 2204 Engine volume: 3.8 Engine type: D 39 T (A4-236)
      Volvo BM / Construction Equipment Series: Traktor Model: BM 2250, 2254 Engine volume: 3.8 Engine type: D 39 T (A4-236)
      Volvo BM / Construction Equipment Series: Traktor Model: BM 320 D Buster (Alternativ) Engine volume: 2.5 Engine type: 913 (3A-152)
      Volvo BM / Construction Equipment Series: Traktor Model: BM 350 Boxer (Alternativ) Engine volume: 3.8 Engine type: BM 1113
      Volvo BM / Construction Equipment Series: Traktor Model: BM 430
      Volvo BM / Construction Equipment Series: Traktor Model: T 400 Buster, T 430
      Volvo BM / Construction Equipment Series: Traktor Model: T 500 Engine volume: 3.8 Engine type: D 39 T (4-236)
      Volvo BM / Construction Equipment Series: Traktor Model: T 600 (Alternativ) Engine volume: 3.8 Engine type: 1113 A
      Volvo BM Model: Various Tractors Model series: Various Tractors Approved: Yes
