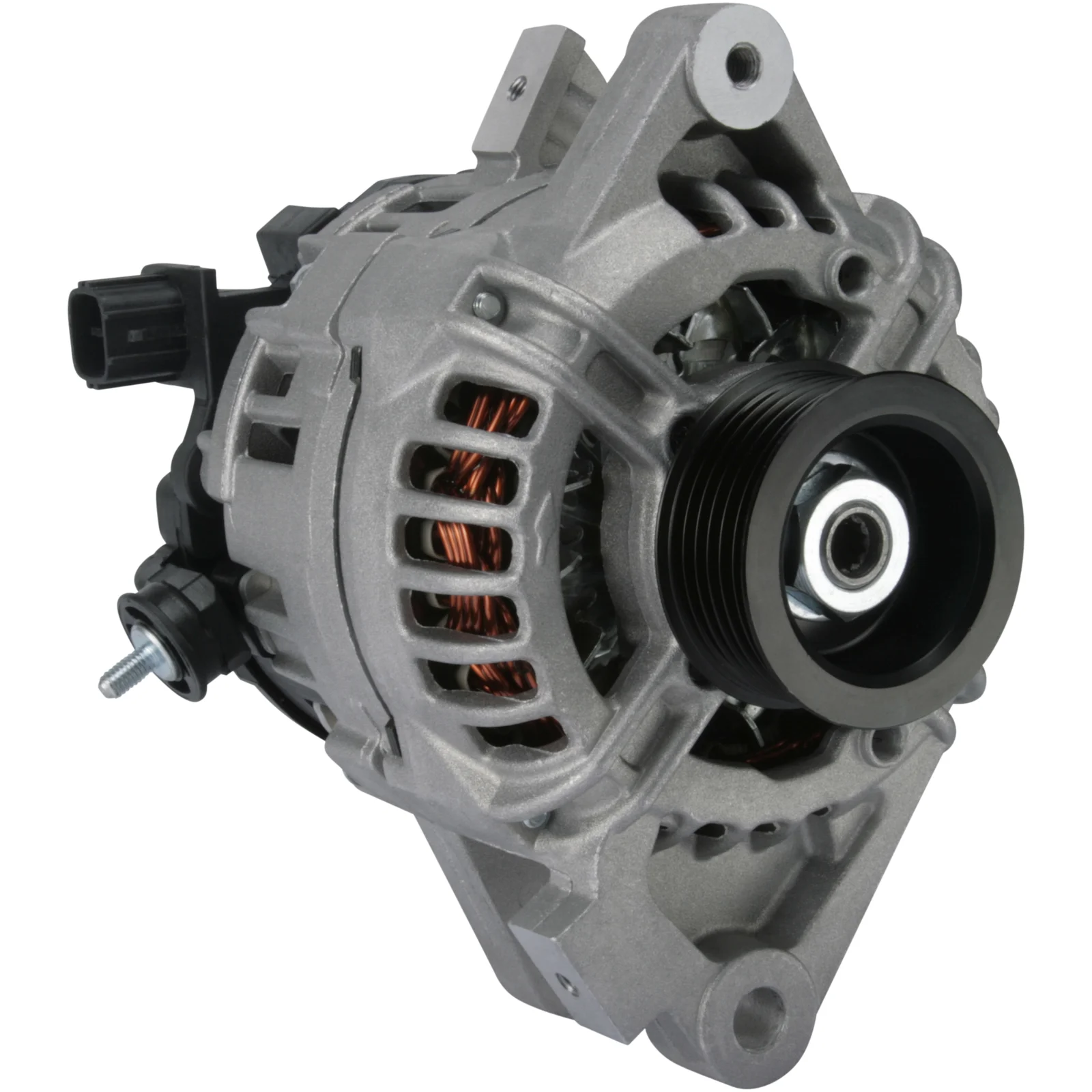

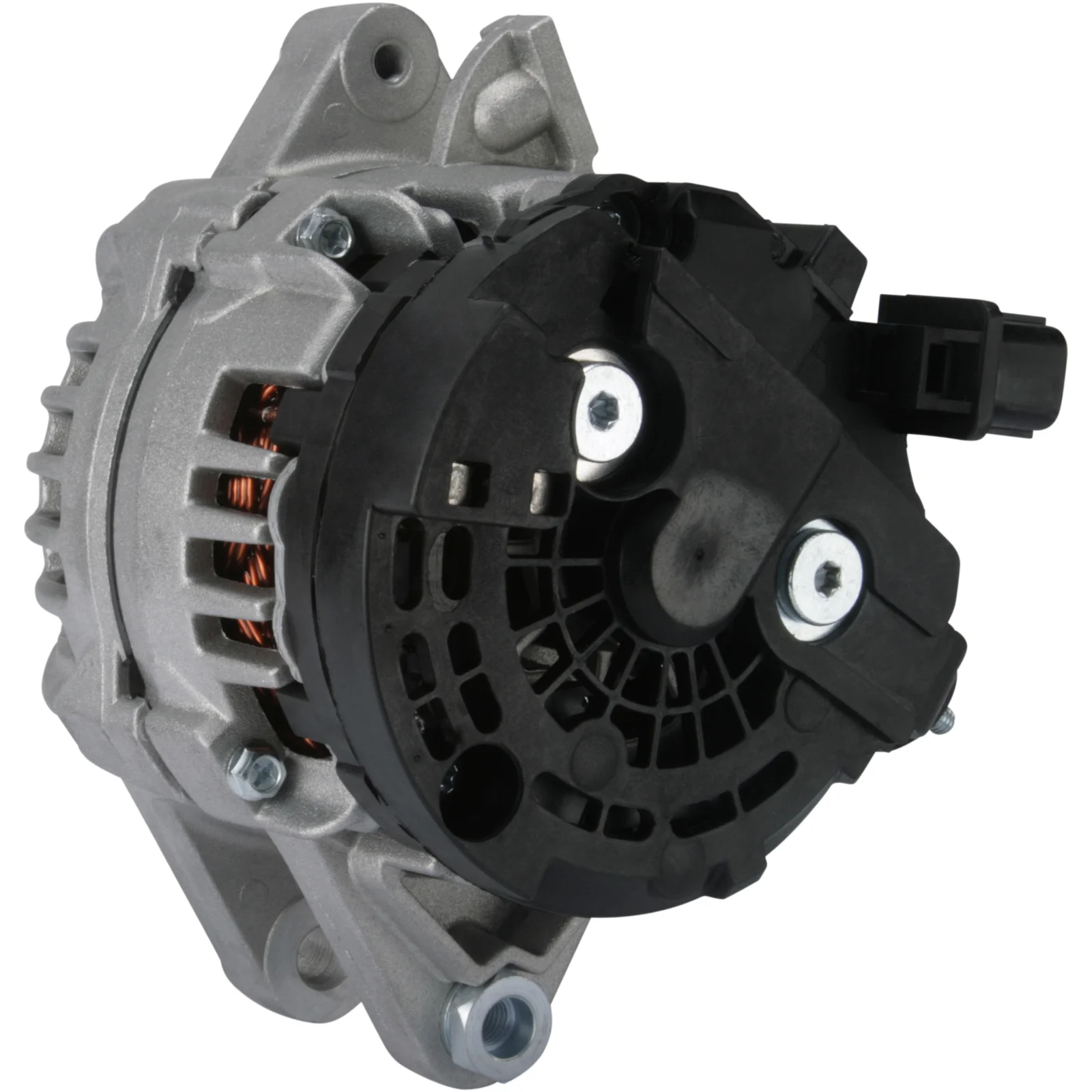

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114311

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 37.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 29.60
Width/holder arm: 19.30
Mount. bracket dist.: 37.00
Bracket hole: 11.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 168.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 37.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL78
Bracket hole 11.50
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 57.50
Pulley dist. 29.60
Radius 90.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 168.00 mm
Width/holder arm 19.30
Amp 90

  • OEM
    F032114311, 1889ir, 27060-0q040, 0124225051

  • Konkurrentreferens
    A0240, A0240SR, ALT-H213, CAL10401, DRA0619, F042A0H213, 8EL738212-711, 28-5824, 195.928.090, 195.940.090, 235.327.902, 20018N, 20018R, 113241, 210889, 210889A, 301889RI, 440824, 443291, 9090835, 12060883, 0986080770

  • Normaliserat artikelnummer
    a0240, a0240sr, alth213, cal10401, dra0619, f032114311, f042a0h213, 8el738212711, 1889ir, 20018n, 20018r, 113241, 210889, 210889a, 270600q040, 285824, 301889ri, 440824, 443291, 9090835, 12060883, 0124225051, 195928090, 195940090, 235327902, 0986080770

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-01-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 29.60
    Width/holder arm: 19.30
    Mount. bracket dist.: 37.00
    Bracket hole: 11.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 57.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 168.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 37.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL78
    Bracket hole 11.50
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP
    Pulley dia. 57.50
    Pulley dist. 29.60
    Radius 90.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 168.00 mm
    Width/holder arm 19.30
    Amp 90
  • Fordonsmatchning

    • OEM
      F032114311, 1889ir, 27060-0q040, 0124225051

    • Konkurrentreferens
      A0240, A0240SR, ALT-H213, CAL10401, DRA0619, F042A0H213, 8EL738212-711, 28-5824, 195.928.090, 195.940.090, 235.327.902, 20018N, 20018R, 113241, 210889, 210889A, 301889RI, 440824, 443291, 9090835, 12060883, 0986080770

    • Normaliserat artikelnummer
      a0240, a0240sr, alth213, cal10401, dra0619, f032114311, f042a0h213, 8el738212711, 1889ir, 20018n, 20018r, 113241, 210889, 210889a, 270600q040, 285824, 301889ri, 440824, 443291, 9090835, 12060883, 0124225051, 195928090, 195940090, 235327902, 0986080770

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-01-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
