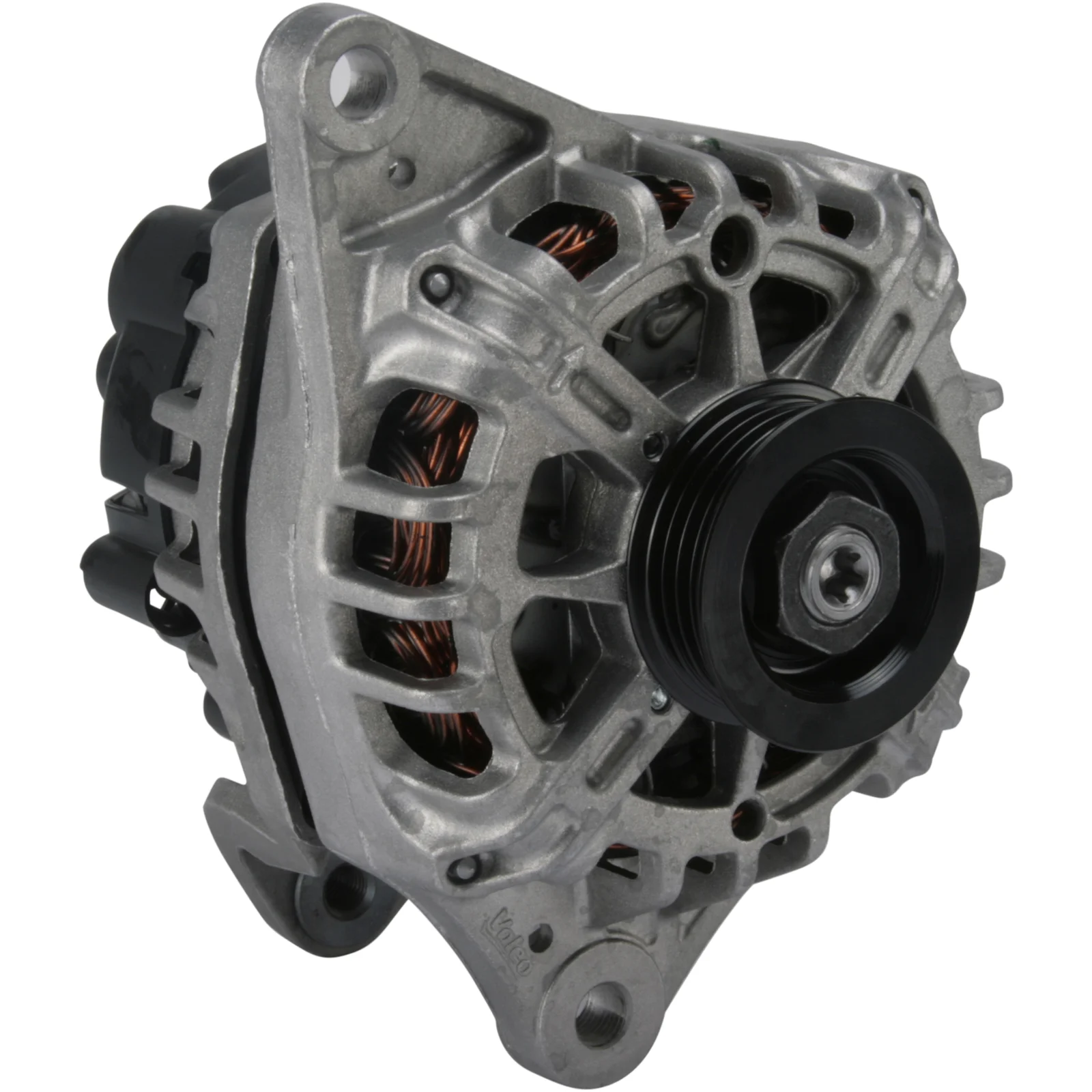

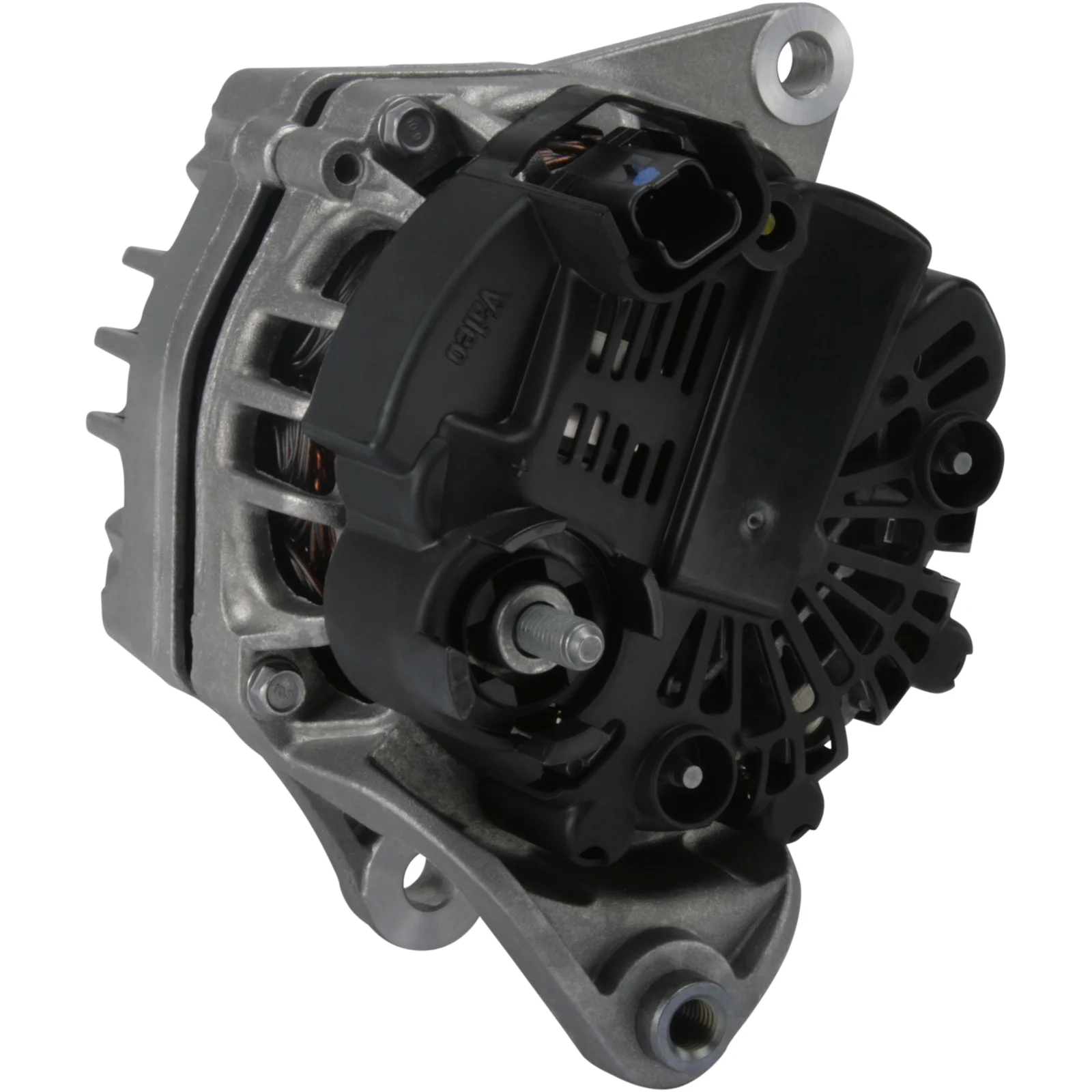

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114293

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 67.00

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 45.50
Width/holder arm: 13.00
Mount. bracket dist.: 67.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 50.00
Grooves/pulley: 4
Radius: 84.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL55
Total length mm: 151.00
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 53
Plug no. PL55
Bracket hole 10.00
Position/B+ in min. 40
Pulley SP
Pulley dia. 50.00
Pulley dist. 45.50
Radius 84.00
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 151.00 mm
Width/holder arm 13.00
Amp 80

  • OEM
    F032114293, tg8s024, 1977ir, 23100-ax62b, 2543488, 2543488A, 2543488B

  • Konkurrentreferens
    A3395PR, A3395S, DRA0458, LRA03099, 8EL012430-171, 8EL738211-911, 28-5711, 227.315.802, 23560R, 210516, 210516A, 301977RI, 439595, 440074, 12060912, 0986080720

  • Normaliserat artikelnummer
    a3395pr, a3395s, dra0458, f032114293, lra03099, tg8s024, 8el012430171, 8el738211911, 1977ir, 23100ax62b, 23560r, 210516, 210516a, 285711, 301977ri, 439595, 440074, 2543488, 2543488a, 2543488b, 12060912, 227315802, 0986080720

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12E Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
    Nissan Model: Micra Model series: Micra Type of engine: LPG Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-10-2002 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Note Model series: Note Size of motor: 1.4 Brand of engine: CR14DE Type description: E11 Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 45.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 67.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 50.00
    Grooves/pulley: 4
    Radius: 84.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 40
    Rotation: CW
    Plug no.: PL55
    Total length mm: 151.00
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 53
    Plug no. PL55
    Bracket hole 10.00
    Position/B+ in min. 40
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 45.50
    Radius 84.00
    Radius 2 92.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 151.00 mm
    Width/holder arm 13.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032114293, tg8s024, 1977ir, 23100-ax62b, 2543488, 2543488A, 2543488B

    • Konkurrentreferens
      A3395PR, A3395S, DRA0458, LRA03099, 8EL012430-171, 8EL738211-911, 28-5711, 227.315.802, 23560R, 210516, 210516A, 301977RI, 439595, 440074, 12060912, 0986080720

    • Normaliserat artikelnummer
      a3395pr, a3395s, dra0458, f032114293, lra03099, tg8s024, 8el012430171, 8el738211911, 1977ir, 23100ax62b, 23560r, 210516, 210516a, 285711, 301977ri, 439595, 440074, 2543488, 2543488a, 2543488b, 12060912, 227315802, 0986080720

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.4 Brand of engine: CR14DE Type description: K12E Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
      Nissan Model: Micra Model series: Micra Type of engine: LPG Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-10-2002 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
      Nissan Model: Note Model series: Note Size of motor: 1.4 Brand of engine: CR14DE Type description: E11 Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
      1 / 2
