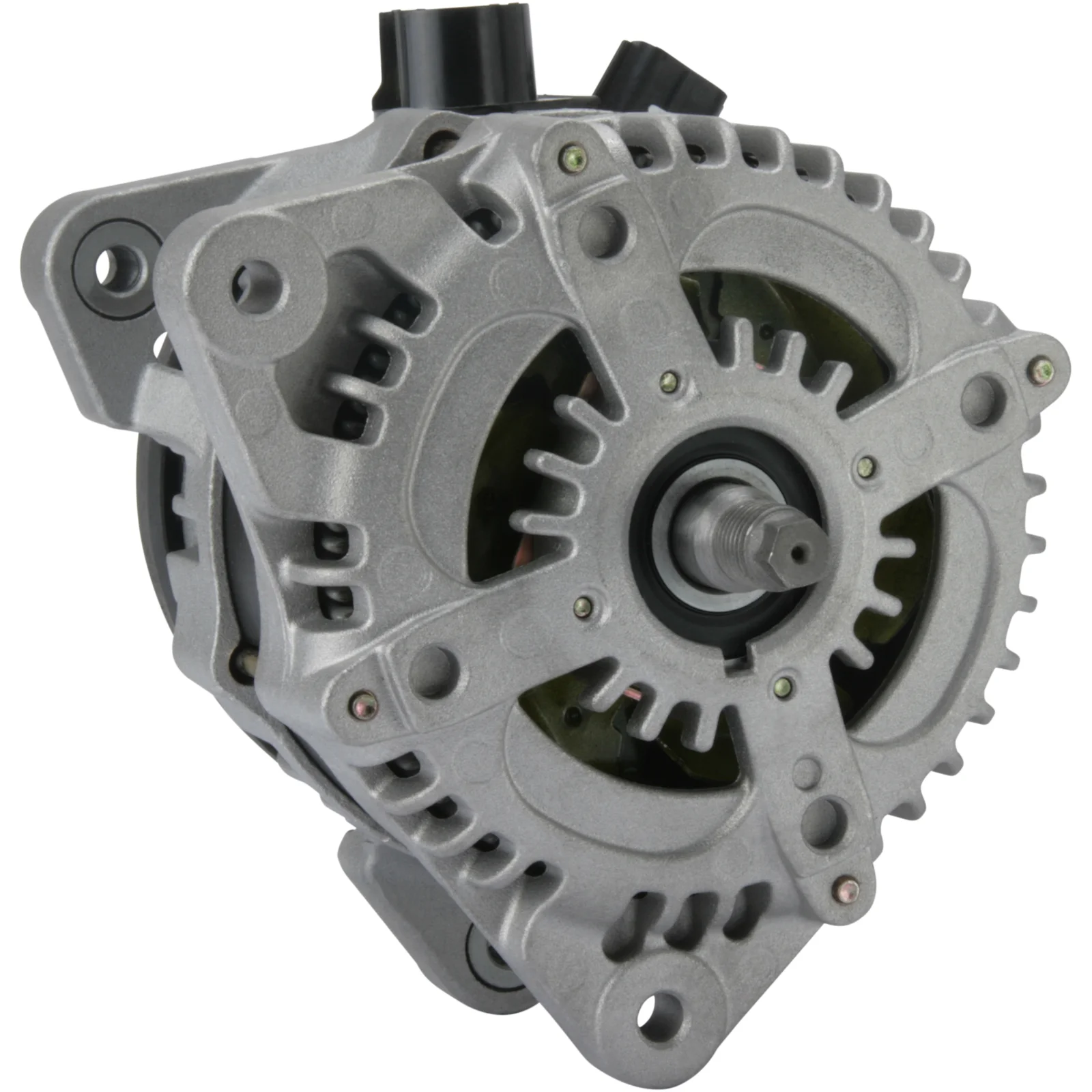

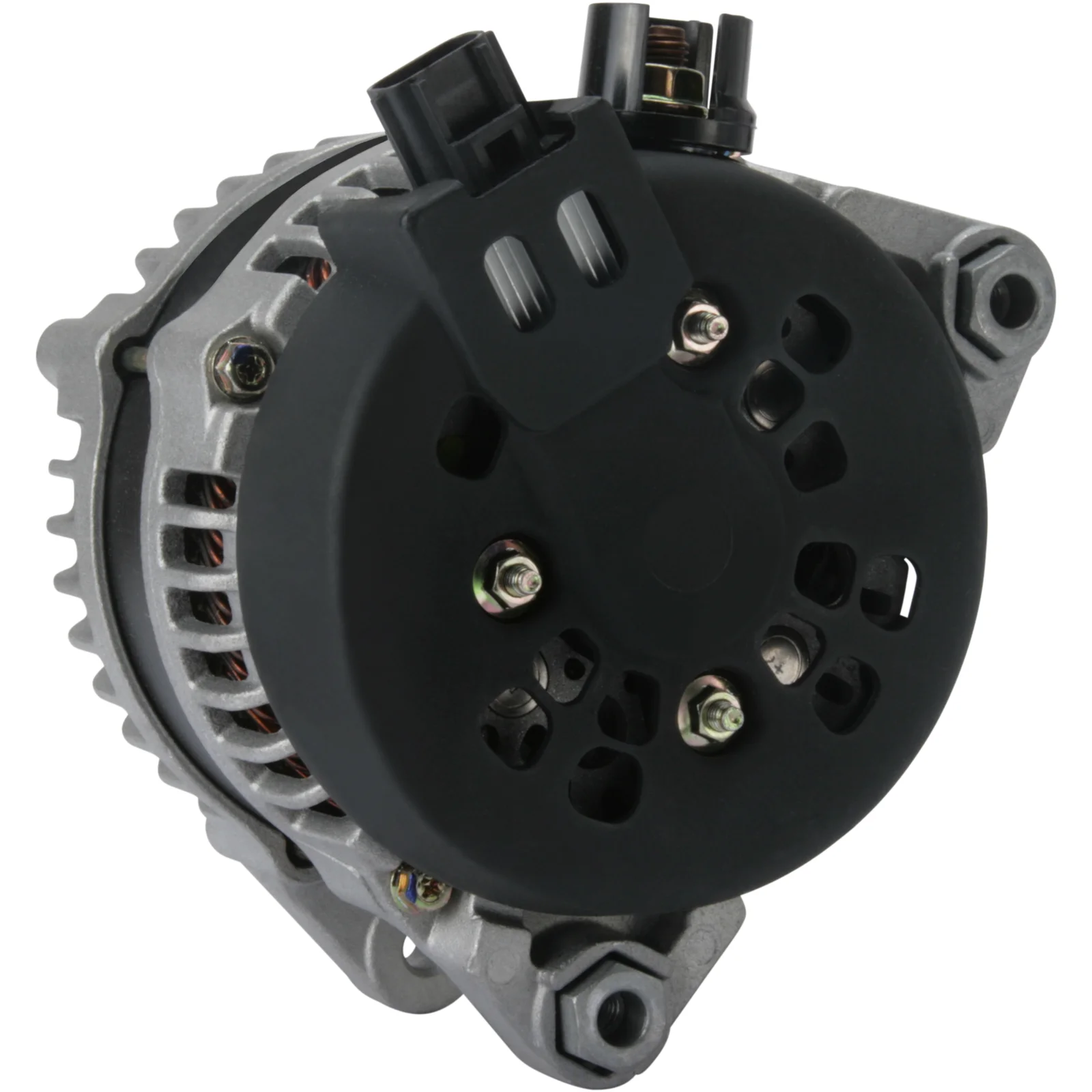

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114250

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 52.20

Beskrivning

Voltage: 14
Amp: 120
Width/holder arm: 17.20
Mount. bracket dist.: 52.20
Bracket hole: 8.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 8.00
Radius: 82.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 155.00
Terminal type: FR-SIG-A
Pulley: w/o
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 52.20
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 10
Plug no. PL57
Bracket hole 8.00
Position/B+ in min. 20
Prod. info BN
Pulley w/o
Radius 82.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Terminal type FR-SIG-A
Voltage 14
Total length 155.00 mm
Width/holder arm 17.20
Amp 120

  • OEM
    F032114250, RM4M5T10300KB, 4M5T10300KA, 4M5T10300KB, 1941ir, 104210-3630, 1302007, 1677167, 1757293

  • Konkurrentreferens
    A6026(DENSO), A6535S, CAL40216, DRA0098, DRA0098X, lea0795, LRA02912, 8EL012426-451, 8EL738212-811, 27-5526, 219.167.1202, 4723, 23912R, 112668, 209419, 209419A, 301941RI, 0986083080

  • Normaliserat artikelnummer
    a6026denso, a6535s, cal40216, dra0098, dra0098x, f032114250, lea0795, lra02912, rm4m5t10300kb, 4m5t10300ka, 4m5t10300kb, 8el012426451, 8el738212811, 1941ir, 4723, 23912r, 112668, 209419, 209419a, 275526, 301941ri, 1302007, 1677167, 1757293, 0986083080, 1042103630, 2191671202

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-01-2005 To date: 01-03-2007 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 120
    Width/holder arm: 17.20
    Mount. bracket dist.: 52.20
    Bracket hole: 8.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 8.00
    Radius: 82.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 155.00
    Terminal type: FR-SIG-A
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 52.20
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 10
    Plug no. PL57
    Bracket hole 8.00
    Position/B+ in min. 20
    Prod. info BN
    Pulley w/o
    Radius 82.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Terminal type FR-SIG-A
    Voltage 14
    Total length 155.00 mm
    Width/holder arm 17.20
    Amp 120
  • Fordonsmatchning

    • OEM
      F032114250, RM4M5T10300KB, 4M5T10300KA, 4M5T10300KB, 1941ir, 104210-3630, 1302007, 1677167, 1757293

    • Konkurrentreferens
      A6026(DENSO), A6535S, CAL40216, DRA0098, DRA0098X, lea0795, LRA02912, 8EL012426-451, 8EL738212-811, 27-5526, 219.167.1202, 4723, 23912R, 112668, 209419, 209419A, 301941RI, 0986083080

    • Normaliserat artikelnummer
      a6026denso, a6535s, cal40216, dra0098, dra0098x, f032114250, lea0795, lra02912, rm4m5t10300kb, 4m5t10300ka, 4m5t10300kb, 8el012426451, 8el738212811, 1941ir, 4723, 23912r, 112668, 209419, 209419a, 275526, 301941ri, 1302007, 1677167, 1757293, 0986083080, 1042103630, 2191671202

    • Passar modeller
      Ford Model: C-Max Model series: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Body: MPV From date: 01-01-2005 To date: 01-03-2007 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDA Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ Body: Hatchback From date: 01-01-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: TDCi Size of motor: 1.8 Brand of engine: KKDB Type description: DA_ From date: 01-04-2005 To date: 01-09-2012 Fuel: Diesel Approved: Yes
