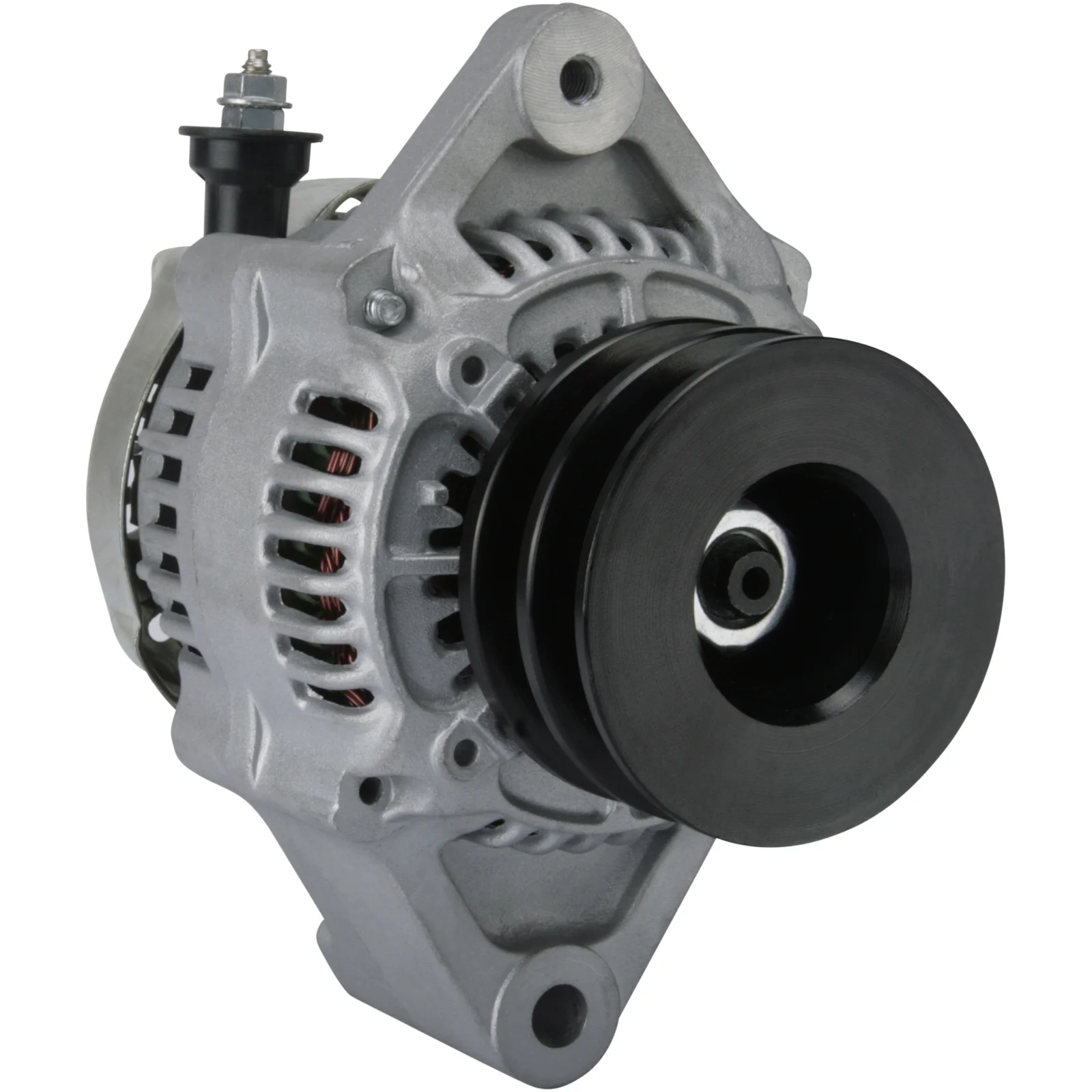

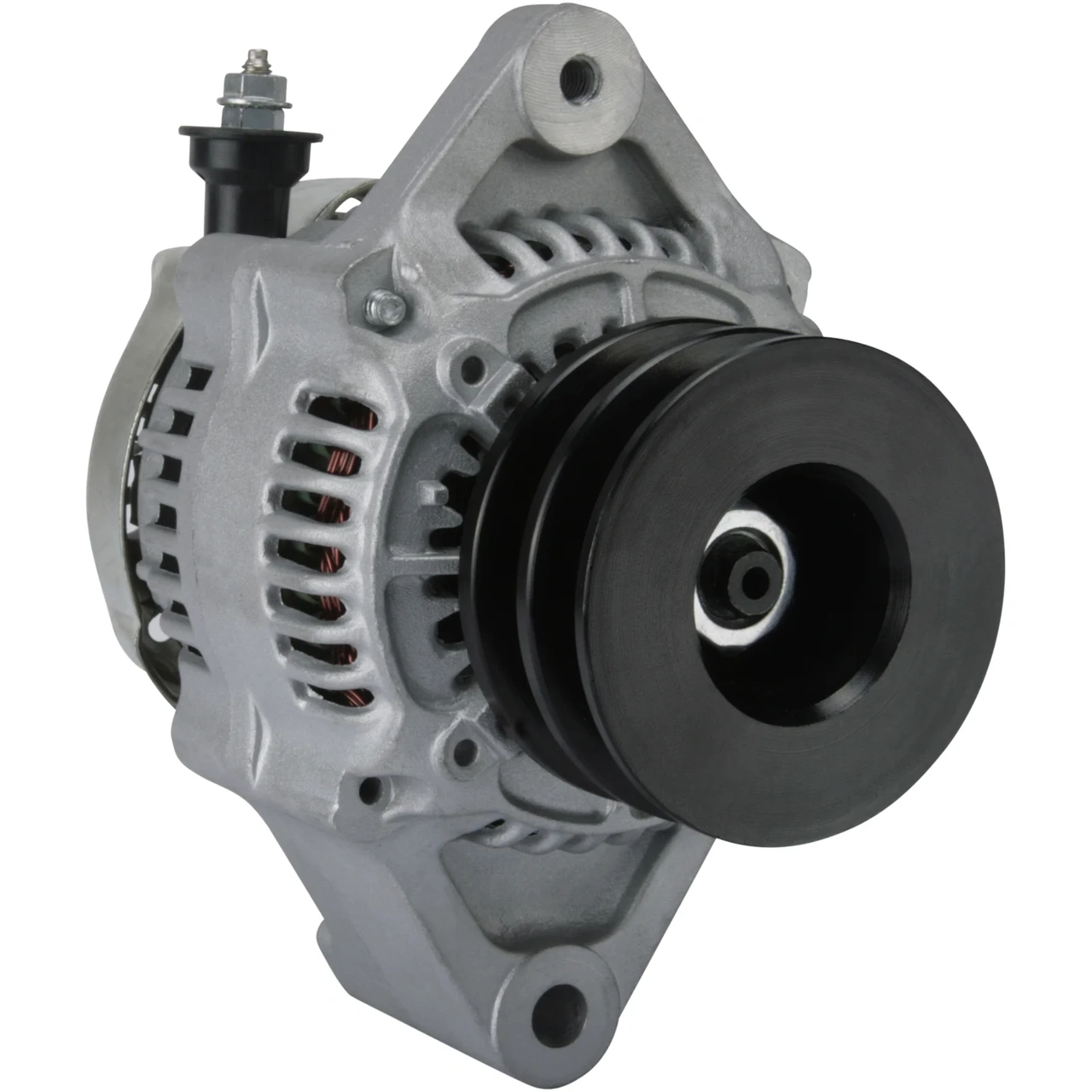

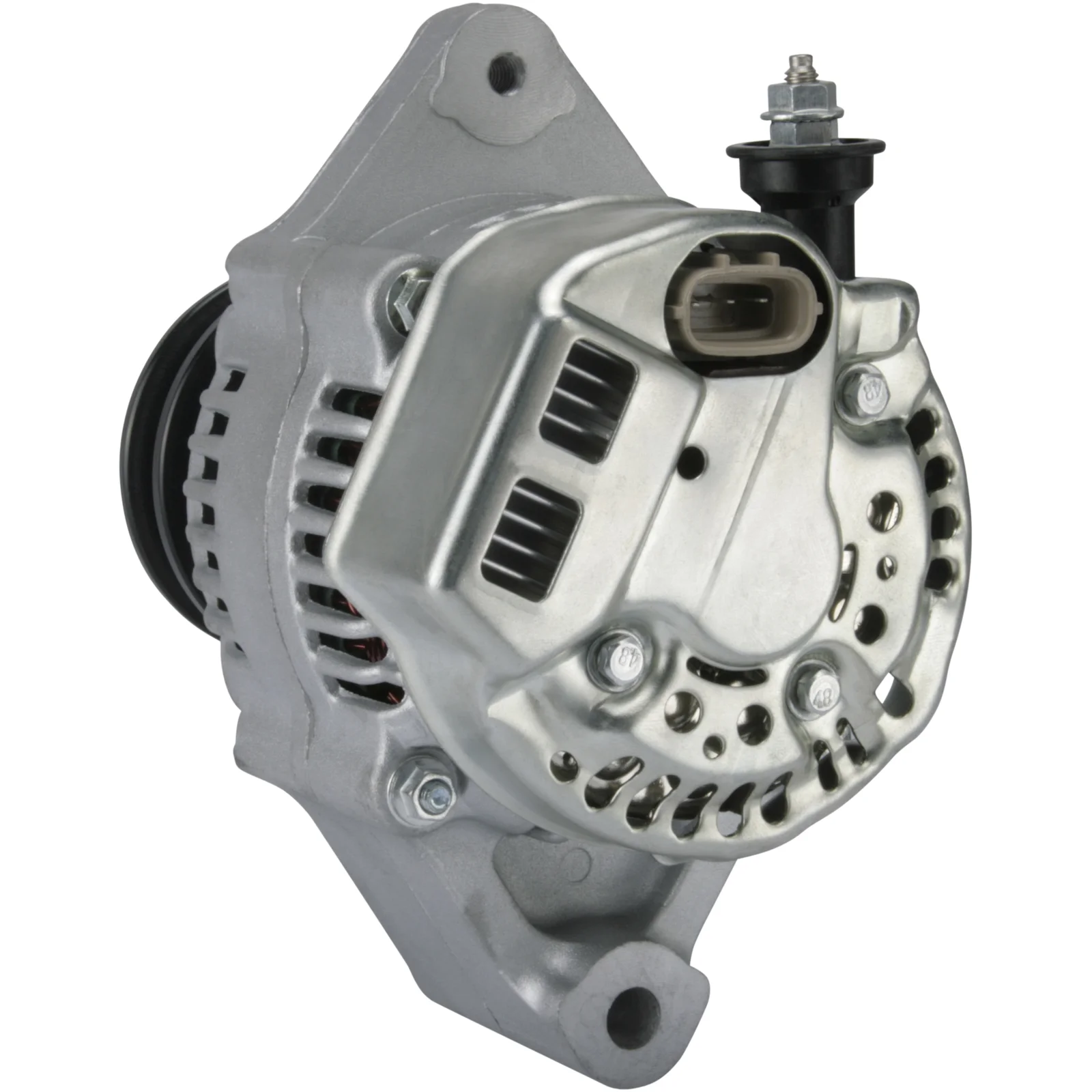

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114218

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley dia.: 76.00

Beskrivning

Voltage: 14
Amp: 55
Pulley dist.: 95.00
Width/holder arm: 57.00
Bracket hole: 10.70
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 76.00
Grooves/pulley: 2
Radius: 74.00
Radius 2: 79.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL128
W plug type: Plug
Total length mm: 160.00
Pulley: DP

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.70
Position/B+ in min. 5
Pulley DP
Pulley dia. 76.00
Pulley dist. 95.00
Radius 74.00
D+ Size Plug
Radius 2 79.00
Rotation CW
Grooves/pulley 2
Voltage 14
W plug type Plug
Total length 160.00 mm
Width/holder arm 57.00
Amp 55

  • OEM
    F032114218, OR9273, 105-2811, 105-2812, 27060-58270, 101211-2240, 101211-2310, 101211-3310

  • Konkurrentreferens
    A6629(DENSO), A6629S, CAL40123, DAN2030, DRA0337, 645.503.055, 12346, 12346N

  • Normaliserat artikelnummer
    a6629denso, a6629s, cal40123, dan2030, dra0337, f032114218, or9273, 12346, 12346n, 1052811, 1052812, 645503055, 1012112240, 1012112310, 1012113310, 2706058270

  • Passar modeller
    Caterpillar Model: 933 Model series: 933 Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: 933C SERIES Model series: 933C SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: Backhoe Loaders Model series: 416C Brand of engine: Perkins 3054 Approved: Yes
    Caterpillar Model: Backhoe Loaders Model series: 426C Brand of engine: Perkins 3054 Approved: Yes
    Caterpillar Model: Backhoe Loaders Model series: 436C Brand of engine: Perkins 3054 Approved: Yes
    Caterpillar Model: D3 SERIES Model series: D3 SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: D4 Model series: D4 Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: D4 SERIES Model series: D4 SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: D5 Model series: D5 Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: D5 SERIES Model series: D5 SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
    Caterpillar Model: Track Tractor Model series: D4C Brand of engine: Perkins Approved: Yes
    Caterpillar Model: Wheel Loader Model series: 906 Brand of engine: Perkins 3054 Approved: Yes
    Caterpillar Model: Wheel Loader Model series: 908 Brand of engine: Perkins 3054 Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 55
    Pulley dist.: 95.00
    Width/holder arm: 57.00
    Bracket hole: 10.70
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 76.00
    Grooves/pulley: 2
    Radius: 74.00
    Radius 2: 79.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    W plug type: Plug
    Total length mm: 160.00
    Pulley: DP

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.70
    Position/B+ in min. 5
    Pulley DP
    Pulley dia. 76.00
    Pulley dist. 95.00
    Radius 74.00
    D+ Size Plug
    Radius 2 79.00
    Rotation CW
    Grooves/pulley 2
    Voltage 14
    W plug type Plug
    Total length 160.00 mm
    Width/holder arm 57.00
    Amp 55
  • Fordonsmatchning

    • OEM
      F032114218, OR9273, 105-2811, 105-2812, 27060-58270, 101211-2240, 101211-2310, 101211-3310

    • Konkurrentreferens
      A6629(DENSO), A6629S, CAL40123, DAN2030, DRA0337, 645.503.055, 12346, 12346N

    • Normaliserat artikelnummer
      a6629denso, a6629s, cal40123, dan2030, dra0337, f032114218, or9273, 12346, 12346n, 1052811, 1052812, 645503055, 1012112240, 1012112310, 1012113310, 2706058270

    • Passar modeller
      Caterpillar Model: 933 Model series: 933 Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: 933C SERIES Model series: 933C SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: Backhoe Loaders Model series: 416C Brand of engine: Perkins 3054 Approved: Yes
      Caterpillar Model: Backhoe Loaders Model series: 426C Brand of engine: Perkins 3054 Approved: Yes
      Caterpillar Model: Backhoe Loaders Model series: 436C Brand of engine: Perkins 3054 Approved: Yes
      Caterpillar Model: D3 SERIES Model series: D3 SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: D4 Model series: D4 Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: D4 SERIES Model series: D4 SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: D5 Model series: D5 Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: D5 SERIES Model series: D5 SERIES Model type: Crawlers Brand of engine: 3046 Approved: Yes
      Caterpillar Model: Track Tractor Model series: D4C Brand of engine: Perkins Approved: Yes
      Caterpillar Model: Wheel Loader Model series: 906 Brand of engine: Perkins 3054 Approved: Yes
      Caterpillar Model: Wheel Loader Model series: 908 Brand of engine: Perkins 3054 Approved: Yes
