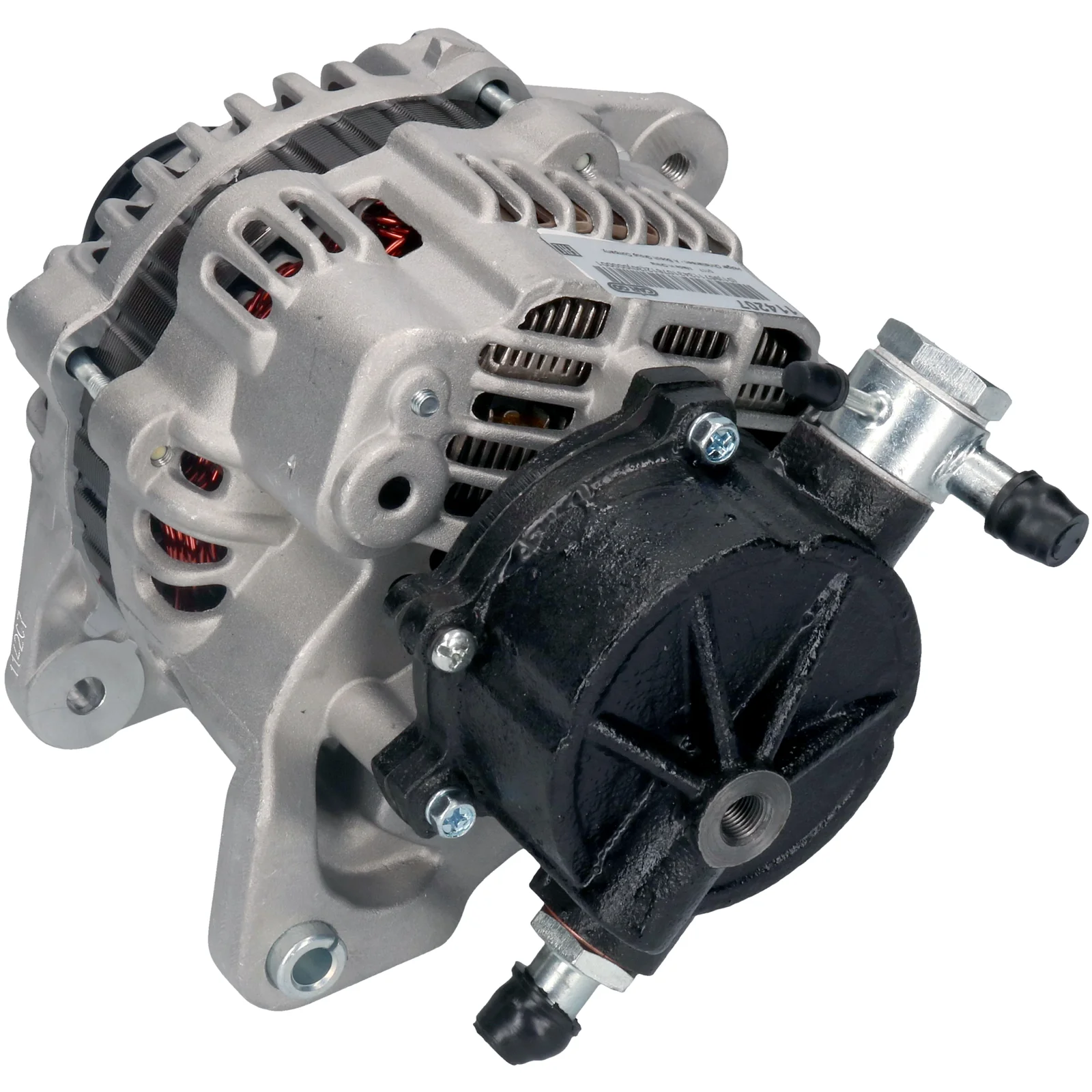

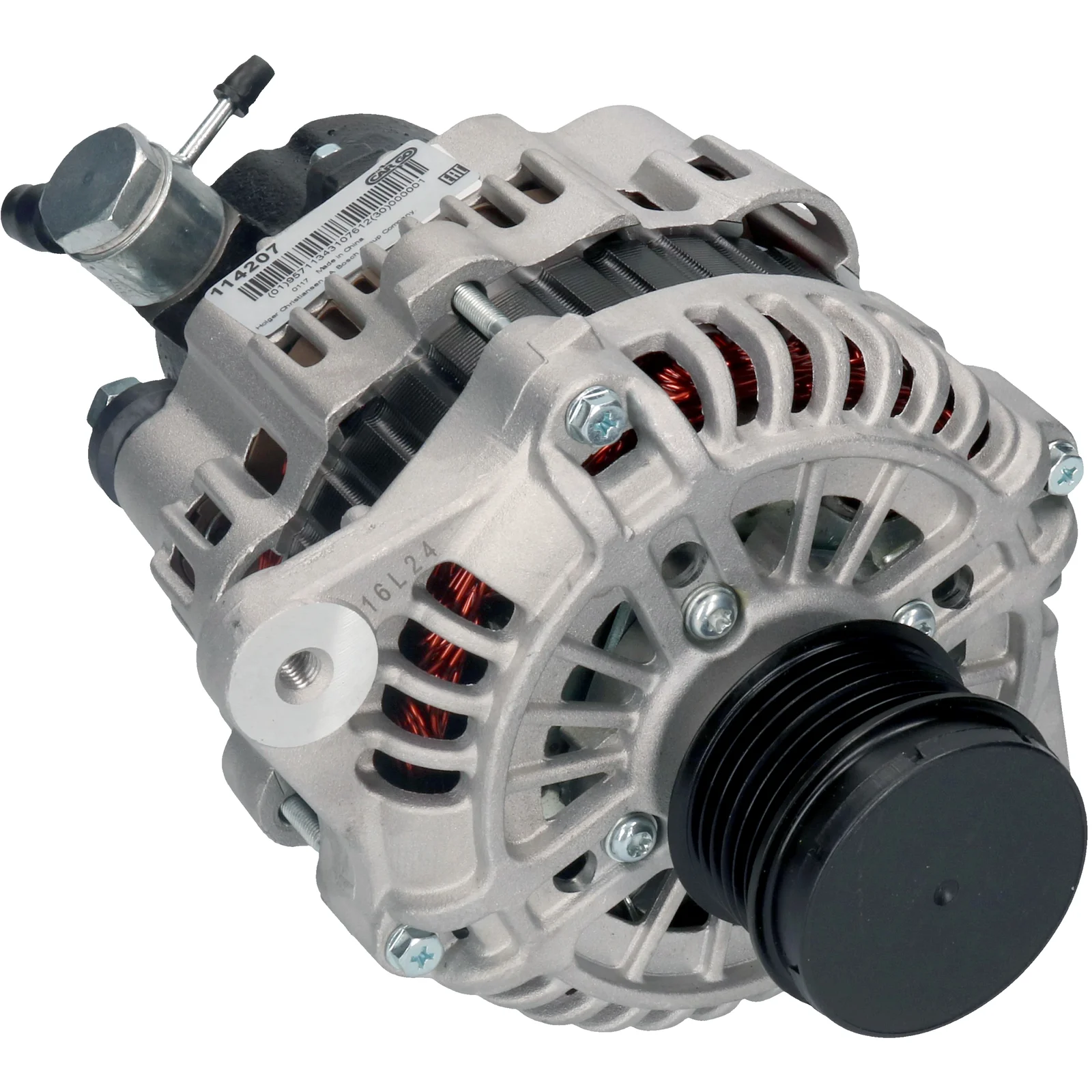

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114207

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 82.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 45.00
Width/holder arm: 13.00
Mount. bracket dist.: 82.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL56
Total length mm: 224.00
Pulley: SP/FW
Regulator type: IR
Vac. pump: Yes
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Plug no. PL56
Bracket hole 8.50
Position/B+ in min. 5
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 45.00
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Vac. pump Yes
Voltage 14
Total length 224.00 mm
Width/holder arm 13.00
Amp 100

  • OEM
    A003TN2581, A003TN2582, a3tn2581, A3TN2582, F032114207, 31400-84A00, 31400-84A01

  • Konkurrentreferens
    A5073, CAL35280, DRA0839, 28-5860, 185.603.100, 20780N, 210906, 210906A, 553170RI, 12060878

  • Normaliserat artikelnummer
    a003tn2581, a003tn2582, a3tn2581, a3tn2582, a5073, cal35280, dra0839, f032114207, 20780n, 210906, 210906a, 285860, 553170ri, 3140084a00, 3140084a01, 12060878, 185603100

  • Passar modeller
    Suzuki Model: Jimny Model series: Jimny Model type: 4WD Type of engine: DDiS Size of motor: 1.5 Brand of engine: K9K266 Type description: FJ Body: MPV From date: 01-08-2005 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 45.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 82.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL56
    Total length mm: 224.00
    Pulley: SP/FW
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 82.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 57
    Plug no. PL56
    Bracket hole 8.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 45.00
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Vac. pump Yes
    Voltage 14
    Total length 224.00 mm
    Width/holder arm 13.00
    Amp 100
  • Fordonsmatchning

    • OEM
      A003TN2581, A003TN2582, a3tn2581, A3TN2582, F032114207, 31400-84A00, 31400-84A01

    • Konkurrentreferens
      A5073, CAL35280, DRA0839, 28-5860, 185.603.100, 20780N, 210906, 210906A, 553170RI, 12060878

    • Normaliserat artikelnummer
      a003tn2581, a003tn2582, a3tn2581, a3tn2582, a5073, cal35280, dra0839, f032114207, 20780n, 210906, 210906a, 285860, 553170ri, 3140084a00, 3140084a01, 12060878, 185603100

    • Passar modeller
      Suzuki Model: Jimny Model series: Jimny Model type: 4WD Type of engine: DDiS Size of motor: 1.5 Brand of engine: K9K266 Type description: FJ Body: MPV From date: 01-08-2005 Fuel: Diesel Approved: Yes
