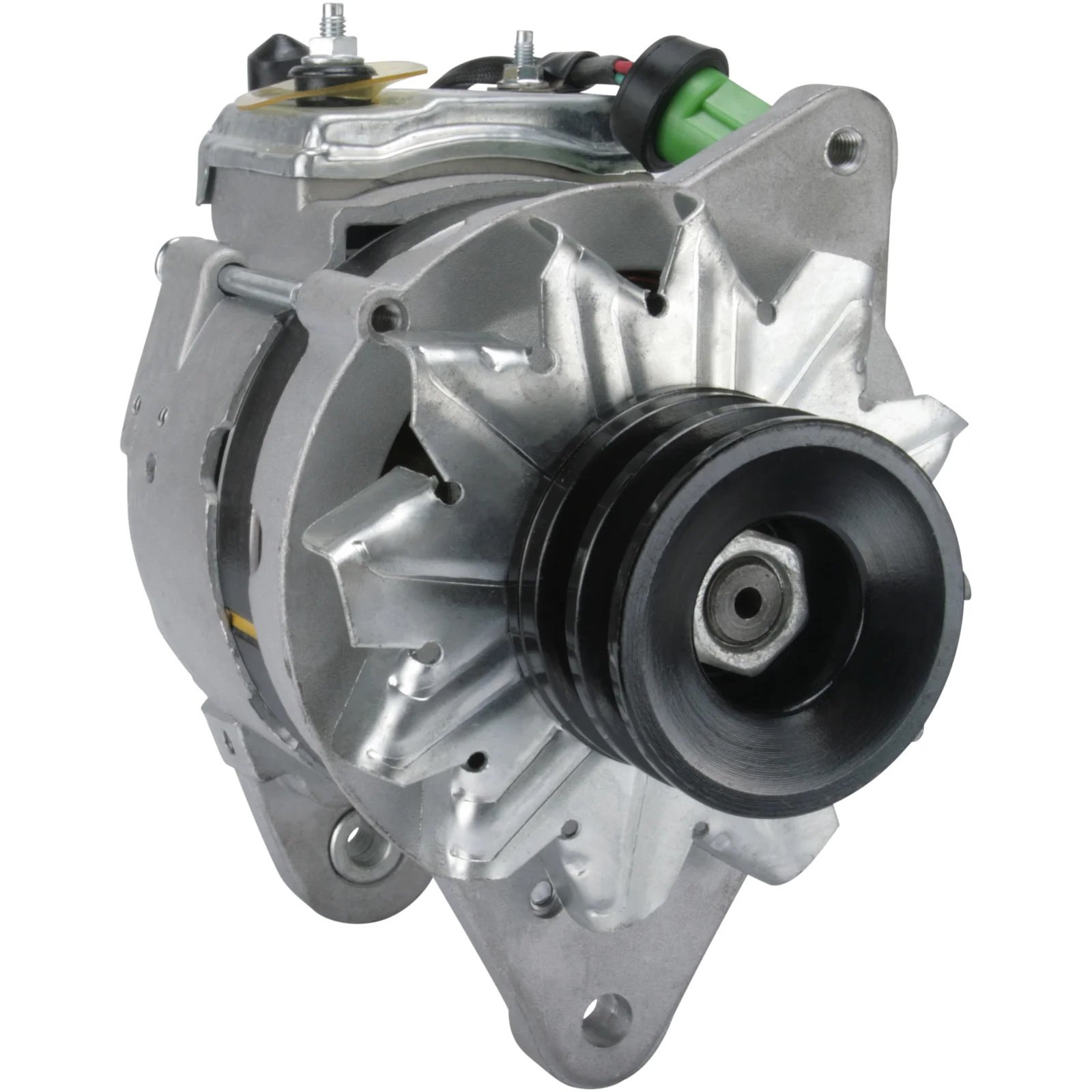

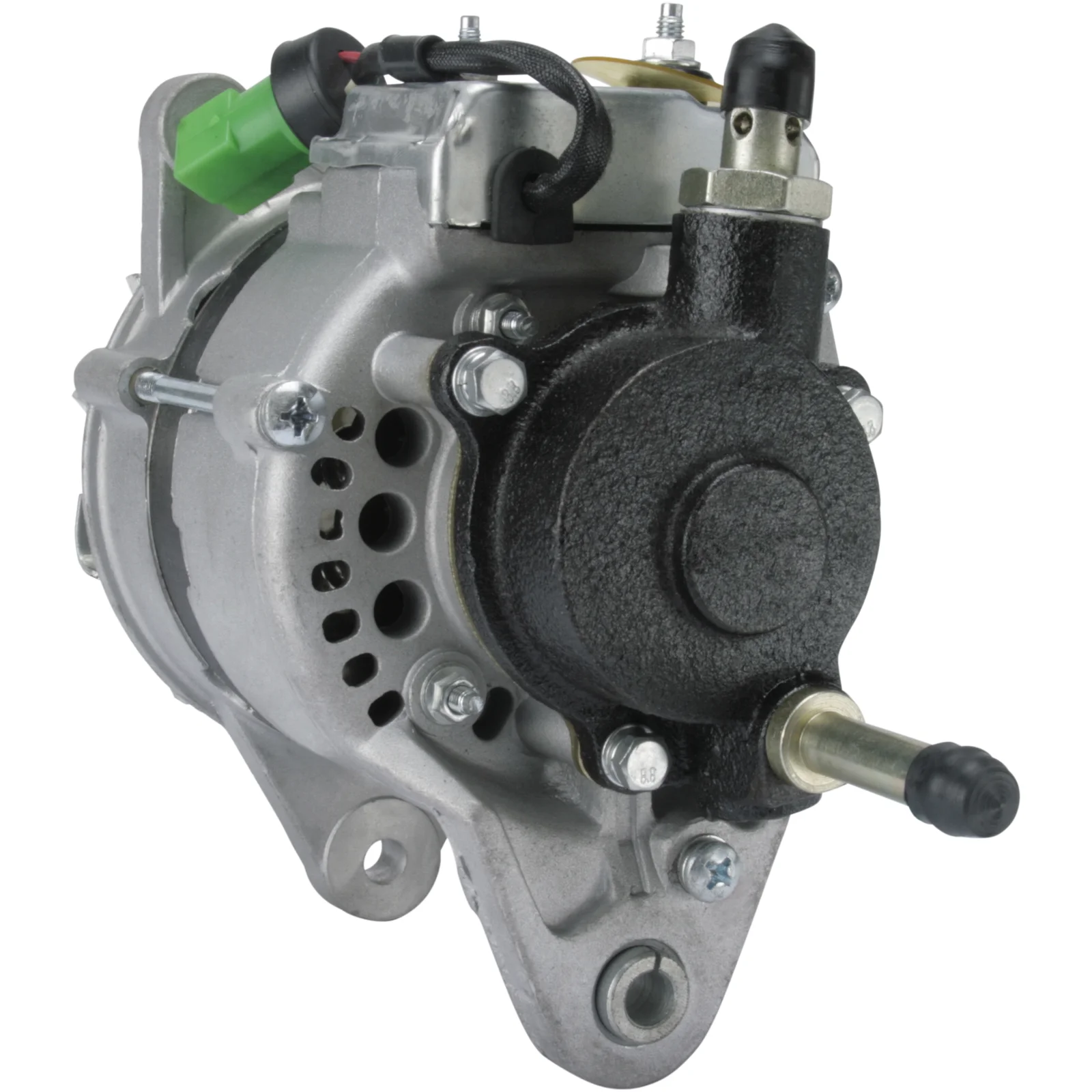

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114203

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 99.00

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 46.00
Width/holder arm: 13.00
Mount. bracket dist.: 99.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 2
Radius: 84.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL19
Total length mm: 268.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes

Filer

Specifikation

B+ M6
Mount. bracket dist. 99.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL19
Bracket hole 10.50
Position/B+ in min. 2
Pulley DP
Pulley dia. 67.00
Pulley dist. 46.00
Radius 84.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 268.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    F032114203, ja799ir, 27020-54150, 27020-54180, 27020-54220, 27020-54542, 27040-54030, 27040-54040, 27040-54050, 27040-54060, 27040-54080, 27040-54100, 27040-54151, 27040-54270, 27040-54271, 27040-54272, 27040-64010, 100213-0220, 100213-0230, 100213-0231, 100213-0250, 100213-0290, 100213-0291, 100213-0770, 100213-0790, 100213-1180, 100213-1300, 100213-1520, 100213-1700, 121000-0730, 121000-0731, 121000-0940, 121000-2730

  • Konkurrentreferens
    A6688S, CAL44104, dra3049, dra3064, dra3505, lra00552, 8el731740-001, 28-0842, 39-51.247, 39-51.296, 195.808.060, 235.012.552, 235.121.602, 5428, 22227, 40799RI, 56078, 119988, 12060341, 12060382

  • Normaliserat artikelnummer
    a6688s, cal44104, dra3049, dra3064, dra3505, f032114203, ja799ir, lra00552, 8el731740001, 5428, 22227, 40799ri, 56078, 119988, 280842, 3951247, 3951296, 12060341, 12060382, 195808060, 235012552, 235121602, 1002130220, 1002130230, 1002130231, 1002130250, 1002130290, 1002130291, 1002130770, 1002130790, 1002131180, 1002131300, 1002131520, 1002131700, 1210000730, 1210000731, 1210000940, 1210002730, 2702054150, 2702054180, 2702054220, 2702054542, 2704054030, 2704054040, 2704054050, 2704054060, 2704054080, 2704054100, 2704054151, 2704054270, 2704054271, 2704054272, 2704064010

  • Passar modeller
    Toyota Model: Crown Model series: Crown Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L-TE From date: 01-08-1994 To date: 01-07-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: IN108 Body: Pick Up From date: 01-10-1991 To date: 01-07-1997 Fuel: Diesel Approved: Yes
    VW Model: Taro Model series: Taro Model type: 4x4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-04-1989 To date: 01-03-1997 Fuel: Diesel Approved: Yes
    VW Model: Taro Model series: Taro Model type: 4x4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-07-1994 To date: 01-03-1997 Fuel: Diesel Approved: Yes
    VW Model: Taro Model series: Taro Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-07-1994 To date: 01-03-1997 Fuel: Diesel Approved: Yes
    VW Model: Taro Model series: Taro Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-09-1991 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 60
    Pulley dist.: 46.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 99.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.00
    Grooves/pulley: 2
    Radius: 84.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL19
    Total length mm: 268.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 99.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL19
    Bracket hole 10.50
    Position/B+ in min. 2
    Pulley DP
    Pulley dia. 67.00
    Pulley dist. 46.00
    Radius 84.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 268.00 mm
    Width/holder arm 13.00
    Amp 60
  • Fordonsmatchning

    • OEM
      F032114203, ja799ir, 27020-54150, 27020-54180, 27020-54220, 27020-54542, 27040-54030, 27040-54040, 27040-54050, 27040-54060, 27040-54080, 27040-54100, 27040-54151, 27040-54270, 27040-54271, 27040-54272, 27040-64010, 100213-0220, 100213-0230, 100213-0231, 100213-0250, 100213-0290, 100213-0291, 100213-0770, 100213-0790, 100213-1180, 100213-1300, 100213-1520, 100213-1700, 121000-0730, 121000-0731, 121000-0940, 121000-2730

    • Konkurrentreferens
      A6688S, CAL44104, dra3049, dra3064, dra3505, lra00552, 8el731740-001, 28-0842, 39-51.247, 39-51.296, 195.808.060, 235.012.552, 235.121.602, 5428, 22227, 40799RI, 56078, 119988, 12060341, 12060382

    • Normaliserat artikelnummer
      a6688s, cal44104, dra3049, dra3064, dra3505, f032114203, ja799ir, lra00552, 8el731740001, 5428, 22227, 40799ri, 56078, 119988, 280842, 3951247, 3951296, 12060341, 12060382, 195808060, 235012552, 235121602, 1002130220, 1002130230, 1002130231, 1002130250, 1002130290, 1002130291, 1002130770, 1002130790, 1002131180, 1002131300, 1002131520, 1002131700, 1210000730, 1210000731, 1210000940, 1210002730, 2702054150, 2702054180, 2702054220, 2702054542, 2704054030, 2704054040, 2704054050, 2704054060, 2704054080, 2704054100, 2704054151, 2704054270, 2704054271, 2704054272, 2704064010

    • Passar modeller
      Toyota Model: Crown Model series: Crown Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L-TE From date: 01-08-1994 To date: 01-07-2002 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: IN108 Body: Pick Up From date: 01-10-1991 To date: 01-07-1997 Fuel: Diesel Approved: Yes
      VW Model: Taro Model series: Taro Model type: 4x4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-04-1989 To date: 01-03-1997 Fuel: Diesel Approved: Yes
      VW Model: Taro Model series: Taro Model type: 4x4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-07-1994 To date: 01-03-1997 Fuel: Diesel Approved: Yes
      VW Model: Taro Model series: Taro Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-07-1994 To date: 01-03-1997 Fuel: Diesel Approved: Yes
      VW Model: Taro Model series: Taro Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-09-1991 To date: 01-07-1994 Fuel: Diesel Approved: Yes
      1 / 2
