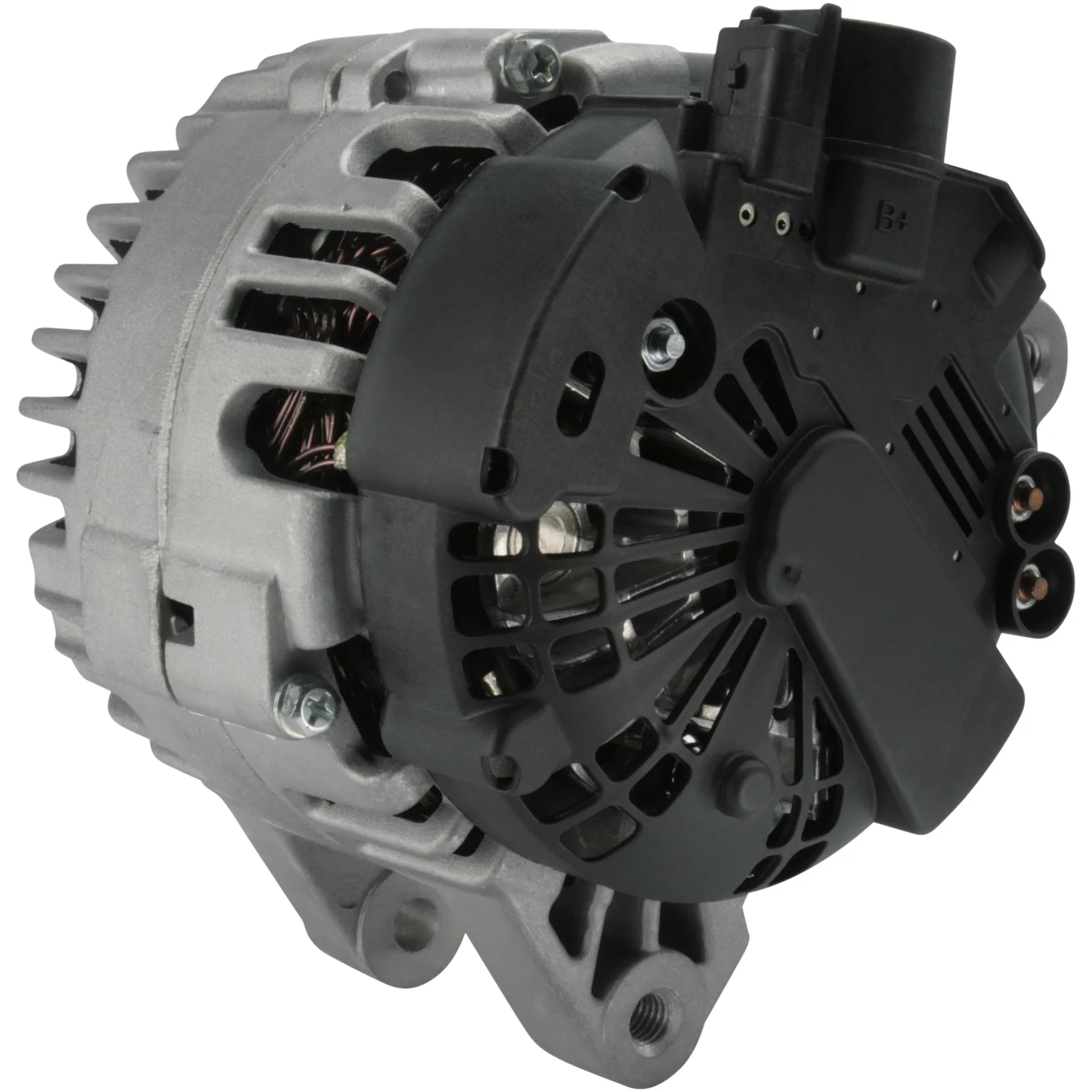

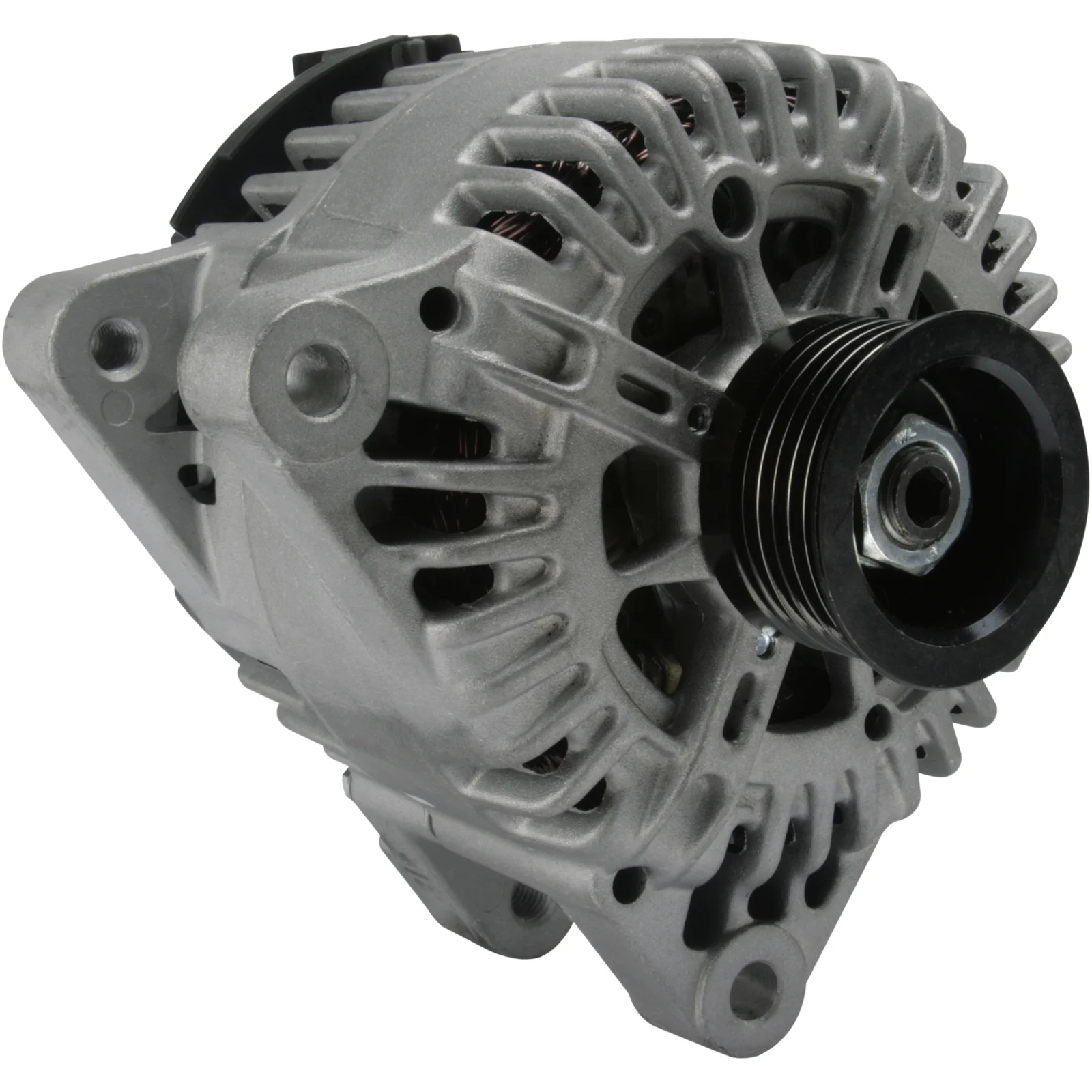

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113948

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 45.40

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 42.00
Width/holder arm: 21.50
Mount. bracket dist.: 45.40
Bracket hole: 10.40
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 54.20
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 170.00
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 45.40
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 10
Plug no. PL55
Bracket hole 10.40
Position/B+ in min. 20
Pulley SP
Pulley dia. 54.20
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 21.50
Amp 150

  • OEM
    F032113948, SG15S031, TG15C023, 1850ir, 2542705, 2542705A, 2542839, 2542839A, 9644529680, 9650582080

  • Konkurrentreferens
    A3067, DRA4197, LRA02229, 8EL012429-191, 8EL738211-221, 28-4704, 5702H4, 21365R, 23230R, 200156, 210538, 210538A, 210612, 210612A, 437457, 746043, 746843, 839029, 9212310, 12090210, 0986080110

  • Normaliserat artikelnummer
    a3067, dra4197, f032113948, lra02229, sg15s031, tg15c023, 8el012429191, 8el738211221, 1850ir, 5702h4, 21365r, 23230r, 200156, 210538, 210538a, 210612, 210612a, 284704, 437457, 746043, 746843, 839029, 2542705, 2542705a, 2542839, 2542839a, 9212310, 12090210, 0986080110, 9644529680, 9650582080

  • Passar modeller
    Citroen Model: Berlingo Model series: Berlingo Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Type description: MF Body: MPV From date: 01-12-1999 To date: 01-10-2005 Fuel: Diesel Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Type description: M_ Body: Van From date: 01-12-1999 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Citroen Model: C1 Model series: C1 Type of engine: HDi Size of motor: 1.4 Brand of engine: DV4D Type description: PM_, PN_ Body: Hatchback From date: 01-06-2005 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Citroen Model: C2 Model series: C2 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Type description: JM_ Body: Hatchback From date: 01-07-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Citroen Model: C2 Model series: C2 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HZ (DV4TD) Type description: JM_ Body: Hatchback From date: 01-07-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Peugeot Model: 206 Model series: 206 Model type: eco Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Type description: 2A/C Body: Hatchback From date: 01-09-2001 To date: 01-04-2009 Fuel: Diesel Approved: Yes
    Peugeot Model: 206 Model series: 206 Model type: eco Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HZ (DV4TD) Type description: 2A/C Body: Hatchback From date: 01-09-2001 To date: 01-04-2009 Fuel: Diesel Approved: Yes
    Peugeot Model: 206 Model series: 206 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Body: Estate From date: 01-07-2002 Fuel: Diesel Approved: Yes Manufacture type: Sw
    Peugeot Model: 206 Model series: 206 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Type description: 2A/C Body: Hatchback From date: 01-09-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Peugeot Model: Partner Model series: Partner Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Body: Van From date: 01-04-2000 To date: 01-07-2008 Fuel: Diesel Approved: Yes
    Peugeot Model: Partner Model series: Partner Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Type description: 5F Body: MPV From date: 01-02-2000 To date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: Combispace
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 42.00
    Width/holder arm: 21.50
    Mount. bracket dist.: 45.40
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 54.20
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 170.00
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 45.40
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 10
    Plug no. PL55
    Bracket hole 10.40
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 54.20
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 21.50
    Amp 150
  • Fordonsmatchning

    • OEM
      F032113948, SG15S031, TG15C023, 1850ir, 2542705, 2542705A, 2542839, 2542839A, 9644529680, 9650582080

    • Konkurrentreferens
      A3067, DRA4197, LRA02229, 8EL012429-191, 8EL738211-221, 28-4704, 5702H4, 21365R, 23230R, 200156, 210538, 210538A, 210612, 210612A, 437457, 746043, 746843, 839029, 9212310, 12090210, 0986080110

    • Normaliserat artikelnummer
      a3067, dra4197, f032113948, lra02229, sg15s031, tg15c023, 8el012429191, 8el738211221, 1850ir, 5702h4, 21365r, 23230r, 200156, 210538, 210538a, 210612, 210612a, 284704, 437457, 746043, 746843, 839029, 2542705, 2542705a, 2542839, 2542839a, 9212310, 12090210, 0986080110, 9644529680, 9650582080

    • Passar modeller
      Citroen Model: Berlingo Model series: Berlingo Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Type description: MF Body: MPV From date: 01-12-1999 To date: 01-10-2005 Fuel: Diesel Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Type description: M_ Body: Van From date: 01-12-1999 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Citroen Model: C1 Model series: C1 Type of engine: HDi Size of motor: 1.4 Brand of engine: DV4D Type description: PM_, PN_ Body: Hatchback From date: 01-06-2005 To date: 01-09-2014 Fuel: Diesel Approved: Yes
      Citroen Model: C2 Model series: C2 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Type description: JM_ Body: Hatchback From date: 01-07-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Citroen Model: C2 Model series: C2 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HZ (DV4TD) Type description: JM_ Body: Hatchback From date: 01-07-2003 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Peugeot Model: 206 Model series: 206 Model type: eco Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Type description: 2A/C Body: Hatchback From date: 01-09-2001 To date: 01-04-2009 Fuel: Diesel Approved: Yes
      Peugeot Model: 206 Model series: 206 Model type: eco Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HZ (DV4TD) Type description: 2A/C Body: Hatchback From date: 01-09-2001 To date: 01-04-2009 Fuel: Diesel Approved: Yes
      Peugeot Model: 206 Model series: 206 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Body: Estate From date: 01-07-2002 Fuel: Diesel Approved: Yes Manufacture type: Sw
      Peugeot Model: 206 Model series: 206 Type of engine: HDi Size of motor: 1.4 Brand of engine: 8HX (DV4TD) Type description: 2A/C Body: Hatchback From date: 01-09-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Peugeot Model: Partner Model series: Partner Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Body: Van From date: 01-04-2000 To date: 01-07-2008 Fuel: Diesel Approved: Yes
      Peugeot Model: Partner Model series: Partner Type of engine: HDi Size of motor: 2.0 Brand of engine: RHY (DW10TD) Type description: 5F Body: MPV From date: 01-02-2000 To date: 01-07-2008 Fuel: Diesel Approved: Yes Manufacture type: Combispace
