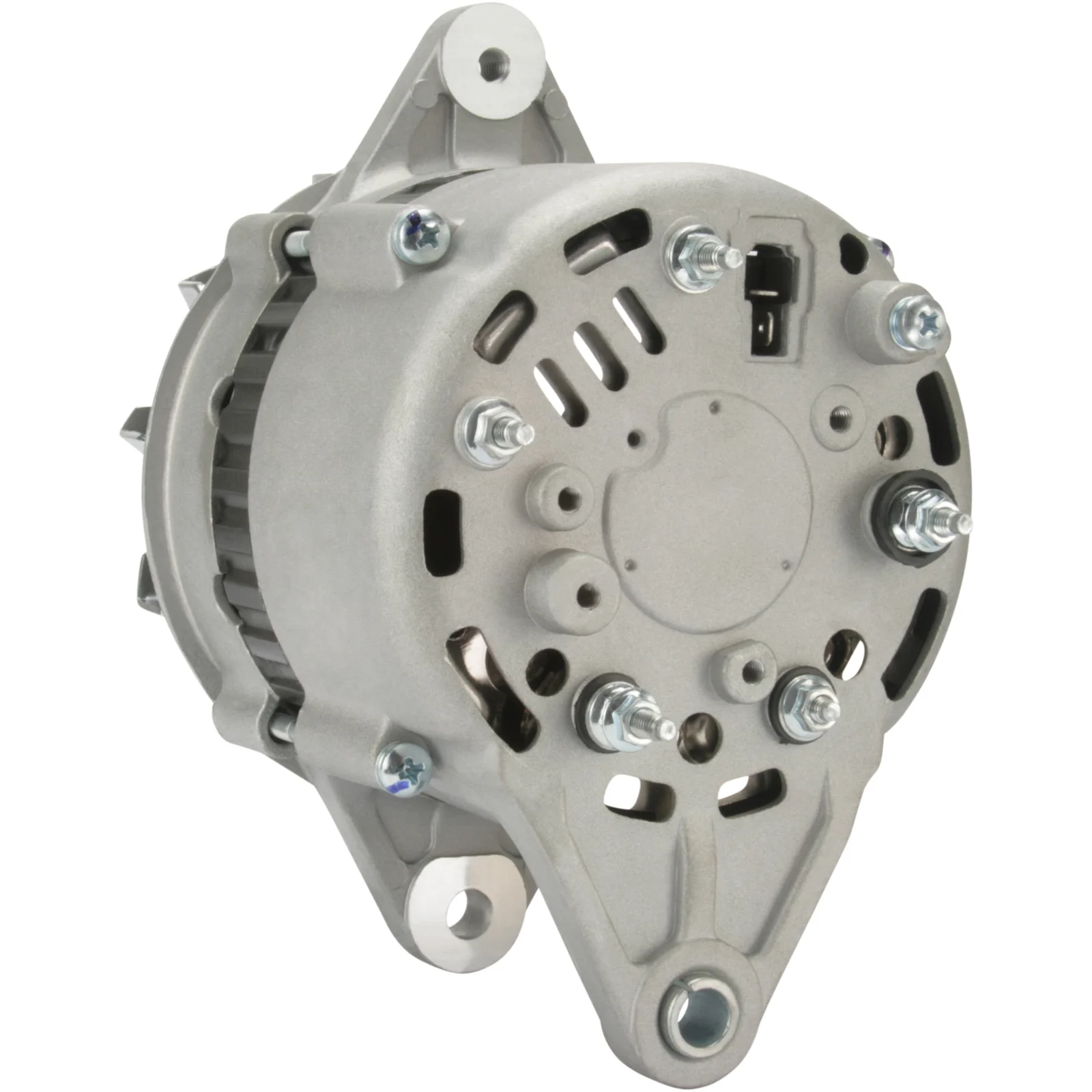

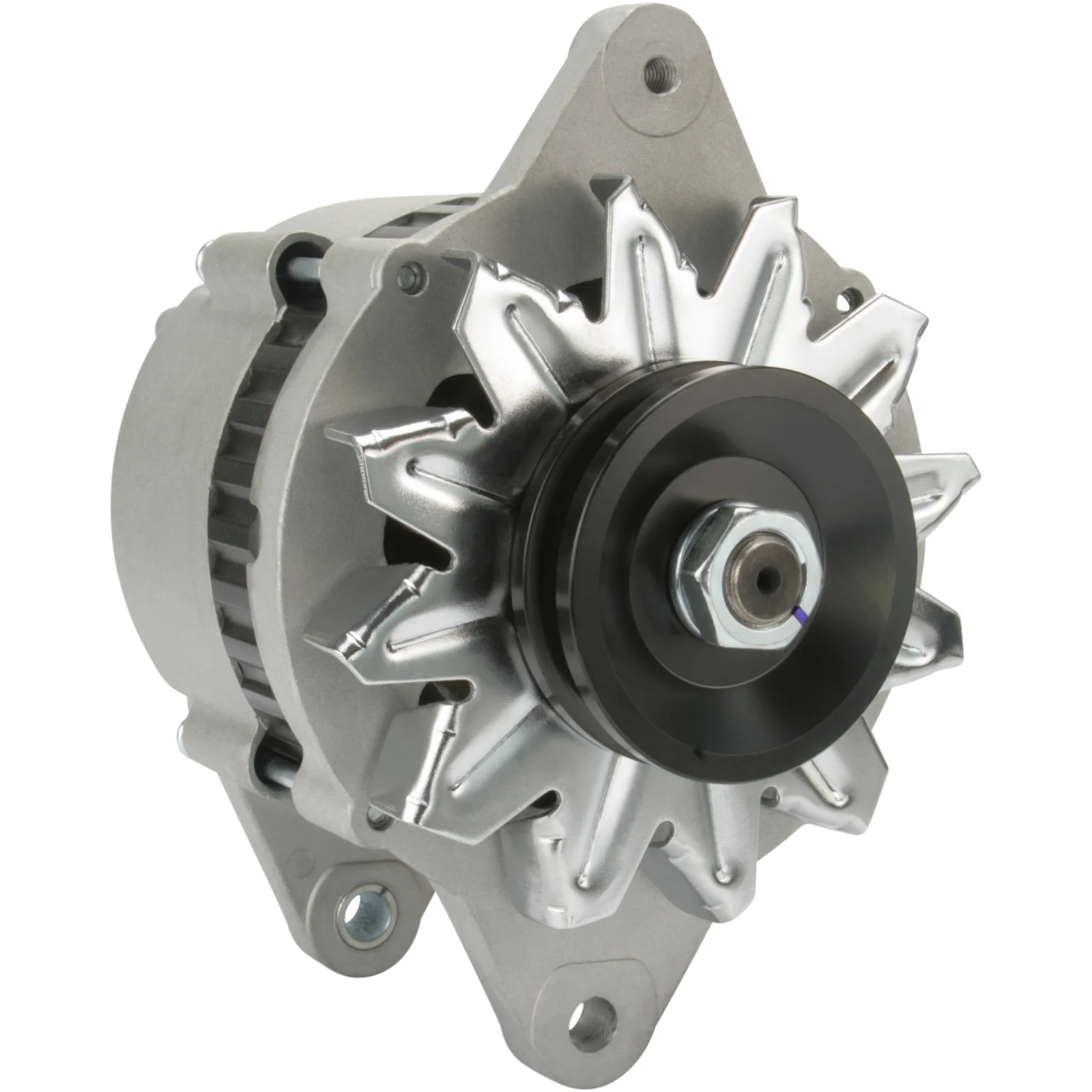

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113793

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket dist.: 80.00

Beskrivning

Yanmar Marin Gen. 12V-55A 12V - 55A, 1V, (R, L), insulated Passar Yanmar Marin 4JMTE, 4JH2E Engines För Yourex produkt order 90-678-5520

Voltage: 14
Amp: 55
Insulated return: Yes
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 80.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 72.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M5
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 184.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Yanmar

Filer

Specifikation

B+ M5
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.00
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 72.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Yanmar
Grooves/pulley 1
Insulated return Yes
Voltage 14
Total length 184.00 mm
Width/holder arm 13.00
Amp 55

  • OEM
    F032113793, ja986ir, LR155-20, lr155-20, LR155-20B, lr155-20b, LR155-29, lr155-29, 129772-77200

  • Konkurrentreferens
    a-8864, A2126S, ahi0068, CAL20161, lra00348, LRA01248, va225, 8el737061-001, 28-0917, 28-1565, 90-25-1061, 90-25-1092, 135.017.055, 582.105.552, 985.003.055, 5476, 12107N, 12275N, 119756, 553903RI

  • Bilmärken
    Yanmar Marine

  • Normaliserat artikelnummer
    a2126s, a8864, ahi0068, cal20161, f032113793, ja986ir, lr15520, lr15520b, lr15529, lra00348, lra01248, va225, 8el737061001, 5476, 12107n, 12275n, 119756, 280917, 281565, 553903ri, 90251061, 90251092, 135017055, 582105552, 985003055, 12977277200

  • Passar modeller
    Yanmar Model: 2GM Model series: 2GM Approved: Yes
    Yanmar Model: 3GM Model series: 3GM Approved: Yes
    Yanmar Model: 4JH Model series: 4JH Approved: Yes
    Yanmar Model: 4LH Model series: 4LH Approved: Yes
    Yanmar Series: Marin Model: 4JH2-DTE / 4JH2-HTE
    Yanmar Series: Marin Model: 4JH2-E / 4JH2-TE
    Yanmar Series: Marin Model: 4JH2-UTE(B)
    1 / 2
  • Beskrivning
    Yanmar Marin Gen. 12V-55A 12V - 55A, 1V, (R, L), insulated Passar Yanmar Marin 4JMTE, 4JH2E Engines För Yourex produkt order 90-678-5520

    Voltage: 14
    Amp: 55
    Insulated return: Yes
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 72.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M5
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 184.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Yanmar

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.00
    Position/B+ in min. 8
    Prod. info BN
    Pulley P
    Pulley dia. 72.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Yanmar
    Grooves/pulley 1
    Insulated return Yes
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 13.00
    Amp 55
  • Fordonsmatchning

    • OEM
      F032113793, ja986ir, LR155-20, lr155-20, LR155-20B, lr155-20b, LR155-29, lr155-29, 129772-77200

    • Konkurrentreferens
      a-8864, A2126S, ahi0068, CAL20161, lra00348, LRA01248, va225, 8el737061-001, 28-0917, 28-1565, 90-25-1061, 90-25-1092, 135.017.055, 582.105.552, 985.003.055, 5476, 12107N, 12275N, 119756, 553903RI

    • Bilmärken
      Yanmar Marine

    • Normaliserat artikelnummer
      a2126s, a8864, ahi0068, cal20161, f032113793, ja986ir, lr15520, lr15520b, lr15529, lra00348, lra01248, va225, 8el737061001, 5476, 12107n, 12275n, 119756, 280917, 281565, 553903ri, 90251061, 90251092, 135017055, 582105552, 985003055, 12977277200

    • Passar modeller
      Yanmar Model: 2GM Model series: 2GM Approved: Yes
      Yanmar Model: 3GM Model series: 3GM Approved: Yes
      Yanmar Model: 4JH Model series: 4JH Approved: Yes
      Yanmar Model: 4LH Model series: 4LH Approved: Yes
      Yanmar Series: Marin Model: 4JH2-DTE / 4JH2-HTE
      Yanmar Series: Marin Model: 4JH2-E / 4JH2-TE
      Yanmar Series: Marin Model: 4JH2-UTE(B)
