Artikelnr: F032113743

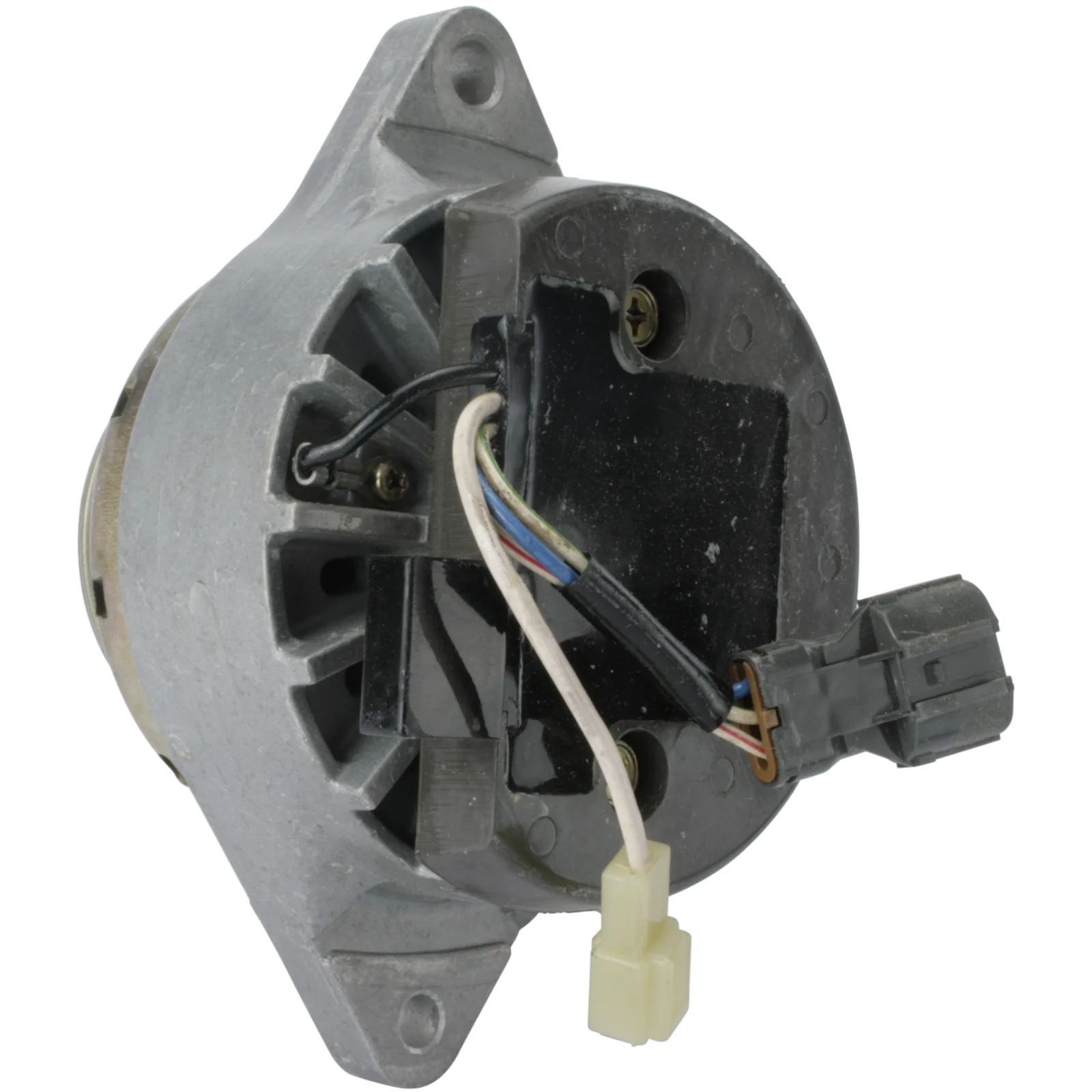

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 20, Pulley dia.: 75.00, Radius: 77.50

Beskrivning

Voltage: 14
Amp: 20
Pulley dist.: 44.00
Width/holder arm: 15.00
Bracket hole: 10.80
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.70
Pulley dia.: 75.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 77.50
B+: 6.30
Position/B+ in min.: 15
Plug no.: PL155
Total length mm: 97.00
Pulley: P
Regulator type: IR
Servicing: Industrial

Filer

Specifikation

B+ 6.30
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 60
Plug no. PL155
Bracket hole 10.80
Position/B+ in min. 15
Pulley P
Pulley dia. 75.00
Pulley dist. 44.00
Radius 77.50
Radius 2 77.50
Regulator type IR
Servicing Industrial
Grooves/pulley 1
Voltage 14
Total length 97.00 mm
Width/holder arm 15.00
Amp 20

  • OEM
    F032113743, GP9906, 8-97226840-0, 8-97226840-3, 8-97226840-4, 8972268403

  • Konkurrentreferens
    A9291S, apm0004, 10931, 10931N, 554348RI

  • Normaliserat artikelnummer
    a9291s, apm0004, f032113743, gp9906, 10931, 10931n, 554348ri, 8972268400, 8972268403, 8972268404

  • Passar modeller
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 20
    Pulley dist.: 44.00
    Width/holder arm: 15.00
    Bracket hole: 10.80
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.70
    Pulley dia.: 75.00
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 77.50
    B+: 6.30
    Position/B+ in min.: 15
    Plug no.: PL155
    Total length mm: 97.00
    Pulley: P
    Regulator type: IR
    Servicing: Industrial

    Filer

  • Specifikation
    B+ 6.30
    Belt. adj. bracket hole 1 8.70
    Belt. adj. brackethole pos. 60
    Plug no. PL155
    Bracket hole 10.80
    Position/B+ in min. 15
    Pulley P
    Pulley dia. 75.00
    Pulley dist. 44.00
    Radius 77.50
    Radius 2 77.50
    Regulator type IR
    Servicing Industrial
    Grooves/pulley 1
    Voltage 14
    Total length 97.00 mm
    Width/holder arm 15.00
    Amp 20
  • Fordonsmatchning

    • OEM
      F032113743, GP9906, 8-97226840-0, 8-97226840-3, 8-97226840-4, 8972268403

    • Konkurrentreferens
      A9291S, apm0004, 10931, 10931N, 554348RI

    • Normaliserat artikelnummer
      a9291s, apm0004, f032113743, gp9906, 10931, 10931n, 554348ri, 8972268400, 8972268403, 8972268404

    • Passar modeller
      Various Industrial applications Model: Various Industrial applications Approved: Yes
