Artikelnr: F032113713

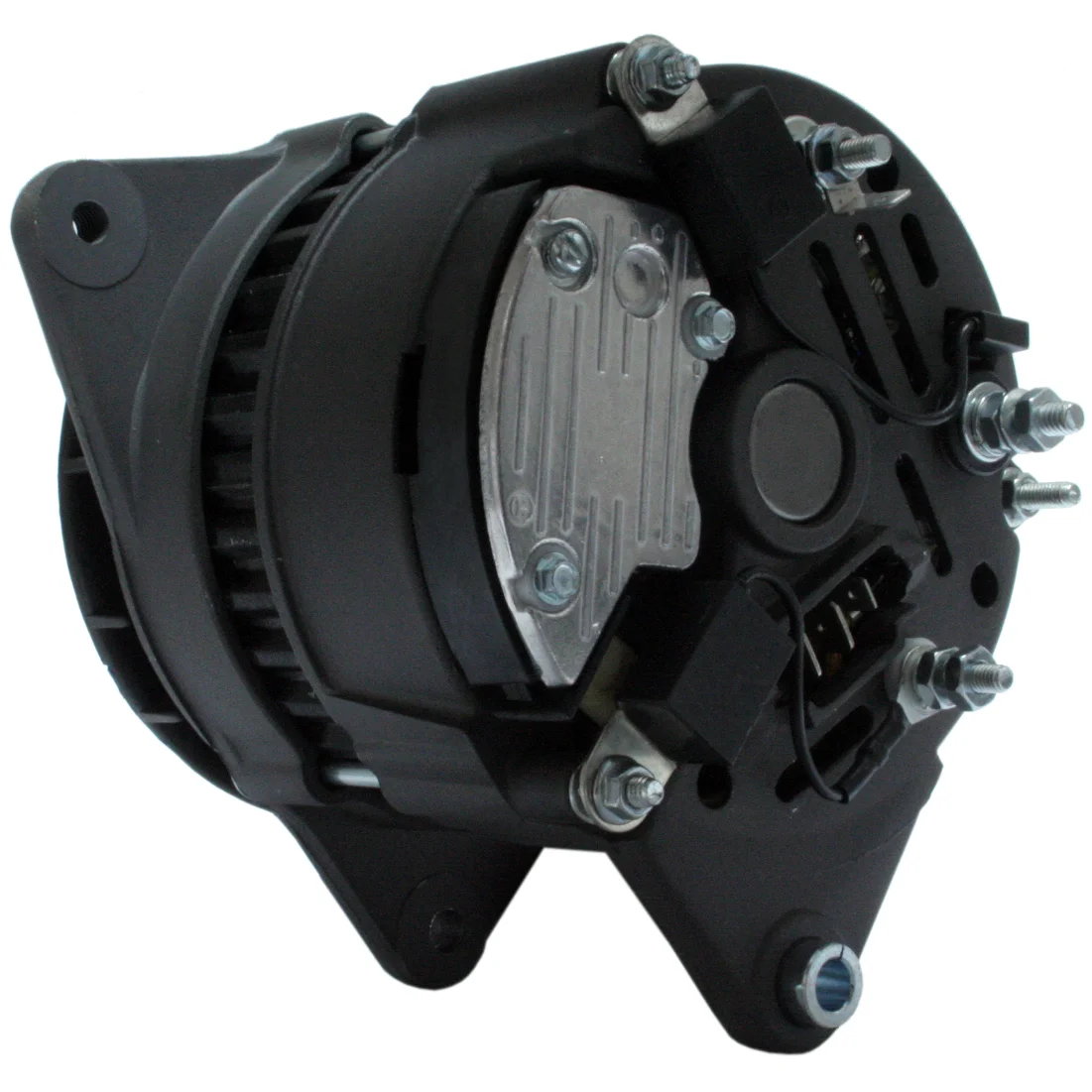

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 83.00

Beskrivning

Voltage: 14
Amp: 80
Insulated return: Yes
Terminal: W
Pulley dist.: 45.50
Width/holder arm: 11.20
Mount. bracket dist.: 83.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Pulley dia.: 82.20
Grooves/pulley: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 14
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5-6.30
Total length mm: 169.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Marine

Filer

Specifikation

B+ M6
Mount. bracket dist. 83.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 10
Plug no. PL22
Bracket hole 8.20
Position/B+ in min. 14
Prod. info BN
Pulley P
Pulley dia. 82.20
Pulley dist. 45.50
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Marine
Grooves/pulley 1
Terminal W
Insulated return Yes
Voltage 14
W plug type M5-6.30
Total length 169.00 mm
Width/holder arm 11.20
Amp 80

  • OEM
    F032113713, 362-02349, 510-823, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130A

  • Konkurrentreferens
    LEA0438, LEA1195, 595.034.070, 20607N-OE, 66021588

  • Normaliserat artikelnummer
    f032113713, lea0438, lea1195, 20607noe, 510823, 36202349, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130a, 66021588, 595034070

  • Passar modeller
    Lister Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 45.50
    Width/holder arm: 11.20
    Mount. bracket dist.: 83.00
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 82.20
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 14
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5-6.30
    Total length mm: 169.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Marine

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 83.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 10
    Plug no. PL22
    Bracket hole 8.20
    Position/B+ in min. 14
    Prod. info BN
    Pulley P
    Pulley dia. 82.20
    Pulley dist. 45.50
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Marine
    Grooves/pulley 1
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type M5-6.30
    Total length 169.00 mm
    Width/holder arm 11.20
    Amp 80
  • Fordonsmatchning

    • OEM
      F032113713, 362-02349, 510-823, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130A

    • Konkurrentreferens
      LEA0438, LEA1195, 595.034.070, 20607N-OE, 66021588

    • Normaliserat artikelnummer
      f032113713, lea0438, lea1195, 20607noe, 510823, 36202349, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130a, 66021588, 595034070

    • Passar modeller
      Lister Model: Various Models Model series: Various Models Approved: Yes
