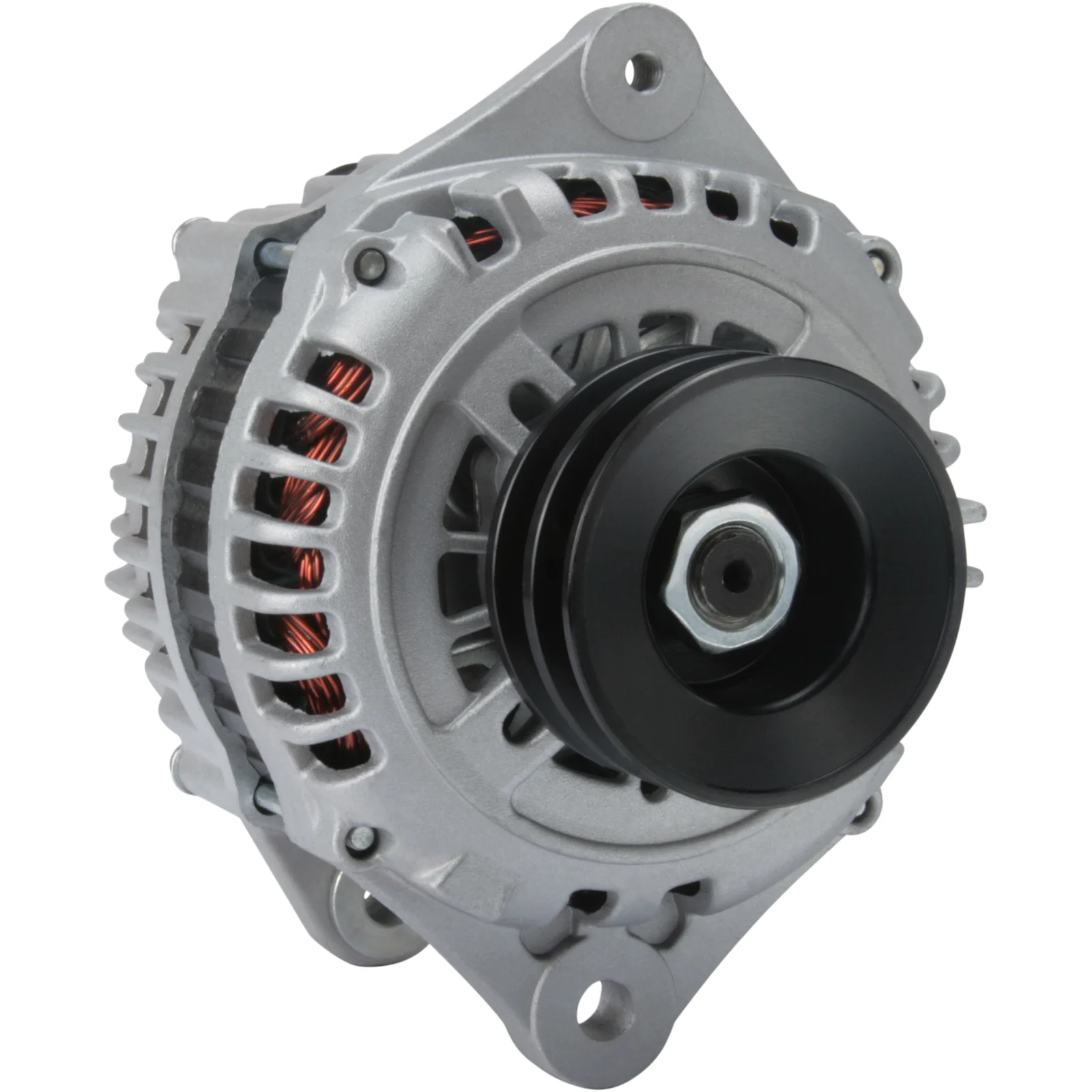

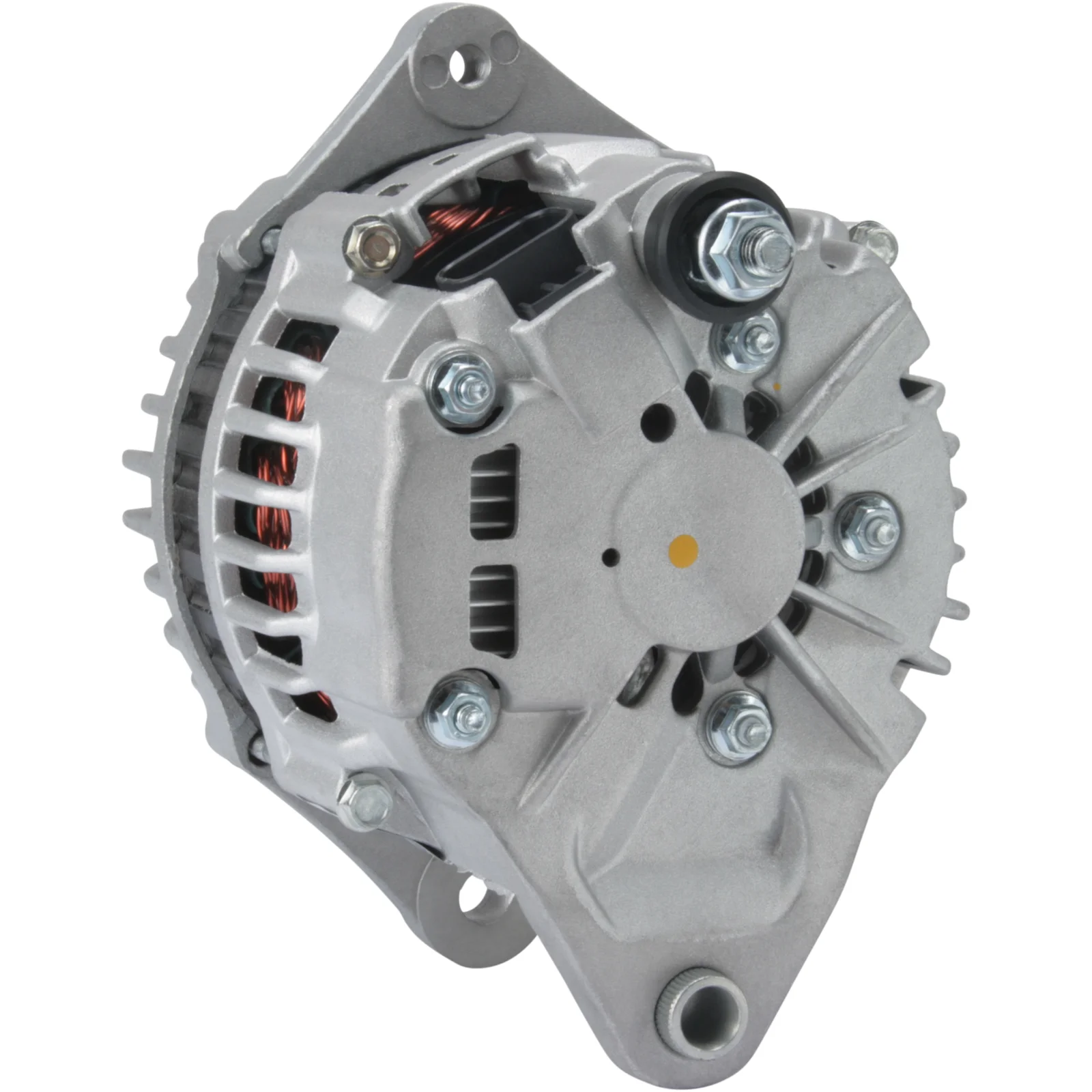

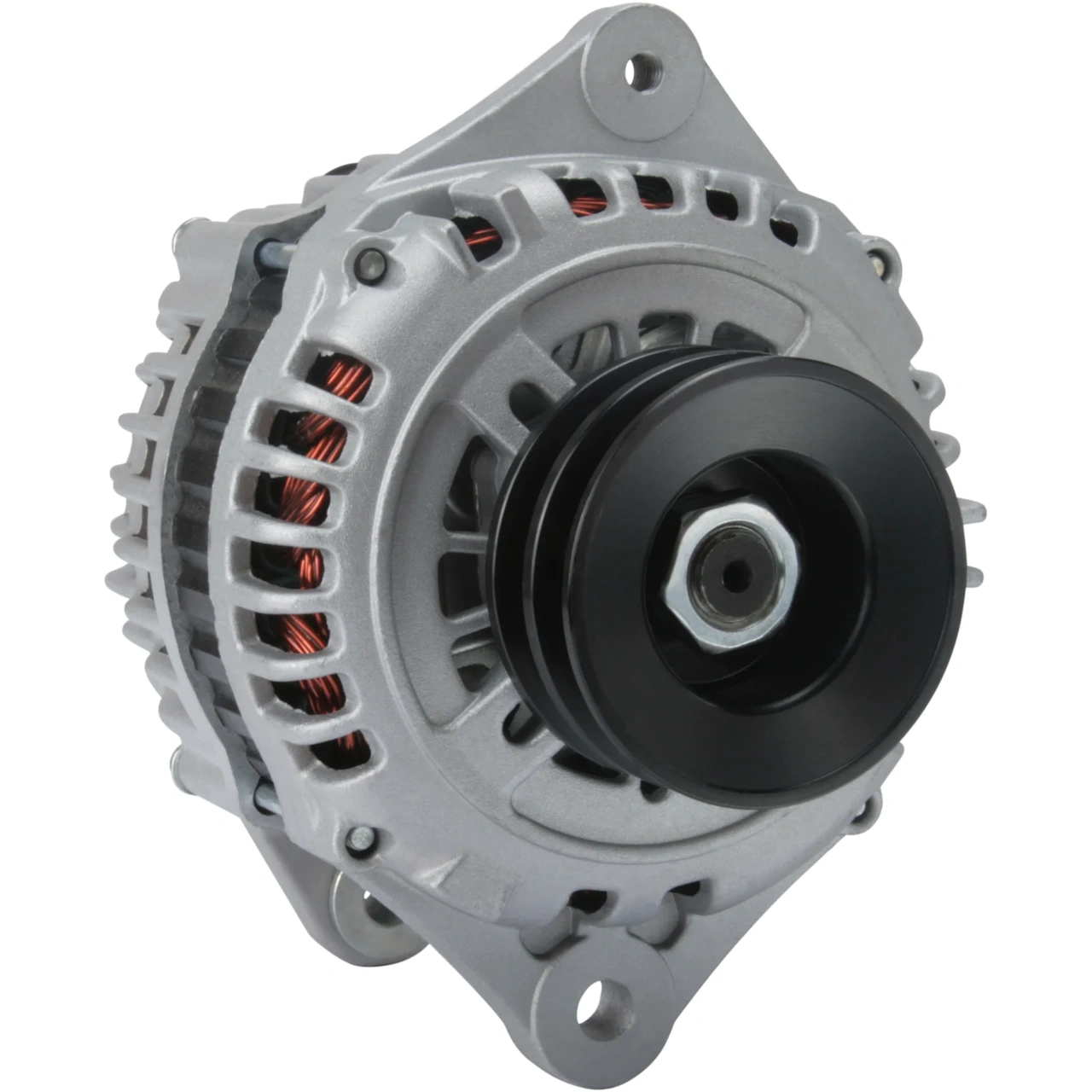

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113698

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 45.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 1
Belt. adj. bracket hole 1: M8
Pulley dia.: 72.00
Grooves/pulley: 2
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 185.50
Pulley: DP
Regulator type: IR
Prod. info: BN/OE
Servicing: Opel

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 1
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 60
Prod. info BN/OE
Pulley DP
Pulley dia. 72.00
Pulley dist. 45.00
Radius 80.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Servicing Opel
Grooves/pulley 2
Voltage 14
Total length 185.50 mm
Width/holder arm 13.00
Amp 90

  • OEM
    F032113698, LR190-750, lr190-750b, 8-97215992-2

  • Konkurrentreferens
    A2037, ALT31103, CAL20160, DRA0349, 23846N, 23846R, 553153RI, 12060838

  • Normaliserat artikelnummer
    a2037, alt31103, cal20160, dra0349, f032113698, lr190750, lr190750b, 23846n, 23846r, 553153ri, 12060838, 8972159922

  • Passar modeller
    Isuzu Model: Trooper Model series: Trooper Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-05-1998 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Opel Model: Monterey Model series: Monterey B Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-07-1998 To date: 01-08-1999 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 45.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 1
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 72.00
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 185.50
    Pulley: DP
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Opel

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 1
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 60
    Prod. info BN/OE
    Pulley DP
    Pulley dia. 72.00
    Pulley dist. 45.00
    Radius 80.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Rotation CW
    Servicing Opel
    Grooves/pulley 2
    Voltage 14
    Total length 185.50 mm
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032113698, LR190-750, lr190-750b, 8-97215992-2

    • Konkurrentreferens
      A2037, ALT31103, CAL20160, DRA0349, 23846N, 23846R, 553153RI, 12060838

    • Normaliserat artikelnummer
      a2037, alt31103, cal20160, dra0349, f032113698, lr190750, lr190750b, 23846n, 23846r, 553153ri, 12060838, 8972159922

    • Passar modeller
      Isuzu Model: Trooper Model series: Trooper Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-05-1998 To date: 01-08-2004 Fuel: Diesel Approved: Yes
      Opel Model: Monterey Model series: Monterey B Type of engine: DTi Size of motor: 3.0 Brand of engine: 4JX1 From date: 01-07-1998 To date: 01-08-1999 Fuel: Diesel Approved: Yes
