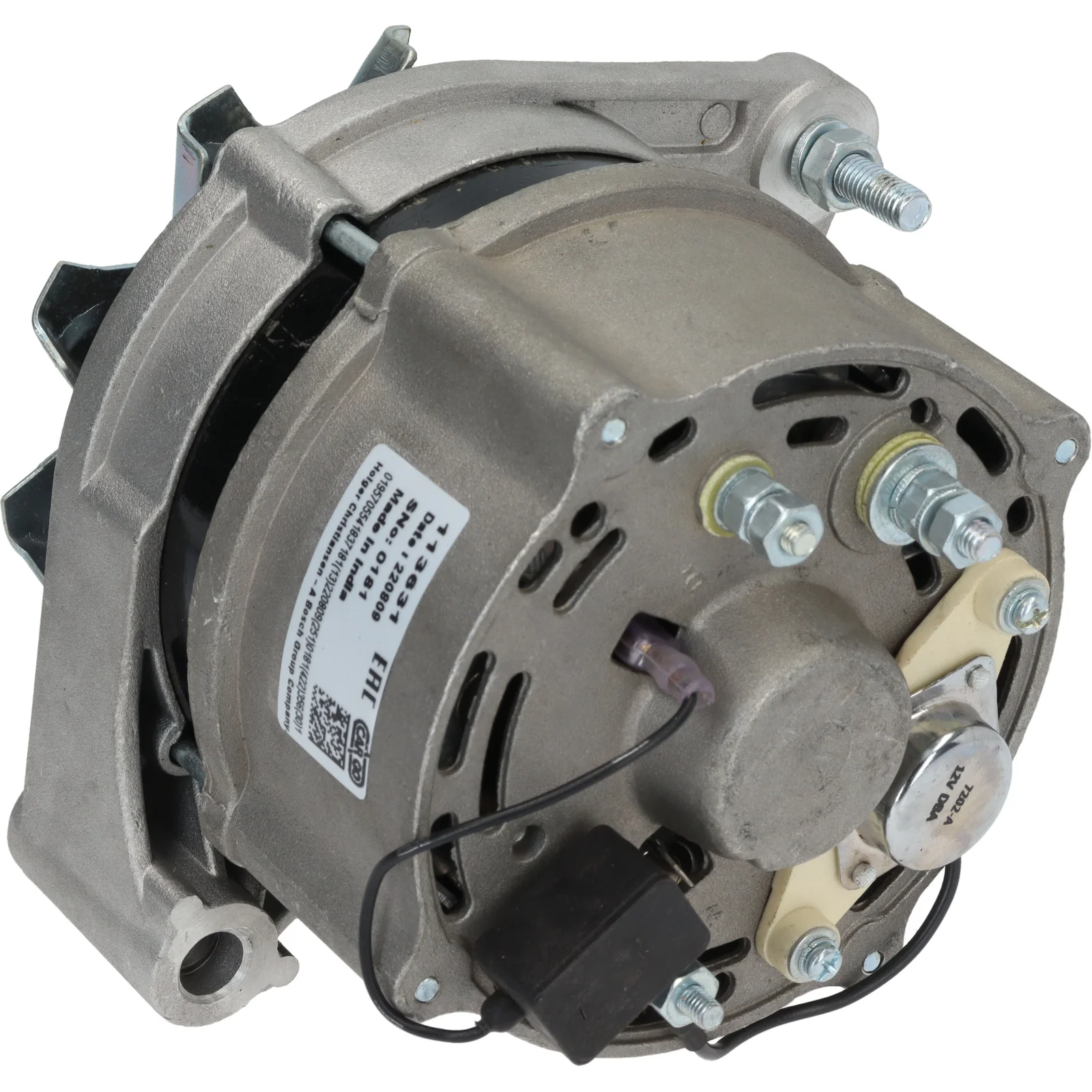

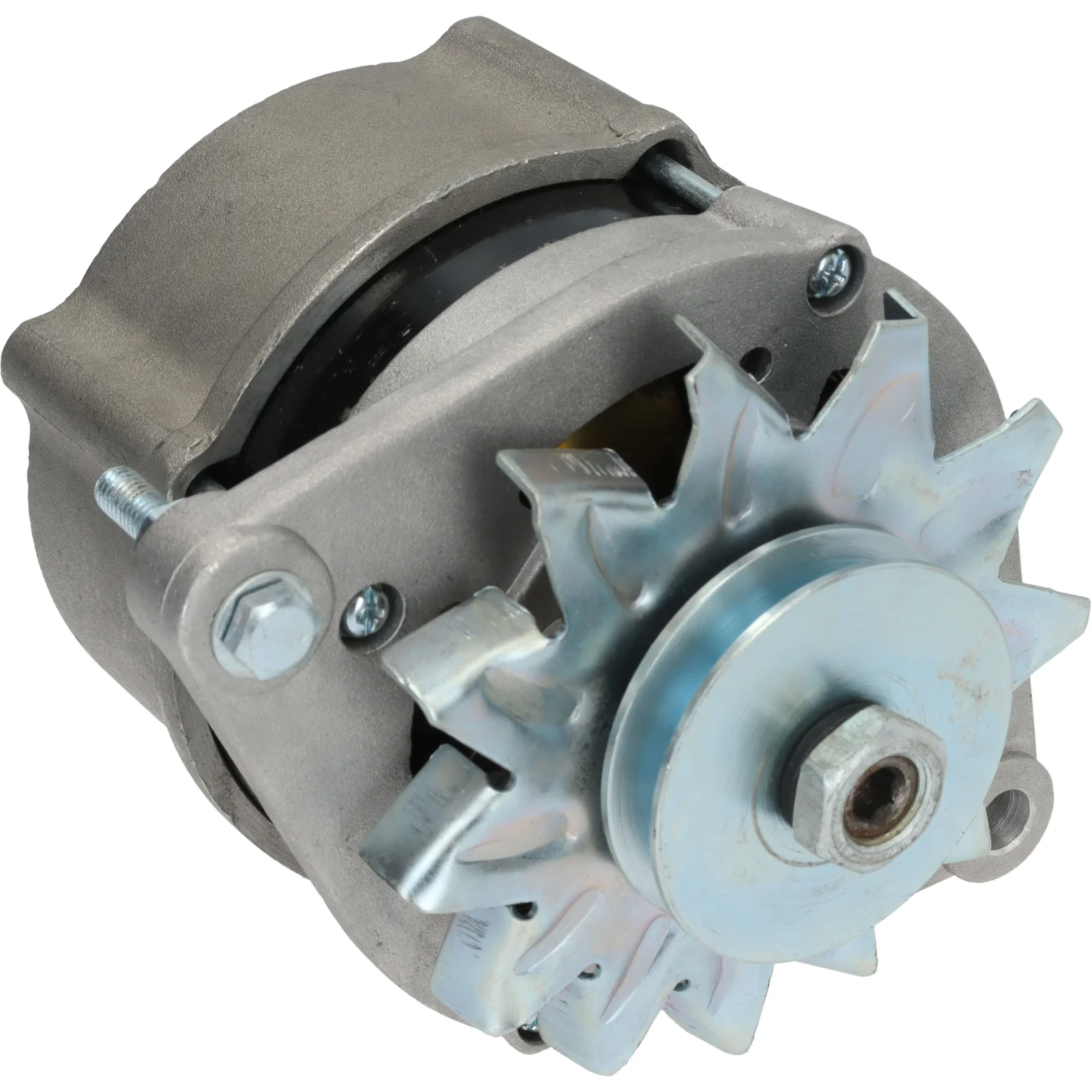

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113631

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 63.60

Beskrivning

Gen. 12V-100A passar Penta 12V - 100A, insulated return, marine, med (w) se 90-605-7023 och 90-605-0234, för applikationer Alternativ för: 90-605-0234 (60A , Valeo utseende / look) För Yourex produkt order 90-605-7723

Voltage: 14
Amp: 90
Insulated return: Yes
Terminal: W
Pulley dist.: 79.20
Width/holder arm: 51.00
Bracket hole: 11.40
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 63.60
Grooves/pulley: 1
Radius: 87.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 58
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 178.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Volvo Penta

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Bracket hole 11.40
Position/B+ in min. 58
Prod. info BN
Pulley P
Pulley dia. 63.60
Pulley dist. 79.20
Radius 87.00
D+ Size M5
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Volvo Penta
Grooves/pulley 1
Terminal W
Insulated return Yes
Voltage 14
W plug type 6.30
Total length 178.00 mm
Width/holder arm 51.00
Amp 90

  • OEM
    AAK 1818, AAK 3333, AAK 3830, AAK 4352, AAK 4675, AAK4352, F032113489, F032113631, MG 309, MG 499, MG 58, 11.203.416, 1202, 1450, 11201 938, 11203 416, 11203 670, 11204 062, 11205 071, 872235, 20150113

  • Konkurrentreferens
    ia1202, IA1450, LRA03673, MG309, 28-6813, 238.162.1002, 815.019.100

  • Bilmärken
    Volvo Penta

  • Normaliserat artikelnummer
    aak1818, aak3333, aak3830, aak4352, aak4675, f032113489, f032113631, ia1202, ia1450, lra03673, mg309, mg499, mg58, 1202, 1450, 286813, 872235, 11201938, 11203416, 11203670, 11204062, 11205071, 20150113, 815019100, 2381621002

  • Passar modeller
    BMW Model: Engine Model series: Marine Size of motor: 2.0 Brand of engine: B130 From date: 01-12-1978 To date: 01-07-1987 Approved: Yes
    BMW Model: Engine Model series: Marine Size of motor: 2.8 Brand of engine: B190 From date: 01-03-1978 To date: 01-07-1987 Approved: Yes
    BUKH Model: Engine Model series: Various Models Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: AQ120 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Size of motor: 2.3 Brand of engine: AQ145 From date: 01-03-1979 To date: 01-12-1985 Fuel: Gasoline Approved: Yes
    Volvo Penta Model: Engine Model series: Various Models Approved: Yes
    1 / 2
  • Beskrivning
    Gen. 12V-100A passar Penta 12V - 100A, insulated return, marine, med (w) se 90-605-7023 och 90-605-0234, för applikationer Alternativ för: 90-605-0234 (60A , Valeo utseende / look) För Yourex produkt order 90-605-7723

    Voltage: 14
    Amp: 90
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 79.20
    Width/holder arm: 51.00
    Bracket hole: 11.40
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 63.60
    Grooves/pulley: 1
    Radius: 87.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 58
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 178.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Volvo Penta

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 57
    Bracket hole 11.40
    Position/B+ in min. 58
    Prod. info BN
    Pulley P
    Pulley dia. 63.60
    Pulley dist. 79.20
    Radius 87.00
    D+ Size M5
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Volvo Penta
    Grooves/pulley 1
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type 6.30
    Total length 178.00 mm
    Width/holder arm 51.00
    Amp 90
  • Fordonsmatchning

    • OEM
      AAK 1818, AAK 3333, AAK 3830, AAK 4352, AAK 4675, AAK4352, F032113489, F032113631, MG 309, MG 499, MG 58, 11.203.416, 1202, 1450, 11201 938, 11203 416, 11203 670, 11204 062, 11205 071, 872235, 20150113

    • Konkurrentreferens
      ia1202, IA1450, LRA03673, MG309, 28-6813, 238.162.1002, 815.019.100

    • Bilmärken
      Volvo Penta

    • Normaliserat artikelnummer
      aak1818, aak3333, aak3830, aak4352, aak4675, f032113489, f032113631, ia1202, ia1450, lra03673, mg309, mg499, mg58, 1202, 1450, 286813, 872235, 11201938, 11203416, 11203670, 11204062, 11205071, 20150113, 815019100, 2381621002

    • Passar modeller
      BMW Model: Engine Model series: Marine Size of motor: 2.0 Brand of engine: B130 From date: 01-12-1978 To date: 01-07-1987 Approved: Yes
      BMW Model: Engine Model series: Marine Size of motor: 2.8 Brand of engine: B190 From date: 01-03-1978 To date: 01-07-1987 Approved: Yes
      BUKH Model: Engine Model series: Various Models Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: AQ120 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Size of motor: 2.3 Brand of engine: AQ145 From date: 01-03-1979 To date: 01-12-1985 Fuel: Gasoline Approved: Yes
      Volvo Penta Model: Engine Model series: Various Models Approved: Yes
