Artikelnr: F032113563

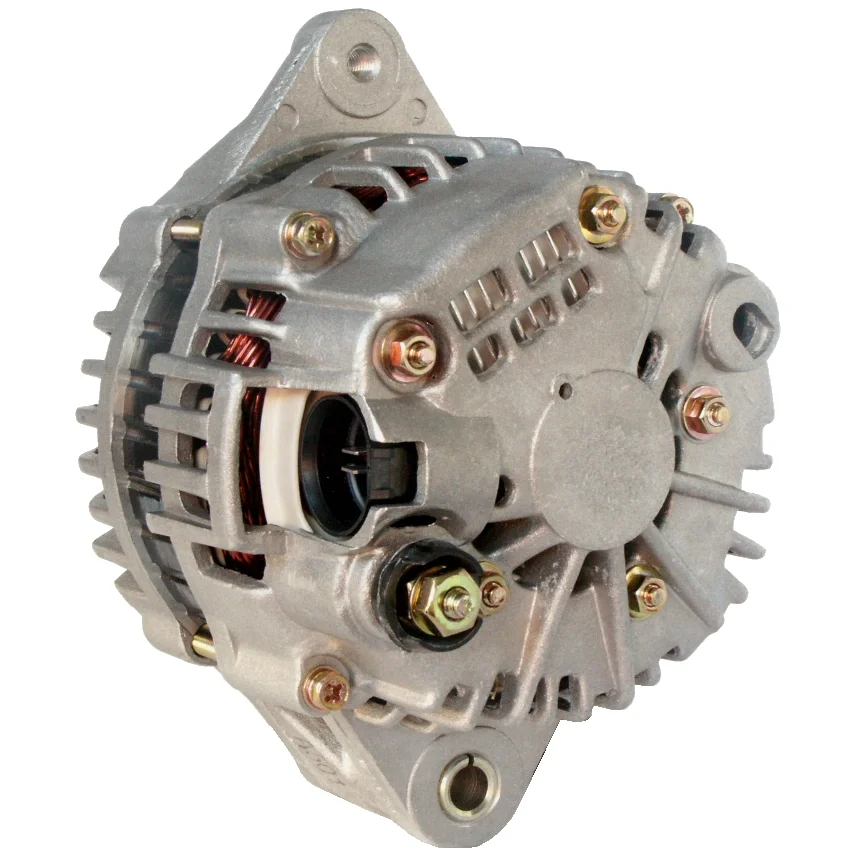

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 57.60

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 89.50
Width/holder arm: 56.50
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.60
Grooves/pulley: 6
Radius: 80.00
Radius 2: 83.50
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL101
Total length mm: 176.50
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Honda

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL101
Bracket hole 10.40
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 57.60
Pulley dist. 89.50
Radius 80.00
D+ Size Plug
Radius 2 83.50
Regulator type IR
Rotation CW
Servicing Honda
Grooves/pulley 6
Voltage 14
Total length 176.50 mm
Width/holder arm 56.50
Amp 90

  • OEM
    F032113563, LR190-743, 4637, 97204326, 8972043260

  • Konkurrentreferens
    aj-0096r, ALT-3025, ALT3025, CAL20199, DRA0896, F042305001, F042A05001, 13935, 13935N, 13935R, 111617, 553306RI, 12044510, 0986044511, 0986044513

  • Normaliserat artikelnummer
    aj0096r, alt3025, cal20199, dra0896, f032113563, f042305001, f042a05001, lr190743, 4637, 13935, 13935n, 13935r, 111617, 553306ri, 12044510, 97204326, 0986044511, 0986044513, 8972043260

  • Passar modeller
    Honda Model: Passport Model series: Passport Model type: EX Size of motor: 3.2 Brand of engine: 6VD1 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Honda Model: Passport Model series: Passport Model type: LX Size of motor: 3.2 Brand of engine: 6VD1 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Isuzu Model: Rodeo Model series: Rodeo Size of motor: 3.2 Brand of engine: 6VD1 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 89.50
    Width/holder arm: 56.50
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 57.60
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 83.50
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL101
    Total length mm: 176.50
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Honda

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL101
    Bracket hole 10.40
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 57.60
    Pulley dist. 89.50
    Radius 80.00
    D+ Size Plug
    Radius 2 83.50
    Regulator type IR
    Rotation CW
    Servicing Honda
    Grooves/pulley 6
    Voltage 14
    Total length 176.50 mm
    Width/holder arm 56.50
    Amp 90
  • Fordonsmatchning

    • OEM
      F032113563, LR190-743, 4637, 97204326, 8972043260

    • Konkurrentreferens
      aj-0096r, ALT-3025, ALT3025, CAL20199, DRA0896, F042305001, F042A05001, 13935, 13935N, 13935R, 111617, 553306RI, 12044510, 0986044511, 0986044513

    • Normaliserat artikelnummer
      aj0096r, alt3025, cal20199, dra0896, f032113563, f042305001, f042a05001, lr190743, 4637, 13935, 13935n, 13935r, 111617, 553306ri, 12044510, 97204326, 0986044511, 0986044513, 8972043260

    • Passar modeller
      Honda Model: Passport Model series: Passport Model type: EX Size of motor: 3.2 Brand of engine: 6VD1 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Honda Model: Passport Model series: Passport Model type: LX Size of motor: 3.2 Brand of engine: 6VD1 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Isuzu Model: Rodeo Model series: Rodeo Size of motor: 3.2 Brand of engine: 6VD1 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
