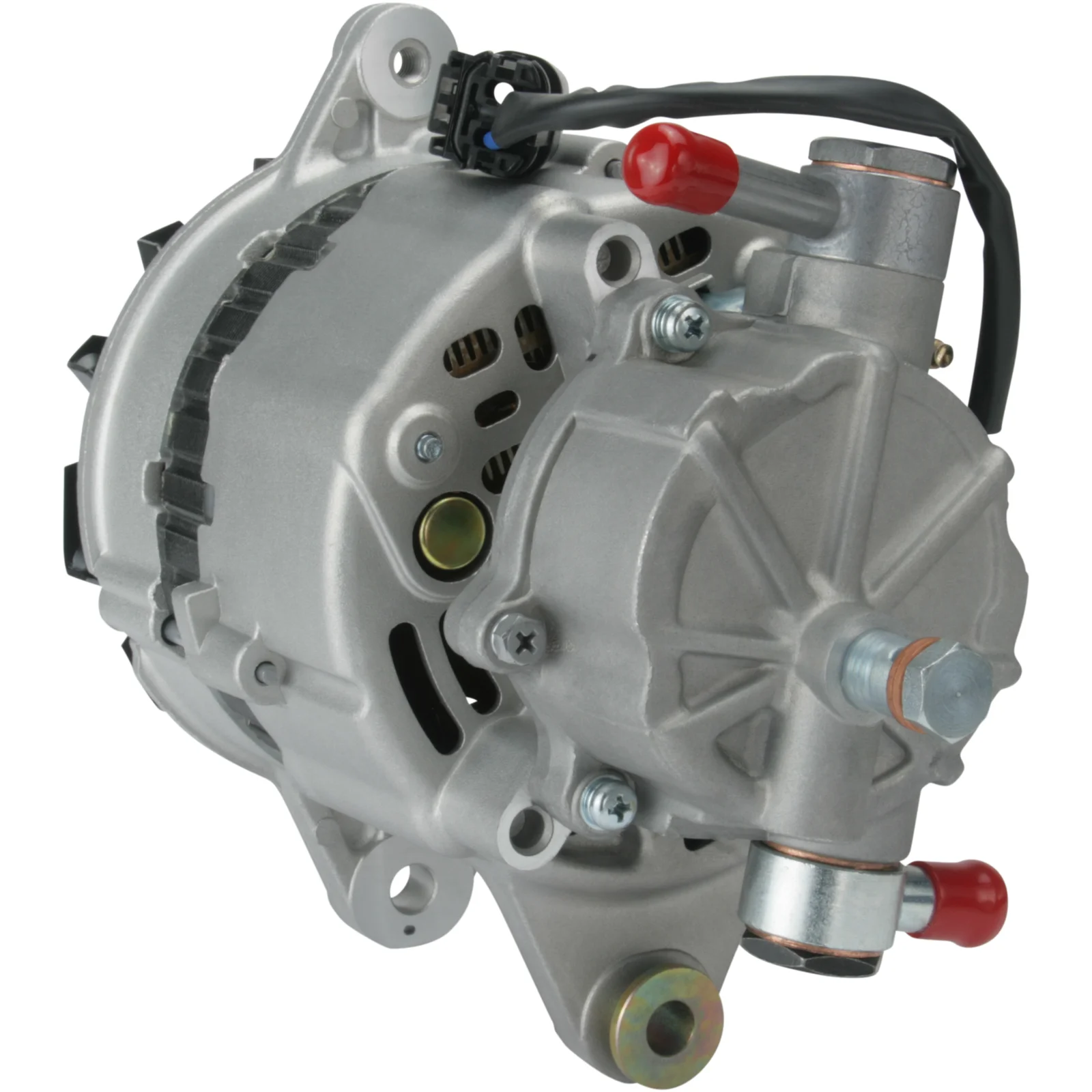

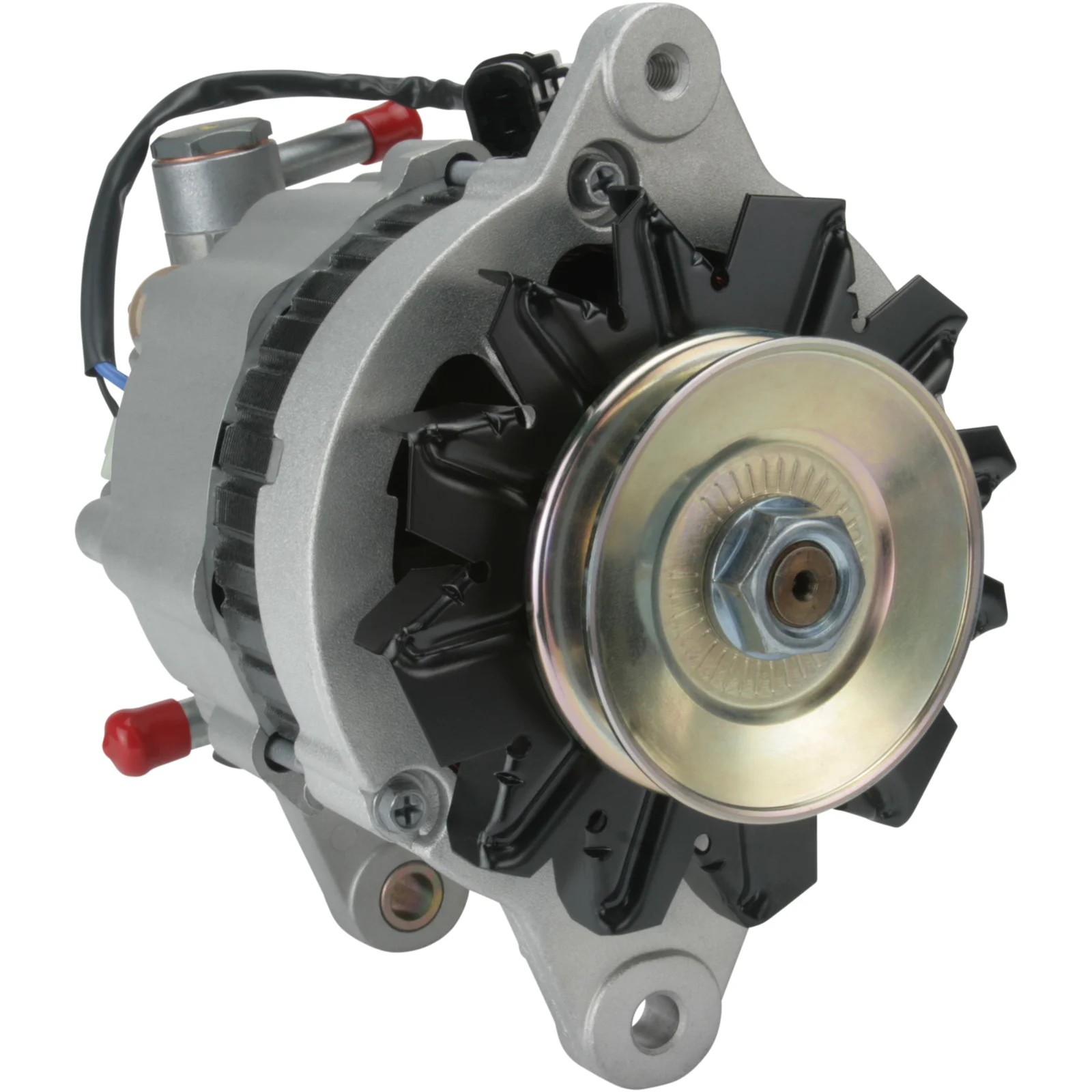

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113291

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket dist.: 80.00

Beskrivning

Voltage: 14
Amp: 55
Terminal: W
Pulley dist.: 39.30
Width/holder arm: 13.40
Mount. bracket dist.: 80.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 84.00
Grooves/pulley: 1
Radius: 89.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 10
D+ Size: M5
Rotation: CW
Plug no.: PL121
W plug type: 2.80
Total length mm: 231.00
Pulley: P
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL121
Bracket hole 10.20
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 84.00
Pulley dist. 39.30
Radius 89.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Terminal W
Vac. pump Yes
Voltage 14
W plug type 2.80
Total length 231.00 mm
Width/holder arm 13.40
Amp 55

  • OEM
    F032113291, ja1614ir, 6033gb4009

  • Konkurrentreferens
    A0819S, DRA4133, 8EL737974-001, 527.117.552, 210455, 210455A, 12060915, 0986081240

  • Normaliserat artikelnummer
    a0819s, dra4133, f032113291, ja1614ir, 8el737974001, 6033gb4009, 210455, 210455a, 12060915, 527117552, 0986081240

  • Passar modeller
    Nissan Model: Trade Model series: Trade Type of engine: TDiC Size of motor: 3.0 Brand of engine: BD-30Ti Body: Bus From date: 01-06-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Type of engine: TDiC Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-06-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Type of engine: TDiC Size of motor: 3.0 Brand of engine: BD-30Ti Body: Van From date: 01-06-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 55
    Terminal: W
    Pulley dist.: 39.30
    Width/holder arm: 13.40
    Mount. bracket dist.: 80.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 84.00
    Grooves/pulley: 1
    Radius: 89.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: M5
    Rotation: CW
    Plug no.: PL121
    W plug type: 2.80
    Total length mm: 231.00
    Pulley: P
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL121
    Bracket hole 10.20
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 84.00
    Pulley dist. 39.30
    Radius 89.00
    D+ Size M5
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Terminal W
    Vac. pump Yes
    Voltage 14
    W plug type 2.80
    Total length 231.00 mm
    Width/holder arm 13.40
    Amp 55
  • Fordonsmatchning

    • OEM
      F032113291, ja1614ir, 6033gb4009

    • Konkurrentreferens
      A0819S, DRA4133, 8EL737974-001, 527.117.552, 210455, 210455A, 12060915, 0986081240

    • Normaliserat artikelnummer
      a0819s, dra4133, f032113291, ja1614ir, 8el737974001, 6033gb4009, 210455, 210455a, 12060915, 527117552, 0986081240

    • Passar modeller
      Nissan Model: Trade Model series: Trade Type of engine: TDiC Size of motor: 3.0 Brand of engine: BD-30Ti Body: Bus From date: 01-06-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Trade Model series: Trade Type of engine: TDiC Size of motor: 3.0 Brand of engine: BD-30Ti Body: Platform / Chassis From date: 01-06-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Trade Model series: Trade Type of engine: TDiC Size of motor: 3.0 Brand of engine: BD-30Ti Body: Van From date: 01-06-1996 To date: 01-10-2001 Fuel: Diesel Approved: Yes
