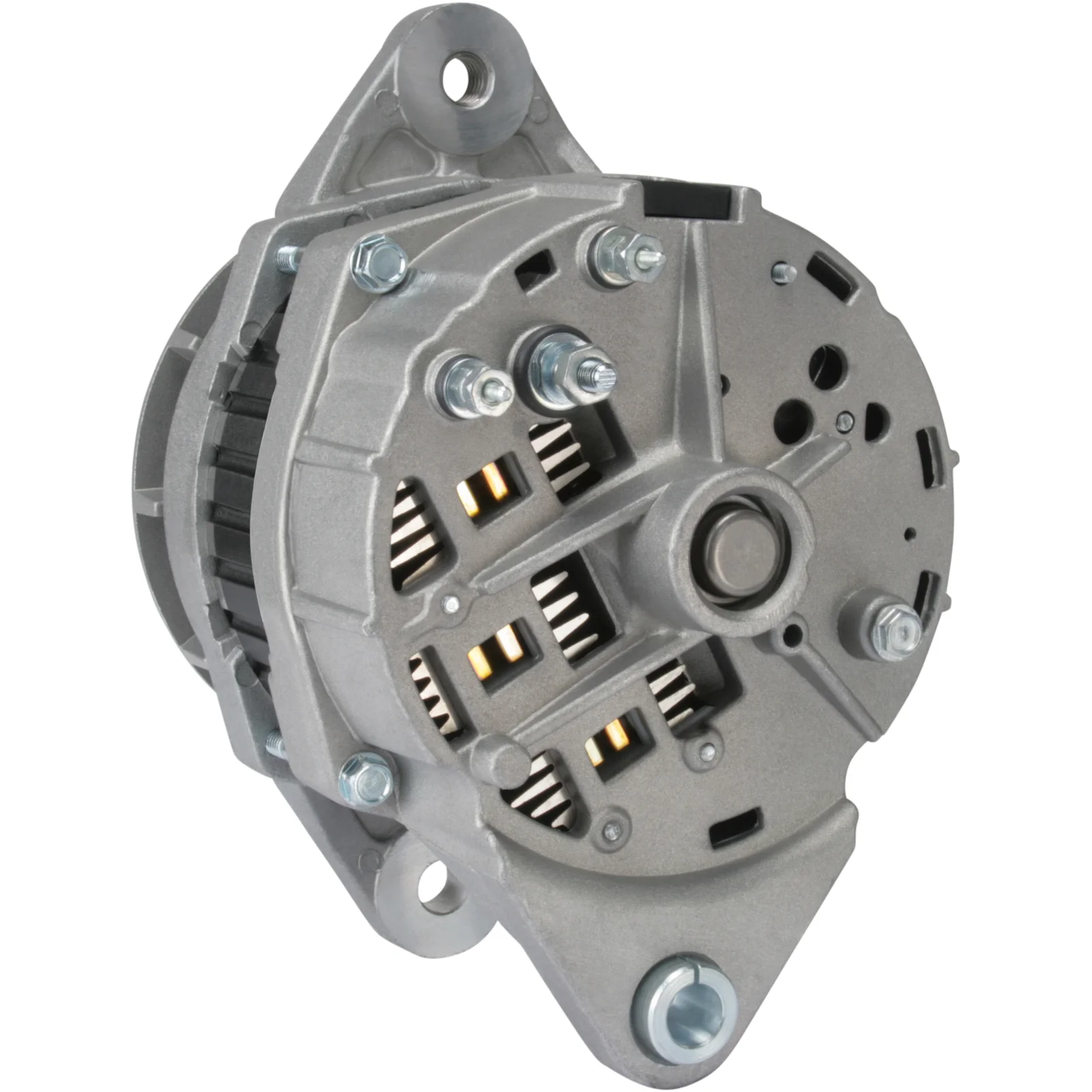

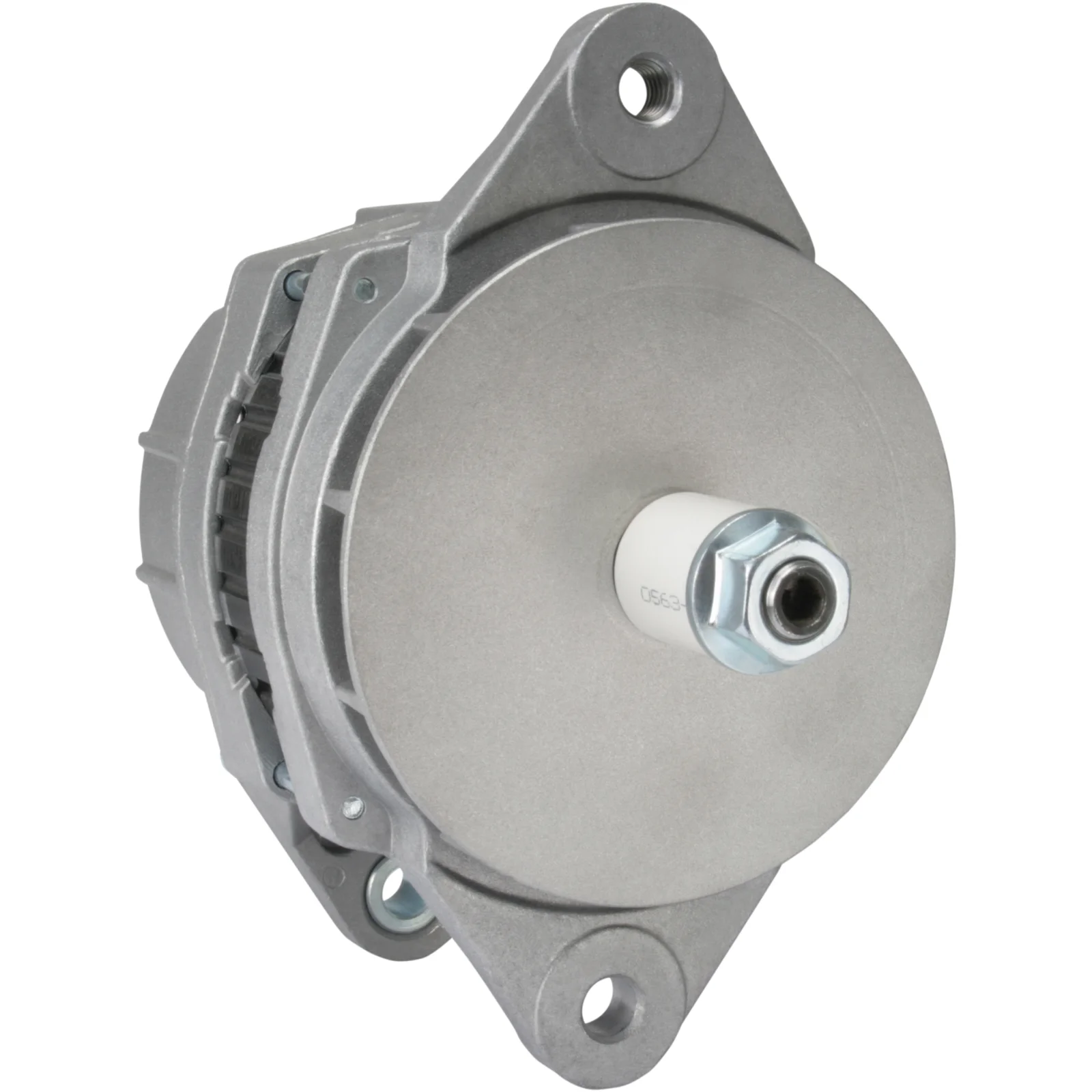

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112993

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW/CCW, Mount. bracket dist.: 101.50

Beskrivning

Voltage: 14
Amp: 130
Terminal: W
Width/holder arm: 14.20
Mount. bracket dist.: 101.50
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 98.00
B+: 1/4" UNF
Position/B+ in min.: 50
Rotation: CW/CCW
W plug type: 10-24 UNC
Total length mm: 217.00
Pulley: w/o
Prod. info: BN
Servicing: Volvo
Info: Shaft: 7/8" = 22.255 mm
Remarks: Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".

Filer

Specifikation

B+ 1/4" UNF
Mount. bracket dist. 101.50
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 98.00
Radius 2 98.00
Remarks Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".
Rotation CW/CCW
Servicing Volvo
Terminal W
Info Shaft: 7/8" = 22.255 mm
Voltage 14
W plug type 10-24 UNC
Total length 217.00 mm
Width/holder arm 14.20
Amp 130

  • OEM
    F032112993, F3HT10300AA, F3HT10300BA, F3HT10300CA, F3HT10300HB, F3HZ10346H, F4HT10300DA, F4HT10300EA, F4HT10300FA, F4HT10300KA, F4PU10346BA, F5HZ10346A, F8ZU10300AA, gl332, gl358, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166

  • Konkurrentreferens
    a-1358, adr0011, ALT-1706, F042304024, F042A04024, 1-1918-00DR, 1-1918-00DR-1, 20-1111, 20-232-10-1, 20-232-10-2, 20-232-11-1, 20-232-11-2, 29-1867, 90-01-4058, 90-01-4093, 645.019.115, 7501, 7564, 7670N, 7771N-0G, 7771R-0G, 7976R, 8027N, 726874

  • Normaliserat artikelnummer
    a1358, adr0011, alt1706, f032112993, f042304024, f042a04024, f3ht10300aa, f3ht10300ba, f3ht10300ca, f3ht10300hb, f3hz10346h, f4ht10300da, f4ht10300ea, f4ht10300fa, f4ht10300ka, f4pu10346ba, f5hz10346a, f8zu10300aa, gl332, gl358, 7501, 7564, 7670n, 7771n0g, 7771r0g, 7976r, 8027n, 201111, 291867, 726874, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1191800dr, 1191800dr1, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166, 20232101, 20232102, 20232111, 20232112, 90014058, 90014093, 645019115

  • Passar modeller
    Cummins Model: K Series Model series: Engine Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 5.8 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1967 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 130
    Terminal: W
    Width/holder arm: 14.20
    Mount. bracket dist.: 101.50
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 98.00
    Radius 2: 98.00
    B+: 1/4" UNF
    Position/B+ in min.: 50
    Rotation: CW/CCW
    W plug type: 10-24 UNC
    Total length mm: 217.00
    Pulley: w/o
    Prod. info: BN
    Servicing: Volvo
    Info: Shaft: 7/8" = 22.255 mm
    Remarks: Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".

    Filer

  • Specifikation
    B+ 1/4" UNF
    Mount. bracket dist. 101.50
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley w/o
    Radius 98.00
    Radius 2 98.00
    Remarks Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".
    Rotation CW/CCW
    Servicing Volvo
    Terminal W
    Info Shaft: 7/8" = 22.255 mm
    Voltage 14
    W plug type 10-24 UNC
    Total length 217.00 mm
    Width/holder arm 14.20
    Amp 130
  • Fordonsmatchning

    • OEM
      F032112993, F3HT10300AA, F3HT10300BA, F3HT10300CA, F3HT10300HB, F3HZ10346H, F4HT10300DA, F4HT10300EA, F4HT10300FA, F4HT10300KA, F4PU10346BA, F5HZ10346A, F8ZU10300AA, gl332, gl358, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166

    • Konkurrentreferens
      a-1358, adr0011, ALT-1706, F042304024, F042A04024, 1-1918-00DR, 1-1918-00DR-1, 20-1111, 20-232-10-1, 20-232-10-2, 20-232-11-1, 20-232-11-2, 29-1867, 90-01-4058, 90-01-4093, 645.019.115, 7501, 7564, 7670N, 7771N-0G, 7771R-0G, 7976R, 8027N, 726874

    • Normaliserat artikelnummer
      a1358, adr0011, alt1706, f032112993, f042304024, f042a04024, f3ht10300aa, f3ht10300ba, f3ht10300ca, f3ht10300hb, f3hz10346h, f4ht10300da, f4ht10300ea, f4ht10300fa, f4ht10300ka, f4pu10346ba, f5hz10346a, f8zu10300aa, gl332, gl358, 7501, 7564, 7670n, 7771n0g, 7771r0g, 7976r, 8027n, 201111, 291867, 726874, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1191800dr, 1191800dr1, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166, 20232101, 20232102, 20232111, 20232112, 90014058, 90014093, 645019115

    • Passar modeller
      Cummins Model: K Series Model series: Engine Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 5.8 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1967 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
