Artikelnr: F032112958

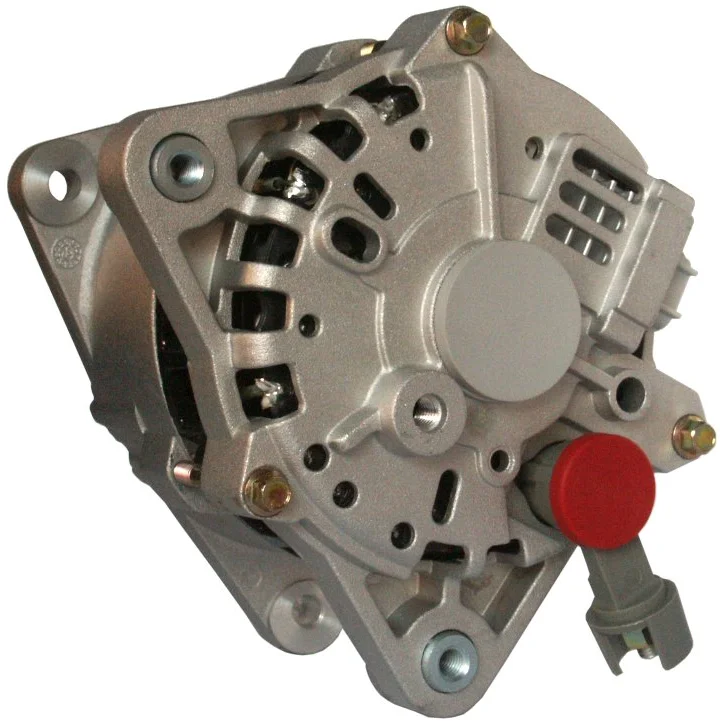

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 63.00

Beskrivning

Voltage: 14
Amp: 110
Pulley dist.: 34.50
Width/holder arm: 14.50
Mount. bracket dist.: 63.00
Bracket hole: 9.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 48.30
Grooves/pulley: 6
Radius: 83.50
Radius 2: 85.00
B+: M6
Position/B+ in min.: 6
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 165.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Ford
Remarks: Replacing: 6G series

Filer

Specifikation

B+ M6
Mount. bracket dist. 63.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 50
Plug no. PL57
Bracket hole 9.00
Position/B+ in min. 6
Prod. info BN
Pulley SP
Pulley dia. 48.30
Pulley dist. 34.50
Radius 83.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 14.50
Amp 110

  • OEM
    F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

  • Konkurrentreferens
    A9354S, ALT-1616, CAL14117, DRA0066, F042304011, F042A04011, LEA0595, LRA02555, 1-2349-01fd, 1-2349-01FD-2, 27-4899, 224.168.1102, 8260, 8260N, 8260R, 8264, 23725, 210413, 210413A, 553414RI, 12060886

  • Normaliserat artikelnummer
    a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102

  • Passar modeller
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: S2 Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Street Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SVT Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 110
    Pulley dist.: 34.50
    Width/holder arm: 14.50
    Mount. bracket dist.: 63.00
    Bracket hole: 9.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 48.30
    Grooves/pulley: 6
    Radius: 83.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 6
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 165.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford
    Remarks: Replacing: 6G series

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 63.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. brackethole pos. 50
    Plug no. PL57
    Bracket hole 9.00
    Position/B+ in min. 6
    Prod. info BN
    Pulley SP
    Pulley dia. 48.30
    Pulley dist. 34.50
    Radius 83.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Remarks Replacing: 6G series
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 14.50
    Amp 110
  • Fordonsmatchning

    • OEM
      F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

    • Konkurrentreferens
      A9354S, ALT-1616, CAL14117, DRA0066, F042304011, F042A04011, LEA0595, LRA02555, 1-2349-01fd, 1-2349-01FD-2, 27-4899, 224.168.1102, 8260, 8260N, 8260R, 8264, 23725, 210413, 210413A, 553414RI, 12060886

    • Normaliserat artikelnummer
      a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102

    • Passar modeller
      Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: S2 Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: Street Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: SVT Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
