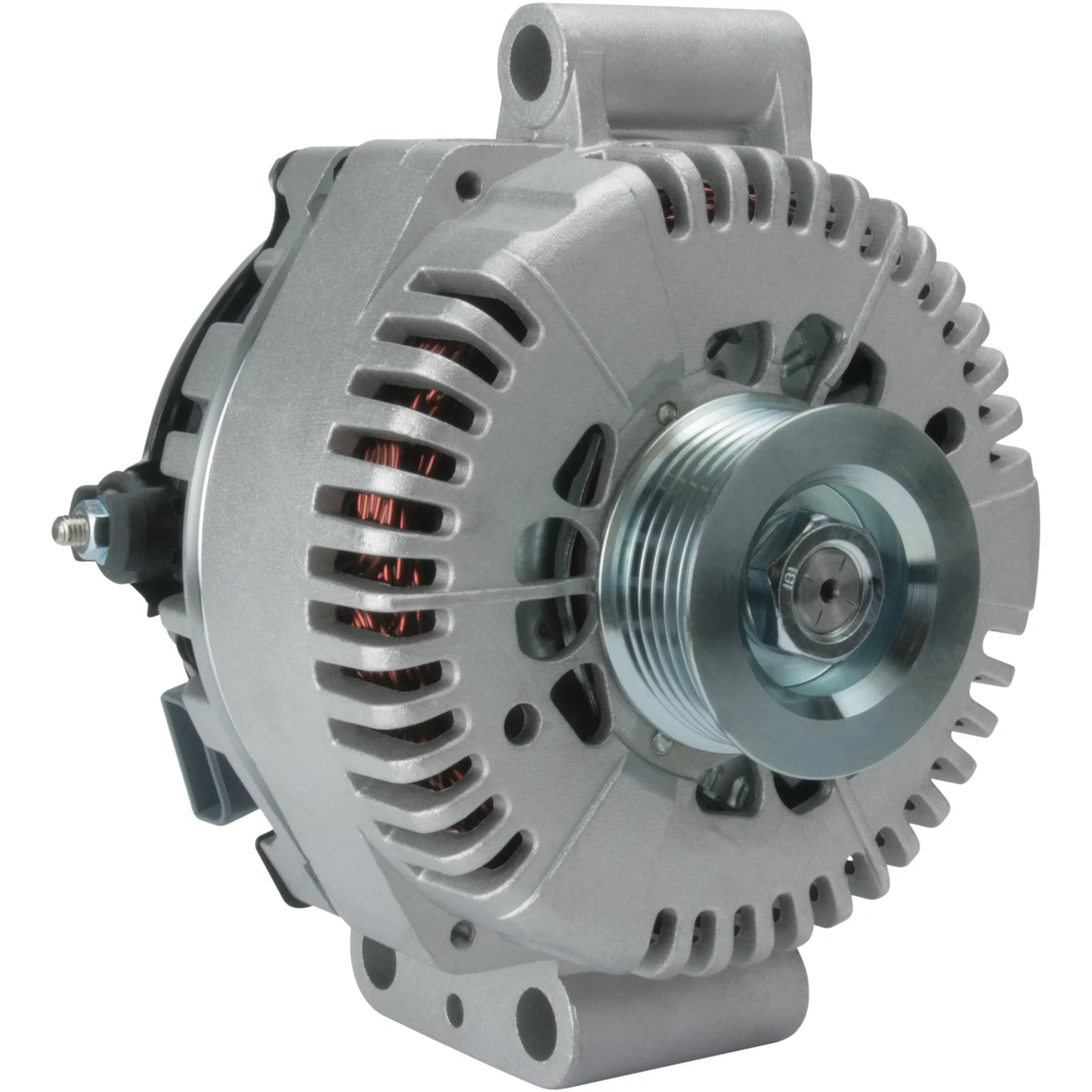

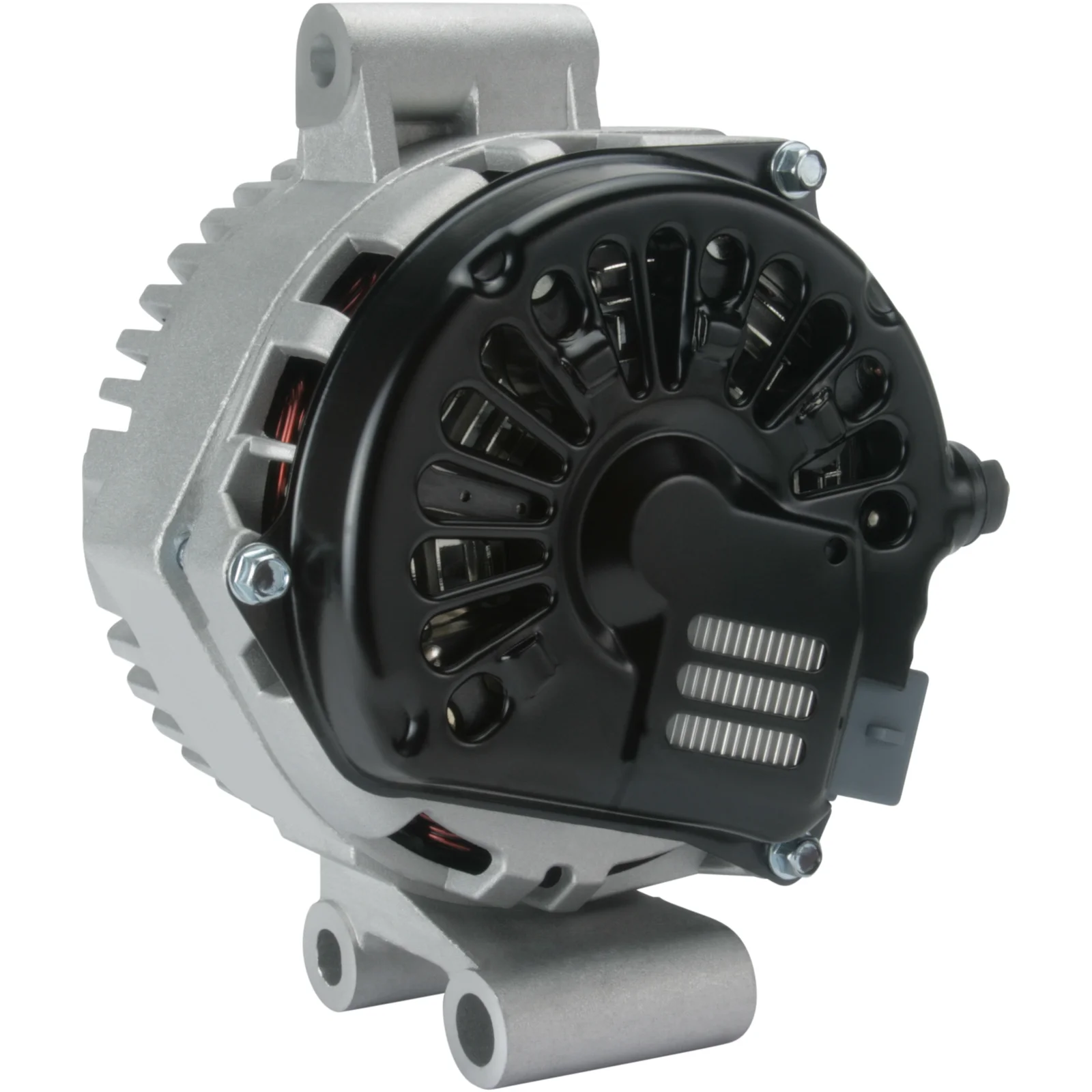

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112946

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 39.50
Width/holder arm: 55.50
Mount. bracket dist.: 56.00
Bracket hole: 13.30
Bracket hole 2: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 59.00
Grooves/pulley: 6
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL120
Total length mm: 132.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Ford
Remarks: Replacing: 4G series

Filer

Specifikation

B+ M6
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 60
Plug no. PL120
Bracket hole 13.30
Bracket hole 2 10.50
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 59.00
Pulley dist. 39.50
D+ Size Plug
Regulator type IR
Remarks Replacing: 4G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 132.00 mm
Width/holder arm 55.50
Amp 130

  • OEM
    F032112946, F77U10300AB, F77U10300AD, F77Z10346AB, GL363, gl423, GL423RM, xl2u10300aa, XL2Z10346AA, 1l2210300ab, 1l2u10300aa, 1l2u10300ab

  • Konkurrentreferens
    A9355S, AFD0045, AG-00404R, AL7543X, ALT-1905, F042304076, F042A04076, 1-2024-20fd, 1-2024-21FD, 1-2024-22-FD, 1-2024-22FD, 29-2169, 90-02-5086, 7668, 7787, 7787N-6G1, 7787N-6G2, 7787R-6G1, 7787R-6G2, 23650, 12090330

  • Normaliserat artikelnummer
    a9355s, afd0045, ag00404r, al7543x, alt1905, f032112946, f042304076, f042a04076, f77u10300ab, f77u10300ad, f77z10346ab, gl363, gl423, gl423rm, xl2u10300aa, xl2z10346aa, 1l2210300ab, 1l2u10300aa, 1l2u10300ab, 7668, 7787, 7787n6g1, 7787n6g2, 7787r6g1, 7787r6g2, 23650, 292169, 1202420fd, 1202421fd, 1202422fd, 12090330, 90025086

  • Passar modeller
    Ford Model: Explorer Model series: Explorer Model type: 4x4 Type of engine: V6 Size of motor: 4.0 Brand of engine: 99XS Type description: U2 From date: 01-10-1996 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Size of motor: 4.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Trac Size of motor: 4.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Model type: Sport Trac Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2003 Fuel: Flex Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 5.0 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Ford Model: Explorer Model series: Explorer Size of motor: 5.0 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-1998 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Flex Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 5.0 From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 5.0 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 39.50
    Width/holder arm: 55.50
    Mount. bracket dist.: 56.00
    Bracket hole: 13.30
    Bracket hole 2: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 59.00
    Grooves/pulley: 6
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL120
    Total length mm: 132.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford
    Remarks: Replacing: 4G series

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 60
    Plug no. PL120
    Bracket hole 13.30
    Bracket hole 2 10.50
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP
    Pulley dia. 59.00
    Pulley dist. 39.50
    D+ Size Plug
    Regulator type IR
    Remarks Replacing: 4G series
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 132.00 mm
    Width/holder arm 55.50
    Amp 130
  • Fordonsmatchning

    • OEM
      F032112946, F77U10300AB, F77U10300AD, F77Z10346AB, GL363, gl423, GL423RM, xl2u10300aa, XL2Z10346AA, 1l2210300ab, 1l2u10300aa, 1l2u10300ab

    • Konkurrentreferens
      A9355S, AFD0045, AG-00404R, AL7543X, ALT-1905, F042304076, F042A04076, 1-2024-20fd, 1-2024-21FD, 1-2024-22-FD, 1-2024-22FD, 29-2169, 90-02-5086, 7668, 7787, 7787N-6G1, 7787N-6G2, 7787R-6G1, 7787R-6G2, 23650, 12090330

    • Normaliserat artikelnummer
      a9355s, afd0045, ag00404r, al7543x, alt1905, f032112946, f042304076, f042a04076, f77u10300ab, f77u10300ad, f77z10346ab, gl363, gl423, gl423rm, xl2u10300aa, xl2z10346aa, 1l2210300ab, 1l2u10300aa, 1l2u10300ab, 7668, 7787, 7787n6g1, 7787n6g2, 7787r6g1, 7787r6g2, 23650, 292169, 1202420fd, 1202421fd, 1202422fd, 12090330, 90025086

    • Passar modeller
      Ford Model: Explorer Model series: Explorer Model type: 4x4 Type of engine: V6 Size of motor: 4.0 Brand of engine: 99XS Type description: U2 From date: 01-10-1996 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Model type: Sport Size of motor: 4.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Model type: Sport Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Model type: Sport Trac Size of motor: 4.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Model type: Sport Trac Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2003 Fuel: Flex Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 5.0 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Ford Model: Explorer Model series: Explorer Size of motor: 5.0 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-1998 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
      Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Flex Approved: Yes
      Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 4.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 5.0 From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Mercury Model: Mountaineer Model series: Mountaineer Size of motor: 5.0 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
