Artikelnr: F032112880

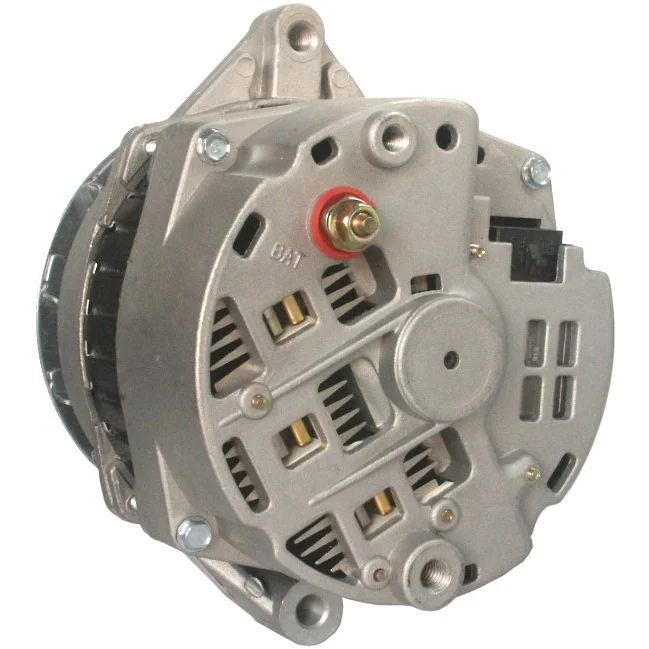

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Pulley dia.: 56.70, Radius: 88.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 79.00
Width/holder arm: 51.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M10
Pulley dia.: 56.70
Grooves/pulley: 6
Radius: 88.00
Radius 2: 94.00
B+: M6
Position/B+ in min.: 53
D+ Size: Plug
Plug no.: PL44
Total length mm: 186.00
Pulley: SP
Regulator type: IR
Servicing: Cadillac
Remarks: Replacing: CS144.

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 60
Plug no. PL44
Bracket hole 10.20
Position/B+ in min. 53
Pulley SP
Pulley dia. 56.70
Pulley dist. 79.00
Radius 88.00
D+ Size Plug
Radius 2 94.00
Regulator type IR
Remarks Replacing: CS144.
Servicing Cadillac
Grooves/pulley 6
Voltage 14
Total length 186.00 mm
Width/holder arm 51.00
Amp 120

  • OEM
    F032112880, 321-275, 321-367, 1101239, 1101296, 1101329, 1101518, 1105657, 10463069, 10497111

  • Konkurrentreferens
    a1752-2, adr0070, al623x, da00124-2, drz0155, 1-1681-12dr, 1-1683-11DR, 13-4603h, 20-176-11, 29-1275, 90-01-3192, 835.054.120, 3524, 7150, 7806-2, 7806N, 7806R, 20399

  • Normaliserat artikelnummer
    a17522, adr0070, al623x, da001242, drz0155, f032112880, 3524, 7150, 7806n, 7806r, 20399, 78062, 134603h, 291275, 321275, 321367, 1101239, 1101296, 1101329, 1101518, 1105657, 1168112dr, 1168311dr, 2017611, 10463069, 10497111, 90013192, 835054120

  • Passar modeller
    Cadillac Model: Deville Coupe Model series: Deville Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
    Cadillac Model: Deville Model series: Deville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Cadillac Model: Deville Saloon Model series: Deville Saloon Size of motor: 4.1 Brand of engine: LT8 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Cadillac Model: Eldorado Coupe Model series: Eldorado Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
    Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: 75 Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Saloon Model series: Fleetwood Saloon Size of motor: 4.5 Brand of engine: LR6 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Seville Model series: Seville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 120
    Pulley dist.: 79.00
    Width/holder arm: 51.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 56.70
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 94.00
    B+: M6
    Position/B+ in min.: 53
    D+ Size: Plug
    Plug no.: PL44
    Total length mm: 186.00
    Pulley: SP
    Regulator type: IR
    Servicing: Cadillac
    Remarks: Replacing: CS144.

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 60
    Plug no. PL44
    Bracket hole 10.20
    Position/B+ in min. 53
    Pulley SP
    Pulley dia. 56.70
    Pulley dist. 79.00
    Radius 88.00
    D+ Size Plug
    Radius 2 94.00
    Regulator type IR
    Remarks Replacing: CS144.
    Servicing Cadillac
    Grooves/pulley 6
    Voltage 14
    Total length 186.00 mm
    Width/holder arm 51.00
    Amp 120
  • Fordonsmatchning

    • OEM
      F032112880, 321-275, 321-367, 1101239, 1101296, 1101329, 1101518, 1105657, 10463069, 10497111

    • Konkurrentreferens
      a1752-2, adr0070, al623x, da00124-2, drz0155, 1-1681-12dr, 1-1683-11DR, 13-4603h, 20-176-11, 29-1275, 90-01-3192, 835.054.120, 3524, 7150, 7806-2, 7806N, 7806R, 20399

    • Normaliserat artikelnummer
      a17522, adr0070, al623x, da001242, drz0155, f032112880, 3524, 7150, 7806n, 7806r, 20399, 78062, 134603h, 291275, 321275, 321367, 1101239, 1101296, 1101329, 1101518, 1105657, 1168112dr, 1168311dr, 2017611, 10463069, 10497111, 90013192, 835054120

    • Passar modeller
      Cadillac Model: Deville Coupe Model series: Deville Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
      Cadillac Model: Deville Model series: Deville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Cadillac Model: Deville Saloon Model series: Deville Saloon Size of motor: 4.1 Brand of engine: LT8 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Cadillac Model: Eldorado Coupe Model series: Eldorado Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
      Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: 75 Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Saloon Model series: Fleetwood Saloon Size of motor: 4.5 Brand of engine: LR6 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Seville Model series: Seville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
