Artikelnr: F032112824

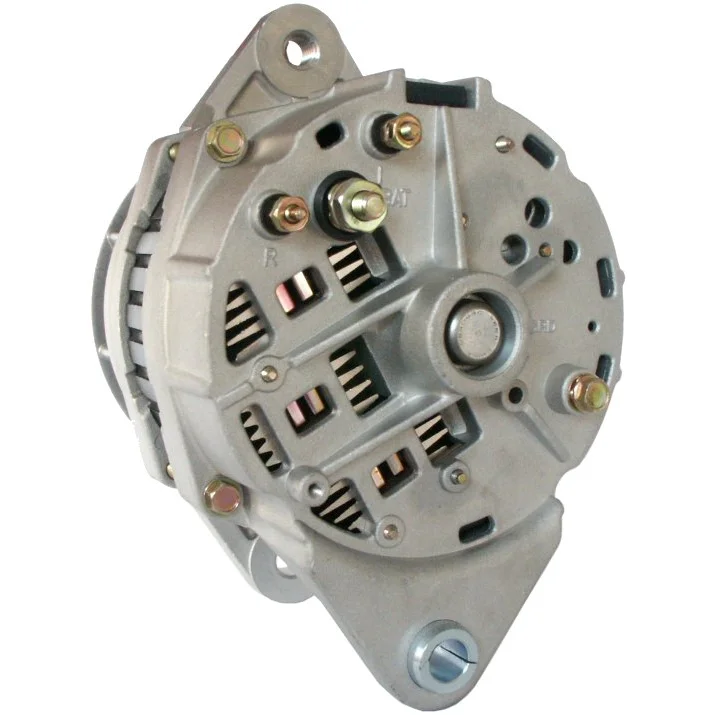

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 145, Rotation: CW/CCW, Mount. bracket dist.: 100.60

Beskrivning

Voltage: 14
Amp: 145
Terminal: W
Width/holder arm: 14.00
Mount. bracket dist.: 100.60
Bracket hole: 13.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 100.00
Radius 2: 100.00
B+: 5/16" UNC
Position/B+ in min.: 52
D+ Size: 10-24 UNC
Rotation: CW/CCW
W plug type: 10-24 UNC
Total length mm: 217.00
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Freightliner
Remarks: Replacing: 22SI. Negative grounding. One-wire system. R-Terminal: Universal. I-Terminal: 10-24.

Filer

Specifikation

B+ 5/16" UNC
Mount. bracket dist. 100.60
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.20
Position/B+ in min. 52
Prod. info BN
Pulley w/o
Radius 100.00
D+ Size 10-24 UNC
Radius 2 100.00
Regulator type IR
Remarks Replacing: 22SI. Negative grounding. One-wire system. R-Terminal: Universal. I-Terminal: 10-24.
Rotation CW/CCW
Servicing Freightliner
Terminal W
Voltage 14
W plug type 10-24 UNC
Total length 217.00 mm
Width/holder arm 14.00
Amp 145

  • OEM
    F032112824, 321-739, 3604666AX, 10459188, 10459189, 10459190, 10459191, 10459192, 10459193, 19020300, 19020302, 19020303, 19020323, 19020358, 19020359, 19020364, 19020365, 19020377, 19020801, 19020806

  • Konkurrentreferens
    a-1450, A1022, ADR0100, adr213, ALT-1002, ALT1001, ALT1002, F042300001, F042A00001, 1-2044-00dr, 1-2044-00DR-1, 1-2064-00DR, 1-2065-00DR, 1-2065-00DR-1, 1-2065-00DR-2, 90-01-4269, 8071, 8072, 8072R, 8078, 8078N, 8078N-USA, 8078R

  • Normaliserat artikelnummer
    a1022, a1450, adr0100, adr213, alt1001, alt1002, f032112824, f042300001, f042a00001, 8071, 8072, 8072r, 8078, 8078n, 8078nusa, 8078r, 321739, 1204400dr, 1204400dr1, 1206400dr, 1206500dr, 1206500dr1, 1206500dr2, 3604666ax, 10459188, 10459189, 10459190, 10459191, 10459192, 10459193, 19020300, 19020302, 19020303, 19020323, 19020358, 19020359, 19020364, 19020365, 19020377, 19020801, 19020806, 90014269

  • Passar modeller
    Kenworth Model: T-Series Model series: T370 Size of motor: 6.7 Brand of engine: PX-6147 Body: Platform/Chassis From date: 01-01-2009 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 145
    Terminal: W
    Width/holder arm: 14.00
    Mount. bracket dist.: 100.60
    Bracket hole: 13.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 100.00
    Radius 2: 100.00
    B+: 5/16" UNC
    Position/B+ in min.: 52
    D+ Size: 10-24 UNC
    Rotation: CW/CCW
    W plug type: 10-24 UNC
    Total length mm: 217.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: Freightliner
    Remarks: Replacing: 22SI. Negative grounding. One-wire system. R-Terminal: Universal. I-Terminal: 10-24.

    Filer

  • Specifikation
    B+ 5/16" UNC
    Mount. bracket dist. 100.60
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.20
    Position/B+ in min. 52
    Prod. info BN
    Pulley w/o
    Radius 100.00
    D+ Size 10-24 UNC
    Radius 2 100.00
    Regulator type IR
    Remarks Replacing: 22SI. Negative grounding. One-wire system. R-Terminal: Universal. I-Terminal: 10-24.
    Rotation CW/CCW
    Servicing Freightliner
    Terminal W
    Voltage 14
    W plug type 10-24 UNC
    Total length 217.00 mm
    Width/holder arm 14.00
    Amp 145
  • Fordonsmatchning

    • OEM
      F032112824, 321-739, 3604666AX, 10459188, 10459189, 10459190, 10459191, 10459192, 10459193, 19020300, 19020302, 19020303, 19020323, 19020358, 19020359, 19020364, 19020365, 19020377, 19020801, 19020806

    • Konkurrentreferens
      a-1450, A1022, ADR0100, adr213, ALT-1002, ALT1001, ALT1002, F042300001, F042A00001, 1-2044-00dr, 1-2044-00DR-1, 1-2064-00DR, 1-2065-00DR, 1-2065-00DR-1, 1-2065-00DR-2, 90-01-4269, 8071, 8072, 8072R, 8078, 8078N, 8078N-USA, 8078R

    • Normaliserat artikelnummer
      a1022, a1450, adr0100, adr213, alt1001, alt1002, f032112824, f042300001, f042a00001, 8071, 8072, 8072r, 8078, 8078n, 8078nusa, 8078r, 321739, 1204400dr, 1204400dr1, 1206400dr, 1206500dr, 1206500dr1, 1206500dr2, 3604666ax, 10459188, 10459189, 10459190, 10459191, 10459192, 10459193, 19020300, 19020302, 19020303, 19020323, 19020358, 19020359, 19020364, 19020365, 19020377, 19020801, 19020806, 90014269

    • Passar modeller
      Kenworth Model: T-Series Model series: T370 Size of motor: 6.7 Brand of engine: PX-6147 Body: Platform/Chassis From date: 01-01-2009 Fuel: Diesel Approved: Yes
