Artikelnr: F032112721

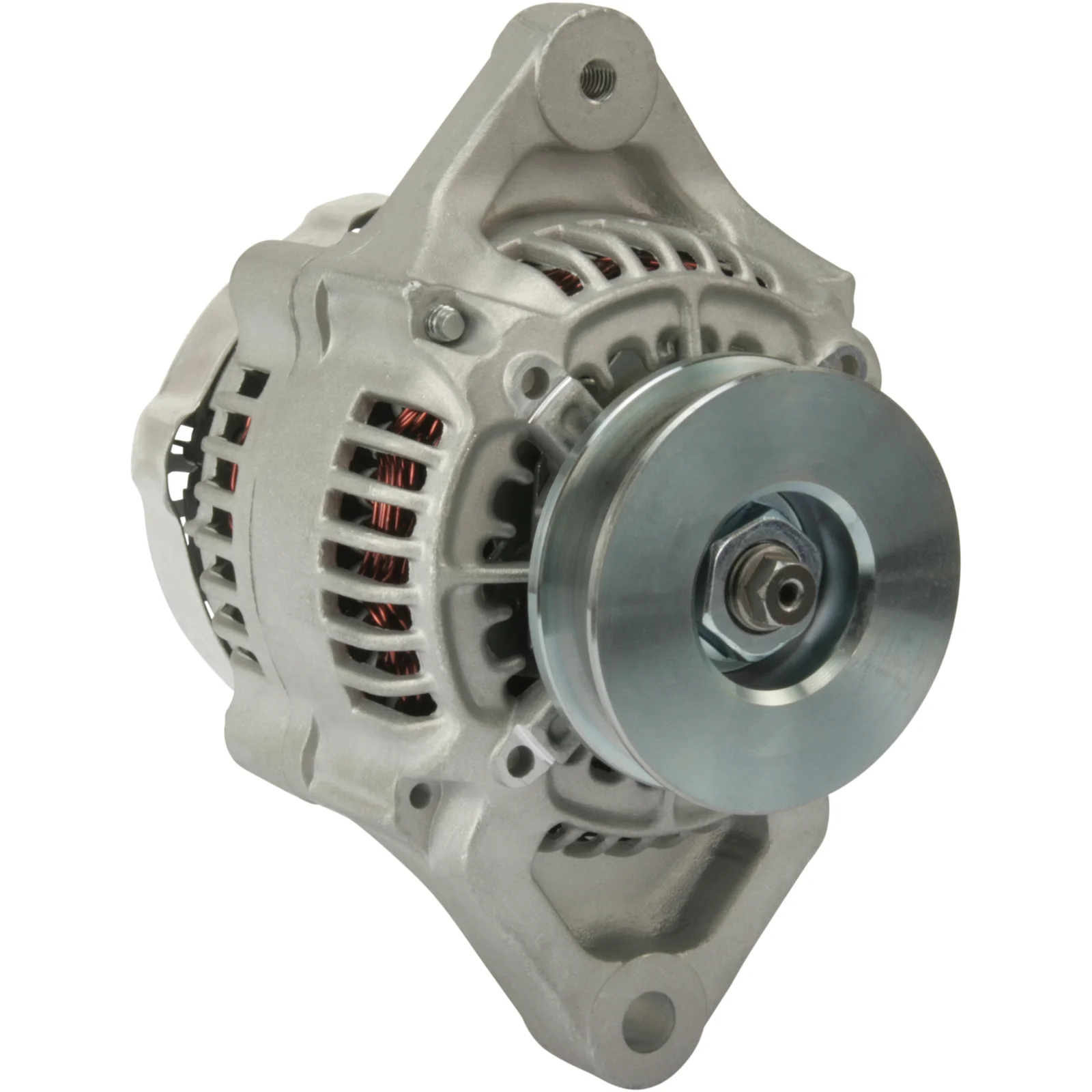

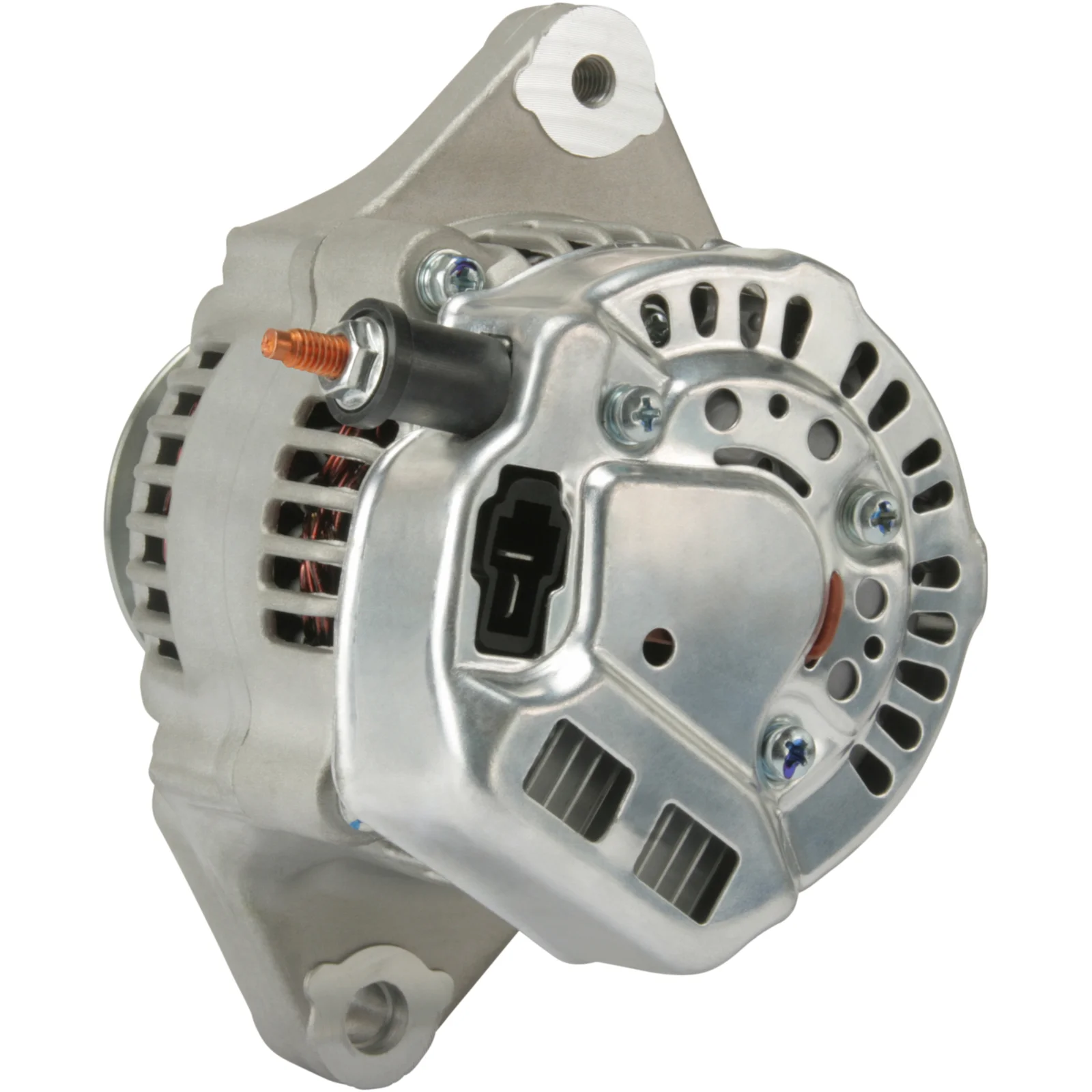

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley dia.: 70.50

Beskrivning

Voltage: 14
Amp: 55
Pulley dist.: 44.50
Width/holder arm: 23.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 70.50
Grooves/pulley: 1
Radius: 75.50
Radius 2: 78.50
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 143.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Kubota

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.50
Position/B+ in min. 50
Prod. info BN
Pulley P
Pulley dia. 70.50
Pulley dist. 44.50
Radius 75.50
D+ Size Plug
Radius 2 78.50
Regulator type IR
Rotation CW
Servicing Kubota
Grooves/pulley 1
Voltage 14
Total length 143.00 mm
Width/holder arm 23.50
Amp 55
  • OEM

    F032112721, 101211-2850, 101211-8770, 101211-8771
  • Konkurrentreferens

    AND0350, CAL40177, CAL40575, DAN2038, DRA0316, LRA02198, 12534N, 12656, 12656N, 553861RI, 554172RI
  • Normaliserat artikelnummer

    and0350, cal40177, cal40575, dan2038, dra0316, f032112721, lra02198, 12534n, 12656, 12656n, 553861ri, 554172ri, 1012112850, 1012118770, 1012118771
  • Passar modeller

    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 263A2.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: D950 From date: 01-01-1981 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 55
    Pulley dist.: 44.50
    Width/holder arm: 23.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 70.50
    Grooves/pulley: 1
    Radius: 75.50
    Radius 2: 78.50
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 143.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Kubota
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley P
    Pulley dia. 70.50
    Pulley dist. 44.50
    Radius 75.50
    D+ Size Plug
    Radius 2 78.50
    Regulator type IR
    Rotation CW
    Servicing Kubota
    Grooves/pulley 1
    Voltage 14
    Total length 143.00 mm
    Width/holder arm 23.50
    Amp 55
  • Fordonsmatchning
    • OEM

      F032112721, 101211-2850, 101211-8770, 101211-8771
    • Konkurrentreferens

      AND0350, CAL40177, CAL40575, DAN2038, DRA0316, LRA02198, 12534N, 12656, 12656N, 553861RI, 554172RI
    • Normaliserat artikelnummer

      and0350, cal40177, cal40575, dan2038, dra0316, f032112721, lra02198, 12534n, 12656, 12656n, 553861ri, 554172ri, 1012112850, 1012118770, 1012118771
    • Passar modeller

      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 263A2.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: D950 From date: 01-01-1981 Fuel: Diesel Approved: Yes
      Kubota Model: Engine Model series: Various Models Approved: Yes
