Artikelnr: F032112207

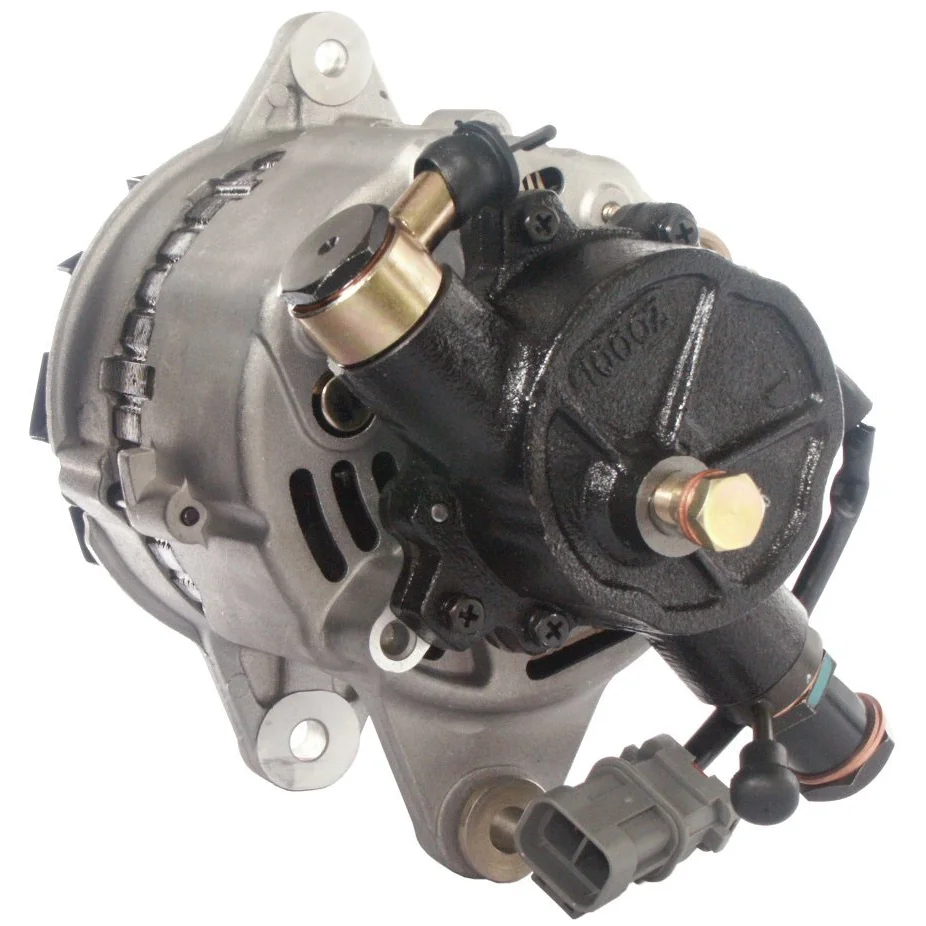

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 80.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 41.80
Width/holder arm: 13.00
Mount. bracket dist.: 80.00
Bracket hole: 9.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 85.50
Grooves/pulley: 2
Radius: 88.50
Radius 2: 85.00
B+: M6
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 250.50
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 9.00
Position/B+ in min. 10
Prod. info BN
Pulley DP
Pulley dia. 85.50
Pulley dist. 41.80
Radius 88.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 250.50 mm
Width/holder arm 13.00
Amp 70

  • OEM
    F032112207, ja1421ir, 23100-g9904, 9120334635

  • Konkurrentreferens
    ALT10224, dra3478, LRA02693, 8EL012426-391, 8el737694-001, 28-2581, 227.197.702, 5787, 23693, 111543, 210458, 210458A, 401421RI, 12060772, 20130161, 0986045930

  • Normaliserat artikelnummer
    alt10224, dra3478, f032112207, ja1421ir, lra02693, 8el012426391, 8el737694001, 5787, 23100g9904, 23693, 111543, 210458, 210458a, 282581, 401421ri, 12060772, 20130161, 227197702, 0986045930, 9120334635

  • Passar modeller
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T From date: 01-05-1986 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 41.80
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.00
    Bracket hole: 9.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 85.50
    Grooves/pulley: 2
    Radius: 88.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 250.50
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL100
    Bracket hole 9.00
    Position/B+ in min. 10
    Prod. info BN
    Pulley DP
    Pulley dia. 85.50
    Pulley dist. 41.80
    Radius 88.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 250.50 mm
    Width/holder arm 13.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032112207, ja1421ir, 23100-g9904, 9120334635

    • Konkurrentreferens
      ALT10224, dra3478, LRA02693, 8EL012426-391, 8el737694-001, 28-2581, 227.197.702, 5787, 23693, 111543, 210458, 210458A, 401421RI, 12060772, 20130161, 0986045930

    • Normaliserat artikelnummer
      alt10224, dra3478, f032112207, ja1421ir, lra02693, 8el012426391, 8el737694001, 5787, 23100g9904, 23693, 111543, 210458, 210458a, 282581, 401421ri, 12060772, 20130161, 227197702, 0986045930, 9120334635

    • Passar modeller
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T From date: 01-05-1986 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 2.8 Brand of engine: RD28T Type description: 260 From date: 01-06-1989 To date: 01-11-1995 Fuel: Diesel Approved: Yes
