Artikelnr: F032112093

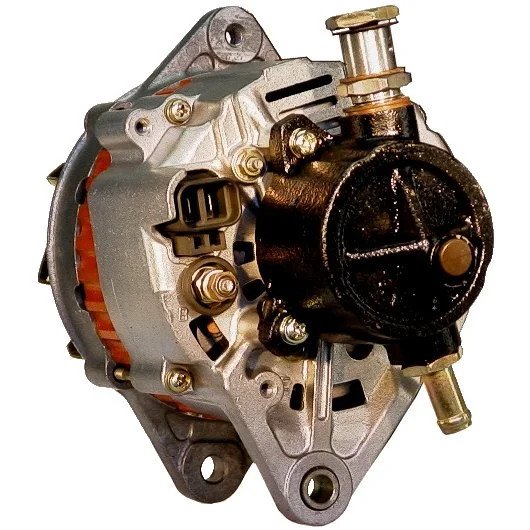

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 80.00

Beskrivning

HC-Cargo Generator För Yourex produkt order F032112093

Voltage: 14
Amp: 70
Pulley dist.: 41.50
Width/holder arm: 13.00
Mount. bracket dist.: 80.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 84.00
Grooves/pulley: 2
Radius: 89.50
Radius 2: 85.00
B+: M6
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL07
Total length mm: 250.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley DP
Pulley dia. 84.00
Pulley dist. 41.50
Radius 89.50
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 250.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    F032110700, F032111316, F032112093, ja678ir, LR170-407, lr170-407, LR170-407B, LR170-407E, lr170-407e, lr170-407s, LR170-407T, lr170-407t, LR170-408, lr170-408, LR170-408B, LR170-408C, lr170-408c, lr170-408s, LR170-408T, lr170-408t, LR170-412, lr170-412, lr170-412s, lr170-412t, lr170-413, 11-0700, 23100-02N14, 23100-02n14, 23100-02n15, 23100-02N18, 23100-02n18, 23100-02N19, 23100-02n19, 23100-02n22, 23100-02n23, 111316

  • Konkurrentreferens
    A2014, ada-973, ALT-V012, ALT32061, ALTV012, ALTV036, ALTV115, ALTV116, BAO3068, CAL20150, dra3216, DRA3216N, F042305037, F042A05037, LEA0694, lra00556, LRA01350, lrb00341, QA1561, 8EL012429-021, 8el726393-001, 28-1732, 28-3933, 28-51.143, 227.112.702, 227.140.702, 5363, 22394N, 22394R, 40678RI, 118954, 210020, 210020A, 437876, 12060242, 12060277, 0986046421, 0986046431

  • Bilmärken
    Nissan

  • Normaliserat artikelnummer
    a2014, ada973, alt32061, altv012, altv036, altv115, altv116, bao3068, cal20150, dra3216, dra3216n, f032110700, f032111316, f032112093, f042305037, f042a05037, ja678ir, lea0694, lr170407, lr170407b, lr170407e, lr170407s, lr170407t, lr170408, lr170408b, lr170408c, lr170408s, lr170408t, lr170412, lr170412s, lr170412t, lr170413, lra00556, lra01350, lrb00341, qa1561, 8el012429021, 8el726393001, 5363, 22394n, 22394r, 40678ri, 110700, 111316, 118954, 210020, 210020a, 281732, 283933, 437876, 2310002n14, 2310002n15, 2310002n18, 2310002n19, 2310002n22, 2310002n23, 2851143, 12060242, 12060277, 227112702, 227140702, 0986046421, 0986046431

  • Passar modeller
    Nissan Model: King Van Model series: King Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 From date: 01-11-1986 To date: 01-03-1989 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: E23 Body: Bus From date: 01-04-1985 To date: 01-11-1988 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD 25 Year: 03.86-08.91
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 03.96-02.98
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 08.87-02.98
    Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 09.85-08.88
    Nissan Series: Terrano I (WD21) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD 27 T Year: 02.89-02.93
    Nissan Series: URVAN Buss (E23) Model: 2.3 D (E23B) Engine volume: 2.3 Engine type: SD23 Year: 04.85-11.88
    Nissan Series: URVAN Buss (E24) Model: 2.5 D Engine volume: 2.5 Engine type: TD25 Year: 05.89-10.96
    Nissan Series: URVAN Skåp (E24) Model: 2.5 D Engine volume: 2.5 Engine type: TD25 Year: 12.88-05.97
    Nissan Series: URVAN Skåp Model: 2.3 D Engine volume: 2.3 Engine type: TD23 Year: 01.88-05.97
    1 / 3
  • Beskrivning
    HC-Cargo Generator För Yourex produkt order F032112093

    Voltage: 14
    Amp: 70
    Pulley dist.: 41.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 84.00
    Grooves/pulley: 2
    Radius: 89.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL07
    Total length mm: 250.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley DP
    Pulley dia. 84.00
    Pulley dist. 41.50
    Radius 89.50
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 250.00 mm
    Width/holder arm 13.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032110700, F032111316, F032112093, ja678ir, LR170-407, lr170-407, LR170-407B, LR170-407E, lr170-407e, lr170-407s, LR170-407T, lr170-407t, LR170-408, lr170-408, LR170-408B, LR170-408C, lr170-408c, lr170-408s, LR170-408T, lr170-408t, LR170-412, lr170-412, lr170-412s, lr170-412t, lr170-413, 11-0700, 23100-02N14, 23100-02n14, 23100-02n15, 23100-02N18, 23100-02n18, 23100-02N19, 23100-02n19, 23100-02n22, 23100-02n23, 111316

    • Konkurrentreferens
      A2014, ada-973, ALT-V012, ALT32061, ALTV012, ALTV036, ALTV115, ALTV116, BAO3068, CAL20150, dra3216, DRA3216N, F042305037, F042A05037, LEA0694, lra00556, LRA01350, lrb00341, QA1561, 8EL012429-021, 8el726393-001, 28-1732, 28-3933, 28-51.143, 227.112.702, 227.140.702, 5363, 22394N, 22394R, 40678RI, 118954, 210020, 210020A, 437876, 12060242, 12060277, 0986046421, 0986046431

    • Bilmärken
      Nissan

    • Normaliserat artikelnummer
      a2014, ada973, alt32061, altv012, altv036, altv115, altv116, bao3068, cal20150, dra3216, dra3216n, f032110700, f032111316, f032112093, f042305037, f042a05037, ja678ir, lea0694, lr170407, lr170407b, lr170407e, lr170407s, lr170407t, lr170408, lr170408b, lr170408c, lr170408s, lr170408t, lr170412, lr170412s, lr170412t, lr170413, lra00556, lra01350, lrb00341, qa1561, 8el012429021, 8el726393001, 5363, 22394n, 22394r, 40678ri, 110700, 111316, 118954, 210020, 210020a, 281732, 283933, 437876, 2310002n14, 2310002n15, 2310002n18, 2310002n19, 2310002n22, 2310002n23, 2851143, 12060242, 12060277, 227112702, 227140702, 0986046421, 0986046431

    • Passar modeller
      Nissan Model: King Van Model series: King Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 From date: 01-11-1986 To date: 01-03-1989 Fuel: Diesel Approved: Yes
      Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: E23 Body: Bus From date: 01-04-1985 To date: 01-11-1988 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
      Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD 25 Year: 03.86-08.91
      Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 03.96-02.98
      Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 08.87-02.98
      Nissan Series: Pick-Up (D21) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: TD 25 Year: 09.85-08.88
      Nissan Series: Terrano I (WD21) Model: 2.7 TD 4WD Engine volume: 2.7 Engine type: TD 27 T Year: 02.89-02.93
      Nissan Series: URVAN Buss (E23) Model: 2.3 D (E23B) Engine volume: 2.3 Engine type: SD23 Year: 04.85-11.88
      Nissan Series: URVAN Buss (E24) Model: 2.5 D Engine volume: 2.5 Engine type: TD25 Year: 05.89-10.96
      Nissan Series: URVAN Skåp (E24) Model: 2.5 D Engine volume: 2.5 Engine type: TD25 Year: 12.88-05.97
      Nissan Series: URVAN Skåp Model: 2.3 D Engine volume: 2.3 Engine type: TD23 Year: 01.88-05.97
