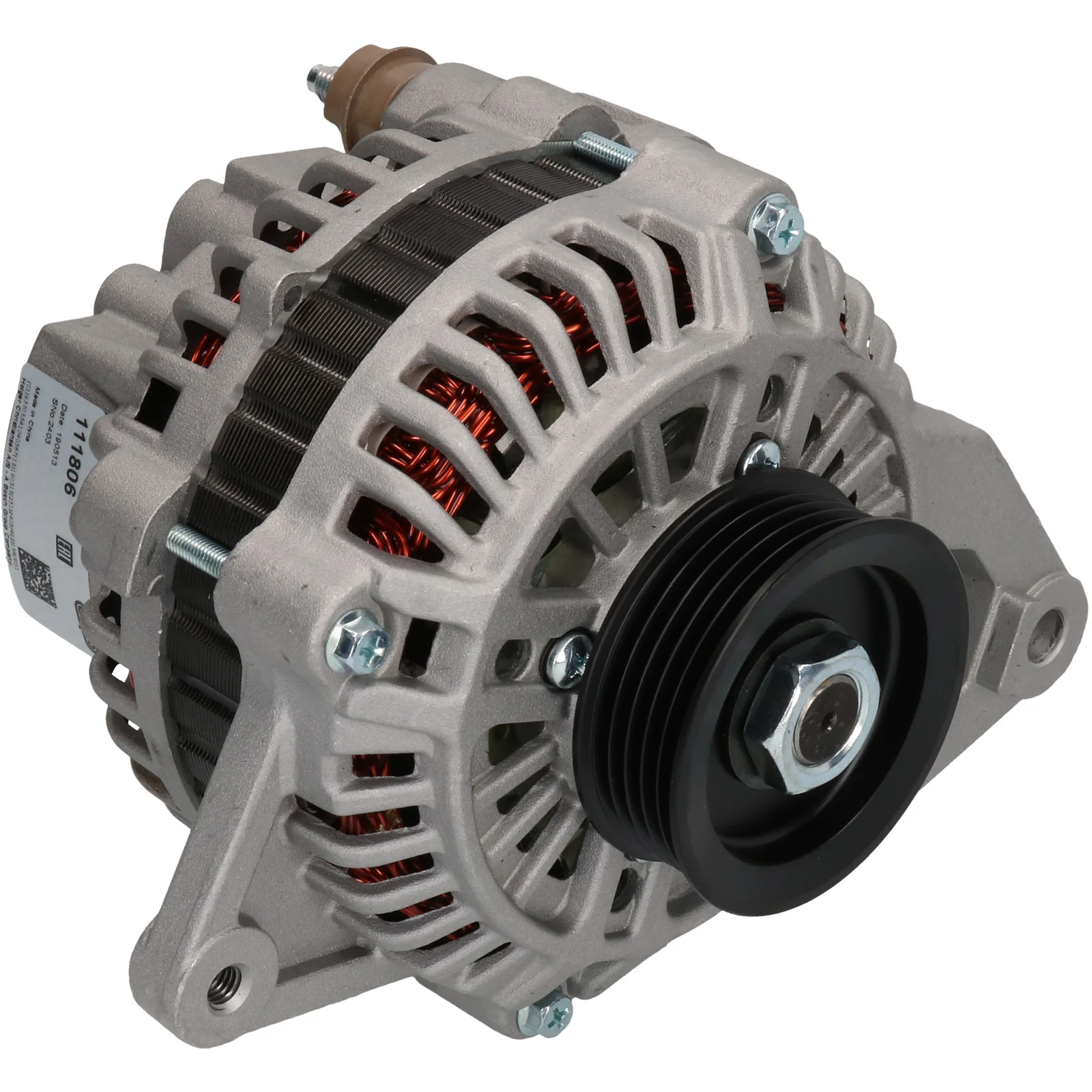

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111806

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 54.80

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 25.00
Width/holder arm: 17.00
Mount. bracket dist.: 54.80
Bracket hole: 10.50
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: M8
Pulley dia.: 65.00
Grooves/pulley: 5
Radius: 97.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 168.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 54.80
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 65.00
Pulley dist. 25.00
Radius 97.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 168.00 mm
Width/holder arm 17.00
Amp 90

  • OEM
    A003TA0791, A003TA0791A, a3ta0791, a3ta0791a, F032111806, ja1180ir, md313395, md350608

  • Konkurrentreferens
    A5016, AL4018X, ALT-3508, ALT10017, ALT3508, BAO3249, CAL35214, dra3696, F042303069, F042A03069, LRA02743, lrb00234, QA4212, 1-2147-01MI, 8el737324-001, 28-3548, 226.143.902, 5668, 13692, 13692N, 13692R, 119703, 210623, 210623A, 401180RI, 9051556, 9212702, 12060204, 20110234

  • Normaliserat artikelnummer
    a003ta0791, a003ta0791a, a3ta0791, a3ta0791a, a5016, al4018x, alt10017, alt3508, bao3249, cal35214, dra3696, f032111806, f042303069, f042a03069, ja1180ir, lra02743, lrb00234, md313395, md350608, qa4212, 8el737324001, 5668, 13692, 13692n, 13692r, 119703, 210623, 210623a, 283548, 401180ri, 1214701mi, 9051556, 9212702, 12060204, 20110234, 226143902

  • Passar modeller
    Mitsubishi Model: Montero Model series: Montero Model type: LS Size of motor: 3.5 Brand of engine: 6G74 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: LS Sport Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport LS Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-2000 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.5 Brand of engine: 6G74 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.5 Brand of engine: 6G74 From date: 01-01-2000 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.5 Brand of engine: 6G74 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport Size of motor: 3.5 Brand of engine: 6G74 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: Sport XLS Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: SR Size of motor: 3.5 Brand of engine: 6G74 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: SR Size of motor: 3.5 From date: 01-01-1994 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Montero Model series: Montero Model type: XLS Sport Size of motor: 3.0 Brand of engine: 6G72 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: V6 Size of motor: 3.0 Brand of engine: 6G72 Type description: K90 From date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: V6 Size of motor: 3.0 Brand of engine: 6G72 Type description: K9_ From date: 01-06-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: V6 Size of motor: 3.0 Brand of engine: 6G72 Type description: K9_ From date: 01-11-1998 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Sport Model type: 4WD Size of motor: 3.0 Brand of engine: 6G72 (SOHC24V) Type description: K7_, K9_ Body: Closed Off-Road Vehicle From date: 01-09-1996 To date: 01-12-2001 Fuel: Petrol Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Sport Van Type of engine: V6 Size of motor: 3.0 Brand of engine: 6G72 (DOHC24V) Type description: K90 Body: Van From date: 01-12-1999 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: 24V Size of motor: 3.0 Brand of engine: 6G72 Type description: V2_W,V4_W From date: 01-06-1994 To date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: V6 24V Size of motor: 3.0 Brand of engine: 6G72 Type description: V2_,W,V4_W From date: 01-06-1997 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: V6 24V Size of motor: 3.5 Brand of engine: 6G74 (SOHC 24V) Type description: V25W,V45W From date: 01-06-1994 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: V6 24V Size of motor: 3.5 Brand of engine: 6G74 Type description: V2_W,V4_W From date: 01-07-1997 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: V6 24V Size of motor: 3.5 Brand of engine: 6G74(DOHC24V) Type description: V25W,V45W From date: 01-06-1994 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Shogun Model series: Shogun Model type: 4WD Size of motor: 3.0 Brand of engine: 6G72 (SOHC24V) Type description: V3_W, V2_W, V4_W Body: Closed Off-Road Vehicle From date: 01-11-1997 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
