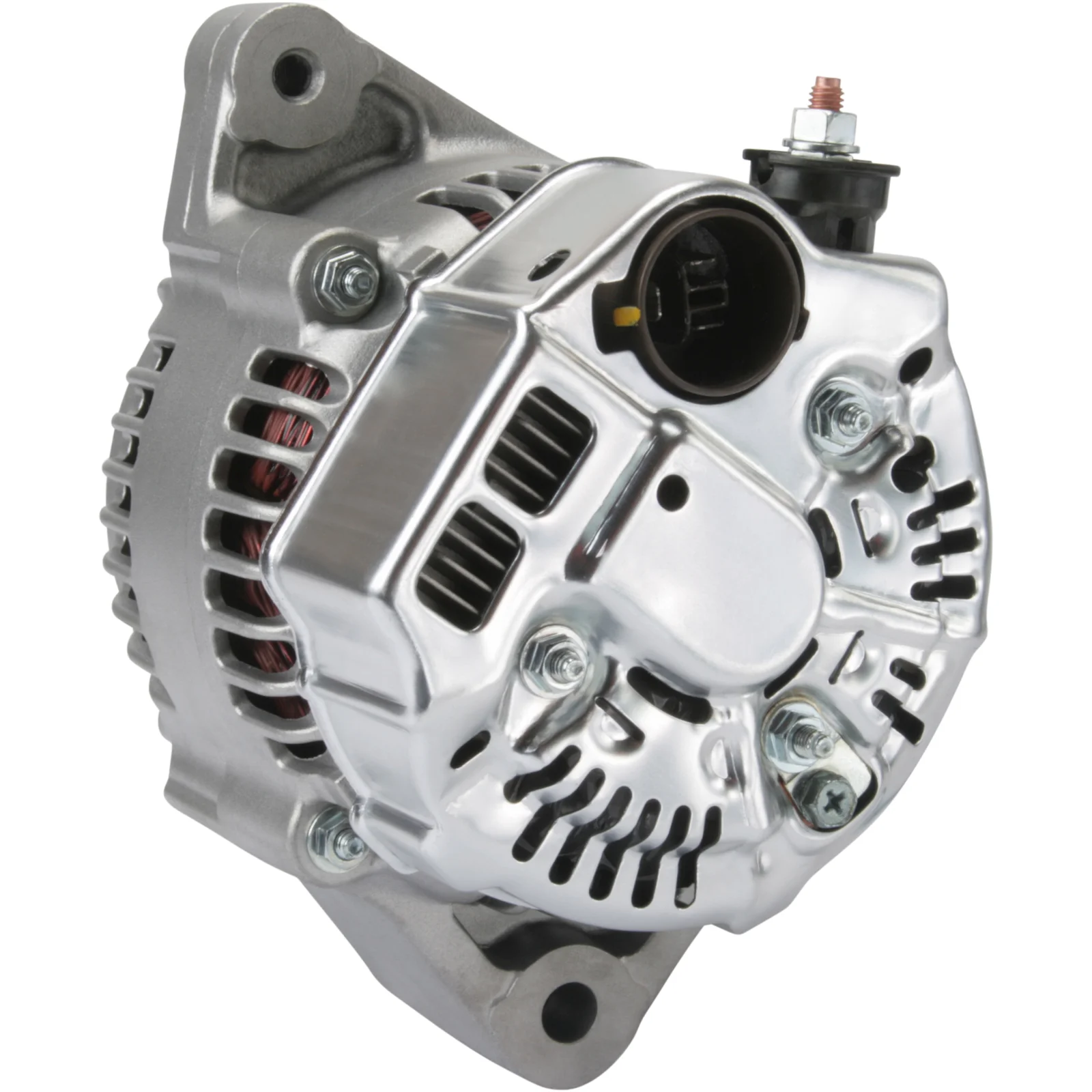

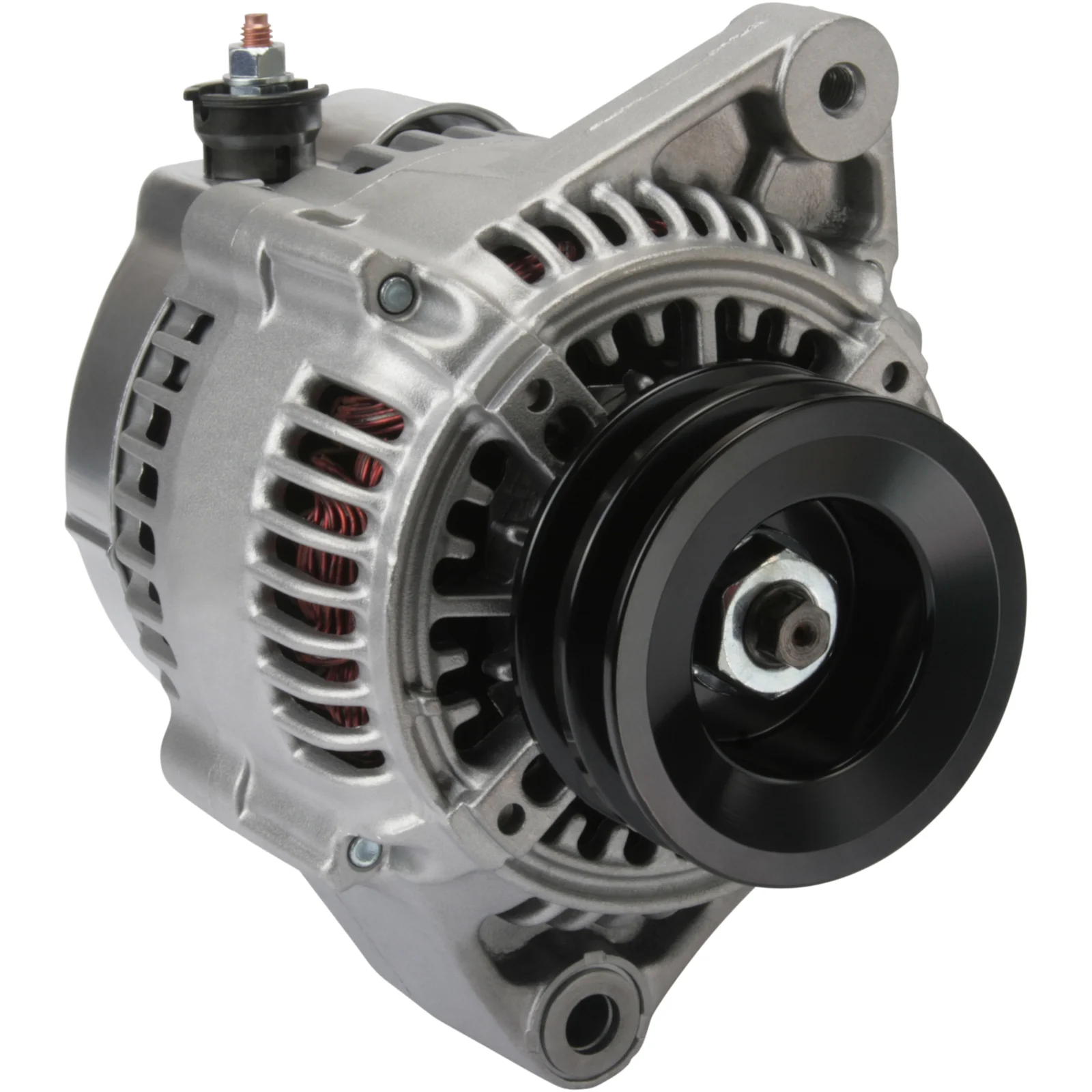

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111781

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley dia.: 79.50

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 92.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 79.50
Grooves/pulley: 2
Radius: 80.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 167.00
Pulley: DP
Regulator type: IR
Prod. info: Reman
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL12
Bracket hole 10.30
Position/B+ in min. 5
Prod. info Reman
Pulley DP
Pulley dia. 79.50
Pulley dist. 92.00
Radius 80.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Voltage 14
Total length 167.00 mm
Width/holder arm 58.00
Amp 80

  • OEM
    F032111781, 27060-17030, 100211-8410

  • Konkurrentreferens
    A6361, J5112091, LRA01859, 8el737482-001, 28-3717, 535.120.802, 5967, 119638, 401295RI, 12060589, 0986045921, 944390512910

  • Normaliserat artikelnummer
    a6361, f032111781, j5112091, lra01859, 8el737482001, 5967, 119638, 283717, 401295ri, 12060589, 535120802, 0986045921, 1002118410, 2706017030, 944390512910

  • Passar modeller
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 92.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 79.50
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 167.00
    Pulley: DP
    Regulator type: IR
    Prod. info: Reman
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL12
    Bracket hole 10.30
    Position/B+ in min. 5
    Prod. info Reman
    Pulley DP
    Pulley dia. 79.50
    Pulley dist. 92.00
    Radius 80.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 58.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032111781, 27060-17030, 100211-8410

    • Konkurrentreferens
      A6361, J5112091, LRA01859, 8el737482-001, 28-3717, 535.120.802, 5967, 119638, 401295RI, 12060589, 0986045921, 944390512910

    • Normaliserat artikelnummer
      a6361, f032111781, j5112091, lra01859, 8el737482001, 5967, 119638, 283717, 401295ri, 12060589, 535120802, 0986045921, 1002118410, 2706017030, 944390512910

    • Passar modeller
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
