Artikelnr: F032111712

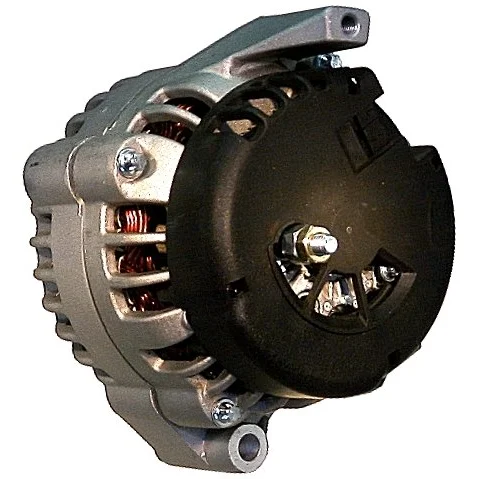

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 105, Rotation: CW, Pulley dia.: 56.50

Beskrivning

Voltage: 14
Amp: 105
Pulley dist.: 72.00
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 56.50
Grooves/pulley: 6
Radius: 82.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 1
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 175.00
Terminal type: S-I-L-P
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: Replacing: CS130D.

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 10
Plug no. PL122
Bracket hole 10.00
Position/B+ in min. 1
Prod. info BN
Pulley SP
Pulley dia. 56.50
Pulley dist. 72.00
Radius 82.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Remarks Replacing: CS130D.
Rotation CW
Grooves/pulley 6
Terminal type S-I-L-P
Voltage 14
Total length 175.00 mm
Width/holder arm 51.00
Amp 105

  • OEM
    F032111712, ua1538ir, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198

  • Konkurrentreferens
    A1006, AL8706X, ALT-1402, ALT1402, BAO3087, CAL12109, DRZ0196, F042300140, F042A00140, LRA01781, LRA02835, 1-1995-21DR, 1-1995-21DR-1, 1-1995-21DR-2, 1-1995-22DR, 1-2155-21DR, 20-1150-10, 20-1150-11, 28-3584, 28-4953, 528.131.1002, 528.162.1002, 8206-5, 8206N, 8206R, 8227, 8227-5, 8227N, 8227R, 501538RI, 908206, 12090141

  • Normaliserat artikelnummer
    a1006, al8706x, alt1402, bao3087, cal12109, drz0196, f032111712, f042300140, f042a00140, lra01781, lra02835, ua1538ir, 8206n, 8206r, 8227, 8227n, 8227r, 82065, 82275, 283584, 284953, 501538ri, 908206, 1199521dr, 1199521dr1, 1199521dr2, 1199522dr, 1215521dr, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198, 12090141, 20115010, 20115011, 5281311002, 5281621002

  • Passar modeller
    Chevrolet Model: Astro Model series: Astro Extended Cargo Van Model type: AWD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Astro Model series: Astro Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: C1500 Model series: C1500 Extended Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: Camaro Model series: Camaro Size of motor: 5.7 Brand of engine: LS1 Body: Coupe From date: 01-07-1998 To date: 01-12-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Express 1500 Standard Cargo Van Model series: Express 1500 Standard Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Express 2500 Extended Cargo Van Model series: Express 2500 Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Express Model series: Express Size of motor: 4.3 Body: Van From date: 01-10-1995 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Chevrolet Model: G10 Model series: G10 Model type: Express Size of motor: 4.3 Body: Van From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Chevrolet Model: G10 Model series: G10 Model type: Express Size of motor: 5.0 Body: Van From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Extended Cab Pickup Model series: S10 Extended Cab Pickup Model type: 4WD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Pickup Model series: S10 Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: S10 Standard Cab Pickup Model series: S10 Standard Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: Suburban Model series: Suburban Model type: 4WD Size of motor: 5.7 From date: 01-10-1996 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Size of motor: 4.3 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    GMC Model: Safari Model series: Safari Model type: XT Size of motor: 4.3 From date: 01-01-1992 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    GMC Model: Savana Model series: Savana 2500 Size of motor: 4.3 From date: 01-01-1996 Fuel: Gasoline Approved: Yes
    GMC Model: Sonoma Model series: Sonoma Size of motor: 4.3 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    GMC Model: Suburban Model series: Suburban Model type: AWD Type of engine: TDi Size of motor: 6.5 Brand of engine: L56 From date: 01-10-1993 To date: 01-09-1999 Fuel: Diesel Approved: Yes
    GMC Model: Suburban Model series: Suburban Size of motor: 5.7 Brand of engine: LO5 From date: 01-10-1991 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    GMC Model: Suburban Model series: Suburban Type of engine: TDi Size of motor: 6.5 Brand of engine: L56 From date: 01-10-1991 To date: 01-09-1999 Fuel: Diesel Approved: Yes
    GMC Model: Yukon Model series: Yukon Size of motor: 5.7 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Type of engine: Turbo Size of motor: 6.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 105
    Pulley dist.: 72.00
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 56.50
    Grooves/pulley: 6
    Radius: 82.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 1
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 175.00
    Terminal type: S-I-L-P
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: Replacing: CS130D.

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 10
    Plug no. PL122
    Bracket hole 10.00
    Position/B+ in min. 1
    Prod. info BN
    Pulley SP
    Pulley dia. 56.50
    Pulley dist. 72.00
    Radius 82.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Remarks Replacing: CS130D.
    Rotation CW
    Grooves/pulley 6
    Terminal type S-I-L-P
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 51.00
    Amp 105
  • Fordonsmatchning

    • OEM
      F032111712, ua1538ir, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198

    • Konkurrentreferens
      A1006, AL8706X, ALT-1402, ALT1402, BAO3087, CAL12109, DRZ0196, F042300140, F042A00140, LRA01781, LRA02835, 1-1995-21DR, 1-1995-21DR-1, 1-1995-21DR-2, 1-1995-22DR, 1-2155-21DR, 20-1150-10, 20-1150-11, 28-3584, 28-4953, 528.131.1002, 528.162.1002, 8206-5, 8206N, 8206R, 8227, 8227-5, 8227N, 8227R, 501538RI, 908206, 12090141

    • Normaliserat artikelnummer
      a1006, al8706x, alt1402, bao3087, cal12109, drz0196, f032111712, f042300140, f042a00140, lra01781, lra02835, ua1538ir, 8206n, 8206r, 8227, 8227n, 8227r, 82065, 82275, 283584, 284953, 501538ri, 908206, 1199521dr, 1199521dr1, 1199521dr2, 1199522dr, 1215521dr, 10463651, 10463652, 10463690, 10463940, 10480167, 10480168, 10480198, 12090141, 20115010, 20115011, 5281311002, 5281621002

    • Passar modeller
      Chevrolet Model: Astro Model series: Astro Extended Cargo Van Model type: AWD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
      Chevrolet Model: Astro Model series: Astro Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
      Chevrolet Model: C1500 Model series: C1500 Extended Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      Chevrolet Model: Camaro Model series: Camaro Size of motor: 5.7 Brand of engine: LS1 Body: Coupe From date: 01-07-1998 To date: 01-12-2002 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Express 1500 Standard Cargo Van Model series: Express 1500 Standard Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
      Chevrolet Model: Express 2500 Extended Cargo Van Model series: Express 2500 Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
      Chevrolet Model: Express Model series: Express Size of motor: 4.3 Body: Van From date: 01-10-1995 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Chevrolet Model: G10 Model series: G10 Model type: Express Size of motor: 4.3 Body: Van From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Chevrolet Model: G10 Model series: G10 Model type: Express Size of motor: 5.0 Body: Van From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Chevrolet Model: S10 Extended Cab Pickup Model series: S10 Extended Cab Pickup Model type: 4WD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Chevrolet Model: S10 Pickup Model series: S10 Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      Chevrolet Model: S10 Standard Cab Pickup Model series: S10 Standard Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
      Chevrolet Model: Suburban Model series: Suburban Model type: 4WD Size of motor: 5.7 From date: 01-10-1996 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
      GMC Model: Jimmy Model series: Jimmy Size of motor: 4.3 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      GMC Model: Safari Model series: Safari Model type: XT Size of motor: 4.3 From date: 01-01-1992 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      GMC Model: Savana Model series: Savana 2500 Size of motor: 4.3 From date: 01-01-1996 Fuel: Gasoline Approved: Yes
      GMC Model: Sonoma Model series: Sonoma Size of motor: 4.3 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      GMC Model: Suburban Model series: Suburban Model type: AWD Type of engine: TDi Size of motor: 6.5 Brand of engine: L56 From date: 01-10-1993 To date: 01-09-1999 Fuel: Diesel Approved: Yes
      GMC Model: Suburban Model series: Suburban Size of motor: 5.7 Brand of engine: LO5 From date: 01-10-1991 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      GMC Model: Suburban Model series: Suburban Type of engine: TDi Size of motor: 6.5 Brand of engine: L56 From date: 01-10-1991 To date: 01-09-1999 Fuel: Diesel Approved: Yes
      GMC Model: Yukon Model series: Yukon Size of motor: 5.7 From date: 01-01-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      GMC Model: Yukon Model series: Yukon Type of engine: Turbo Size of motor: 6.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Diesel Approved: Yes
