Artikelnr: F032111678

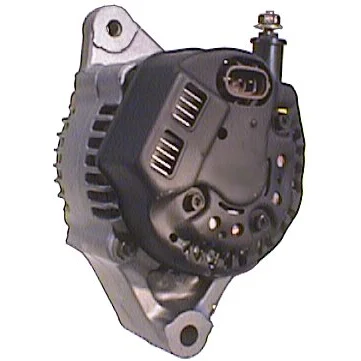

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Pulley dia.: 51.70

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 90.00
Width/holder arm: 58.30
Bracket hole: 10.20
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 51.70
Grooves/pulley: 4
Radius: 79.00
Radius 2: 74.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 145.00
Pulley: SP
Regulator type: IR
Prod. info: Reman
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL42
Bracket hole 10.20
Position/B+ in min. 5
Prod. info Reman
Pulley SP
Pulley dia. 51.70
Pulley dist. 90.00
Radius 79.00
D+ Size Plug
Radius 2 74.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 4
Voltage 14
Total length 145.00 mm
Width/holder arm 58.30
Amp 60

  • OEM
    F032111678, 27060-11250, 27060-11260, 101211-3030

  • Konkurrentreferens
    A6186, AL3247X, ALT-5020, ALT5020, CAL40596, dra3507, F042302005, F042A02005, LRA01959, 1-1840-01ND, 28-3855, 235.175.602, 13485, 13485N, 13485R, 119635, 401274RI, 12060715, 0986042991

  • Normaliserat artikelnummer
    a6186, al3247x, alt5020, cal40596, dra3507, f032111678, f042302005, f042a02005, lra01959, 13485, 13485n, 13485r, 119635, 283855, 401274ri, 1184001nd, 12060715, 235175602, 0986042991, 1012113030, 2706011250, 2706011260

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Hatchback From date: 01-08-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 Body: Estate From date: 01-07-1992 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 Body: Hatchback From date: 01-07-1992 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Model type: Convertible Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Convertible From date: 01-10-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Coupe From date: 01-08-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE,2E Type description: _P9_ Body: Hatchback From date: 01-11-1996 To date: 01-07-1999 Fuel: Petrol Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: DLX Size of motor: 1.5 Brand of engine: 3EE From date: 01-01-1990 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: DX Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: DX Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 60
    Pulley dist.: 90.00
    Width/holder arm: 58.30
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 51.70
    Grooves/pulley: 4
    Radius: 79.00
    Radius 2: 74.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 145.00
    Pulley: SP
    Regulator type: IR
    Prod. info: Reman
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL42
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info Reman
    Pulley SP
    Pulley dia. 51.70
    Pulley dist. 90.00
    Radius 79.00
    D+ Size Plug
    Radius 2 74.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 4
    Voltage 14
    Total length 145.00 mm
    Width/holder arm 58.30
    Amp 60
  • Fordonsmatchning

    • OEM
      F032111678, 27060-11250, 27060-11260, 101211-3030

    • Konkurrentreferens
      A6186, AL3247X, ALT-5020, ALT5020, CAL40596, dra3507, F042302005, F042A02005, LRA01959, 1-1840-01ND, 28-3855, 235.175.602, 13485, 13485N, 13485R, 119635, 401274RI, 12060715, 0986042991

    • Normaliserat artikelnummer
      a6186, al3247x, alt5020, cal40596, dra3507, f032111678, f042302005, f042a02005, lra01959, 13485, 13485n, 13485r, 119635, 283855, 401274ri, 1184001nd, 12060715, 235175602, 0986042991, 1012113030, 2706011250, 2706011260

    • Passar modeller
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Hatchback From date: 01-08-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 Body: Estate From date: 01-07-1992 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 Body: Hatchback From date: 01-07-1992 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E Type description: EE100 From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Model type: Convertible Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Convertible From date: 01-10-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Coupe From date: 01-08-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE,2E Type description: _P9_ Body: Hatchback From date: 01-11-1996 To date: 01-07-1999 Fuel: Petrol Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: DLX Size of motor: 1.5 Brand of engine: 3EE From date: 01-01-1990 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: DX Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: DX Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
